ENGINE AIR FILTER EMAK K2200 SERIES 1 L66151022
- Emak K2200 Series 1 engine air filter L66151022 with foam pre-filter for Oleo-Mac and Apache 92 Evo tractors. Provides clean air, more power, less combustion and longer engine life. Ideal for dusty gardens.
Air filter with pre-filter Oleo-Mac tractor OM 105/24 KH / OM 106/24 KH / OM 107L/24 KH / OM 124/24 KH / Apache 92 Evo
For Emak engines:
K2200
for the 04.2017 vintage.
What is the Emak K2200 Series 1 engine air filter L66151022 and why is it so important?
Emak K2200 Series 1 engine air filter L66151022 is a high-quality filter cartridge with foam pre-filter, designed specifically for Emak K2200 series engines used in Oleo-Mac and Apache garden tractors. Its task is to effectively clean the air sucked in by the engine from dust, dust, grass, sand and other contaminants, which in the conditions of working in the garden and on the lawn are present in huge quantities.
Regularly replaced air filter:
- protects the cylinder, piston and rings from wear caused by solid particles,
- ensures an optimal fuel-air mixture, which translates into power and even engine operation,
- reduces fuel consumption and emissions,
- extends the overall life of the engine and the entire garden tractor.
This is a low-cost consumable item that realistically determines the reliability of your machine during the mowing season.
Where the Emak K2200 Series 1 air filter is installed and which tractors it works with?
Emak K2200 Series 1 air filter L66151022 is mounted in the air filter housing located directly on the Emak K2200 gasoline engine. Depending on the model of the tractor, the filter is accessed by lifting the hood and removing the filter housing cover.
The product is designed to work with popular garden tractors and riders, such as:
- Oleo-Mac OM 105/24 KH,
- Oleo-Mac OM 106/24 KH,
- Oleo-Mac OM 107L/24 KH,
- Oleo-Mac OM 124/24 KH,
- Apache 92 Evo,
- other equipment equipped with Emak K2200 engine up to vintage 04.2017.
In practice, this means that one filter model supports a whole group of popular machines found both in home gardens and in utility companies or gardening services. Replacement is very simple - after removing the old cartridge, you just need to embed the new filter in the same place, paying attention to the correct positioning of the foam pre-filter and carefully closing the housing cover.
Daily use:
- during the mowing season on plots and private properties,
- in intensive work on large home lawns or playing fields,
- during service assignments, when the tractor operates almost daily and requires a reliable, dependable supply of clean air.
Air filter with pre-filter for Oleo-Mac OM 105/24 KH / 106/24 KH / 107L/24 KH / 124/24 KH / Apache 92 Evo - maximum protection in dusty conditions

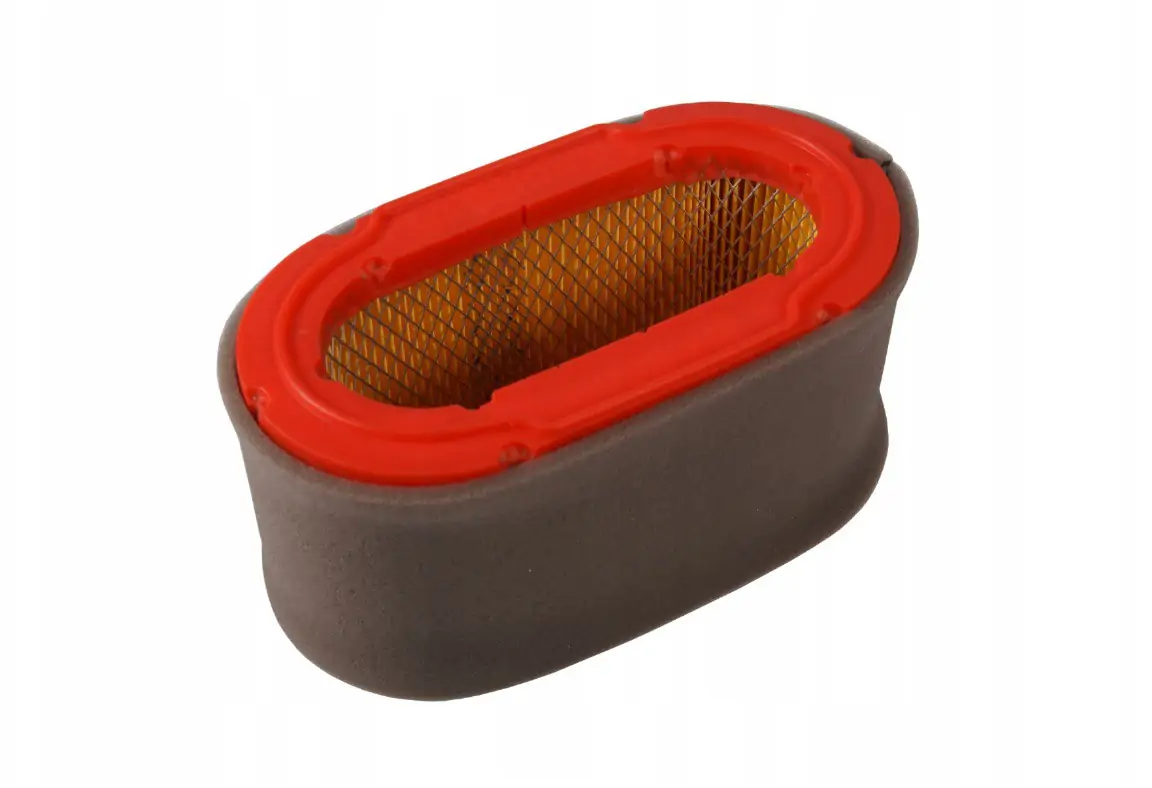

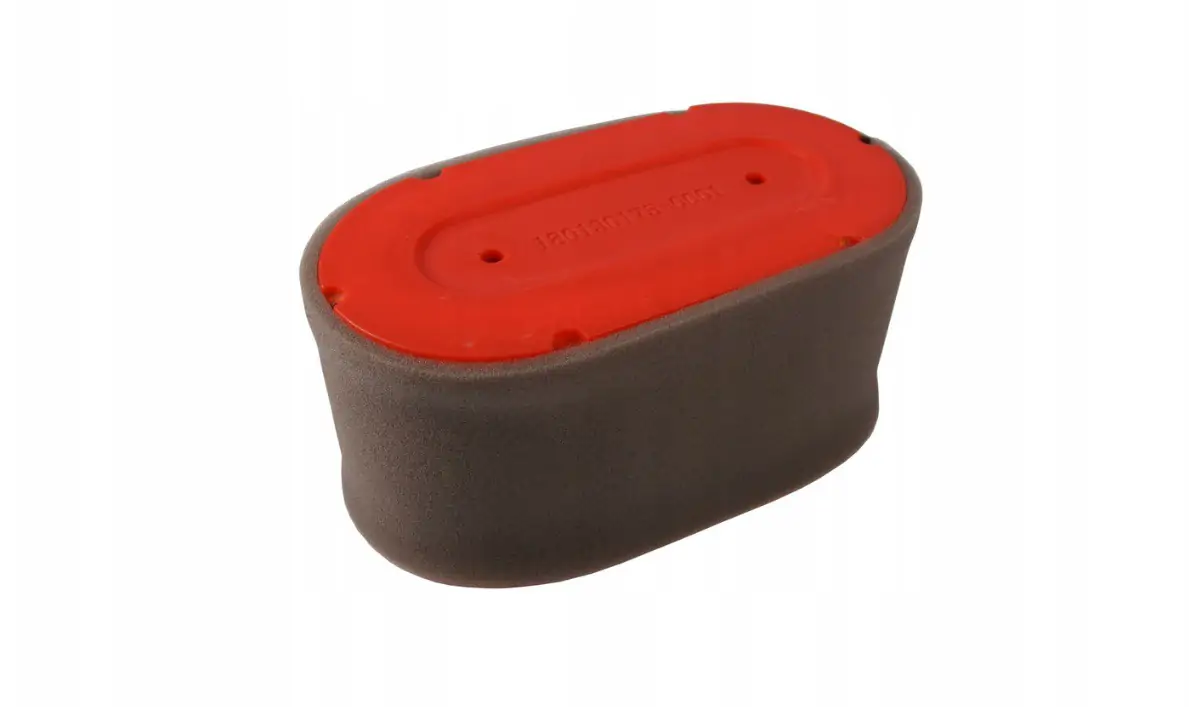

The filter set used in this model consists of two layers: a foam pre-filter and the actual filter cartridge reinforced with metal mesh. This solution ensures a high degree of dust retention while maintaining good airflow.
Key design features:
- Foam pre-filter - Captures the largest dirt particles (grass, insects, coarser dust), so the main cartridge does not clog up too quickly. In practice, this extends the life of the filter and allows for more frequent cleaning of the prefilter itself, such as blowing with compressed air or gentle flushing according to service recommendations.
- Filter cartridge with fine structure - retains fine, engine-hazardous contaminants that could scratch cylinder and piston surfaces, resulting in decreased power and increased oil consumption.
- Metal reinforcing mesh - protects the cartridge from deformation and mechanical damage, ensuring the stable shape of the filter even with intense vibration and high air flow.
This type of solution is great for everyday situations: mowing dry, dusty grass on hot days, working around curbs and gravel driveways, and on plots of land where fines of sand and soil often float around.
Durability, reliability and user benefits of Emak K2200 L66151022 filter tractor
When you invest in an original or high-quality replacement air filter Emak K2200 Series 1 L66151022, you gain tangible operational benefits:
- Longer engine life - effective air filtration minimizes the risk of seizure and premature wear of working elements, which translates into a longer period of trouble-free operation of the tractor.
- Higher power and stable operation - clean air allows the full potential of the Emak K2200 engine to be exploited, making the machine better able to cope in dense grass, on inclines or when starting and stopping frequently.
- Fuel savings - the right amount and quality of air in the fuel mixture reduces combustion, which with frequent operation during the season gives real savings.
- Lower service costs - The filter is one of the cheapest consumable components; regular replacement according to the manufacturer's recommendations avoids costly engine overhauls.
The filter is recommended both to individual users who value hassle-free mowing of their own gardens, and to gardening companies for which the continuity of equipment operation is crucial for the execution of orders.
Easy replacement of Emak K2200 air filter - step by step in practical application
Replacement of the air filter on Emak K2200 engines can be done by yourself, without specialized tools. It's a service activity that's worth performing at least once a season - and even more often if the working conditions are severe.
Example procedure (may vary in detail depending on the model of the tractor):
- Turn off the engine, apply the parking brake and wait for the engine to cool down completely.
- Lift the hood of the garden tractor, gaining access to the engine.
- Unscrew or detach the air filter housing cover.
- Remove the old filter along with the pre-filter, paying attention to the way it is arranged.
- Clean the inside of the case of dust and grass residues (for example, with a soft brush or compressed air).
- Insert a new air filter Emak K2200 Series 1 L66151022 in the same place, taking care to seal thoroughly.
- Close and secure the housing cover, lower the hood of the tractor.
Such prophylaxis works well in everyday use: before the mowing season begins, after intensive work in very dusty terrain, and after a prolonged period of storing the machine. Replacing the filter is quick, and its effect - in the form of better ignition, even operation and less smoke - can be felt almost immediately.
Application of Emak K2200 L66151022 air filter in practice - sample operating scenarios
The Emak K2200 Series 1 air filter L66151022 is designed for the typical but demanding working conditions in which garden tractors operate:
- Home gardens and allotments - Frequent mowing on lawns with an admixture of sand, dust from the street or soil from flowerbeds. The filter effectively protects the engine, even when the user mows next to gravel paths or driveways.
- Large estates, recreational and sports facilities - Work in vast areas where the tractor covers many kilometers a week. Adequate filtration allows the unit to maintain consistent power throughout the workday.
- Gardening and municipal services - intensive, almost daily operation, frequent transportation of the machine on a trailer, work in various locations with varying degrees of dustiness. Durable air filter ensures engine safety in the most demanding professional applications.
With a good fit for Emak K2200 engines (up to 04.2017 vintage), the user can be sure that the component used will not cause any performance degradation or installation problems.
Key features and benefits of Emak K2200 Series 1 engine air filter L66151022 - customer summary
- Dedicated to Emak K2200 engines (until 04.2017) used m.in. in Oleo-Mac OM 105/24 KH, OM 106/24 KH, OM 107L/24 KH, OM 124/24 KH and Apache 92 Evo tractors.
- Two-stage filtration system - foam pre-filter + main cartridge reinforced with metal mesh.
- High efficiency in retaining dirt typical of garden and lawn work.
- Improved engine performance, more stable operation and lower fuel consumption.
- Extended engine life and lower long-term service costs.
- Easy, quick replacement, can be done by yourself.
FAQ - Frequently asked questions about Emak K2200 Series 1 air filter L66151022
1. How often should you replace the air filter in the Emak K2200 engine??
It is recommended to change the air filter at least once per mowing season, or more often if the tractor operates in very dusty conditions (dry grass, sand, gravel). It is a good habit to regularly check the dirtiness of the filter every ten or so hours of operation.
2. Does this filter fit my Oleo-Mac tractor?
The filter is designed for Emak K2200 engines up to 04.2017, used m.in. in Oleo-Mac OM 105/24 KH, OM 106/24 KH, OM 107L/24 KH, OM 124/24 KH and Apache 92 Evo models. If in doubt, check the engine designation on the nameplate or in the tractor's owner's manual.
3. Can the filter be cleaned instead of replaced?
The foam prefilter can be gently cleaned (e.g., blown with compressed air), but the main filter cartridge is treated as a replaceable element. Over time, it wears down naturally and loses its filtering properties, so for the safety of the engine, it is recommended to replace it regularly.
4. Will filter replacement affect engine power?
Yes, replacing a worn, clogged filter with a new one usually results in improved engine performance: easier starting, stable revs and better tractor acceleration. The engine "breathes" full power, which is especially noticeable when mowing tall or damp grass.
5. Can I replace the air filter myself?
Yes, replacing the air filter Emak K2200 Series 1 L66151022 is one of the basic maintenance tasks that you can successfully perform on your own. Just follow the tractor's instruction manual - the whole operation usually takes a few minutes.
6. What happens if I use the tractor with a heavily soiled filter?
Driving with a clogged filter causes a loss of power, starting problems, increased fuel consumption, and in extreme cases can lead to serious engine damage. Therefore, replacing the filter is a simple and inexpensive way to avoid costly repairs.
