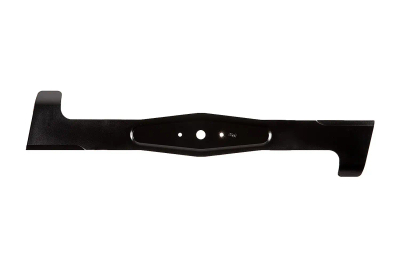

RIGHT KNIFE 620MM FOR OM124/124J/124JH/124S SERIES TRACTOR 68120046
- Right blade 620 mm 68120046 for OM124/124J/124JH/124S tractors with aluminum mower deck. Durable steel, precise balance, perfect fit of holes. Guarantees an even, aesthetically pleasing cut of grass. Ideal for gardens and green spaces.
Right blade 620 mm for OM124/124J/124JH/124S series tractor 68120046 is a high-quality, precision-made working component of the mower deck, designed for professional and home lawn care. Appropriate shape, length of 620 mm and a set of mounting holes make the blade perfectly compatible with the aluminum mower unit, ensuring even cutting of grass and reliable operation of the garden tractor.
length: 620 mm, width: 55.5 mm, Ø central hole 16 mm, Ø side hole 6 mm, distance between holes 75 mm; for tractor series OM124/124J/124JH/124S - for aluminum aggregate
What is the right knife 620 mm 68120046 for OM124/124J/124JH/124S series tractor?
The 620MM right-hand knife 68120046 is an original or fully compatible mower deck cutting component designed for OM124, OM124J, OM124JH and OM124S series garden tractors. It is a massive steel blade with a length of 620 mm and a width of 55.5 mm, dedicated to work with an aluminum mowing unit. Proper blade profile and balance ensure stable operation, minimal vibration and very good grass shredding.
A central hole with a diameter of 16 mm and a side hole with a diameter of 6 mm, with a distance of 75 mm between them, make it possible to quickly and securely mount the blade on the shaft of the mower unit. The right-hand knife indicates the direction of operation and the way the cutting blades are turned up - it is designed for a specific side of the aggregate, so it is important to use the right model.
In practice, this is the component responsible not only for cutting, but also for lifting and ejecting the cut grass into the basket or into the rear/external ejection, depending on the design of the tractor. Properly shaped knife edges create a strong airstream that lifts the blades of grass and guarantees an even cut.
Application and installation location of the 620MM right-hand knife in OM124/124J/124JH/124S tractors
Right blade 620 mm 68120046 installs directly into the aluminum mower deck of OM124/124J/124JH/124S series tractors. This is the working element that works with the gearbox and drive shaft, responsible for the precise cutting of the grass at the set height. Proper seating of the blade-with respect for the direction of rotation and proper tightening of the mounting bolt-is crucial to the safe use and life of the entire cutting system.
Typical applications of the 620MM right-hand knife 68120046:
- Regular mowing of large home lawns - plots of several hundred to several thousand m², where even, fast and aesthetically pleasing mowing is important.
- Maintenance of green areas around companies and public facilities - Parking lots, company yards, playgrounds, squares, where the garden tractor works often and intensively.
- Work in orchards and recreational areas - mowing between rows of trees, near gazebos, in campgrounds or resorts.
The blade is designed for standard mowing conditions: dry or slightly damp grass, height adapted to the capabilities of the tractor. Thanks to its high-quality steel and properly prepared cutting edge, the blade can handle both fine, low turf and slightly taller grass in less regularly mowed areas.
Key advantages of 620MM right-hand knife 68120046 - quality, durability and safety
Choosing the right cutting blade for a garden tractor has a direct impact on the quality of the cut, the safety of the operation and the operating costs of the equipment. The 620MM right-hand knife 68120046 is distinguished by several key features that any user will appreciate:
- High-quality structural steel - the knife is made of durable material resistant to impacts with small stones, twigs or uneven terrain. This keeps its geometry longer and does not deform during operation.
- Precise balancing - properly balanced blade minimizes vibration of the entire mower deck, which translates into operator comfort (less vibration on the steering wheel and seat) and less wear on bearings and other drive components.
- Properly shaped cutting edge - The blade profile ensures efficient cutting and pick-up of grass blades, so the lawn is even after mowing, without jagged ends, which promotes healthy turf regrowth.
In everyday use, this means that the user can:
- mow faster and correct unmowed sections less often,
- reduce the risk of failures resulting from excessive vibration or improper balancing,
- maintain an aesthetically pleasing lawn with less time and effort.
Right knife 620MM for OM124/124J/124JH/124S aluminum unit - fit and compatibility
The 620MM right-hand knife 68120046 is designed specifically to work with the aluminum mowing unit in OM124/124J/124JH/124S series tractors. This means that its dimensions and hole layout are closely matched to the factory design of these models, ensuring trouble-free installation and proper operation.
Key technical parameters:
- Overall length: 620 mm
- Width: 55.5 mm
- Center hole diameter: 16 mm
- Side hole diameter: 6 mm
- Distance between holes: 75 mm
- Purpose: oM124/124J/124JH/124S series tractors - aluminum mower deck
- Direction: right-hand knife
The use of a blade with exactly these dimensions eliminates the problem of mismatch, mounting clearances or collision with the aggregate housing. This is especially important when the tractor is working frequently and intensively - every millimeter matters for safety and durability.
Examples of situations in which matching is critical:
- regular mowing on uneven terrain - proper attachment of the blade reduces the risk of it coming loose after hitting an obstacle,
- grass catcher operation - proper air circulation, generated by a properly shaped blade, ensures efficient filling of the catcher and minimizes clogging of the channels,
- mowing near curbs, fences and trees - a well-fitted blade cuts all the way to the edge of the working area, leaving no unsightly strips of uncut grass.
Why replace a worn-out knife with a new model 68120046?
The operation of a garden tractor causes each blade to dull, microcrack or deform over time. This results in poorer cut quality, greater strain on the engine and the entire drivetrain, and increased fuel or energy consumption. Replacing a worn blade with a new 620MM right-hand blade 68120046 restores the mower deck to full operation.
Benefits of the exchange:
- Better cut quality - the grass is evenly cut, without fraying or tearing out the blades, which has a positive effect on the health of the turf.
- Less load on the tractor - sharp, well-balanced blade requires less power to operate, making the motor and gearbox run lighter.
- Greater security - lack of cracks and deformation minimizes the risk of a blade fragment breaking off while mowing.
Examples of daily use:
- spring refreshment of the lawn after winter - a new blade will quickly clean up overgrown, weakened grass,
- regular mowing during the summer season - an even cut makes it easier to maintain a low, dense turf,
- preparation of the property for important events - such as family celebrations, outdoor events, corporate meetings.
How to properly operate and maintain the 620MM right-hand tractor blade?
In order for the 620MM right-hand knife 68120046 to serve for as long as possible, it is worthwhile to ensure proper operation and basic maintenance. This will ensure that you maintain high quality cutting and safe operation for many seasons to come.
- Regularly check the condition of the blade - before the season and every few mowings it is a good idea to inspect the cutting edge, check for any chips, cracks and the degree of dullness.
- Knife sharpening - if the edge is dull, it is recommended to professionally sharpen with the original angle of attack and rebalance the knife after the procedure.
- Maintenance of cleanliness - after finishing mowing, it's a good idea to remove grass and soil residue from the blade and the unit, which reduces corrosion and improves airflow during subsequent work.
In practice, by applying these principles, the user can extend the life of the blade while maintaining high quality mowing on large acreages, such as around single-family homes, residences, boarding houses or commercial buildings.
Technical data - 620MM right-hand knife for OM124/124J/124JH/124S tractor 68120046
| Overall length | 620 mm |
| Width | 55.5 mm |
| Central hole diameter | 16 mm |
| Side opening diameter | 6 mm |
| Distance between holes | 75 mm |
| Destination | OM124/124J/124JH/124S series garden tractors - aluminum mowing unit |
| Type | Right-hand knife |
| Product code | 68120046 |
FAQ - Frequently asked questions about 620MM right-hand knife 68120046
Question 1: Will the 620MM right-hand knife 68120046 fit my tractor?
The blade is designed for OM124, OM124J, OM124JH and OM124S series garden tractors equipped with an aluminum mower deck. Before buying, it is worth comparing the dimensions of the old blade (length 620 mm, width 55.5 mm, hole diameters 16 mm and 6 mm, distance between holes 75 mm) and the part number with the data in the tractor manual.
Question 2: Can I use this knife interchangeably with the left-hand knife?
Not. The right-hand blade has a different direction of blade shape and is designed for a specific side of the mower deck. Using it in place of the left-hand blade can cause improper grass ejection, excessive vibration and even damage to the unit. Always install the knife as intended (right/left).
Question 3: How often should the blade in the tractor be replaced?
Frequency of replacement depends on the intensity of use and operating conditions. With typical household use (a dozen or so mowings per season), the knife can serve for several seasons, provided that it is sharpened regularly and its condition checked. If you notice obvious chipping, cracks, severe deformation or a balancing problem - the knife should be replaced immediately.
Question 4: Is the new knife factory sharpened?
Yes, the knife is supplied with a prepared cutting edge, ready to use after proper installation. It is not recommended to additionally sharpen a new knife before first use - it is more important to make sure it is properly screwed and centered.
Question 5: How to safely replace the blade in the tractor?
Before proceeding with the replacement, you should:
- turn off the engine and disconnect the spark plug wire (or power on electric models),
- place the tractor on a stable surface,
- block the rotation of the knife (for example, with a wooden slat),
- unscrew the mounting screw, remembering the order of the washers and spacers,
- install the new right knife 620MM 68120046 in the same position, tightening the screw with the recommended torque.
After replacement, it is advisable to briefly test the operation on a small area to ensure that the unit operates evenly, without excessive vibration and noise.
