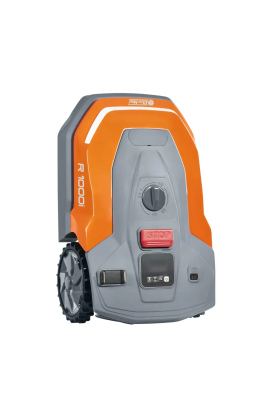

MOWING ROBOT R1000I 67049001S2

R1000I mowing robot 67049001S2 is an advanced, fully automatic garden mower designed for lawns up to 1000 m². The device autonomously moves around the garden in a designated zone, cuts the grass to a preset height, and returns to the docking station when the work is finished or the battery charge drops. With intelligent modes, smartphone connectivity and high weather resistance, it provides a perfectly manicured lawn with minimal user involvement.

Where the R1000I mowing robot is assembled?
The R1000I mowing robot is mounted in the garden within the lawn, running along the edge of the lawn boundary wire (included) and by installing a charging station in a convenient place - usually at the edge of the lawn, near the power outlet. The station acts as a garage and a reference point for the robot. Once the installation is done correctly once, the robot takes care of the mowing on its own, avoiding flowerbeds, paths and other garden features.

Application of the R1000I mowing robot 67049001S2
The R1000I model will be perfect for:

• home lawns up to 1,000 sq. m,
• estate gardens and housing communities,
• areas around summer houses, where maintenance-free care is important,
• gardens with narrow passageways, constrictions and zones of varying grass height,
• areas with slopes of up to 36%, where ordinary mowers have limited effectiveness.

Oleo-Mac R1000I mowing robot - maximum convenience and full automation of garden work

The R 1000i mowing robot is designed to work efficiently on green spaces of up to 1,000 m². With Flex Cut mode, it automatically detects areas with tall grass, slowing the robot's speed to ensure even mowing and avoid overloading the motor. The model is also equipped with a removable and easily rechargeable lithium-ion battery with a capacity of 5 Ah, which provides long operating time and simplifies preparations for long-term storage.

• The robot automatically detects narrow passageways and finds its way through even the narrowest channels, instead of getting lost, stuck and running out of battery power.
• Flex Cut mode detects tall grass while mowing and reduces the ground speed accordingly, instead of increasing it when the disc blade is locked, thus ensuring even mowing.
• The firmware of the mowing robot can be easily updated via OTA (wireless) technology.
• Consistent mowing results across the entire lawn thanks to the ability to mow from five different remote starting points along the boundary wire, starting from the charging station.
• Battery charge threshold below which the mower returns to the charging station (30% of the battery).
• Maximum slope of 36% working.
• In addition to the docking station, the possibility of charging through an additional charger CRG200.

NOTE! Use only the following batteries: Bi 220, Bi 250 and CRG 200 charger.

	IPX5 rating (water protection) makes the robots a durable and reliable tool, as they can be used even in the harshest weather conditions. The cutting attachment can be washed directly in water.
A digital LED display shows what the robot is doing and allows easy troubleshooting by following the troubleshooting instructions in the app.
	Ultrasonic obstacle detection to increase the efficiency and safety of the mowing robot; the sensor (optional) can detect obstacles 10 cm wide and 15-20 cm high in front of the machine. 67040043
The mowing robot can be controlled directly from your smartphone: receive notifications in case of problems and send start/parking commands.
	Battery located on the back of the mower. Easy to use.
Spiral mowing can be used when mowing an area with tall grass: the robot works in this mode until the grass reaches a uniform height.
	Traction wheels available as an option. Robust metal wheels for working on inclines.

Technical specifications:

Precise and quiet lawn mowing - powerful induction motor and 3-blade system

Mowing robot R1000I has been equipped with an efficient induction motor with a speed of 3200 rpm./min, which ensures a high operating culture and long life without the need for frequent maintenance. Compared with simple brush motors, the induction unit is much more durable and resistant to stresses. As a result, the robot effectively handles even dense, lush grass, maintaining a smooth rotation and even cut.

The cutting system is formed by three rotating knives with a working width of 18 cm. Such a solution guarantees a very thorough, mulching mowing - the cut grass is shredded and falls deep into the turf, acting as a natural fertilizer. As a result, the lawn becomes dense, flexible and intensely green, without the need to dispose of grass clippings or apply additional fertilizers.

The cutting height can be adjusted in four stages: 30, 40, 50 and 60 mm. This allows you to match the appearance of your lawn to your preferences and weather conditions. During periods of hot weather, you can leave the grass slightly higher (50-60 mm), protecting the soil from drying out, while during intensive vegetation, choose a lower setting (30-40 mm), achieving a "carpet" effect in front of the house.

Operating noise of only 62 dB(A) makes the robot virtually inaudible from inside the house. You can have the mowing done early in the morning or late in the evening without disturbing household members or neighbors. It is an ideal solution for single-family housing and estates, where a high culture of equipment operation is required.

Intelligent operating modes - Flex Cut, spiral mowing and narrow aisle handling

One of the key advantages of the mowing robot R1000I 67049001S2 are advanced operating modes, which provide perfect cutting results in all conditions. Mode Flex Cut automatically recognizes sections of lawn with taller grass and slows down the driving speed of the robot, so that the blades can accurately cut the blade without overloading the motor. This ensures that mowing is even and the device remains fully operational for many seasons.

In addition, the robot can perform spiral mowing, particularly useful in areas with fast-growing grass, such as near sprinklers, near compost piles or in areas where the lawn is particularly fertile. After entering such a zone, the robot goes into spiral mode and works until the height of the turf is level with the rest of the garden.

The R1000I was also designed with the narrow passageways and constrictions. Intelligent software analyzes the signal of the restraining wire, allowing the robot to find its way even in the tightest channels between flowerbeds, walls or landscaping elements. Instead of getting lost and wasting energy on pointless maneuvers, the robot efficiently moves between zones, ensuring that the entire lawn is evenly mowed - even in hard-to-reach areas.

With the ability to set up to five remote starting points five remote starting points along the boundary wire, the operator can indicate specific sections from which the robot is to start work. This allows, for example, to prioritize mowing the parts of the lawn visible from the terrace or entrance to the house, so that they always look perfect.

Rugged IPX5 design - work in the rain and wash easily under running water

The body of the R1000I mowing robot is made of high-quality, impact- and weather-resistant plastic. Waterproof class IPX5 means that the device is protected from water jets, so it can also operate safely during rainfall. This is a huge advantage in our climate, where the weather can be changeable and heavy rainfall often interrupts traditional mowing.

Thanks to its increased water resistance the cutting attachment can be washed directly under running water. This makes it easy to keep the robot clean - just turn the unit over after the season is over or after a few cycles of operation (according to the safety instructions), rinse off any residual grass and dry it off. Clean cutting system means longer blade life and better mowing quality.

The robot can also handle on slopes of up to 36%, therefore, it will work well in gardens with slopes, gentle hills or an undulating lawn surface. Optional metal traction wheels further improve grip on steep and slippery passages, increasing safety and maneuvering precision.

Convenient control and safety - smartphone app, LED display and sensors

The R1000I mowing robot offers state-of-the-art remote control via smartphone. When connected to a dedicated app, the user gains the ability to:

• remote start and stop of the robot,
• sending a parking command to the docking station,
• receive error and event notifications,
• easy monitoring of the device status.

Digital LED display placed on the housing shows the current operating status of the robot and guides the user step by step in case of faults. Combined with the instructions in the app, troubleshooting common problems is easy even for people who have no prior experience with mowing robots.

Optionally available ultrasonic sensor (No. 67040043) increases safety during operation by detecting obstacles in front of the robot that are at least 10 cm wide and 15-20 cm high. The robot can slow down or change direction in time, reducing the risk of contact with an obstacle. This is especially important in gardens where children play or pets roam freely.

There was also no shortage of classic safety features: large STOP button allows you to stop the robot immediately, and lifting the device automatically shuts down the cutting system. This makes the use of the robot safe for the user, household members and the environment.

Long battery life and flexible charging - Bi 250 5.0 Ah battery pack

Included with the R1000I mowing robot is the following bi 250 lithium-ion battery with a capacity of 5.0 Ah. Modern Li-Ion technology ensures long life cycle, no memory effect and stable performance even after many seasons of use. On a single charge, the robot can run for up to 160 minutes, which, combined with automatic return to the charging station, allows for systematic, even mowing of the entire area of up to 1,000 m².

The robot monitors the battery level and when it drops below about 30% automatically returns to the docking station. It is also possible to charge via additional charger CRG200 (off-station), which makes it easier to handle during extended robot storage or service situations.

The location of the battery on the back of the device makes removal and installation convenient and intuitive. This is important, for example, if you need to store the batteries in a dry, warm place outside the winter season, when the robot stands in the garage or utility room.

Easy installation, full mounting kit and stable operation on any lawn

The R1000I mowing robot is supplied as a complete set, ready for commissioning after installation. The package includes:

• r1000I mowing robot,
• bi 250 5.0 Ah battery,
• restraining cable with a length of 150 m,
• 190 pins for fixing the cable in the ground,
• charging station with power supply,
• mounting hardware and instruction manual.

As a result, the user does not need to complete additional accessories - just plan the route of the boundary wire along the edges of the lawn, flowerbeds and obstacles, drive the pins and connect the charging station. The robot weighs only 9.4 kg, which makes it easy to carry, transport and seasonally store.

Stable, wide wheels provide confident handling on a variety of surfaces - from compact, short grass to softer, wetter soil. Optional metal wheels significantly improve traction on slopes and terrains with higher humidity, so that the robot maintains the correct trajectory and does not leave ruts.

Modern design, compact size and practical design details

In addition to its advanced technical features, the R1000I mowing robot stands out for its modern, dynamic design. The combination of orange and gray colors makes the device look professional and aesthetically pleasing in any garden. Compact dimensions 562 x 360 x 230 mm allow free maneuvering between flowerbeds, shrubs or garden furniture.

Thoughtful details, such as clear pictograms on the control panel, a large STOP button, ergonomic knob for adjusting the cutting height or a comfortable lifting handle, make the operation of the robot intuitive, even for those who use this type of equipment for the first time. The rear panel with the battery and charging ports is well protected against accidental opening.

The compact form also allows the robot to be conveniently stored during the off-season - it will fit easily in the garage, a cell or on a shelf in the utility room. Light weight makes it easy to carry and transport, such as when you want to take the robot to a vacation plot.

OTA software and expandability - a mowing robot ready for the future

The R1000I has the ability to oTA firmware update (Over The Air). This means that the manufacturer can share new features, mowing algorithm improvements or security patches, and the user will install them wirelessly, without having to send the device back to the service center. This is an important asset for long-term operation - the robot "evolves" with the software.

The model also offers the option of to extend the functionality through additional accessories such as an ultrasonic obstacle sensor or metal traction wheels. This allows you to adapt the robot to the specific conditions of your garden, increasing the safety and efficiency of your work.

The use of high-quality components and a branded battery makes the R1000I mowing robot a an investment for years. The device is ideally suited to the trend of automating household chores and being environmentally conscious - regular, gentle mowing reduces the need for fertilizers, and the electric drive eliminates the exhaust emissions and noise characteristic of traditional petrol mowers.

Why choose the R1000I 67049001S2 robotic mower for your garden?

When you choose the R1000I mowing robot, you get a modern, reliable tool, which replaces the traditional lawn mower and allows you to enjoy a perfectly trimmed lawn every day. Key user benefits include:

• Saving time - The robot independently mows the lawn, and you can spend your time relaxing or doing other chores.
• Better lawn condition - frequent, gentle mowing and mulching improve the density and color of the turf.
• Quiet operation - noise level of 62 dB(A) allows mowing at any time of the day.
• Security - Advanced sensors, large STOP button, software upgradeable.
• Weather resistance - IPX5 rating allows for operation even in the rain and easy underwater cleaning.
• Configuration flexibility - Adjustable cutting height, starting points, Flex Cut mode and spiral mowing.
• Convenience of use - Smartphone control and notifications, easy-to-read LED display.

Key specifications of the R1000I 67049001S2 mowing robot

• Work surface: up to 1000 m²
• Engine: induction, 3200 rpm./min
• Battery: Bi 250, Li-Ion 5.0 Ah (compatible: Bi 220, Bi 250)
• Operating time on a single charge: up to 160 min
• Cutting height: 30 / 40 / 50 / 60 mm
• Cutting width: 18 cm
• Cutting system: 3 rotary knives
• Weight: 9.4 kg
• Dimensions: 562 x 360 x 230 mm
• Waterproof class: IPX5
• Maximum working slope: 36%
• Noise level: 62 dB(A)
• Standard equipment: bi 250 5.0 Ah battery, 150 m restraining cable, 190 mounting studs, charging station
• Possibility of charging with an external charger: CRG200
• Software Update: OTA (wireless)

FAQ - Frequently asked questions about the R1000I mowing robot 67049001S2

1. On which surface will the R1000I mowing robot perform best?
The R1000I is designed to automatically mow lawns of up to 1000 m². It can also work on smaller gardens, where it will provide perfect, regular maintenance without user involvement.

2. Can the robot work in the rain?
Yes. Thanks to its waterproof rating IPX5 the robot is resistant to water jets and can continue mowing even during rainfall. The body and cutting system are protected from moisture, and the cutting cap can be cleaned under running water.

3. How often do you need to sharpen or replace knives?
The frequency of blade replacement depends on the intensity of use and working conditions (presence of stones, branches, etc.).). In typical use, it is recommended to check the condition of the blades every few weeks and replace them every season or more often if the quality of the cut noticeably deteriorates.

4. Can the robot cope with sloping terrain?
Yes. The R1000I mowing robot can work on inclines of up to 36%. In gardens with larger slopes, consider the use of optional metal traction wheels, that improve traction.

5. Does the robot need a restraining wire to operate?
Yes. Restriction wire is necessary to demarcate the robot's work area and protect flowerbeds, paths or zones where it should not mow. The kit includes 150m of cable and 190 pins fixing.

6. How to control a robot - do you need a special app?
The robot can be managed both from a panel on the housing and via an smartphone app. The application allows you to start and stop work, send parking commands and receive notifications of any problems.

7. What happens when the battery level is low?
When the battery charge level drops below the set threshold (approx. 30%) the robot automatically stops mowing and returns to the charging station. After replenishing energy, it can continue to work according to the programmed schedule.

8. Is the robot safe for children and animals?
Yes, the device is equipped with a number of safety features: lift sensors, crash sensors, optional ultrasonic sensor obstacle detection and a large STOP button on the housing. When the robot is lifted, the cutting system automatically stops.

9. How to prepare a robot for winter storage?
At the end of the season, clean the robot thoroughly, especially the area around the blades and wheels, dry it, and then store it in a dry, covered place. It is a good idea to store the battery separately, at a positive temperature, according to the manufacturer's recommendations.

10. Can you update the robot's software yourself?
Yes. Thanks to technology OTA (Over The Air) the robot's internal software can be updated wirelessly, without the need for a service visit. This allows you to take advantage of the latest features and improvements being prepared by the manufacturer.
