MOWING ROBOT R500I 67049001S1
- Oleo-Mac R500i robotic mower (67049001S1) is a smart mower for lawns up to 500 m². Quiet 62 dB operation, 80 min mowing time, smartphone control, IPX5, 3 blades and 4-stage cutting height adjustment.
Oleo-Mac R 500i mowing robot - what it is and who it is for?
R 500i mowing robot is a fully automatic garden mower designed for lawns up to 500 m². Thanks to its compact design and low weight, it can mow even in hard-to-reach places - along flowerbeds, near hedges, around trees or landscaping elements. This is a modern device that, once programmed, takes care of the lawn on its own, allowing the garden owner to focus on relaxing.
The heart of the robot is a powerful 3200 rpm induction motor./min, cooperating with a disc with three rotary knives. Working width 18 cm and cutting height can be set in four ranges 30-40-50-60 mm make the R 500i ideal for both carpet lawns and utility lawns - around single-family homes, on recreational plots or in backyard terraced gardens.
The robot automatically detects narrow passageways and finds the optimal route without the risk of getting stuck or draining the battery. In gardens with hedges, flower beds or other obstacles, you can further enhance its performance and safety by installing an optional ultrasonic sensor, which detects objects in the robot's path, allowing it to follow a more precise and efficient route.
Application example: the owner of a small garden next to a single-family house sets the robot's work schedule for a few days a week in the afternoon. The R 500i autonomously sets off from the charging station, mows the entire area, and returns to recharge when finished or when the battery level drops. The lawn is always well-groomed, and the householder does not waste time on traditional mowing.
Where the R500i mowing robot is mounted and what the installation looks like?
R500i mowing robot 67049001S1 works within the area designated border wire. This wire is laid along the borders of lawns, flowerbeds, paths or ponds - it can be fixed to the ground with pegs or shallowly buried. The kit includes 120m of cable and 150 pins, which is more than enough for a standard garden of up to 500 m².

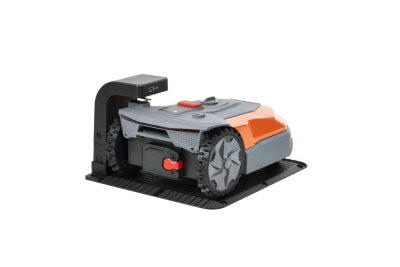

The central point of the system is the charging station, which is mounted on a flat part of the lawn, as close as possible to the power outlet. It is from here that the robot starts work and to which it automatically returns when the battery charge drops below 30%. As a result, the user does not have to remember to manually recharge the device - the whole process is automatic.
In addition to the docking station, it is also possible to charge the robot with an additional charger CRG200. This solution is especially convenient for those who have two separate lawns or who want to recharge the battery in the garage or utility room.
Application example: recreational plot with two separate sections of lawn - by the house and by the gazebo. The main charging station is located at the house, while the optional CRG200 charger is used in the gazebo. The user easily moves the robot between parts of the garden, maintaining full mobility of the device.
Application of the R500i mowing robot - convenience, precision and safety on a daily basis
The R 500i is designed for users who want maintenance-free, quiet and precise mowing. Operating time on a single charge is approx. 80 minutes, which, combined with the automatic return to the station, ensures effective maintenance of the set grass height over the entire area.
- Automatic detection of narrow passages - The robot finds its own way even through the narrowest channels, instead of getting lost, getting stuck and running out of battery power. Ideal for gardens divided by paths, flowerbeds and plantings.
- Flex Cut mode - detects tall grass while mowing and reduces the travel speed accordingly, instead of increasing it when the disc blade is blocked. This ensures even mowing without leaving "clumps" and without putting undue strain on the cutting system.
- Spiral mowing - in areas with extremely tall grass, the robot goes into spiral mode and mows until the surface is level, making it easier to bring neglected sections of the lawn into perfect condition.
Thanks to guaranteed sound power of only 62 dB(A), the robot works very quietly - you can run it even in the evening, without worrying about disturbing household members or neighbors. It is an excellent choice for densely built-up estates where acoustic comfort is important.
Application example: a family with young children uses the garden mainly on weekends. R 500i is programmed to operate on weekday mornings. Low noise and automatic operation ensure an always even, well-groomed lawn, without the need for free time to mow.
Technology and operational safety of the Oleo-Mac R 500i mowing robot
The R 500i mowing robot is equipped with a number of technological solutions that increase the safety, efficiency and durability of the device:
- Firmware updated OTA - The robot can receive updates wirelessly (Over The Air), so it always benefits from the latest manufacturer's features and fixes, without the need to visit the service center.
- Up to five remote starting points - the ability to define as many as five starting points along the boundary wire (starting from the charging station) ensures consistent, even mowing results across the entire lawn, including remote corners of the garden.
- Ultrasonic obstacle detection (optional) - optional sensor can detect obstacles from 10 cm wide and 15-20 cm high in front of the machine. Such a feature minimizes the risk of collision with pots, toys, low walls or garden furniture.
The body of the robot meets the standard IPX5, which means high resistance to water. The robot can work even in harsh weather conditions, and the the cutting attachment can be washed directly with water, which makes it much easier to keep the device clean.
In addition, the robot can work on inclines with maximum working slope of 36%, which makes it also suitable for gardens with hilly terrain. For even better traction, the manufacturer offers as an optionally, solid metal traction wheels, ideal for working on more demanding inclines.
NOTE! Use only the following batteries: Bi 220, Bi 250 and cRG 200 loaders. The use of non-original batteries or chargers may void the warranty and impair safety of use.
Convenience of use - smartphone control, clear display and easy access to the battery
The R 500i mowing robot is designed for maximum ease of use. Digital LED display located on the body shows what the robot is currently doing, and allows easy troubleshooting by following the troubleshooting instructions in the app.
The mowing robot can be controlled directly from smartphone: the user receives notifications in case of problems (e.g., robot locking up, low battery), and can send commands to start, stop or park. This form of service will be especially appreciated by people who are often away from home - they have constant control over the state of the lawn regardless of where they are.
The battery is located on the back of the mower. This makes it very easy to access, which greatly simplifies its removal, recharging and eventual replacement. This solution translates into faster service and less user effort.
Application example: homeowner goes on vacation. Using a smartphone app, sets the robot's work schedule for the period of absence. In case of a possible mistake, he receives a notification, and when he returns, he finds a perfectly trimmed lawn, without having to catch up with it.
Durability, build quality and daily operation of the R500i mowing robot
R 500i weighs only 9.4 kg, which, combined with the compact dimensions 562 × 360 × 230 mm allows it to maneuver easily in narrow spaces. Despite its light weight, the robot is characterized by a robust design, resistant to the hardships of daily outdoor use.

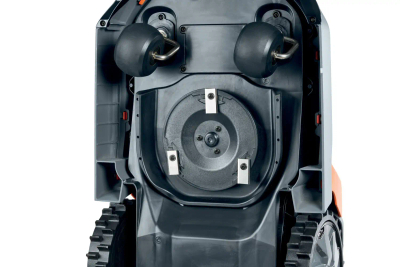

Central cutting height adjustment allows the robot to quickly adapt to the current weather conditions and season - lower mowing in summer, higher mowing in hot weather or at the end of the season. Three sharp knives cutters provide a clean, precise cut that promotes healthy grass compaction.
Thanks to its waterproof rating IPX5 the robot is resistant to splashes of rain or water spray, so it can work even in less favorable weather. The cutting attachment can be washed directly in water, which greatly facilitates the hygiene of the device and prolongs the life of the working parts.
Example of use: after an intensive period of mowing, the user reverses the robot, removes the blades and washes the cutting chamber with a garden hose. Removes accumulated grass and dirt in minutes, without the need for specialized cleaners.
Oleo-Mac R500i mowing robot - stable guidance and efficient operation on inclines
Maximum working slope 36% enables the robot to work effectively on diverse terrain. Large, contoured wheels provide very good traction, and optional metal traction wheels further enhance stability on slopes and unevenness. This is especially important in gardens located on slopes or near embankments.
The robot's navigation algorithms take into account both terrain and fixed obstacles. As a result, the R 500i rarely requires user intervention - once the boundary cable is properly installed, the robot can handle most situations on its own.
Application example: a house with a terrace garden divided into several levels connected by gentle slopes. The robot works in automatic mode, negotiating uphill and downhill areas without leaving uncut lanes on the transitions between levels. The user gains the effect of an evenly trimmed, presentable lawn throughout the plot.
Technical specifications of the R500i mowing robot 67049001S1
| Model | Oleo-Mac R 500i mowing robot |
| Work surface | up to 500 m² |
| Engine type | inductive - 3200 rpm./min |
| Cutting width | 18 cm |
| Cutting height | 30 / 40 / 50 / 60 mm (center adjustment) |
| Cutting system | shield with 3 knives |
| Operating time on a single charge | about. 80 min |
| Rechargeable battery included | Bi 220 (2.0 Ah) |
| Standard equipment | bi 220 battery, 120 m boundary cable, 150 mounting pins |
| Degree of protection | IPX5 - water resistant, the cutting cap can be washed |
| Sound power guaranteed | 62 dB(A) |
| Maximum working inclination | 36% |
| Weight | 9.4 kg |
| Dimensions (L. × width. × height.) | 562 × 360 × 230 mm |
| Charging | docking station + ability to charge via additional charger CRG200 |
| Recommended batteries | Bi 220, Bi 250 |
The most important advantages of the R500i mowing robot - why you should choose it?
- Full automation - Self-starting, mowing, returning to the station and charging, without user involvement.
- Efficient cutting system - three rotating blades, 18 cm wide and adjustable cutting height ensure perfectly even turf.
- Quiet operation - only 62 dB(A) guarantees comfort for household members and neighbors.
- Operation via smartphone - Convenient control of operating parameters, event notifications, remote startup and parking.
- Durable design - IPX5-rated body, water resistance, easy to clean components.
- Security - Obstacle detection (optional ultrasonic sensor), operation within cable limits, stable driving on inclines up to 36%.
- Flexible installation - 5 remote starting points, possibility to use additional charger CRG200, optional metal wheels.
FAQ - frequently asked questions about the R500i 67049001S1 mowing robot
1. What is the maximum lawn area the R500i mowing robot will handle?
The R 500i robot is designed for lawns up to 500 m². For larger gardens, you may want to consider using a robot with a higher capacity or dividing the area into zones served by different devices.
2. Can the robot cope with narrow passageways and the complicated shape of the garden?
Yes. R 500i automatically detects narrow passages and finds its way through even the narrowest channels. In addition, the ability to define up to five starting points along the boundary wire allows you to accurately mow even remote corners of the garden.
3. Can the robot work in the rain?
The body of the device meets the standard IPX5, which means high resistance to water. The robot can operate in light rainfall, and its cutting attachment can be washed with water. However, to extend the life of the equipment, it is recommended to avoid working in very heavy rain or on waterlogged ground.
4. How long does the robot mow on a single charge and what happens when the battery is drained?
Operating time on a single charge is approx. 80 minutes. When the battery charge level drops below about 30%, robot automatically returns to charging station. After refilling with energy, it can continue mowing according to the programmed schedule.
5. What batteries and chargers can I use in my R500i robot?
The manufacturer recommends using only rechargeable batteries Bi 220,Bi 250 and cRG 200 loaders. The use of other batteries may be dangerous and will void the warranty.
6. Do I need to sharpen or replace knives often?
The frequency of blade replacement depends on the intensity of use and the type of grass. For regular mowing in a typical garden, it is recommended to check the condition of the blades every few weeks or at the end of the season. Replacement is easy - just turn the robot over, unscrew the mounting screws and install the new blades.
7. Is the robot safe for children and animals?
Yes, the robot is equipped with a number of safety features. It works only in the area designated by the boundary wire, has lift and tilt sensors, and can be additionally equipped with an ultrasonic obstacle sensor. However, it is recommended that children and pets do not stay directly near the robot during operation.
8. Can I control the robot while away from home?
Yes. With smartphone connectivity, you can remotely start, stop or park the robot, as well as receive notifications of any errors. This is ideal for people who are often at work or on the go.
9. What the first installation of a robot in the garden looks like?
Installation consists of laying out the boundary wire along the edge of the lawn and around obstacles, attaching it with pegs, setting up the charging station, and performing a brief setup of the device. You can do the whole process yourself, using the included instructions, or have an authorized installer do it for you.
10. Does the R500i mowing robot require regular service?
Basic maintenance includes cleaning the housing and cutting chamber, periodic inspection of the blades, and checking the boundary wire. With OTA updates, the robot's software is continuously improved. It is also recommended to have a service inspection before the start of the next mowing season.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
