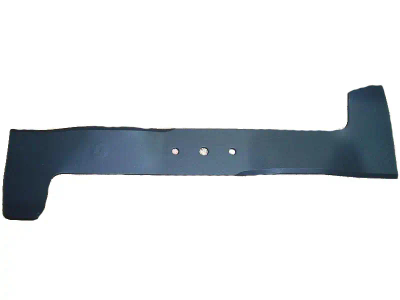

460MM BLADE FOR G48 / LR48 SERIES MOWER 66110594R
- 460MM blade for G48 / LR48 series mower 66110594R - durable, precision-balanced hardened steel blade. Guarantees an even, clean cut, less vibration, longer mower life and a perfect lawn.
460MM BLADE FOR G48 / LR48 SERIES MOWER 66110594R is a high-quality work piece designed for G48 and LR48 series mowers. It is directly responsible for the quality of grass cutting, the safety of operation and the durability of the entire machine. By replacing a worn or damaged blade with a new, original equivalent, you can restore your lawn mower to full working order, improve mowing efficiency and significantly reduce your gardening time.
Precise dimensions - length 460 mm, width 55 mm, central hole with a diameter of 10 mm and side holes with a diameter of 8 mm, while maintaining distance between holes 65 mm - guarantee proper fit and stable installation in dedicated models of G48 / LR48 series mowers. Solid steel and proper hardening process ensure long blade life, resistance to mechanical damage and even, clean cutting even in dense, wet grass.
Product Technical Description:
length: 460 mm, width: 55 mm, Ø central hole 10 mm, Ø side hole 8 mm, distance between holes 65 mm; for mower series G48 / LR48
Precision fit 460 mm blade for G48 / LR48 series mower - perfect cutting without vibration
460MM blade for G48 / LR48 series mower 66110594R has been designed specifically for the G48 and LR48 series, making its parameters perfectly in line with the manufacturer's requirements. Correct sizing ensures that the blade runs steadily after installation, without excessive vibration or oscillation that could lead to faster wear of bearings, drive shaft or mower housing.
In practice, this means that the user gets a blade that, when installed, retains the factory geometry of the cutting system. The mower with a properly selected blade does not "beat", does not jerk the grass, and the engine operates in the optimal speed range. When mowing a home lawn, the area around a single-family house or a small orchard, you get an even, aesthetic result without leaving clumps or "ragged" stalks.
Precise adjustment is especially important for regular mowing during the spring and summer seasons, when the mower is used every few days. Stable seating of the blade and its proper balance reduces the risk of damage to the machine even with intensive use over many hours.
Rugged steel and durable construction of the G48 / LR48 mower blade - an investment for many seasons to come
The 460 mm long blade is made of high quality steel, adapted to work in harsh garden conditions. During operation, the knife is exposed to sand, small stones, dry twigs or uneven ground. Therefore, it is important that the material is not only tough, but also resistant to impact and abrasion.
Proper hardening and balancing of the knife ensures that it retains its cutting properties for a long time, and possible sharpening can be done several times without any loss of performance. In everyday applications - such as mowing a recreational lawn, driveway greenbelts, flower bed edging or the area around a gazebo - the user is assured that the blade will not deform quickly and the cutting edges will remain smooth and precise.
Durable blade design also means lower operating costs of the mower. Instead of frequent replacements of cheap, unbalanced replacements, you can invest in a solid, well-fitted component that will last for many seasons of intensive gardening work.
How and where the 460MM 66110594R blade is installed on G48 / LR48 series mowers?
460MM blade for G48 / LR48 series mower 66110594R mounts on the drive shaft of the mower, directly under the body of the machine. The central hole with a diameter of 10 mm is used to seat the knife on the axle, while the two side holes with a diameter of 8 mm and the distance between them of 65 mm allow a secure fixing with original screws and washers.
In typical day-to-day situations, blade replacement on G48 / LR48 series mowers is as follows:
- disconnecting the ignition cable or removing the key (in the case of combustion models) and protecting the device from accidental startup,
- placing the mower on its side so that access to the blade is convenient and the air filter and carburetor are at the top,
- unscrewing the screws holding the old blade, removing the worn blade and cleaning the mounting socket,
- installation of a new knife 460 mm 66110594R according to the marking of the direction of rotation, adjust the holes and tighten the screws with the appropriate torque.
Proper installation translates into safe use: a well-screwed and balanced blade does not cause excessive vibration, does not loosen during operation and allows for stable, even mowing even at higher engine speeds.
Use of 460MM blade for G48 / LR48 series mower 66110594R in garden work
The presented blade is designed for g48 / LR48 series mowers used mainly for backyard landscaping and smaller and medium-sized green spaces. It works well for both regular mowing of a short-cut lawn and for slightly taller, dense grass after a few days of rainfall.
Examples of applications in daily practice:
- Lawn care by the house - even, clean cut improves turf condition, reduces the risk of yellowing of the tips and facilitates even regrowth of the grass.
- Maintenance of areas around farm buildings - The blade can handle slightly taller grass and small weeds, so that the driveway, paths or around the garage remain neatly groomed.
- Work in the recreational garden - When systematically mowing the children's playground, garden pool area or barbecue area, the new 460 mm blade provides an aesthetically pleasing look to the entire recreation area.
Regular replacement of a worn blade with a new one is also important for the health of the grass. A dull knife "jerks" the stalks more than it cuts them, which promotes disease and dry ends. The new 66110594R's well-sharpened blade ensures a smooth cut for a healthier, denser and intensely green lawn.
User benefits of choosing 460MM 66110594R blade for G48 / LR48 lawn mower
By selecting 460MM BLADE FOR G48 / LR48 SERIES MOWER 66110594R, you gain not only a well-fitting element, but above all a number of tangible benefits during your daily work in the garden:
- Better mowing quality - a blade with the right geometry cuts the grass evenly without leaving clumps, resulting in an aesthetically pleasing, uniform turf appearance.
- Shorter working time - Efficient blade allows for faster coverage of the entire lawn area, reducing the need to drive over the same spot repeatedly.
- Lower engine load - A well-balanced blade with a sharp edge requires less force to cut, so the engine runs more steadily, is quieter, and uses less fuel (on diesel models).
- User security - Robust material and proper attachment minimize the risk of knife breakage or loosening during operation.
- Longer life of the mower - reduced vibration and lower mechanical loads positively affect the life of bearings, shaft and other working components.
In practice, this means less time spent servicing the equipment and more time for comfortable, trouble-free use of the mower throughout the season.
Technical specifications of 460MM blade for G48 / LR48 series mower 66110594R
- Symbol / Product Code: 66110594R
- Overall length: 460 mm
- Width: 55 mm
- Center hole diameter: 10 mm
- Diameter of side holes: 8 mm
- Distance between holes: 65 mm
- Purpose: g48 / LR48 series mowers
- Application: mowing of backyard lawns, allotments, recreational areas and around buildings
With clearly defined technical parameters, you can easily verify whether the blade will be suitable for your mower. Before buying, it's a good idea to compare the dimensions with the blade you've used so far or the device manufacturer's instructions.
FAQ - Frequently asked questions about 460MM blade for G48 / LR48 series mower 66110594R
1. Will this blade fit any mower with a working width of 46 cm?
Not. The 460MM 66110594R blade is designed primarily for G48 / LR48 series mowers. The fit is determined not only by the length of the blade, but also by the diameter of the holes and the spacing of the mounts. It is always a good idea to compare the dimensions with the original knife or the technical documentation of the device.
2. How often should you replace the blade on your lawn mower?
Frequency of replacement depends on the intensity of use and operating conditions. When typically mowing a home lawn for several seasons, the blade may be sharpened several times. It needs to be replaced with a new one when it is excessively worn, warped, chipped or can no longer be balanced correctly.
3. Can you sharpen the knife yourself?
Yes, you can sharpen the lawnmower blade yourself, remembering to maintain the sharpening angle and to balance the blade afterwards. An unbalanced blade causes vibrations that can lead to damage to the mower. If you're inexperienced, it's a good idea to have your sharpening done by a professional service provider.
4. How to recognize that a knife is dull and needs sharpening or replacement?
Symptoms of a dull blade are frayed grass tips, poorer cutting quality, the need to go over the same spot several times, and louder engine operation. If after sharpening the results are still unsatisfactory or the blade is mechanically damaged, it is recommended to replace it.
5. Can I install a new 460MM 66110594R knife myself?
Yes, the installation can be done by yourself, as long as you follow the safety rules - unplug the power supply, stable positioning of the lawnmower, and use the right tools. If in doubt, you can seek the assistance of an authorized service provider.
6. Is this knife suitable for mowing very tall grass?
The 460MM blade for the G48 / LR48 series mower 66110594R is designed for standard lawn mowing. For very tall grass, it is advisable to mow in stages, gradually lowering the cutting height so as not to overload the engine and to maintain the quality of the end result.
