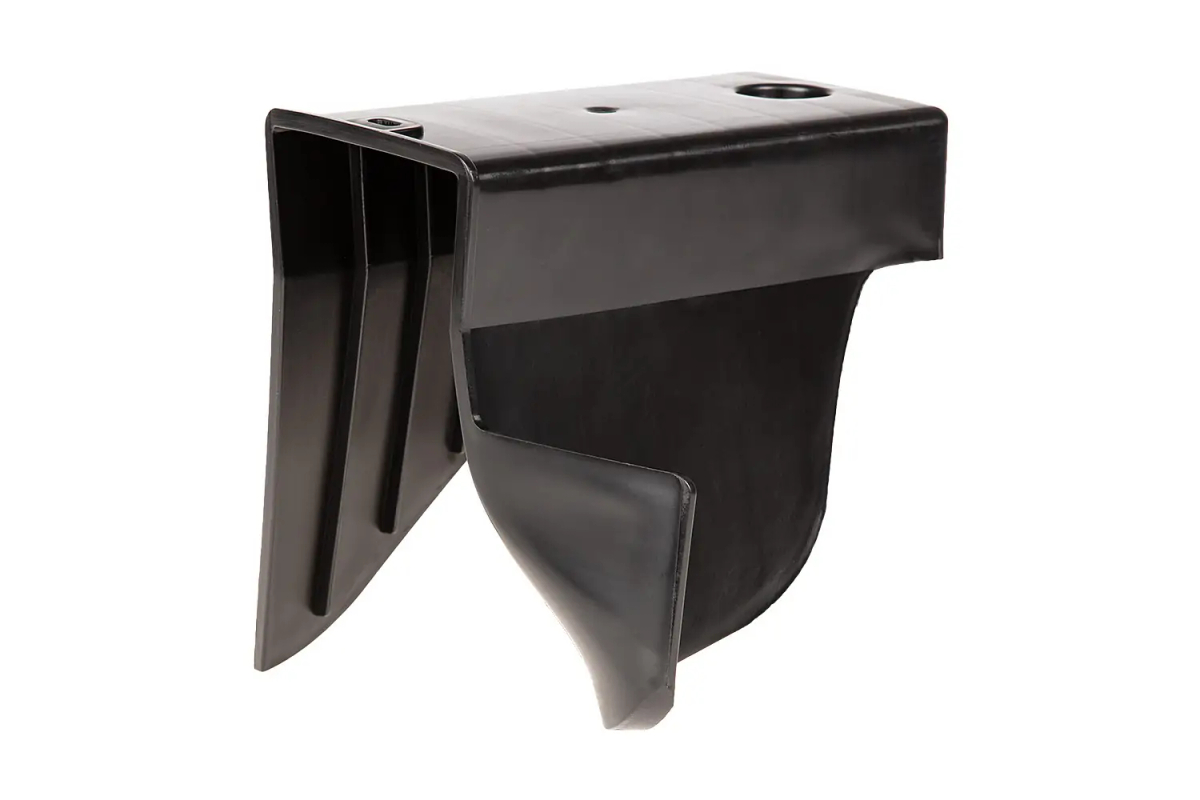

WHEEL BELT GUARD G 53 GV 53 66071090
- G 53 GV 53 WHEEL BAR PROTECTOR 66071090 is a heavy-duty, perfect-fit drive cover for G53TK, GMC53TK, GV53TK and GV25+ trowels. Protects the belt and pulleys from damage, dust and moisture, increasing operational safety and machine life
WHEEL BELT GUARD G 53 GV 53 66071090 is a high quality protective element designed to protect the drive system in G53 and GV53 series concrete trowels. It is a dedicated, design-fit guard designed to effectively protect the belt and pulleys from mechanical damage, dirt and external influences during intensive work on site.
Pasted manufacturer's description:
Wheel belt cover G53TK-TBX-THX/GMC53TK-TKE-TBX-THX/GV53TK-TBX/GV25+
By using this guard, you minimize the risk of downtime due to drive failures, increase operator safety and extend the life of the machine's working components. This is an inconspicuous, but key component for trouble-free operation of professional concrete trowels.
WHEEL BELT COVER G 53 GV 53 66071090 - what it is and why it is so important?
WHEEL BELT GUARD G 53 GV 53 66071090 is a specially designed, molded component made of durable plastic that covers and protects the drive belt and pulleys in concrete trowels compatible with the series: G53TK-TBX-THX, GMC53TK-TKE-TBX-THX, GV53TK-TBX and GV25+. Thanks to its precise fit to the shape of the machine, the guard effectively protects drive components from contact with the environment.
In practice, this primarily means:
- Occupational safety - The belt and pulleys are separated from the operator and bystanders, significantly reducing the risk of pulling in work clothes, tools or other objects.
- Protection against dirt - the shield protects the drive from dust, fine aggregates, concrete residue and moisture, resulting in smoother and more consistent operation of the trowel.
- Reduce the risk of mechanical damage - the element acts as a barrier against accidental impacts, such as with tools, reinforcement elements or formwork edges.
A well-chosen belt guard has a direct impact on the the reliability and service life of the entire drive system. In a construction environment where dust, cement dust and aggregate fragments are ubiquitous, using a solid cover is one of the simplest and most effective ways to reduce service costs.
Where the G 53 GV 53 wheel belt guard is installed 66071090 and which models it works with?
WHEEL BAR GUARD G 53 GV 53 66071090 is mounted within the drive system of the concrete trowel, in the area of connection between the engine and the working unit. Its purpose is to cover the working area of the V-belt and pulleys, so as to maintain both easy service access and the highest level of safety.
Compatible with popular trowel models:
- G53TK-TBX-THX - Professional concrete disc trowels used on medium and large areas;
- GMC53TK-TKE-TBX-THX - Trowels with reinforced construction for intensive use;
- GV53TK-TBX - Machines designed for heavier loads, used m.in. in industrial halls;
- GV25+ - equipment with compact dimensions, often used for finishing work and in harder to reach places.
The cover is designed as oEM type replacement part (equivalent to the original), which means that its shape, attachment points and dimensions are adapted to specific models. As a result, the assembly is:
- Simple - The cover fits in place of a worn or damaged component without the need for modifications;
- Quick - Replacement can be done by a service technician or an experienced user on site;
- Pew - proper fit eliminates slackness and misalignment that could affect the stability of machine operation.
Examples of installation situations:
- After mechanical damage old guard (cracks, breakage) caused by hitting a piece of reinforcement or falling of the machine during transport.
- During scheduled periodic inspection, when the existing shield bears visible signs of wear, deformation or overuse.
- At upgrading or refreshing the machine park, that all equipment meets current safety and aesthetic standards.
Use of the G53/GV53/GV25+ wheel belt guard in daily construction site work
WHEEL BAR PROTECTOR G 53 GV 53 66071090 is designed for use in difficult construction conditions, where there is high dustiness, intensive use and variable weather conditions. Its application mainly includes:
- Construction of industrial floors - Warehouses, production halls, workshops, multi-storey parking lots, where trowels work for hours on end; the cover protects the belt and wheels from cement dust and fine aggregates.
- Realization of screeds in residential construction - Single-family houses, garages, basements, terraces and utility rooms where equipment is often moved and exposed to impacts during transportation.
- Service applications - Contractors specializing in concrete floors who move equipment from site to site every day; a sturdy cover minimizes the risk of damage in transit.
Thanks to this cover, the trowel better withstands heavy daily use, which is especially important for companies that operate equipment in a multi-shift. Stable drive means even operation of discs and blades, thus better quality of the concrete surface obtained.
Quality, durability and reliability - why choose the G 53 GV 53 wheel belt guard 66071090?
When choosing spare parts for construction machinery, the key considerations are durability, resistance to damage, and reliability of fit. WHEEL BAR PROTECTOR G 53 GV 53 66071090 is designed precisely for long-term, intensive use on the construction site.
Key user benefits:
- High mechanical resistance - robust, thick-walled plastic is resistant to cracking and deformation, retaining its properties even with frequent movement and accidental impacts.
- Stable drive operation - Well-shielded belt and pulleys run evenly, without sudden jumps caused by foreign objects entering the drive zone, resulting in greater operator comfort.
- Service cost savings - thanks to protection from contamination and damage, there is less frequent belt breakage or excessive wheel wear, which means less downtime and lower machine maintenance costs.
Practical examples of benefits:
- A flooring company executing a large order in a logistics hall can work without worrying that fine aggregate or concrete fragments will damage the drive belt - the guard effectively separates the drive from the ground.
- A construction crew carrying out screeding in single-family houses transports the trowel in a minibus every day - the cover protects the drive from hitting other tools during transport.
- In case of operation in adverse weather conditions (rain, moisture), the cover reduces direct contact of drive components with water and mud, extending their service life.
WHEEL BAND GUARD for G53TK, GMC53TK, GV53TK, GV25+ trowels - key features and parameters
WHEEL BAR GUARD G 53 GV 53 66071090 is a spare part developed to be fully compatible with popular models of mashers. Its features have been selected to maximize ease of service and ensure long, trouble-free operation.
Key technical and performance features:
- Dedicated use: G53TK-TBX-THX, GMC53TK-TKE-TBX-THX, GV53TK-TBX, GV25+ - the cover exactly matches the design requirements of these models.
- Material: durable construction material with high impact, abrasion and weather resistance.
- Functional shape: ribs and reinforcing ribs increase rigidity, and a contoured bottom effectively carries debris away from the drive area.
- Finishing: smooth surface for easy cleaning from cement dust and mortar residue.
- Easy installation: prepared mounting holes allow you to quickly bolt the cover into place at the factory without adjustment.
- Manufacturer code/external code: 66071090 - makes it easy to clearly identify parts when ordering.
User benefits of these parameters:
- Fewer failures - A well-protected belt is less likely to break, and pulleys are not subject to damage from foreign objects.
- Higher security - limiting access to moving parts significantly reduces the risk of accidents on site.
- Professional corporate image - neat, complete equipment inspires confidence in investors and confirms the contractor's attention to health and safety standards.
Examples of practical applications:
- Regular operation by companies that make industrial and decorative floors - Where the highest repeatability of surface quality is required.
- Working on extensive construction sites in adverse conditions (wind, dust, precipitation) - the shield reduces the impact of external factors on key drive components.
- Use by construction equipment rental companies, where machines frequently change operators - a complete guard is a guarantee that the equipment meets basic safety requirements regardless of the user.
FAQ - frequently asked questions about the G 53 GV 53 wheel belt cover 66071090
1. To which models of machines the Wheel Belt Protector G 53 GV 53 fits 66071090?
The cover is designed for concrete trowels of the series G53TK-TBX-THX, GMC53TK-TKE-TBX-THX, GV53TK-TBX and GV25+ series concrete trowels. Before buying, it's a good idea to check the machine's nameplate or technical documentation to make sure the model is compatible.
2. Can the cover be installed independently?
Yes, in most cases the cover can be installed independently, using basic workshop tools. However, it is important that the installation is done carefully - the guard must not rub against the belt or wheels, and all mounting screws must be properly tightened.
3. What material the cover is made of?
The cover is made of durable engineering plastic, resistant to impact, abrasion and the effects of external factors typical of construction, such as dust, moisture and temperature changes.
4. When to replace the wheel belt guard?
Replacement is recommended in case of cracks, breakage, severe deformation or when the cover no longer provides full coverage of the drive components. A damaged guard can reduce operational safety and expose the belt to contaminants.
5. Does a damaged or missing guard affect the machine's warranty?
In many cases the absence of a complete cover may be considered as use that does not comply with health and safety requirements and the manufacturer's recommendations. This may affect the processing of any warranty claims for damage to the drive. That's why it's always a good idea to keep the machine complete, with the guard properly installed.
6. How to take care of the cover to make it last as long as possible?
After finishing the work, it is worth clean the shield from dust and concrete residue, and once in a while inspect its visual condition and attachment. Avoid intentional impacts and excessive stress on the shield, such as by resting heavy tools on it.
7. Does this cover affect operator comfort?
Yes. By stabilizing and protecting the drive, the guard contributes to a more even trowel operation, which, in turn, translates into less vibration and more comfortable operation. In addition, the operator is aware that he or she is working on equipment that is protected in accordance with health and safety rules.
