BCH 250 D SET 61469203E5Z
- BCH 250 D KIT 61469203E5Z - professional 4-in-1 petrol garden multitool (scythe, shears, pruning shear, extension cord). Powerful 25.4 cm³ motor, EasyOn system and "no tools" quick coupler for convenient, all-around garden maintenance.
BCH 250 D KIT 61469203E5Z - professional, multifunctional 4-in-1 garden harvester for demanding users
What is BCH 250 D KIT 61469203E5Z and who it was designed for?
BCH 250 D KIT 61469203E5Z is a complete gasoline multifunction system of the type 4-in-1 garden multitool, designed for comprehensive care of green areas around the home, business and commercial properties. In one compact package you get drive unit with a powerful 2-stroke engine and four practical work attachments: mower with 110 mm vein head,hedge trimmer 400 mm,trimmer with 25 cm guide and shaft extension 100 cm. Configured this way, the set allows you to mow the lawn, trim hedges, cut shrub and tree branches, and work safely at height - without having to invest in separate equipment.
The BCH 250 D set was developed for users who expect professional quality, reliability and versatility, but want to maintain mobility and ease of use. It will prove excellent in the hands of the discerning garden owner, as well as in the hands of small gardening companies, maintenance crews or estate administrations.
Where you install and how the BCH 250 D KIT attachment system works 61469203E5Z?

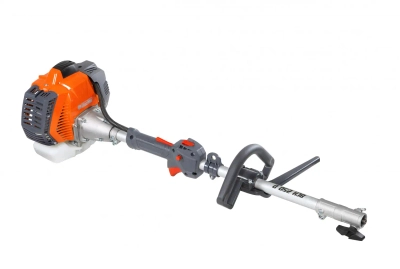

The heart of the set is drive unit with rigid drive shaft and comfortable handle. All attachments - the scythe, hedge trimmer, limb trimmer and extension cord - are mounted to the end of the shaft using a "no tools" quick-attach system. This means that changing attachments is done without any additional tools - just unlock the attachment mechanism, slide out the current attachment and slide in the next one. This type of installation reduces downtime and allows a smooth transition from one task to another.
The device is designed for outdoor use - in home gardens, recreational plots, green areas next to residential, office and warehouse buildings. With the telescopic attachments and shaft extension, you can comfortably reach higher hedges and branches while standing firmly on the ground, without using a ladder. The use of a 26 mm diameter aluminum shaft guard with self-lubricating, anti-vibration bushings ensures smooth operation of the drive, translating into operator comfort and high precision cutting.
25.4 cm³ 2-stroke engine - power, reliability and economy in one unit
The BCH 250 D kit is powered by a modern, 2-stroke gasoline engine with a capacity of 25.4 cm³. The engine offers a usable power of 1.2 hp (0.9 kW) and maximum power of 1.4 hp (1.1 kW), providing high and linear torque even at low rpm. This translates into easy cutting of dense grass, tougher stems and branches without jerking or power drops. It's ideal for working on areas with diverse vegetation, from manicured lawns to neglected plots of land.
The durability of the drive unit is guaranteed by piston with two piston rings, nickel-plated cilinder casting, as well as a forged connecting rod and crankshaft. Such an advanced design is typical of machines from the semi-professional and professional segment - it significantly extends the life of the engine, reduces the risk of failure and helps maintain consistent performance over many seasons. Capacious fuel tank 0,64 l allows long operation without frequent refilling of gasoline-oil mixture.
Thanks to these features, the BCH 250 D will prove its worth in typical backyard work, but also in more intensive tasks such as mowing the roadsides of entryways, cleaning up the company's surroundings or maintaining the greenery of residential communities.
Scythe, shear, limbing machine and extension - complete application BCH 250 D KIT 61469203E5Z in the garden
The kit includes four key attachments that turn the BCH 250 D into a fully functional garden harvester:

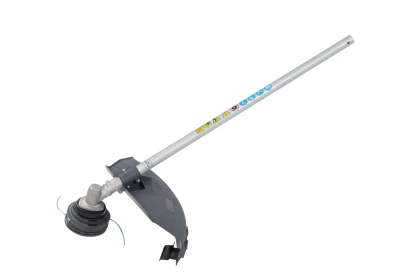

- Scythe with vein head 110 mm (61469207) - Ideal for regular lawn mowing, leveling edges at fences, walls and flowerbeds. It also works well in hard-to-reach places where a classic lawnmower won't reach, such as around trees, under benches or at garden steps.

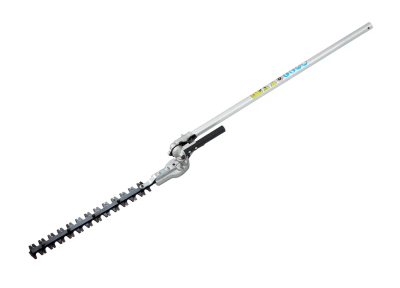

- Hedge trimmer 400 mm (61469206) - An attachment with an optimal working length for fast and even trimming of hedges, ornamental shrubs and molded plantings. With the ability to mount on an extension, you can easily reach tall hedges or wide molded greenery walls.
- Trimmer with cutting system 25 cm; 3/8 x .050 (6149205) - A small chain saw on a boom designed for cutting tree branches, removing dry branches, forming crowns and preparing firewood. Replaces the classic chainsaw for lighter maintenance work, providing greater safety because the operator is standing on the ground.

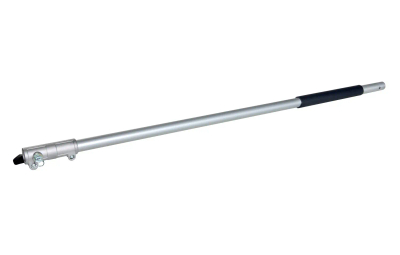

- Extension 100 cm (61469210) - Extends the working range of the tool, which is invaluable for work at height: cutting high hedges, cutting branches over an arbor or cleaning up branches at building elevations.
With these attachments, the BCH 250 D KIT 61469203E5Z is perfect for year-round garden care: in spring for shaping plants after winter, in summer for regular mowing and hedge trimming, in autumn for cutting branches and even preparing firewood from finer branches.
"EasyOn" system and "no tools" quick release - comfort you will feel every time you start up
One of the biggest advantages of the BCH 250 D kit is the "EasyOn" starting mechanism. The starter housing uses double spring cooperating with a mechanism equipped with two latches. This solution significantly reduces the force you need to use when pulling the cable, and reduces the time it takes to start the engine. In practice, this means a quick start after just a few light jerks - no tiring multiple attempts.
Equally important is the "no tools" quick release, allowing the connection of four different attachments without using any tools. Replacing the accessory is intuitive, safe and takes literally moments. This allows you to plan your work efficiently: once you've finished mowing, you can mount the hedge trimmer in seconds and then swap it for the trimmer - without interrupting your work and looking for the keys.
Such a high level of ergonomics also makes the kit friendly to less experienced users and people who do not like complicated operation of combustion machines.
Convenience and safety at work - aluminum construction, vibration absorption and thoughtful details
BCH 250 D KIT 61469203E5Z weighs only 4.9 kg (drive unit), which, combined with lightweight attachments and an ergonomic "loop" type handle provides high comfort even during longer sessions. Aluminum shaft cover with a diameter of 26 mm has been equipped with anti-vibration, self-lubricating bushings, which guarantee smooth drive shaft movement and effective vibration damping. As a result, the operator's arms and hands are less subject to fatigue and work becomes more precise.
Application aluminum bevel gearbox with M10 threaded pin allows optimal power transfer to the cutting device, reduces wear and tear on components and increases safety. This protects both the tools themselves and the user from uncontrolled impacts or bounces. Well-shaped shields for the blade and line head protect the operator from ejected plant material and small stones.
On a day-to-day basis, this means you can work in dense thickets, against mesh fences or stone walls without worry, maintaining full control of the tool while keeping yourself safe.
BCH 250 D KIT 61469203E5Z - quality and durability for years of intensive use
When you choose the BCH 250 D, you are investing in equipment designed for years of use. The quality of workmanship is evident in every detail: from the forged engine components, through robust mechanical connections and damage-resistant plastics to precisely fitted working attachments. The technical solutions used - such as a nickel-plated cylinder, self-lubricating bushings, and a solid aluminum gearbox - minimize wear and risk of failure.
Thanks to this, the device can easily cope with frequent use on large properties, on farms or for work outsourced by customers to a gardening company. At the same time, the simplicity of the design and easy access to components make it easier to perform routine maintenance tasks, such as replacing the spark plug, air filter or maintaining the trimmer bar and chain.
If you are looking for a garden kit that can realistically replace several separate machines, and at the same time provide a high level of reliability and comfort, BCH 250 D KIT 61469203E5Z is a solution that will meet these expectations.
Full factory description and technical specifications BCH 250 D KIT 61469203E5Z
COMPLETE SET BCH 250 D.
IN ADDITION TO THE DRIVE UNIT INCLUDES:
1. cutter with vein head 110 mm(61469207)
2. scissors 400 mm (61469206)
3. trimmer with cutting system 25cm; 3/8x.050 (6149205)
4. extension 100 cm (61469210)
A drive unit that allows the use of several attachments, and the whole set is a true multifunctional device. Ideal for mowing the lawn, trimming hedges, cutting shrub branches. Quick connect "no tool" system, helps for quick tuning and efficient operation.
- 2-stroke engine with a displacement of 25.4 cc and 1.2 hp (0.9 kW), characterized by high and linear torque even at low speeds.
- Piston with 2 piston rings, with nickel-plated cast cylinder, forged connecting rod and crankshaft: guarantee of strength and durability.
- Machine equipped with "no tools" quick-connect system: this is a mechanism designed to connect 4 different attachments without the need for tools.
- 26mm diameter aluminum shaft guard with anti-vibration, self-lubricating bushings to ensure smooth movement of the drive shaft for greater operator comfort. Aluminum contour gear with M10 threaded shank, designed for optimum power transfer to the cutting device.
- "EasyOn" mechanism: consisting of a double spring in the starter housing, combined with a mechanism equipped with two ratchets, ensures less effort with each jerk and fast ignition requiring only a few strokes.
Technical specifications:
| The useful power of the device | 1.2 hp - 0.9 kW |
| Engine capacity | 25.4 cm³ |
| Engine power | 1.4 hp - 1.1 kW |
| Weight | 4.9 kg |
| diameter of the shaft cover | 26 mm |
| Equipment | optional: scythe, hedge trimmer, blower, shaft extension; limbing machine |
| Fuel tank capacity | 0,64 l |
| Steering wheel | handle |
FAQ - frequently asked questions about BCH 250 D KIT 61469203E5Z
Question 1: What is the BCH 250 D kit best suited for??
The set is designed for comprehensive care of the garden and green areas. With one power unit and four attachments, you can mow grass, level edges, trim hedges, mold ornamental shrubs, and cut tree branches and remove dry branches.
Question 2: Do you need tools to replace the attachments?
Not. The BCH 250 D is equipped with a "no tools" quick connect system. This means you install and remove all attachments by hand - quickly, safely and without the use of wrenches or screwdrivers.
Question 3: What engine does the BCH 250 D have??
The unit has a 2-stroke gasoline engine with a displacement of 25.4 cm³, a useful power of 1.2 hp (0.9 kW) and a maximum power of 1.4 hp (1.1 kW). The engine features high torque at low rpm, making it easy to cut dense grass and cut branches.
Question 4: Is the kit suitable for working at height?
Yes. With the trimmer and the 100 cm shaft extension, you can comfortably and safely reach higher branches and the upper parts of the hedge while standing firmly on the ground, which significantly increases the safety of your work.
Question 5: What is the fuel consumption and operating time per fueling?
The fuel tank has a capacity of 0.64 liters. Actual operating time depends on the load and the type of work to be performed, but thanks to the powerful 2-stroke engine, the kit allows you to comfortably perform most common tasks in the garden without the need for frequent refueling.
Question 6: Is the BCH 250 D suitable for less experienced users?
Yes. The "EasyOn" mechanism makes it easy to start the engine, and the "no tools" quick coupler simplifies the replacement of attachments. The ergonomic handle and low weight make it easy to drive, making it affordable even for people who are new to combustion machinery.
Question 7: How to take care of the trimmer and hedge trimmer?
After finishing work, it is recommended to clean the blades from plant residues, check the chain tension in the limbing machine and lightly lubricate the cutting elements. Regular maintenance - cleaning, lubrication and condition checks - extends the life of the attachments and ensures their safe operation.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
