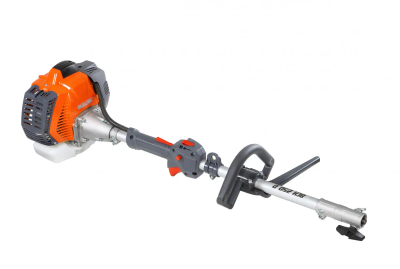

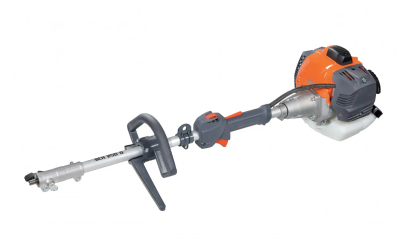

BCH 250 D DRIVE UNIT 61469203E5
- BCH 250 D DRIVE UNIT 61469203E5 - powerful 2-stroke engine 25.4 cm³, 1.2 hp. Lightweight (4.9 kg), ergonomic, with "no tools" quick release and EasyOn. Ideal base for scythes, shears, blowers and trimmers.
BCH 250 D DRIVE UNIT 61469203E5 is a high-end internal combustion drive for gardening equipment, designed for users who want reliability, convenient operation and versatility. With a system of attachments with a single drive unit, you can mow the lawn, trim hedges, cut shrub branches and do many other maintenance jobs around the house and garden.
What is the BCH 250 D DRIVE UNIT 61469203E5 and how it works?
BCH 250 D drive unit is the heart of the entire system of multifunctional garden tools. It is an internal combustion power unit with a 25.4 cm³ 2-stroke engine, designed to work with a variety of work attachments, such as a scythe, hedge trimmer, blower, shaft extender or trimming machine. This way, instead of several separate machines, you only need one device with interchangeable tips.
A motor with a useful power of 1.2 hp (0.9 kW) and a maximum power of 1.4 hp (1.1 kW) provides dynamic operation for both light and heavier tasks. High and linear torque is available even at low rpm, making it easier to cut and mow with precision in harder-to-reach areas - such as around fences, flowerbeds, walls or under trees.
The entire design has been developed to make operation as simple as possible - from startup, to connecting attachments, to daily operation. It is an ideal solution for discerning owners of gardens, recreational plots and for companies that care about greenery.
Where does the BCH 250 D DRIVE UNIT 61469203E5 mount and what attachments it works with??
Drive unit BCH 250 D is mounted on the extended working shaft of horticultural equipment as a "rear" part - it is responsible for the drive and power transfer to the selected cutting or working attachment. At its end is a quick-release coupling, to which you attach attachments without tools:
- scythe - For mowing lawns, weeds, brush;
- hedge trimmers - For shaping and trimming hedges and ornamental shrubs;
- blower - For removing leaves, grass clippings or light dirt from the driveway and sidewalks;
- shaft extension - Increases working range, useful, for example, for high hedges;
- trimmer - For cutting and care of branches at height, without the need for a ladder.
The unit is mounted in the typical manner of "multitool" devices: the operator holds the machine by an ergonomic handle (steering wheel), and the other end of the shaft is terminated by a work attachment. With a compact design and a weight of only 4.9 kg the whole thing is well balanced and comfortable to drive even during prolonged work.
In practice, this means that you can change your tool from a scythe to a hedge trimmer and then to a blower in one motion - without the need for a screwdriver or wrenches. This is a huge convenience both in the home garden and for professional cleaning work.
BCH 250 D drive unit - powerful and durable 25.4 cm³ 2-stroke engine
The heart of the device is 2-stroke engine with a capacity of 25.4 cm³ and power 1.2 hp (0.9 kW) of usable power and 1.4 hp (1.1 kW) of engine power. Thanks to its high and linear torque, also available at low speeds, the engine allows comfortable operation for both gentle grass trimming and more demanding tasks, such as cutting dense bushes.
The engine design has been reinforced with elements typical of high-end machines:
- Piston with two piston rings - provides better compression, stable power and longer engine life.
- Nickel-plated cylinder casting - Increases resistance to wear, overheating and corrosion, resulting in years of trouble-free operation.
- Forged connecting rod and crankshaft - are solutions used in professional machines, guaranteeing durability even under intensive use.
In everyday use, this means that BCH 250 D will cope with both typical lawn mowing around the house and regular use by service companies - when caring for green areas at housing estates, schools or commercial facilities. The user gets a drive that not only offers adequate power, but, more importantly, maintains it at a constant level for a long time.
Convenience and safety at work with the BCH 250 D drive unit
BCH 250 D DRIVE UNIT 61469203E5 has been designed for maximum operator comfort. Aluminum shaft cover with a diameter of 26 mm it is equipped with anti-vibration, self-lubricating bushings, which reduce vibrations transmitted to the user's hands. This makes the work less tiring, which is of great importance when mowing or trimming for longer periods.
Aluminum bevel gear with M10 threaded pin is designed to optimally transfer engine power to the cutting device. This ensures smooth operation of the attachment, less stress on components and longer life of the entire drive train.
Practical examples of the application of comfort solutions:
- When mowing larger areas - low vibration and ergonomic handle allow you to drive the machine comfortably without excessive fatigue.
- At hedge trimming - Stability and precision of movement help to form edges and shapes evenly.
- During limbing branches at height - less vibration means better control of the tool and greater safety on the job.
Quick connect "no tools" system and EasyOn mechanism - instant readiness for work
In the drive unit BCH 250 D used "no tools" quick-connect system, thanks to which connecting and disconnecting the attachments is done completely without tools. This solution is designed to allow the connection of four different attachments in a fast, safe and intuitive way.
User benefits:
- Saving time - It literally takes a moment to change the attachment from a scythe to a hedge trimmer, allowing you to efficiently complete the next steps of your garden work.
- Greater mobility - no need to carry extra tools or worry about lost screws or keys.
- Versatility - you use one drive unit throughout the season, adjusting the attachment to suit your current needs.
In addition, the machine is equipped with "EasyOn" mechanism. It consists of a double spring in the starter housing and a mechanism with two ratchets. With this:
- it takes significantly less force when pulling the starter;
- start-up is fast and reliable, usually just a few quiet strokes of the lines are enough;
- easier to fire up your machine after a long break or in colder weather.
In everyday practice, this means that even a less experienced user can handle the operation of the drive unit without any problems - without jerking, nerves and unnecessary effort.
Technical Specifications BCH 250 D DRIVE UNIT 61469203E5
The following is a collection of key technical data that will make it easier to compare this unit with other drives on the market:
| The useful power of the device | 1.2 hp - 0.9 kW |
| Engine capacity | 25.4 cm³ |
| Engine power (maximum) | 1.4 hp - 1.1 kW |
| Unit weight | 4.9 kg |
| Shaft cover diameter | 26 mm |
| Equipment (optional) | scythe, hedge trimmer, blower, shaft extension, trimming machine |
| Fuel tank capacity | 0,64 l |
| Steering wheel | handle (grip) |
Offer applies to the drive unit only. Working attachments are available separately - it is worth choosing them to suit the specifics of your own garden or the nature of the services you perform.
Application of the BCH 250 D drive unit - one unit for year-round garden care
With the ability to work with multiple attachments BCH 250 D DRIVE UNIT 61469203E5 is used practically all year round:
- Spring - Intensive mowing of fast-growing grass, cutting and shaping of hedges, removal of residual leaves and twigs after the winter.
- Summer - Regular lawn care, edging trimming, shaping shrubs and ornamental plants.
- Autumn - Blowing away fallen leaves, clearing driveways and sidewalks, final work on hedges.
- Winter and early spring - using the pruning machine, you can safely cut dry and diseased tree branches, preparing your garden for the next season.
Such a wide spectrum of applications makes the purchase of a drive unit BCH 250 D is an investment in a complete tool system that will successfully replace several separate machines. For homeowners, it saves space in the garage or gazebo, and for businesses, it saves less equipment to service and transport.
What distinguishes BCH 250 D DRIVE UNIT 61469203E5 from other drives?
In summary, the most important assets of this model from the user's point of view are:
- Professional durability - Nickel-plated cylinder, forged crankshaft and connecting rod, piston with two piston rings, aluminum bevel gearbox.
- High ergonomics of work - low weight of 4.9 kg, anti-vibration bushings, comfortable handle, well-balanced design.
- Versatility - possibility to connect multiple attachments (scythe, shears, blower, limbing machine, extension), which makes the device a complete system for green care.
- Easy start-up and operation - EasyOn system and "no tools" quick release allows you to focus on your work, not on tedious maintenance.
- Optimum operating parameters - usable power of 1.2 hp at 25.4 cc and 0.64-liter tank provides good performance with reasonable fuel consumption.
With these features BCH 250 D DRIVE UNIT 61469203E5 is a sure choice for anyone looking for a robust, modern and versatile drive for gardening work - both in private and professional applications.
FAQ - Frequently asked questions about BCH 250 D power unit
1. Does the BCH 250 D drive unit come with attachments (scythe, shears, blower)?
The offer applies only to drive unit. Attachments such as a scythe, hedge trimmer, blower, shaft extension or trimming machine are available as optional equipment and must be purchased separately.
2. What fuel is used in a 25.4 cm³ 2-stroke engine?
2-stroke engines use a mixture of gasoline with the appropriate oil for 2-stroke engines in the manufacturer's recommended proportions. This ensures that the engine is properly lubricated and maintains its longevity.
3. Is the "no tools" quick connect system sustainable?
Yes. The "no tools" mechanism is specially designed for frequent change of attachments. Robust construction and precision fit of components ensure secure attachment fastening and long life when used properly.
4. Is the drive unit suitable for professional work?
With a powerful engine, reinforced construction (nickel-plated cylinder, forged crankshaft) and convenient operating systems (EasyOn, "no tools") BCH 250 D will also work very well in the hands of professional users - gardening companies, municipal utilities or green care teams.
5. How much does the BCH 250 D weigh and is it comfortable for longer work?
The unit weighs 4.9 kg, and thanks to anti-vibration bushings and an ergonomic handle, the device is comfortable even when mowing or cutting for long periods of time. Low weight and good balance significantly reduce operator fatigue.
6. For what work in the garden is it most worthwhile to buy BCH 250 D?
Drive unit BCH 250 D will be ideal if you need a single, reliable drive for multiple tasks: grass cutting, trimming, hedge shaping, tree trimming and leaf cleanup. This is a practical solution for anyone who values order in the garden and wants to reduce the number of separate devices.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
