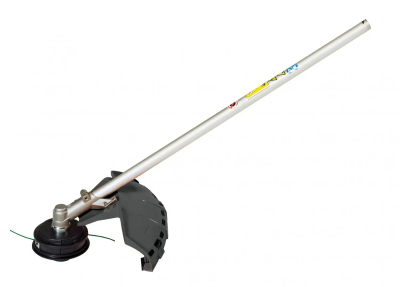

MOWER ATTACHMENT FOR BC241D/BC300D AND BCI530D 56V 61289160A
- Professional scythe - attachment 61289160A for BC241D, BC300D and BCi530D 56V units. Lightweight (1.1 kg), with Load&Go line head and 3-tooth blade. Ideal for grass, weeds and brush.
Mower attachment for BC241D/BC300D and BCi530D 56V 61289160A is a high-quality mower module designed for use with multifunctional drive units. With its lightweight design, powerful cutting system and robust construction, it is the ideal solution for demanding users who want professional mowing results on home lawns, recreational plots and semi-professional areas.
Scythe attachment for BC241D/BC300D and BCi530D 56V - what the product is and how it works?
The mower attachment for the BC241D/BC300D and BCi530D 56V is a working component of the multifunction system that, when connected to the drive unit, turns it into a powerful mower/trimmer. The attachment is equipped with a professional vein head and trident blade, which allows you to effectively mow both fine grass and denser thickets or weedy parts of the garden.
OFFER APPLIES TO SCYTHE ATTACHMENT ONLY. SCYTHE WORKS WITH BC241D. WE INVITE YOU TO OPEN THE TAB RECOMMENDED PRODUCTS AND SEE THE OFFER OF OTHER STARTERS.
Installation of the attachment is quick and intuitive - simply slide it into a compatible drive unit shaft and secure the connector. This solution allows you to transform the tool into a full-fledged petrol/battery-powered mower in a few moments, ready for intensive work. This will be especially appreciated by those who need versatile equipment for many gardening tasks while saving space in the garage or workshop.
Where do you mount the KOSA attachment for BC241D/BC300D AND BCi530D 56V?
KOSA attachment 61289160A is designed to work with BC241D, BC300D and BCi530D 56V drive units. It is mounted directly on the shaft of the device, in the place provided by the manufacturer for replaceable working tips. The diameter of the shaft cover is 26 mm, so that the connection is stable and the transmission is secure and lossless.
Once the attachment is installed, the user gets a tool with parameters similar to a professional mowing scythe, with the ability to quickly remove and replace it with other accessories, such as a hedge trimmer, blower, shaft extension or trimming machine. Such a solution is a great convenience for both private users and gardening companies that need a flexible, modular machinery fleet.
Application of the attachment BOSA ATTACHMENT FOR BC241D/BC300D AND BCi530D 56V 61289160A
Thanks to the combination of vein head and steel trident blade, the mowing attachment works well for many daily landscaping tasks. You can use it m.in. to:
- regular mowing of the lawn in places that are difficult to reach with a lawn mower - by fences, walls, flowerbeds, under shrubs;
- leveling the edges of the lawn along paths, driveways and bands around the house;
- removing tall grass and weeds on recreational plots, wastelands or roadsides;
- cleaning up post-construction areas with a mix of grasses, weeds and brush;
- pruning soft regrowth around trees and shrubs (after using fishing line and keeping a safe distance from the trunks);
- maintain the roadsides of access roads, drainage ditches and the edges of company sites in check.
Thanks to its low overall weight (only 1.1 kg), working even for long periods of time does not put undue strain on the hands and back, which is especially important when mowing larger areas or terrains with varied terrain.
Powerful cutting system and Load&Go head - speed, precision, comfort
At the heart of the attachment is a complete cutting system that allows you to adjust the mowing method to suit your current needs. Included as standard:
- Load&Go vein head fi 130 mm - with M10x1.25 thread (female left) and factory wound 2.4 mm diameter line. The Load&Go system allows for very quick refilling of the line without having to take the head apart - just pull a section of line through the holes, align the ends and wind by rotating the head. This significantly speeds up work and reduces downtime.
- Steel 3-tooth knife - made of special heavy-duty steel, with a diameter of 10"/255 mm, a thickness of 1.8 mm and a mounting hole of 25.4 mm. The 3-tooth blade can perfectly handle tall grass, young weeds and even light undergrowth and volunteer seeds.
This combination gives the user complete freedom of choice of working tool: the line is ideal for fine finishing of a home lawn and working near obstacles, while the 3-tooth blade will work well for more demanding tasks on overgrown surfaces. This makes the attachment extremely versatile - one tool allows you to complete most typical gardening mowing jobs.
Lightweight and durable design of the KOSA 61289160A attachment
The BOSA attachment for BC241D/BC300D AND BCi530D 56V is designed for heavy-duty use. The use of durable materials and thoughtful design guarantees long life and reliable operation for many seasons.
Key design elements include:
- Lightweight work shaft - made of durable material, providing rigidity and precise transmission while reducing the overall weight of the attachment.
- Robust cutting guard - Protects the user from grass splinters and small stones, and helps keep the direction of the mowed material ejected.
- Weight only 1.1 kg - The low weight of the attachment, combined with the ergonomic handle of the drive unit, allows people of different heights and physical strength to work comfortably, even for long periods of time.
Such a tool will work well both in the hands of an experienced professional and a home user who expects equipment that is easy to use, yet robust and resistant to damage.

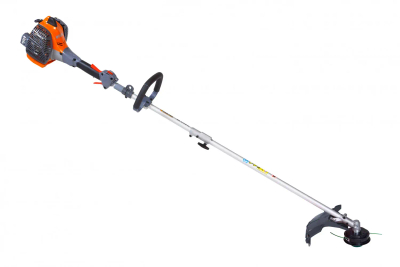

Multifunctional system - one drive unit, multiple attachments
A great advantage of the presented attachment is the ability to work as part of a multifunctional system. In addition to the KOSA attachment, the user has other accessories available as options, such as:
- hedge trimmers,
- blower,
- shaft extension,
- trimmer.
Thus, the purchase of a BC241D, BC300D or BCi530D 56V drive unit together with a KOSA attachment becomes an investment in a complete modular garden care system. In practice, this means:
- less equipment to store - instead of several machines, you have one drive unit and a set of interchangeable attachments;
- lower service and operating costs - you are servicing one drive unit rather than several separate machines;
- easier transportation - the whole thing fits easily into the trunk of a passenger car, which will be appreciated by gardening teams commuting to customers.
TECHNICAL SPECIFICATIONS ASSEMBLY FOR BC241D/BC300D AND BCi530D 56V 61289160A
Below are the key specifications relevant to matching your equipment and planned applications:
| Weight | 1.1 kg |
| Shaft cover diameter | 26 mm |
| Optional equipment | hedge trimmer, blower, shaft extension, limbing machine |
| Steering wheel | handle |
| Standard head | Load&Go fi 130 mm, M10x1.25 female left, with line fi 2.4 mm |
| Cutting system | 3-tooth knife made of special steel; fi 10"/255 mm; thickness 1.8 mm; bore 25.4 mm |
| Product code | 61289160A |
| EAN code | 8026619056704 |
Such detailed selection of parameters makes the mower attachment compatible with the drive units designed for it, while providing high performance and comfort in all conditions.
User benefits - why choose this mower attachment?
When you decide to get the BC241D/BC300D AND BCi530D 56V BINDER 61289160A, you get a product designed for long-term, heavy-duty use. Key benefits include:
- Professional quality workmanship - solid materials, thoughtful design and refined details ensure many years of trouble-free operation.
- High mowing performance - thanks to the Load&Go head and the 3-tooth blade, you can cope with both delicate lawn and demanding vegetation.
- Work comfort - low weight, ergonomic handle and effective shielding increase comfort and safety during use.
- Universal application - One tool for mowing your home lawn, allotment, areas around your business or access roadsides.
- Multifunctional system component - The ability to expand with more attachments makes it a worthwhile investment for years to come.
If you are looking for a reliable mowing attachment that will significantly speed up and facilitate gardening work, this model will be an ideal choice for both private users and professional grounds maintenance crews.
FAQs - Frequently Asked Questions about the BC241D/BC300D AND BCi530D 56V ASSEMBLY 61289160A
1. Does the attachment include a drive unit?
No, the offer is for the mowing attachment only. A compatible drive unit, such as BC241D, BC300D or BCi530D 56V, is required for operation.
2. Which models this attachment works with?
The attachment is designed to work primarily with BC241D, BC300D and BCi530D 56V models. The 26 mm diameter of the shaft cover and the corresponding connector ensure a proper fit for these units.
3. Does the kit include a vein head?
Yes, as standard, the attachment is equipped with a Load&Go head with a diameter of 130 mm, with M10x1.25 thread (female left) and a wound line with a diameter of 2.4 mm.
4. What the 3-tooth knife is used for?
The 3-tooth blade, made of special steel, is designed for heavier work - mowing tall grass, weeds, brush or light undergrowth where a line alone may not be enough.
5. What is the weight of the attachment?
The total weight of the attachment is approx. 1.1 kg, which, coupled with a suitable drive unit, ensures comfortable use even during extended operation.
6. Can I expand the set with other attachments?
Yes. The offer additionally includes m.in. hedge trimmer, blower, shaft extension and trimming machine, so you can create a versatile garden care system from a single drive unit.
7. Is the attachment suitable for professional use?
Due to its robust construction, efficient cutting system and the ability to work with powerful drive units, the attachment will be perfect for both domestic use and the work of gardening, service or municipal companies.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
