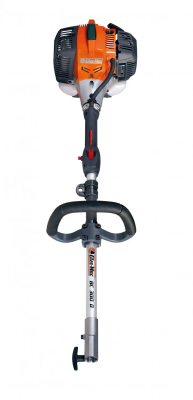

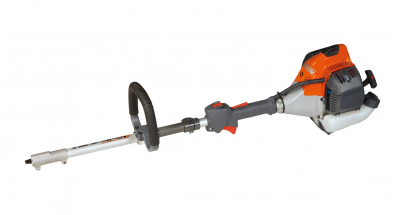

BC 300 D DRIVE UNIT 61288001E2
- BC 300 D DRIVE UNIT 61288001E2 - professional, lightweight (4.8 kg) 30 cm³ 2-stroke engine for multifunctional system: mower, hedge trimmer, blower, trimming machine. Quick "no tools" connector, high power and reliability for demanding users
What is BC 300 D DRIVE UNIT 61288001E2 and what tasks it is used for?
BC 300 D DRIVE UNIT 61288001E2 is a professional, internal combustion engine unit that is the heart of the entire system of multifunctional garden tools. In one unit, you get a powerful, reliable 30.0 cm³ 2-stroke engine with a usable power of 1.5 hp (1.1 kW), to which you can connect various work attachments. This way, instead of having several separate machines - a stringer mower, hedge trimmer, blower or trimming machine - all you need is one BC 300 D drive unit and a selection of work bits.
This solution is ideal for both demanding private users and professionals: gardeners, municipal companies or green space maintenance crews. The unit is compact, lightweight (4.8 kg) and at the same time very powerful, which translates into high productivity while maintaining full operating comfort. Thanks to the modular design, you can easily expand the set with more attachments, matching the tool to your current tasks in the garden or at work.
Where the BC 300 D drive unit is mounted and how the "no tools" system works?
BC 300 D DRIVE UNIT 61288001E2 is designed as a base for quick installation of various work attachments. The unit mounts directly to compatible work attachments (optional: mower - vector head, hedge trimmer, blower, shaft extension, trimming machine) using the "no tools" quick connect system. This means that you do not need any tools to replace the attachments - the whole operation is done manually, in a few moments.
In practice, it looks like after you finish mowing the lawn, you can disconnect the scythe attachment in one motion and connect, for example, a hedge trimmer, to immediately move on to shaping shrubs. The "no tools" system provides a secure and stable connection, while allowing frequent changes of attachments without the risk of damaging the mounts. This is a huge time saver and a guarantee of convenience especially for intensive all-day use.
The drive unit is equipped with a single, ergonomic steering wheel - the main handle that provides a comfortable grip in various working positions. This makes it easy to adjust the way you hold the tool for both low mowing and working at height (e.g., using a trimmer attachment with a shaft extension).
BC 300 D drive unit - powerful, durable 30 cm³ 2-stroke engine for demanding users
BC 300 D drive unit was developed and designed for both the most demanding private users and professional users with numerous and varied needs, including those involved in the care of demanding green areas. It is ideal for mowing the lawn, trimming hedges, cutting shrub branches, and blowing away leaves or debris. It is the most compact and lightweight machine in its category, at the same time characterized by high power, reliability and practicality thanks to the "no tool" quick-attach system, allowing the use of multiple tools.
The heart of the unit is a modern 2-stroke engine with a displacement of 30.0 cm³ and an engine output of 1.7 hp (1.25 kW), with a useful power of 1.5 hp (1.1 kW). It is characterized by high and linear torque even at low speeds. In practice, this means that you have enough power both for precise trimming of delicate lawn edges and for intensive work in thick, damp grass or when cutting thicker branches.
The durability of the unit is ensured by advanced design solutions: a piston with 2 piston rings, a nickel-plated cast cylinder, a forged connecting rod and a solid crankshaft. Such solutions are standard in high-end equipment designed for years of use in harsh environments. This makes the BC 300 D perfect for both the home garden and the day-to-day work of gardening contractors.
Comfort at work with BC 300 D - lightweight design, anti-vibration and ergonomics
One of the most important advantages of BC 300 D DRIVE UNIT 61288001E2 is the high comfort of use. With an unladen weight of only 4.8 kg and well-thought-out ergonomics, the drive unit does not tire the user even during prolonged operation. The 26-mm-diameter aluminum shaft guard is equipped with anti-vibration, self-lubricating bushings that ensure smooth movement of the drive shaft, thereby significantly reducing vibrations transmitted to the operator's hands.
This translates directly into less muscle fatigue, higher machine steering precision and the ability to work longer without interruption. This is especially important for jobs such as precision cutting of lawn edges along fences or long-term weeding of large areas. Aluminum bevel gearbox with M10 threaded pin is designed to optimally transfer power to the cutting device, further increasing operating efficiency and reducing energy loss.
Single steering wheel - the main handlebar - provides a firm grip for both right- and left-handed people. Ergonomic weight distribution means that the machine does not need to be pressed too hard against the ground, making work more comfortable and safer.
Modern technology - easier starting, lower fuel consumption, higher reliability
BC 300 D is equipped with a digital electronically controlled coil with speed limiter. This item not only makes it easier to start - even after a long break in use - but also improves the overall performance of the engine. Electronic ignition control ensures more uniform combustion of the fuel mixture and reduced fuel consumption, resulting in lower operating costs and environmental impact.
The on/off switch (ON/OFF) automatically returns to the ignition position every time it is turned off ("always on" function). Thus, there is no risk that you will forget to flip the switch the next time you start the engine - the BC 300 D is always ready to work. You'll especially appreciate this solution if you frequently interrupt your work, such as when you're changing stations, moving branches or emptying the green waste garbage can.
Filter holder with anti-rejection diode in the carburetor (patented Emak solution) prevents the filter from being saturated with the mixture and ensures longer autonomy of operation between maintenance intervals. The filter stays cleaner for a longer period of time, and the engine maintains optimal performance, which is crucial for heavy use in dusty environments (such as mowing dry grass and weeds).
Application of BC 300 D - one device, many possibilities in the garden and in professional work
Thanks to its modular design, the BC 300 D drive unit allows for a wide range of applications. Depending on the attachments you choose, you can use this device to:
- Mowing lawn and wasteland - When connected to the BC 241D/BC 300D vein head scythe attachment with the innovative 110 mm Load&Go head with 2.4 mm vein. Refilling the line only takes about. 20 seconds, allowing you to quickly get back to work on large surfaces.
- Hedge shaping and trimming - Simply install the hedge trimmer attachment to precisely trim both low and high plantings, create even lines and decorative shapes.
- Removal of leaves, grass and small debris - after connecting the blower attachment, you will quickly clean the driveway, sidewalks, terrace, garden paths or spaces between flower beds.
- Branch trimming and cutting - using the limbing machine (also with the possibility of using a shaft extension) you will safely trim tree branches without having to climb a ladder, which is extremely important for work safety.
With such a wide range of applications, BC 300 D DRIVE UNIT 61288001E2 replaces many separate units, making it easier to organize equipment, save space in the garage or warehouse, and reduce purchase and service costs.
Economical operation and easy maintenance - fuel, maintenance, service
BC 300 D drive unit uses standard fuel mixture for 2-stroke engines. The capacity of the fuel tank is 0.4 liters, which, combined with economical combustion, allows long operation on a single fill-up. This is especially important when working in larger areas where frequent refueling breaks would be a nuisance.
Thanks to the use of high-quality materials - such as a nickel-plated cylinder, forged connecting rod and reinforced crankshaft - service intervals are extended, and ongoing maintenance is mainly reduced to regular checks of the air filter, spark plug and the condition of the fuel mixture. Technical solutions used in the intake and filtration system (filter holder with a diode to prevent jetting in the carburetor) minimize the risk of filter flooding and extend the time of trouble-free operation.
For typical home use, periodic maintenance is limited to a few simple steps performed once a season. For professional applications, where the machine works every day, regular service in accordance with the manufacturer's recommendations will guarantee full efficiency and safe operation for many years.
Full technical specifications BC 300 D DRIVE UNIT 61288001E2
OFFER APPLIES TO DRIVE UNIT ONLY. WE INVITE YOU TO OPEN THE RECOMMENDED PRODUCTS TAB IN ORDER TO GET ACQUAINTED WITH THE ATTACHMENTS AND CHOOSE THE OPTIMAL OFFER FOR YOU.
- 2-stroke engine with a displacement of 30.0 cm³ and an output of 1.5 hp (1.1 kW), characterized by high and linear torque even at low speeds.
- Piston with 2 piston rings, with nickel-plated cast cylinder, forged connecting rod and crankshaft: guarantee of strength and durability.
- Electronically regulated digital coil with speed limiter: facilitates starting and improves performance, ensuring uniform combustion and reduced fuel consumption.
- Innovative Load&Go 110 mm diameter head with 2.4 mm diameter line: provides extremely easy and fast refilling of the line - it takes only 20 seconds to wind it up, after which you can resume work (applies to the cutter attachment for BC241D/BC300D).
- Machine equipped with "no tools" quick-connect system: this is a mechanism designed to connect 4 different attachments without the need for tools.
- 26mm diameter aluminum shaft guard with anti-vibration, self-lubricating bushings to ensure smooth movement of the drive shaft for greater operator comfort.
- Aluminum bevel gearbox with M10 threaded pin, designed for optimum power transfer to the cutting device.
- Switch on./ off.: automatically returns to the ignition position every time it is turned off (always on).
- Filter holder with anti-jet diode in the carburetor (Emak patent), prevents the filter from being saturated with the mixture and ensures longer autonomy of operation between maintenance intervals.
Technical specifications:
| Engine capacity | 30.0 cm³ |
| Engine power | 1.7 hp - 1.25 kW |
| Usable power | 1.5 hp - 1.1 kW |
| Weight | 4.8 kg |
| Shaft cover diameter | 26 mm |
| Equipment (optional) | scythe, hedge trimmer, blower, shaft extension, trimming machine |
| Fuel tank capacity | 0,4 l |
| Steering wheel | single |
| Engine type | 2-stroke, air-cooled |
FAQ - Frequently asked questions about BC 300 D DRIVE UNIT 61288001E2
1. Are there working attachments included with the BC 300 D?
OFFER APPLIES TO DRIVE UNIT ONLY. Attachments such as a scythe, hedge trimmer, blower, shaft extension, or trimming machine are available as optional equipment and can be purchased separately.
2. What kind of work the BC 300 D is best suited for?
The BC 300 D will be perfect for mowing lawn and wasteland, trimming hedges, cutting shrub and tree branches (with a trimming machine), as well as blowing leaves, grass and light debris from driveways, paths and patios.
3. Does replacing attachments require tools?
Not. The drive unit is equipped with a "no tools" quick-connect system, which allows the installation and removal of attachments without the use of additional tools. Changing the function of the device takes just a few moments.
4. What fuel mixture should be used?
BC 300 D has a 2-stroke engine, so it requires a mixture of gasoline and 2-stroke engine oil in the proportions recommended by the manufacturer. This ensures proper lubrication, wear protection and long component life.
5. Is the drive unit suitable for professionals?
Yes. Thanks to its high power output, robust construction (nickel-plated cylinder, forged connecting rod, crankshaft), anti-vibration system, and easy expansion with additional attachments, the BC 300 D is fully prepared for intensive daily work in gardening and service companies.
6. How often do you need to perform inspections and maintenance?
Inspection frequency depends on the intensity of use. For typical domestic use, it is recommended to check the air filter, candle and fuel system at least once a season. In professional applications, it is a good idea to perform maintenance more frequently, according to the manufacturer's recommendations, to ensure maximum reliability.
7. Is the BC 300 D comfortable to use for people of finer stature?
Yes. Thanks to its light weight (4.8 kg), single handlebar and effective vibration damping system, the drive unit is also comfortable for people with less physical strength. Proper selection of the carrier belt and attachments allows for comfortable, safe operation.
8. Will BC 300 D cope with large plots of land and commercial areas?
High engine power, efficient transmission system and the ability to quickly change attachments make the BC 300 D ideal for the maintenance of both large private gardens and commercial areas - housing estates, sports facilities or urban areas.
