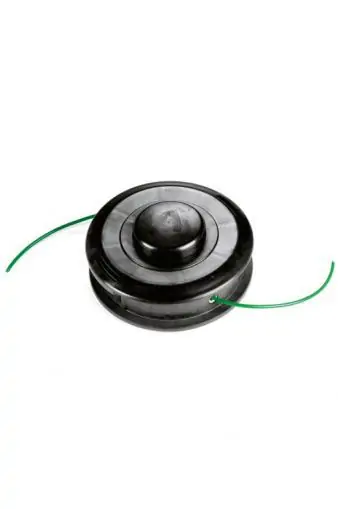

TAP&GO VEIN HEAD Ø160 MM 61112061A
- Professional TAP&GO vein head Ø160 mm 61112061A for Oleo-Mac lawnmowers. Semi-automatic 3.5 mm line advance, M10 x 1.25 left-hand thread, high durability and performance for cutting grass and weeds.
TAP&GO Ø160 MM TAP&GO BLADE HEAD 61112061A - professional cutting head for Oleo-Mac lawnmowers
TAP&GO Ø160 MM 61112061A TAP&GO HEAD is a sturdy, professional cutting head with a semi-automatic line ejection system, designed for Oleo-Mac's brush cutters and trimmers. With its large diameter of 160 mm, M10 x 1.25 thread and counterclockwise rotation direction, it provides stable operation and high cutting efficiency even in difficult field conditions. It is an ideal choice for both demanding home users and professionals involved in the care of greenery.
TAP&GO head Ø160 mm
female, left, with vein, vein diameter: 3.50 mm
direction of rotation: counterclockwise
Ø160 mm, M10 x 1.25
Head compatible with Oleo-Mac mowers : BC 400 S / BC 400 T / 741 / 746 S / 746 T / 753 T / 755 MASTER / BC 530 T / BC 550 MASTER / BC 430 S / BC 430 TL
What is the TAP&GO Ø160 MM 61112061A vein head and how it works?
The TAP&GO Ø160 MM 61112061A vein head is the working element of a lawnmower or brushcutter, responsible for the actual cutting of grass and weeds. Inside the body there is a wound 3.50 mm diameter cutting line, which precisely cuts vegetation when rotating at high speed. The name TAP&GO stands for the system of semi-automatic extension of the line - to extend it, all you need to do is lightly "tap" (tap) the head against the ground while the cutter is running, and the line will automatically extend to the correct length.
With this solution, there is no need to turn off the machine each time and manually unwind the line. This translates into tremendous time savings and comfort, especially in larger areas or in terrain with varied terrain. The head is designed to rotate counterclockwise and has a socket with M10 x 1.25 thread (female, left), which guarantees a secure fit on the Oleo-Mac scythe gearbox and eliminates the risk of spontaneous unscrewing during operation.
In practice, the user appreciates it for its simplicity of operation, reliability and high load resistance. It's a solution that works well for regular lawn mowing around the house, as well as for intensive cleanup work on allotments, orchards, fences, drainage ditches or municipal areas.
Where the TAP&GO Ø160 MM 61112061A vein head is mounted and with which cutters it works with?
The TAP&GO Ø160 MM 61112061A vein head was designed specifically for Oleo-Mac's brushcutters and trimmers. It is mounted directly on the bevel gear (on the drive shaft) in place of the standard cutting head. Using the popular M10 x 1.25 left-hand female thread, installation is quick and intuitive - simply lock the gear, unscrew the old head and screw the new one in its place, tightening it by hand and then lightly with a wrench according to the device manufacturer's recommendations.
This model is compatible with the following Oleo-Mac lawnmowers:
- Oleo-Mac BC 400 S
- Oleo-Mac BC 400 T
- Oleo-Mac 741
- Oleo-Mac 746 S
- Oleo-Mac 746 T
- Oleo-Mac 753 T
- Oleo-Mac 755 MASTER
- Oleo-Mac BC 530 T
- Oleo-Mac BC 550 MASTER
- Oleo-Mac BC 430 S
- Oleo-Mac BC 430 TL
In practice, this means a wide range of professional and semi-professional scythes - from models designed for intensive municipal work to powerful scythes for household and agricultural applications. The head is ideal for:
- cutting grass on home lawns and around buildings,
- mowing weeds near fences, walls, paths and driveways,
- maintenance of the roadsides of access roads and garden alleys,
- care of green areas at companies, schools or sports facilities.
Thanks to its universal mounting parameters, it is often chosen by users who want to replace a worn or damaged factory head with a new, durable and convenient high-quality replacement.
Use of TAP&GO Ø160 MM 61112061A vein head in daily work
TAP&GO Ø160 MM 61112061A head is designed for intensive and versatile field work. Its main use is to cut grass and medium-hard weeds wherever a regular lawnmower cannot reach. Thanks to its robust design and the use of a 3.50 mm cutting line, it provides a clean, precise cut with high performance.
Examples of applications in daily work:
- Home lawns and edging: ideal for finishing edges at flowerbeds, walls, paver paths or lawn edges where a rotary mower cannot reach.
- Recreational plots and gardens: effective at keeping weed regrowth in check around trees, shrubs, arbors, pergolas or irrigation systems.
- Farms: helpful for mowing brush along fences, ditches, in orchards, on slopes and unpaved access roads.
- Municipal and service areas: proves itself in the care of urban greenery - road lanes, roadsides, parks, playgrounds, areas near public facilities.
Due to the semi-automatic line advance system, the user can fully focus on work without frequent interruptions to adjust the length of the line. This translates into higher productivity, less operator fatigue and faster completed orders.
Key features and benefits of Oleo-Mac TAP&GO Ø160 MM 61112061A head
TAP&GO Ø160 MM 61112061A vein head is distinguished by a set of key features that directly translate into convenience of use, durability and safe operation:
- TAP&GO system - quick extension of the line: simply press the head against the ground at full speed for the line to extend automatically. No need to stop the engine and manually unwind the line shortens the time of work and makes it more comfortable, especially when the line often hits stones or curbs.
- Large head diameter Ø160 mm: larger diameter means more stable operation and a wider mowing lane, which allows you to get the job done faster on large areas. At the same time, the head remains compact enough to precisely reach harder-to-reach places.
- The line has a diameter of 3.50 mm: thicker line increases resistance to abrasion and breakage when dealing with tougher weeds, small stones or twigs. This is ideal for those who mow more frequently neglected areas, ditches, field edges or wastelands.
- Robust construction and high durability: the use of high-quality plastics and proven design means resistance to mechanical damage, sudden changes in load and long-term operation in harsh field conditions.
- Operator safety and comfort: even line unwinding and properly selected operating parameters minimize vibrations and sudden jerks, which improves ergonomics and user safety, especially when working for many hours.
Thanks to these features, the TAP&GO Ø160 MM 61112061A head is an investment that quickly pays for itself - it reduces downtime, reduces line wear, and, most importantly, streamlines and speeds up green care work.
Technical data of TAP&GO Ø160 MM 61112061A vein head
| Product type | TAP&GO vein head |
| Head diameter | Ø160 mm |
| Mounting thread | M10 x 1.25, female thread, left-handed |
| Direction of rotation | Counterclockwise |
| Type of line advance system | Semi-automatic TAP&GO (tap and go) |
| Cutting line diameter | 3.50 mm |
| Destination | Oleo-Mac mowers and trimmers (models BC 400 S/T, 741, 746 S/T, 753 T, 755 MASTER, BC 530 T, BC 550 MASTER, BC 430 S, BC 430 TL) |
| Manufacturer/system code | 61112061A |
| EAN code | 5903383004731 |
Such selected technical parameters make the head perfectly compatible with powerful drive units, providing an optimal balance between cutting performance and the durability and culture of the device's operation.
Why choose TAP&GO Ø160 MM 61112061A head for your Oleo-Mac lawnmower?
Choosing the right cutting head is crucial to the efficiency and comfort of the petrol cutter. The TAP&GO Ø160 MM 61112061A model offers a proven design, matching the requirements of users looking for reliability and ease of use. The TAP&GO system keeps downtime to a minimum, and the solid design ensures long life even with regular heavy use.
This solution is highly recommended:
- those with extensive green areas,
- gardening and service companies,
- settlement administrations, municipalities and municipal land managers,
- farmers, fruit growers and farm owners.
Deciding on the TAP&GO Ø160 MM 61112061A vein head, you get a reliable tool that will facilitate the daily care of greenery, reduce the time of work and improve the quality of work, allowing you to get an aesthetically pleasing and well-kept area around your home, business or farm.
FAQ - frequently asked questions about TAP&GO Ø160 MM 61112061A head
Question 1: Will the TAP&GO Ø160 MM 61112061A head fit any Oleo-Mac cutter?
Answer: The head is compatible with selected models of Oleo-Mac lawnmowers: BC 400 S, BC 400 T, 741, 746 S, 746 T, 753 T, 755 MASTER, BC 530 T, BC 550 MASTER, BC 430 S, BC 430 TL. Before purchasing, make sure that the model you own appears on this list and has the correct M10 x 1.25 (left) mounting threads.
Question 2: What diameter of fishing line can I use in this head?
Answer: TAP&GO Ø160 MM 61112061A head is designed to work with 3.50 mm diameter line. The use of the recommended diameter guarantees optimal cutting performance, safety and durability of the head.
Question 3: How the line is extended in the TAP&GO system?
Answer: To eject the line, gently bump (tap) the head against the ground while operating at operating speed. An internal mechanism will automatically release the line, which will extend to the correct length. No need to stop the engine or manually unwind the line.
Question 4: Is the head suitable for intensive, professional work?
Answer: Yes, thanks to its large diameter, sturdy construction and 3.50 mm vein, the TAP&GO Ø160 MM 61112061A head is great for professional applications - gardening companies, municipal grounds care and farms and orchards.
Question 5: How often should the cutting head be replaced?
Answer: The frequency of replacement depends on the intensity and conditions of the work (type of mowed vegetation, presence of stones, curbs, etc.).). With proper use and regular replacement of the line itself, the TAP&GO Ø160 MM 61112061A head can serve for a long time. It is recommended to periodically check the condition of the body and internal components and replace the head in case of visible cracks or excessive wear and tear.
Question 6: Can I do the head assembly myself?
Answer: Yes, the installation of the TAP&GO Ø160 MM 61112061A head is simple and can be done by yourself, according to the instruction manual of the scythe. Simply lock the gearbox, unscrew the old head and screw the new one onto the shaft with M10 x 1.25 threads, paying attention to the left direction of the threads.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
