OLEO-MAC GI 548V CORDLESS MOWER SET (8.0AH-56V) 54359005S3
- Oleo-Mac Gi 548V 8.0Ah 56V cordless lawnmower - professional lawnmower for 500-700 m² garden. Induction motor, 0-5 km/h drive, 46 cm cutting width, 70 l basket, mulching and side discharge function.
OLEO-MAC Gi 548V ACUULATOR MOW KIT 8.0Ah 56V - PROFESSIONAL PREMIUM CLASS FOR ANY GARDEN
What is Oleo-Mac Gi 548V battery lawn mower set (8.0Ah-56V) 54359005S3?
Oleo-Mac Gi 548V cordless lawn mower is an advanced premium cordless lawn mower for fast and convenient mowing of medium and larger lawns. In the presented set you get a complete working system - a powerful Li-Ion 8.0 Ah / 56 V battery and a fast charger - so you can start mowing right out of the box without having to buy additional components.
The Gi 548V model uses a modern induction (brushless) motor, which guarantees high efficiency, no speed drop and low failure rate. The 46 cm mowing width, metal body, variable speed drive and capacious 70 l basket make it ideal for demanding users who value comfort, silence and complete freedom of movement without a cable and without exhaust fumes.
Where to install and how to use the Oleo-Mac Gi 548V cordless mower?
Oleo-Mac Gi 548V lawn mower is freestanding and does not require any mounting to the ground or garden installations. User only:
- mounts the guide bracket according to the instructions (several screws and clamps),

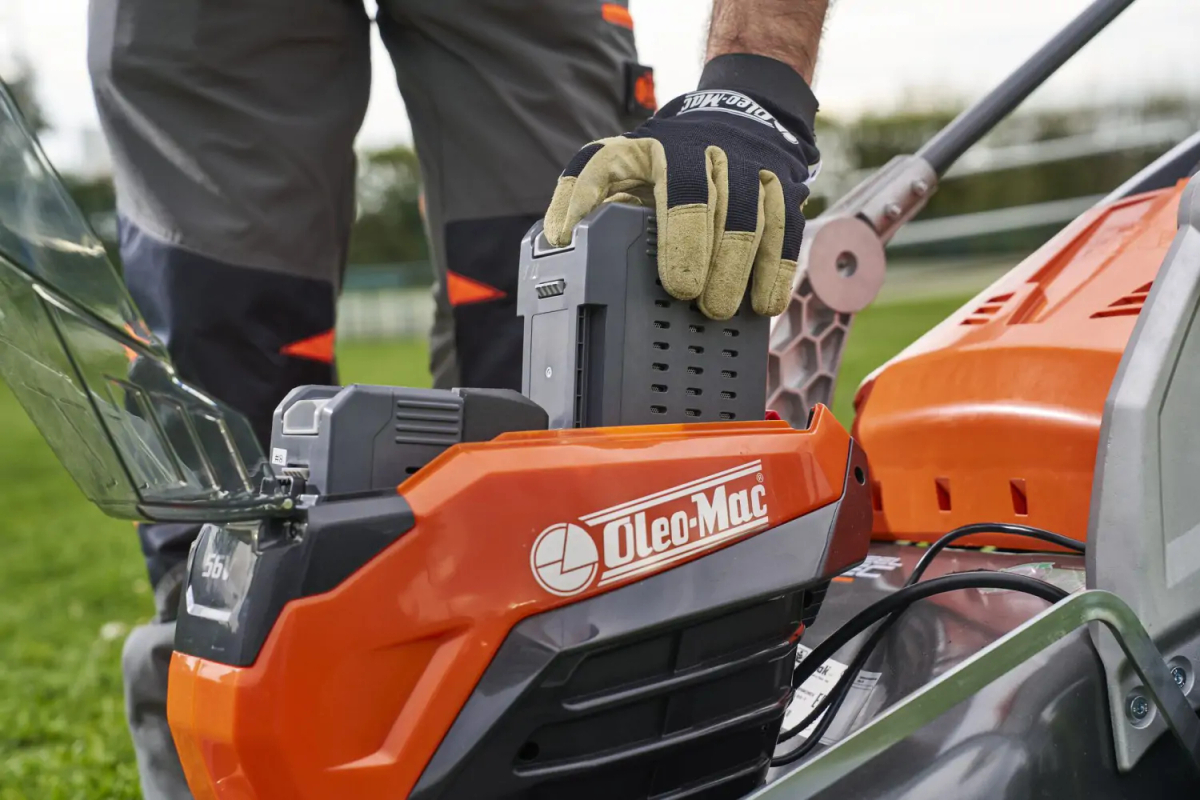

- inserts the battery into a dedicated compartment in the body of the mower,
- sets the cutting height with the central lever,
- starts the engine using the control panel and power button.
Drive the mower by hand on the lawn - you are assisted by a drive with infinitely variable speed control from 0-5 km/h. This allows you to work comfortably on both small and large areas, on straight sections or on gentle slopes around the house, gazebo, driveway or in the recreational garden.
Use of Oleo-Mac Gi 548V (8.0Ah-56V) lawn mower - for which lawns?
The Oleo-Mac Gi 548V cordless mower is designed for intensive, regular lawn care:
- home gardens with an area of 500 to 700 m² on a single 8.0 Ah* battery - ideal for mowing around terraces, paths, flowerbeds, around trees and shrubs,
- larger properties and estates - Using two 8.0 Ah batteries, it is possible to mow lawns with a total area of about 1000-1400 m²*,
- corporate and institutional sites - Representative lawns in front of an office building, hotel or guesthouse, where quiet operation, absence of exhaust fumes and impeccable appearance of greenery are important.
The device is ideal for use in areas where noise and exhaust fumes are undesirable - residential areas, home gardens in dense housing, recreational areas, kindergartens or schools.
Oleo-Mac Gi 548V cordless mower - powerful induction motor, stable operation and performance
The heart of the mower is induction electric motor powered by a Li-Ion 8.0 Ah / 56 V battery. This type of drive provides:
- stability of delivered power - The mower operates with the same performance from full to low battery charge, without noticeable drops in speed,
- lower energy consumption and longer life - The absence of brushes reduces the number of wear items and the risk of failure,
- less noise and vibration compared to internal combustion engines, which translates into user comfort and the ability to mow at earlier and later times of the day.
The blade speed is 3000 rpm./min, which guarantees a clean, even cut. Mowing width of 46 cm allows the mower to run smoothly in narrower aisles, while significantly speeding up work on larger areas. It's the perfect compromise between maneuverability and performance.

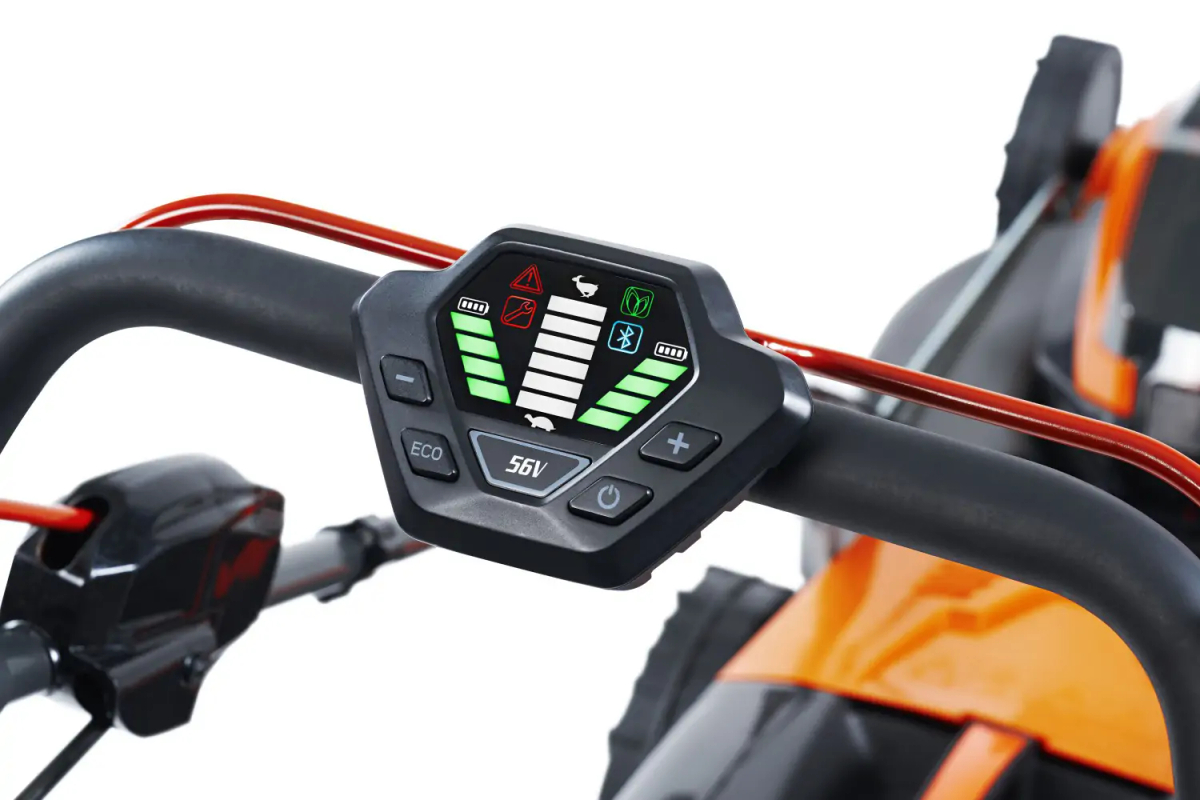

Smart display, app and diagnostics - full control over the Oleo-Mac Gi 548V mower
Gi 548V mower is a modern device not only in terms of drive, but also in terms of control electronics. On the handle there is easy to read LED display, from which you read:
- current battery charge level,
- selected travel speed,
- messages about possible faults and operation status.
The bright LEDs are perfectly visible even in bright sunlight, which you will appreciate during summer work. In addition, the mower offers:
- ECO mode - Activated from the panel; lowers energy consumption, proving useful for lighter mowing, such as a regularly trimmed recreational lawn,
- bluetooth connectivity and a dedicated user application - allows you to create a work history, save your location and contact your brand channels,
- built-in service diagnostics - authorized service centers can remotely read operating parameters, making it easier to assess the extent of repair or the need to replace components.
Such solutions are usually found in professional machines - in the Gi 548V model you get them as standard, which increases the safety of use and extends the life of the machine.
Oleo-Mac Gi 548V - convenience of operation, cutting height adjustment and capacious 70 l basket
Great emphasis has been placed on ergonomics and everyday user convenience. The mower offers:
- central cutting height adjustment within 28-75 mm,
- 5 levels of adjustment operated by a practical lever on the side of the body,
- ergonomic handle with the possibility of adjusting to the height of the operator.
So you can easily adjust the height of the grass according to the season or the purpose of the lawn. A lower cut will work well for presentable, heavily used turf, while a higher setting will protect the grass from drying out during hot weather.
The grass clippings go into the basket with a capacity of 70 liters, equipped with filling indicator. This solution completely eliminates the guesswork of whether the garbage can is full - you only need a glance to know when to empty it. Fewer interruptions for emptying the basket means faster and more comfortable mowing of even large gardens.
Single or dual battery operation system - flexible autonomy Oleo-Mac Gi 548V
One of the biggest advantages of the Gi 548V mower is its possibility to work with one or two batteries. This allows you to match the power set to the size and nature of your lawns:
- with one 8.0 Ah battery - surface working autonomy approx. 500-700 m²*,
- with two 8.0 Ah batteries - possibility of mowing approx. 1000-1400 m²*,
- with one 4.0 Ah battery - autonomy ok. 250-350 m²*,
- with two 4.0 Ah batteries - ok. 500-700 m²*.
Such values make it possible to effectively serve both a small home garden and larger recreational areas. Note that these are estimates - the actual working time depends m.in. from the height and density of the grass, its moisture content, the sharpness of the blade or the slope of the terrain.
The kit comes with quick charger, which allows the battery to be charged from 0 to 100% in about 80 minutes. This makes it possible, in practice, to perform a full mowing cycle and then recharge the battery during a break, for example, between one section of the lawn and the next.
Important: Oleo-Mac 56V series mowers do not work with Bi525 battery (2.0Ah). For full performance and safety, it is recommended to use original batteries of this series.
Durable construction, metal body and grinding and side ejection functions
The Oleo-Mac Gi 548V is distinguished by its solid, well-thought-out design, which translates into a long service life for the machine:
- metal body increases resistance to mechanical damage, such as hitting a stone or curb,
- large wheels with a diameter of 200 / 280 mm make it easier to guide the mower over uneven ground,
- weight 26.0 kg (without battery) ensures track stability and precise cutting even on gently sloping terrain.
As standard, the mower is equipped with grinding function (mulching) and lateral ejection. It allows:
- use finely shredded grass as a natural fertilizer that remains on the surface of the lawn,
- speed up the work on less presentable parts of the garden, where there is no need to collect the swath in a basket,
- handle taller grass easily, such as when mowing for the first time after a long break.

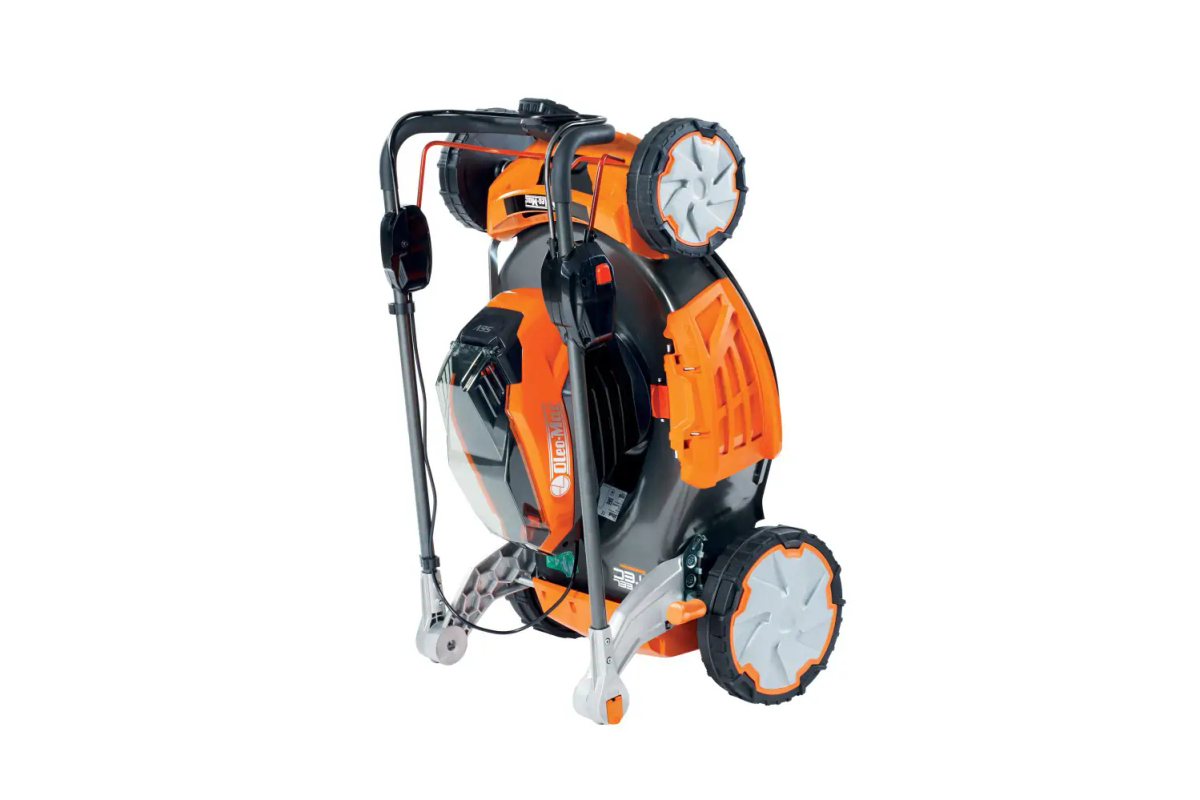

When finished working, the mower can be placed in an upright position, which makes it much easier to clean the body and store it even in a small garage or tool storeroom.
Full, original manufacturer's description - Oleo-Mac Gi 548V Kit (8Ah battery + fast charger)
Cordless lawnmower Oleo-Mac Gi 548V - Set (8Ah battery+fast charger)
BATTERY (8.0 Ah) AND CHARGER ON EQUIPMENT.
Premium cordless mower. Modern induction motor and high quality battery ensures the STABILITY of the delivered power which means no drop in speed and no negative feelings during operation. The lawnmower runs as efficiently all the time, regardless of the battery charge level.
- Ease of use.
- Operation with one or two batteries.
- Display with comprehensive information: the user can observe the available charge level, the selected speed level and any faults. Bright LEDs make the information visible even in sunny places.
- User application: the end user has an application to store information about their machines, work sessions, the location of the machine's connection sites, and connection to official media and social channels.
- Quiet operation as possible.
- Built-in diagnostics: thanks to a dedicated smartphone app, via Bluetooth connection, authorized Oleo-Mac service centers have a tool to determine the extent of repair or replacement of components
- ECO mode: selectable from the display, can be used for undemanding cuts, reducing power consumption, allowing longer operation.
THE MOWER CAN WORK WITH ONE OR TWO BATTERIES
- A modern induction motor, combined with a rechargeable battery, provides autonomy for work on lawns of quite considerable size:
- with one 8.0 Ah battery 500-700 m2;*
- with two 8.0 Ah batteries approximately 1000-1400m2;*
- with one 4.0 Ah battery approximately 250-350 m2;*
- with two 4.0 Ah batteries 500-700 m2;*
- Oleo-Mac 56V series mowers do not work with Bi525 (2.0Ah) battery.
- It is possible to adjust the cutting height in 5 different positions using a practical lever: in this way you can adjust the cutting height to suit your needs or the season.
- Garbage can for grass clippings equipped with an indicator that shows when the basket is full.
- Grinding and side ejection as standard.
- Ergonomic handle that will allow you to adjust the equipment to work according to the height of the operator.
* The figures given are estimates. Please consider that there are several factors that directly affect the length of operation of a given battery. Among other things: the height of the grass and even its species (width and density of the blade), the moisture content of the lawn during mowing, the degree of sharpening of the blade, the slope of the terrain, etc. They significantly affect the operating time of the device.
Technical specifications:
| Battery data | Li-Ion 8.0 Ah/56 V (supplied) |
| Charging time | 80min (from zero to 100%) |
| Knife speed | 3000 rpm (rpm./min.) |
| Body | metal |
| Engine type | inductive |
| Mowing width | 46 cm |
| Drive | variable speed from 0 to 5 km/h |
| Cutting height | 28 - 75 mm |
| Number of adjustments | 5 levels |
| Basket capacity | 70 l |
| Wheel diameter | 200 / 280 mm |
| Features | grinding and side ejection as standard |
| Weight | 26.0 kg (without battery) |
FAQ - Frequently asked questions about Oleo-Mac Gi 548V 8.0Ah 56V cordless lawn mower
1. How long can I mow on a single charge of the 8.0 Ah battery?
Under standard lawn conditions (regularly mowed, not too tall and dry grass), one 8.0 Ah battery can mow approx. 500-700 m² area. Actual working time may be reduced in very tall, dense or wet grass and on steep slopes.
2. Does it come with a battery and charger?
Yes. The presented set includes a Li-Ion 8.0 Ah / 56 V battery and a fast charger that allows a full charge in about 80 minutes.
3. Can I use two batteries at the same time?
Yes. Oleo-Mac Gi 548V lawn mower is designed to work with one or two batteries. The use of two batteries significantly extends the working time - up to about 1000-1400 m² of surface on one cycle.
4. Does the mower have wheel drive?
Yes. The unit has a variable speed drive from 0 to 5 km/h, which makes it easier to mow larger areas and relieves the user's burden when working on inclines.
5. What grass ejection functions the mower has?
The mower offers three ways to manage the swath: collecting the grass into a 70-litre basket, grinding (mulching) and side discharge. This allows you to adjust the way you work according to your current needs and the type of lawn.
6. Is the mower noisy?
Thanks to the induction motor and battery power, the mower runs much quieter than traditional petrol models. It is an ideal solution for gardens in single-family developments, where the comfort of homeowners and neighbors is important.
7. Is the mower suitable for storage in a small garage?
Yes. Gi 548V can be set up vertically to save space and make cleaning easier. This is a big advantage in small garages, storage cells or tool sheds.
8. Which batteries this model works with?
The mower works with Oleo-Mac 56V series batteries with a capacity of 4.0 Ah and 8.0 Ah. Not compatible with Bi525 battery (2.0 Ah).
