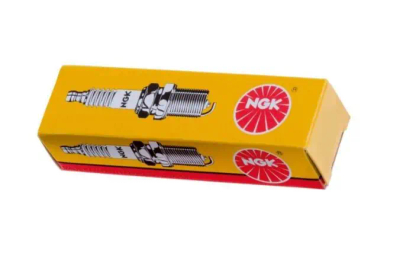

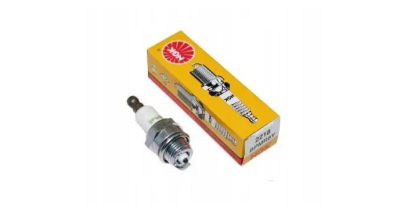

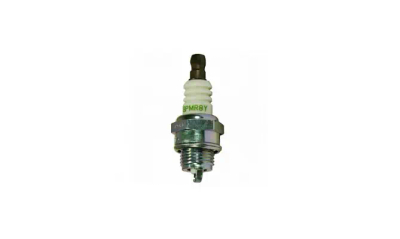

NGK BPMR8Y SPARK PLUG 3055118R
- NGK BPMR8Y 3055118R spark plug for Oleo-Mac chainsaws and brushcutters provides reliable ignition, easy starting, reduced fuel consumption and stable engine operation. Ideal candle for GS 630, GS 650, GS 651, BC 400, BC 530, SPARTA 250.
Ignition plug NGK BPMR8Y 3055118R - reliable ignition in Oleo-Mac chainsaws and brushcutters
NGK spark plug BPMR8Y 3055118R is a high quality ignition system component, designed for internal combustion machines operating in harsh conditions. Responsible for creating a spark that ignites the fuel-air mixture in a two-stroke engine, ensuring easy starting, even operation and full use of the power of the machine.
This model is a genuine, recommended replacement for selected machines OLEO-MAC, guaranteeing a perfect fit and full compatibility with the engine. When you invest in an NGK spark plug, you are choosing a proven solution from a reputable ignition parts manufacturer.
NGK spark plug BPMR8Y
The part fits machines OLEO-MAC:
GS 630 - GS 650 - GS 651 - BV 163 - BC 400 - BC 530 - BC 530 MASTER - BCF 530 - BCF 550 - SPARTA 250 - WP 300 - AM 163 -
Technical data:
Width of key:19.0 mm
Thread diameter:14.0 mm
Thread length:9.5 mm
Electrode spacing:0.7 mm
Resistor: 10 kOhm
NGK spark plug BPMR8Y 3055118R - construction, parameters and performance quality
Spark plug NGK BPMR8Y has been designed in accordance with strict quality standards, making it ideal for professional chainsaws and brushcutters. Its design provides a stable spark over a wide range of rotations, and the materials used guarantee resistance to the high temperatures and vibrations that occur during intensive operation of the device.
Key technical parameters:
- Key Spanner: 19.0 mm - standard size to facilitate quick installation and removal of the candle using popular candle wrenches.
- Thread diameter: 14.0 mm - ensures a perfect fit in the head socket of the engines used in Oleo-Mac equipment.
- Thread length: 9.5 mm - exactly as required by the engine design, which protects against damage to the piston or valves.
- Electrode spacing: 0.7 mm - precisely matched for optimal spark and proper mixture combustion.
- Resistor: 10 kOhm - built-in resistor reduces electromagnetic interference and improves ignition culture.
With these parameters, the candle provides:
- easy engine start, even after a long break in use,
- stable operation at idle and under load,
- lower fuel consumption and reduced emissions,
- reduce the effect of "flooding" of the candle in harsh operating conditions.
Examples of daily use: candle will be ideal for a chainsaw used to cut firewood during the heating season, a petrol lawnmower used for regular mowing of the lawn or brush in the garden, and a leaf blower working in autumn with heavy loads.
Where is the NGK BPMR8Y 3055118R candle installed and what machines it fits on??
NGK spark plug BPMR8Y 3055118R is mounted in the head of a two-stroke engine, in a specially prepared socket with M14 threads. This is a consumable component that should be replaced regularly to keep the device fully operational. Replacing a spark plug is quick and easy - all you need is the right 19mm wrench and access to the ignition pipe.
This model is designed for selected machines OLEO-MAC, in particular:
- petrol chainsaws: GS 630, GS 650, GS 651,
- blowers and diesel vacuum cleaners: BV 163,
- petrol cutters and trimmers: BC 400, BC 530, BC 530 MASTER,
- professional scythes and brushcutters: BCF 530, BCF 550,
- sPARTA trimmers and scythes: SPARTA 250,
- pumps and other equipment: WP 300, AM 163.
Thanks to its exact match to Oleo-Mac engine specifications, this candle:
- eliminates the risk of using haphazard substitutes with inappropriate parameters,
- ensures trouble-free installation - the thread screws in lightly, without jamming or risk of damaging the socket,
- maintains the correct operating temperature, which affects the durability of the piston, cylinder and rings.
In practice: the owner of Oleo-Mac GS 650 chainsaw by installing NGK BPMR8Y gains the certainty of easy firing in the forest or on the allotment, the user of BC 530 scythe can work for many hours without interruption due to "intermittent" ignition, and the operator of BV 163 blower enjoys stable power during intensive removal of leaves from large areas.
Use of NGK BPMR8Y candle in daily operation - reliability, economy and comfort
NGK spark plug BPMR8Y 3055118R it is used wherever reliability of combustion equipment counts - in gardening, horticulture, forestry, household cleaning and municipal services. It is especially recommended for users who use their machines intensively and expect trouble-free operation.
Benefits of the NGK BPMR8Y candle:
- Greater reliability of ignition - Stable spark minimizes the risk of engine stalling during operation, which is important, for example, when felling thick logs with the GS 651 chainsaw or mowing neglected plots with the BCF 550 mower.
- Fuel savings - proper combustion of the mixture reduces its wear and tear, which is noticeable when working frequently, such as during seasonal tree trimming or regular mowing of large green areas.
- Better comfort of use - Even engine operation reduces vibration and noise, improving operator comfort and reducing fatigue during prolonged work in the garden or forest.
Examples of daily use:
- cutting firewood with an Oleo-Mac GS 630 chainsaw in the fall and winter,
- regular mowing of the lawn and weeds with a BC 400 scythe around the house and outbuildings,
- intensive cleaning work on the premises of companies, schools or housing estates with the BV 163 blower,
- pumping water with the WP 300 pump when working on the plot, garden or ponds.
In all of these applications, the NGK BPMR8Y candle influences fast starting, smooth operation and full utilization of engine power, which directly translates into operational efficiency and user satisfaction.
Why choose a genuine NGK BPMR8Y 3055118R spark plug for Oleo-Mac machines?
Choosing the right spark plug is critical to engine life and operational safety. NGK BPMR8Y 3055118R is a product of a reputable brand specializing in the production of spark plugs for internal combustion engines. By using an original candle, you gain:
- Guarantee of compatibility - The candle has been matched to specific models of Oleo-Mac equipment, thus eliminating the risk of a wrong fit.
- High durability - properly selected electrode and insulator materials ensure long life, even when working in dusty, humid or variable environments.
- Engine protection - The correct spark plug reduces carbon build-up, piston overheating and knocking combustion, which translates into a longer life of the entire drive unit.
In practice, this means less frequent servicing of equipment, less risk of downtime, and confidence that the equipment will start up when you really need it - whether you are working professionally or just taking care of your own garden.
How to properly replace a NGK BPMR8Y 3055118R spark plug?
In order to realize the full potential of the NGK BPMR8Y candle, it is important to install it correctly. The replacement process is simple and can be done by yourself:
- Turn off the engine and wait for it to cool down completely.
- Disconnect the ignition pipe from the old spark plug.
- Using a 19 mm wrench, unscrew the old plug, working carefully so as not to damage the threads in the head.
- Check the condition of the socket, remove any contamination.
- Screw in a new spark plug by hand NGK BPMR8Y 3055118R, and then tighten it with a wrench according to the manufacturer's recommendations (without excessive force).
- Connect the ignition pipe and make sure it is well seated.
Regular inspection of the condition of the spark plug (color of the insulator, presence of carbon build-up, wear of the electrodes) will allow you to plan its replacement early, before problems with firing or loss of engine power occur.
Technical specifications and product codes NGK BPMR8Y 3055118R
Technical parameters of the candle:
- Model: NGK BPMR8Y
- Manufacturer/System Code: 3055118R
- Width of key: 19.0 mm
- Thread diameter: 14.0 mm
- Thread length: 9.5 mm
- Electrode spacing: 0.7 mm
- Resistor: 10 kOhm
- EAN code: 8026619082512
Thanks to unambiguous markings (model, system code and EAN), you will easily verify the compatibility of the part with your machine and avoid confusion when ordering subsequent units.
FAQ - Frequently asked questions about NGK BPMR8Y 3055118R candle
1. To which appliances the NGK BPMR8Y 3055118R candle fits?
NGK spark plug BPMR8Y fits selected machines OLEO-MAC, m.in. saws GS 630, GS 650, GS 651, scythes and trimmers BC 400, BC 530, BC 530 MASTER, BCF 530, BCF 550, scythes SPARTA 250, blower BV 163 and devices such as WP 300 and AM 163. Before you buy, it's a good idea to compare the markings with the manual of the equipment you have.
2. How often should you replace the spark plug in your chainsaw or lawnmower?
The frequency of replacement depends on the intensity of use and the quality of the fuel-oil mixture. For regular amateur use, it is recommended to check the plug every season and replace it every 1-2 seasons. When working professionally or very intensively, it is a good idea to inspect the candle more often and replace it when you notice firing problems, loss of power or severe fouling of the electrodes.
3. Is it possible to replace the NGK BPMR8Y spark plug yourself?
Yes, replacing the NGK BPMR8Y spark plug is simple and can be done yourself with a 19mm wrench. Simply disconnect the pipe, unscrew the old spark plug, screw in the new one and reconnect the ignition cable. It is important not to use excessive force when tightening and to work on a cold engine.
4. What symptoms indicate the need to replace the spark plug?
Typical symptoms of a worn-out spark plug include difficulty starting the engine, rough idling, loss of power under load, frequent stalling, and increased fuel consumption. A dark, heavily burned insulator or worn electrodes are also a sign that the plug should be replaced.
5. Why use an NGK candle rather than a random replacement?
NGK is one of the most respected spark plug brands in the world. Genuine NGK BPMR8Y 3055118R spark plug guarantees proper thermal parameters, proper electrode spacing and high quality workmanship, which translates into longer engine life, lower fuel consumption and definitely higher reliability in daily operation.
