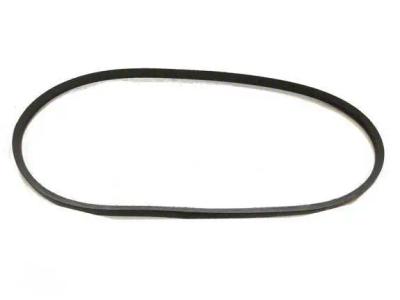

V-BELT OF INTERNAL COMBUSTION MOWER Z35 10X890 LI / MAX53 3047028R
- V-belt for Z35 10x890 Li / MAX53 3047028R lawn mower - original blade drive for OLEO-MAC LUX 55, MAX 48, MAX 53 mowers. Durable, resilient, provides a strong and even grass cut. The perfect replacement for a worn out belt.
V-belt for Z35 10x890 Li / MAX53 3047028R lawn mower is a high-quality blade drive component, designed for professional and semi-professional OLEO-MAC mowers. It is responsible for transferring power from the engine to the cutting blade, ensuring even, stable and safe operation of the mower even in difficult terrain conditions. It is made of a durable rubber compound reinforced with special cords, so it has high resistance to stretching, abrasion and operation at elevated temperatures.
What is the V-belt of the Z35 10x890 Li / MAX53 3047028R lawn mower and why it is so important?
The Z35 10x890 Li / MAX53 3047028R lawn mower V-belt is the original type of Z-profile drive belt (width approx. 10 mm) and working length of 890 mm Li, designed specifically to work with the cutting deck design of OLEO-MAC MAX and LUX series mowers. Its task is to smoothly transfer torque from the engine shaft to the blade, without slipping or jerking, which directly affects the quality of mowing and the life of the entire machine.
This belt works in a harsh environment - it is exposed to dust, grass, varying loads, high speed and temperature changes. Therefore, its proper design and proper sizing are key: a belt that is too long, too short or too narrow can cause slippage, excessive heat build-up and even damage to bearings, tensioners or the mower blade itself. The Z35 10x890 Li / MAX53 3047028R was selected to work perfectly with the original pulleys on popular OLEO-MAC mowers, providing optimum tension and stable operation at nominal engine speeds.
Thanks to the appropriate wedge profile, the belt securely "nests" in the grooves of the pulleys, which increases the contact surface and the efficiency of power transmission. This allows efficient mowing of both low and tall, dense grass - without a noticeable drop in blade speed and without having to go over the same spot several times.
Where does the Z35 10x890 Li / MAX53 3047028R V-belt install in an OLEO-MAC lawn mower??
V-belt Z35 10x890 Li / MAX53 3047028R is mounted at the bottom of the internal combustion mower - between the pulley located on the engine shaft and the pulley (or set of pulleys) at the cutting blade. Many OLEO-MAC models use additional guide or tension rollers to ensure that the belt is properly aligned and maintains constant tension during mower operation.
In a typical assembly scenario:
- the belt is put on the smaller engine pulley first,
- is then guided by a tension roller (if present in the design),
- finally, it is attached to the larger wheel at the knife or to the set of wheels responsible for driving the cutting system.
In practice, installing a V-belt takes a few minutes or so and can be done by yourself by a user with basic tools and a little experience in servicing garden equipment. Thanks to the proper placement of the belt in the grooves of the pulleys, the mower regains full efficiency - the blade is again running at full speed and the grass is evenly cut across the entire working width.
An example of everyday use: after several seasons of intensive use, you notice that the mower cuts less well, the blade sometimes stops when the grass is tall, and you hear a soft squeak from the housing. In most cases, the cause is a worn, stretched or cracked belt. Replacement with a new Z35 10x890 Li / MAX53 3047028R restores the correct voltage and eliminates the problem - without having to buy a new mower.
Application of MAX53 3047028R V-belt - compatibility with OLEO-MAC mowers
Z35 10x890 Li / MAX53 3047028R V-belt is designed to work on selected models of OLEO-MAC lawn mowers. It is the ideal choice for users who want to be sure of full compatibility with their machine's drivetrain and maintain mowing performance according to the manufacturer's specifications.
V-belt fits:
V-belt fits :
OLEO-MAC LUX 55 HXF
OLEO-MAC LUX 55 TBI
OLEO-MAC LUX 55 TBX
OLEO-MAC MAX 48 TBS
OLEO-MAC MAX 53 TBDF Plus-Cut
OLEO-MAC MAX 53 TBX ALLROAD ALUMINUM (2018)
OLEO-MAC MAX 53 TBX ALLROAD ALUMINUM
OLEO-MAC MAX 53 TBX Plus_Cut
OLEO-MAC MAX 53 TBXE ALLROAD ALUMINUM (2018)
OLEO-MAC MAX 53 TBXE Plus-Cut
OLEO-MAC MAX 53 TBXF Plus-Cut
OLEO-MAC MAX 53 TBXM Plus-Cut
OLEO-MAC MAX 53 TH "190 KM" PLUS CUT
OLEO-MAC MAX 53 TH 190 ALLROAD ALUMINUM
OLEO-MAC MAX 53 THX ALLROAD ALUMINUM (2018)
OLEO-MAC MAX 53 THX ALLROAD ALUMINUM
OLEO-MAC MAX 53 THX Plus-Cut
OLEO-MAC MAX 53 TK (K800)
OLEO-MAC MAX 53 TK ALLROAD ALUMINUM (K800) (2018)
OLEO-MAC MAX 53 TK ALLROAD ALUMINUM (K800)
OLEO-MAC MAX 53 TK ALUMINUM PRO (K800) (2018)
OLEO-MAC MAX 53 TK ALUMINUM PRO (K800)
Such a broad compatibility list makes it a universal solution for owners of popular OLEO-MAC models. Instead of looking for replacements with uncertain parameters, you choose a belt marked Z35 10x890 Li / MAX53 3047028R, with the certainty of matching the above-mentioned mowers.
Daily applications range from work in home gardens to more demanding conditions - on recreational plots, green areas at companies or public facilities. When your OLEO-MAC MAX 53, LUX 55 or MAX 48 lawn mower starts to lose cutting power, replacing the belt with a new MAX53 3047028R is one of the most effective and inexpensive ways to restore full functionality to your machine.
Key features of the OLEO-MAC MAX53 3047028R V-belt - durability, reliability and operational safety
From the mower user's point of view, three features are the most important: durability, reliability in all conditions, and operational safety. The Z35 10x890 Li / MAX53 3047028R V-belt was designed with just these parameters in mind.
- High abrasion and tensile resistance - special rubber compound reinforced with textile and/or steel cord ensures that the belt does not stretch excessively even after many hours of use. As a result, it requires voltage adjustments less often, and the mower maintains consistent mowing quality for a long time.
- Stable operation at high speeds - The belt is designed to work with high-speed internal combustion engines, which means it can safely work with knives rotating at high speeds. This minimizes the risk of slips and sudden drops in speed when driving into dense or wet grass.
- Resistance to outdoor conditions - Contact with moisture, grass, dust or small stones is inevitable with mowers. The Z35 10x890 Li / MAX53 3047028R belt is designed for such conditions, which translates into longer service life and lower equipment maintenance costs.
In practice, this means that you can plan to mow large areas with confidence - for example, several adjacent plots of land, an extensive company garden, or areas around a single-family home - without worrying that the belt will suddenly break or start to slip. This is especially important for those who perform landscaping services and cannot afford downtime due to the failure of a simple but crucial component such as the V-belt.
Benefits of using original Z35 10x890 Li / MAX53 3047028R V-belt in your lawn mower
When you choose the Z35 10x890 Li / MAX53 3047028R V-belt, you are betting on a proven solution that translates into concrete benefits in the daily use of the mower:
- Saving time - A mower with a properly matched belt cuts efficiently on the first pass. You do not have to correct undercut sections of the lawn, which is especially important for larger areas.
- Lower operating costs - stable operation of the cutting system means less strain on the engine and less risk of damage to other components (bearings, tensioners, pulleys). In practice, you visit the service less often and save on spare parts.
- User security - A functioning V-belt reduces the risk of sudden stopping or blocking of the blade, which has a direct impact on operator safety. A cracked or skipping belt can lead to uncontrollable behavior of the mower - so it's a good idea to check its condition regularly and replace it with a new, original model if necessary.
For example, if, while mowing the lawn next to a single-family house, you notice that the lawnmower begins to "streak" and the operating sound changes to less even, replacing the belt with Z35 10x890 Li / MAX53 3047028R often solves the problem without the need for costly repairs to other components. This is a quick and relatively inexpensive way to extend the life of your entire OLEO-MAC mower.
Technical data and fit of Z35 10x890 Li / MAX53 3047028R V-belt
- Belt type: v-belt for petrol mower
- Profile: Z (approximately 10 mm wide)
- Dimensions: 10x890 Li
- Application: cutting blade drive in OLEO-MAC mowers (models listed above)
- Purpose: lUX 55, MAX 48 and MAX 53 series petrol mowers, including ALLROAD, ALLROAD ALUMINIUM, Plus-Cut, ALUMINIUM PRO, TK, TH, THX, TBX, TBXE, TBXF, TBXM versions
- Manufacturer/system code: 3047028R
When selecting a V-belt for your lawn mower, it's always a good idea to compare the 3047028R code and Z35 10x890 Li / MAX53 markings with the information in your owner's manual or on your old belt. This avoids confusion and ensures the best fit, without having to modify the drive train.
FAQ - Frequently asked questions about Z35 10x890 Li / MAX53 3047028R lawn mower V-belt
Question 1: How do I know if the V-belt on my mower needs to be replaced?
Answer: The need to replace the V-belt is most often indicated by such symptoms as slipping of the blade (decrease in cutting power), uneven mowing, squeaking sound coming from the housing, visible cracks, abrasions, "frayed" edges or significant stretching of the belt. If the problem quickly returns after the initial stretching, it is worth replacing the belt with a new model Z35 10x890 Li / MAX53 3047028R.
Question 2: Is it difficult to install the V-belt yourself?
Answer: For most users with basic technical skills, replacing the V-belt is a do-it-yourself operation. Just refer to the instruction manual of the mower, disconnect the ignition source (spark plug), remove the drive covers, remove the old belt and install the new one, guiding it exactly the same as the previous one through all pulleys and tension rollers. After fitting, check the tension and that the belt fits evenly in the grooves.
Question 3: Does this belt fit all OLEO-MAC mowers?
Answer: No, the Z35 10x890 Li Wedge Belt / MAX53 3047028R fits selected models, mainly the LUX 55, MAX 48 and MAX 53 series (various versions TBX, TH, THX, TK, ALLROAD, ALLROAD ALUMINIUM, Plus-Cut, ALUMINIUM PRO). Before you buy, be sure to compare your lawn mower model with the list of compatible models listed in the description, and check the markings of your old belt or the data in your owner's manual.
Question 4: How to take care of the V-belt to make it last as long as possible?
Answer: Avoid working with the mower with the blade blocked (for example, by stones, branches or thick weeds), regularly clean the lower part of the housing from accumulated grass and soil, check the condition and tension of the belt at least once a season. Do not apply lubricants or oils directly to the belt - they can cause slippage and accelerate wear and tear. Store the mower in a dry place, preferably under a canopy or in a garage.
Question 5: What does the 10x890 Li symbol mean in the name of the belt?
Answer: The symbol 10x890 Li specifies the basic dimensions of the belt. The number 10 indicates the approximate width of the wedge profile in millimeters, while 890 Li is the inner length of the belt in millimeters. These parameters are crucial for proper alignment with the pulleys and ensuring proper tension in the mower drive system.
