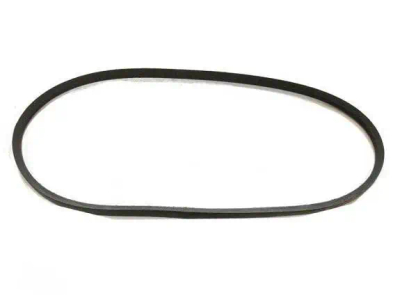

V-BELT OF INTERNAL COMBUSTION MOWER Z31 1/2 10X800 LI / MAX48 3047018R
- Z31 1/2 10x800 LI / MAX48 3047018R lawn mower V-belt is a heavy-duty drive belt for OLEO-MAC MAX 48 mowers. Ensures reliable power transmission, stable blade operation and reliable wheel drive. Ideal replacement for TB, TBX, TK and ALLR models
SPRINAL MOWER KEY BELT Z31 1/2 10X800 LI / MAX48 3047018R - reliable drive for OLEO-MAC MAX 48 mowers
V-belt of a lawn mower Z31 1/2 10X800 LI / MAX48 3047018R is a high-quality drive element designed for OLEO-MAC MAX 48 series mowers. Responsible for transferring power from the engine to the cutting system and, depending on the model design, also to the wheel drive. Genuine 10x800 LI size ensures perfect fit, stable operation and longer life compared to cheap replacements. By choosing this V-belt, you are restoring your lawn mower to full performance, even cutting and reliability for many seasons to come.
What is the V-belt of the Z31 1/2 10X800 LI / MAX48 3047018R lawn mower?
V-belt Z31 1/2 10X800 LI / MAX48 3047018R is a specialized drive belt with a V-belt profile, designed for use on OLEO-MAC MAX 48 series petrol mowers. Its task is to reliably and non-slip transfer of torque from the engine pulley to the drive wheels and/or to the cutting knife system. With the right size and flexibility, the belt maintains stable tension, does not slip out of the grooves of the pulleys and ensures a constant blade speed, which directly affects the quality of mowing.
Designation 10x800 LI indicates the approximate width and length of the strip, while the symbol Z31 1/2 determines its type and profile. Code 3047018R facilitates clear identification of parts in service catalogs and online stores. By choosing a belt with exactly this designation, you are assured of full compatibility and proper operation of the mower without the need for additional adjustments or modifications.
In practice, this means that this belt is a key component of the entire working system - its quality determines whether the mower starts smoothly, whether the blade turns at the right speed, and whether lawn work is comfortable and trouble-free. A worn or broken belt manifests itself in slippage, a decrease in mowing performance and sometimes a complete lack of drive - replacing it with a new, suitable model is the fastest way to full efficiency of the device.
Where does the Z31 1/2 10X800 LI / MAX48 3047018R V-belt install in the OLEO-MAC MAX 48 lawn mower??
V-belt MAX48 3047018R is mounted in the lower part of the mower, between the pulley on the engine shaft and the pulley (or pulleys) of the cutting system or the travel drive - depending on the specific design of a given OLEO-MAC MAX 48 model. It is located under the drive cover, usually fastened with screws, which protects the belt from dirt from grass, sand and small stones. This allows it to operate under optimal conditions with limited risk of mechanical damage.
In practice, installation consists of placing the belt on the engine pulley and on the drive gear or cutter axle pulley(s), followed by proper tensioning with the factory tensioner or gear position adjustment. Maintaining proper tension is key - a belt that is too loose will slip, while one that is too tight can lead to excessive bearing wear and shorten the life of the belt.
In everyday use - mowing the home lawn, intensive maintenance of larger areas around the house or regular work on company grounds - a properly installed V-belt guarantees smooth starting of the mower, even feed speed and stable blade operation. Replacing the belt is a typical service operation that can be performed yourself with basic tools, according to the service manual of the device.
Application of the MAX48 3047018R V-belt - to which mowers it fits?
V-belt fits lawn mowers:
V-belt fits lawn mowers:
OLEO-MAC MAX 48 TB Plus-Cut
OLEO-MAC MAX 48 TBG
OLEO-MAC MAX 48 TBX ALLROAD ALUMINUM (2018)
OLEO-MAC MAX 48 TBX ALLROAD ALUMINUM
OLEO-MAC MAX 48 TBX
OLEO-MAC MAX 48 TBX Plus-Cut
OLEO-MAC MAX 48 TBXE Plus-Cut
OLEO-MAC MAX 48 TBXM Plus-Cut
OLEO-MAC MAX 48 TH Plus-Cut
OLEO-MAC MAX 48 TK K50
OLEO-MAC MAX 48 TK K600
OLEO-MAC MAX 48 TK K650
OLEO-MAC MAX 48 TK ALUMINUM K650 (2018)
OLEO-MAC MAX 48 TK ALUMINUM K650
Such an extensive list of compatible models means that the belt Z31 1/2 10X800 LI is one of the most commonly used drive components in popular OLEO-MAC MAX 48 mowers. So if you have a lawn mower in this series, checking the manual or nameplate to see if this type of belt is provided will allow you to quickly and safely select the right replacement part.
In everyday applications, this belt will work well in small home gardens, as well as in larger recreational plots, housing estates, corporate areas or lawn care around public facilities. OLEO-MAC MAX 48 series mowers are some of the more popular designs on the market, so choosing the right V-belt is crucial for economical and trouble-free operation.
Key user benefits - durability, reliability and comfort
Selecting a V-belt z31 1/2 10X800 LI / MAX48 3047018R petrol lawn mower, you gain a number of concrete benefits that you will appreciate after the first mowing:
- High resistance to abrasion and cracking - Robust materials and reinforced construction ensure long life, even with regular intensive use. This works especially well during the season, when mowing takes place every few days and the belt operates at elevated temperatures.
- Stable power transmission - well-chosen wedge profile and proper elasticity minimize slippage, so the cutting blade maintains a constant rotation. This allows you to achieve an even, aesthetically pleasing lawn cut, without "tugging" or leaving uncut sections.
- Lower operating costs - a durable belt of the right size wears out more slowly and needs to be replaced less often, reducing the frequency of service visits and the purchase of more parts. This is especially important for large acreages, where the mower works several hours a day.
In day-to-day use, this means that you can plan to mow your entire garden - from small home lawns to sprawling green spaces - without downtime due to a drive malfunction. A V-belt with such parameters will cope with both an even, well-maintained lawn and more challenging sections with thicker, taller grass.
OLEO-MAC MAX 48 Z31 1/2 10X800 LI V-belt - quality to match professional and domestic applications
Mower series OLEO-MAC MAX 48 has a reputation for durable and efficient equipment both among individual users and companies involved in the care of green spaces. V-belt 3047018R was designed to meet the requirements of both groups - it combines high resilience and reliability with value for money.
In domestic applications, it will be ideal for regular mowing of the lawn around the house, on the recreational plot or in the garden at the summer house. Thanks to the stable operation of the drive, the mower drives lightly and predictably, and you can focus on thoroughly mowing hard-to-reach areas next to flowerbeds, paths or fences. When used by horticultural companies, this belt ensures long-lasting, trouble-free operation during orders carried out on housing estates, company grounds, playing fields or parks.
Professionals will also appreciate the repeatability of dimensions - by replacing the belt in several mowers of the same type, you can count on identical drive performance, which makes it easier to schedule maintenance and keep the entire fleet of equipment in optimal working condition.
How to take care of the Z31 1/2 10X800 LI / MAX48 V-belt to serve as long as possible?
Proper operation and simple maintenance can significantly extend the life of the V-belt. In practice, a few basic rules will suffice:
- Regular tension check - every few mowings, it's a good idea to check that the belt isn't too loose or over-tightened. Proper tension ensures no slippage and does not overload the bearings or the belt itself.
- Cleaning the drive cover - after finishing work, it is good to remove dirt (grass, sand, mud) from around the belt. This reduces the risk of mechanical damage and prolongs the life of the entire drive train.
- Avoiding extreme conditions - try not to mow in situations where the grass is very wet or too tall and dense, which puts a significant strain on the drive. If necessary, take more frequent breaks to allow the drive train to cool down.
When following these recommendations, the V-belt MAX48 3047018R will serve for a long time, providing smooth, quiet operation of the mower and high working culture during each mowing operation.
Basic specifications of the V-belt of the Z31 1/2 10X800 LI / MAX48 3047018R lawn mower
- Product type: v-belt for petrol mower
- Designation: Z31 1/2 10X800 LI / MAX48
- Approximate dimensions: wedge profile with a width of approx. 10 mm, working length approx. 800 mm (LI)
- Manufacturer/System Code: 3047018R
- Purpose: oLEO-MAC MAX 48 Series petrol mowers (models TB, TBG, TBX, TBXE, TBXM, TH Plus-Cut, TK K50, TK K600, TK K650, TK ALUMINIUM K650, TK ALUMINIUM K650 2018, TBX ALLROAD ALUMINIUM, TBX ALLROAD ALUMINIUM 2018 and others listed above)
- Application: cutting blade drive and/or mower drive (depending on the design of the specific model)
The selection of a belt with the right technical parameters is crucial for the operational safety, reliability and long life of both the belt itself and the entire mower. Properly labeled and matched to OLEO-MAC MAX 48 models makes it 3047018R is a reliable choice for both individual users and professional gardening companies.
FAQ - Frequently asked questions about Z31 1/2 10X800 LI / MAX48 3047018R lawn mower V-belt
Question 1: How do I know that this belt will fit my mower?
Check the mower model on the nameplate or in the owner's manual. If you own one of the models in the series OLEO-MAC MAX 48 listed in the description (among others, MAX 48 TB Plus-Cut, TBG, TBX, TBXE, TBXM, TH Plus-Cut, TK K50, TK K600, TK K650, TK ALUMINIUM K650, TBX ALLROAD ALUMINIUM), a belt with a designation of Z31 1/2 10X800 LI / MAX48 3047018R will be the right choice.
Question 2: What are the symptoms of a worn or damaged V-belt?
Typical symptoms include drive slippage, uneven blade operation, loss of wheel drive power, "jerking" when starting, or complete lack of drive despite a running engine. Visible cracks, abrasions, frayed edges or pronounced narrowing of the belt is a signal that it needs to be replaced.
Question 3: Can I replace the V-belt myself?
Yes, in many cases replacing the belt can be done by yourself. This requires removing the drive cover, loosening the adjusting element (tensioner) and putting a new belt on the pulleys. Always follow the instruction manual of the mower and use extreme caution - the engine must be turned off and the spark plug disconnected.
Question 4: How often should the V-belt on a lawn mower be replaced?
Frequency of replacement depends on the intensity of use and operating conditions. For typical domestic use, it is recommended that the condition of the belt be checked at least once a season and replaced when signs of obvious wear are noted. In professional applications, with intensive use, the inspection should be more frequent - for example, every dozen or so hours of operation.
Question 5: Can I use a belt with a different size than 10x800 LI?
Using a belt with a different size or profile is not recommended. This can lead to improper tension, slippage, faster wear of drive components and even damage to the mower. For OLEO-MAC MAX 48 models listed in the description, the recommended belt designation is Z31 1/2 10X800 LI / MAX48 3047018R, ensuring proper interaction with factory pulleys.
Question 6: How to store a spare V-belt?
The spare belt should be stored in a dry, shaded place, away from heat sources, chemicals and UV radiation. Avoid bending it excessively and bending it at an acute angle. Stored in this way, the belt will retain its elastic and strength properties for a long time.
