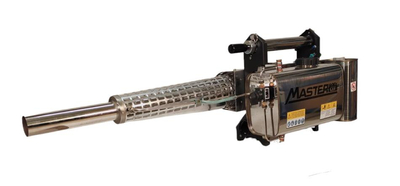

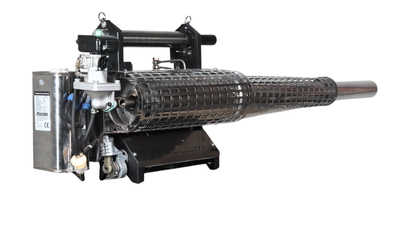

MASTERCUT JT-TS35A THERMAL FOGGER FOR CHEMICALS

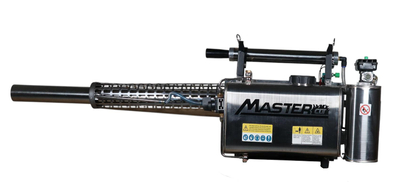

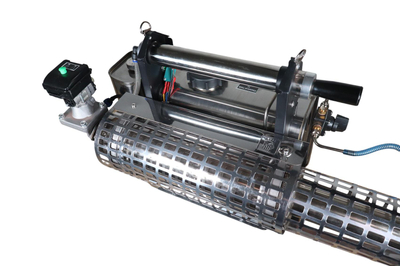

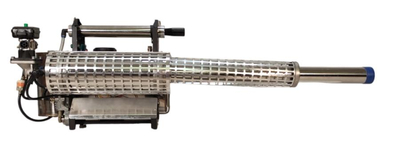

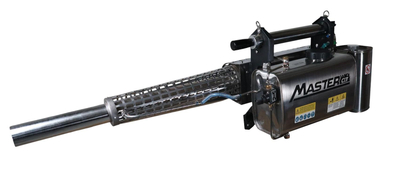

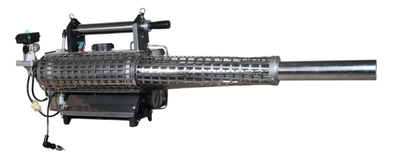

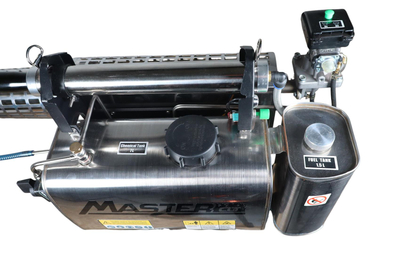

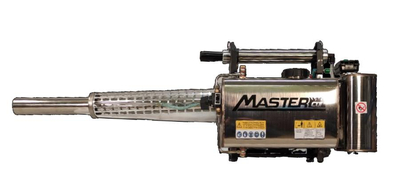

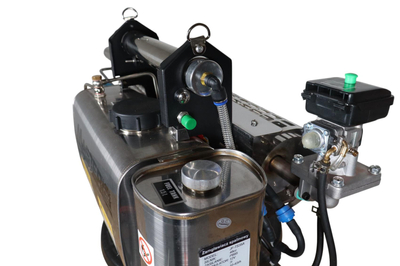

Mastercut JT-TS35A diesel fogger

Mastercut JF-TS35A thermal fogger Easy and simple to use. The fogger is made of stainless steel. Equipped with a precision valve that allows you to adjust the flow rate, without having to install special nozzles with different diameters. Operating range of up to 60 meters. The Mastercut JF-TS35A is a lightweight and powerful combustion thermal fogger for the application of chemicals in horticulture, horticulture and forestry. The device makes it possible to quickly and effectively disperse the liquid in the form of a mist, ensuring thorough coverage of the surface and effective control of pests and plant diseases.

Specification:

• Pesticide solution tank capacity: 7 l
• Fuel tank capacity: 1,5 l
• Operating temperature from -10°C to 35°C,
• Air humidity 80% - 30%.
• Capacity 10-42L/hour.
• Fuel used gasoline Pb95 or higher without adding lubricant
• Fuel consumption 1.5L/hour
• Ignition power supply 12V battery
• Contour dimension (length, width and height): 1060x270x315 mm
• Net weight 8kg

Diesel fogger Mastercut JT-TS35A uses gasoline as fuel, when started the high temperature and high pressure gas flowing at high speed generated by the engine sprays from the pulse nozzle. When the pesticide valves are opened, the pressure in the pesticide tank forces the usable liquid into the pipe. When the solution meets the pressure and temperature, it is sprayed onto the smoke and ejected from the nozzle, and then quickly spreads and disperses, effectively reaching the infected areas. The fogger works on the principle of heating the liquid at a high temperature and ejecting it under high pressure through a pulse nozzle. The pressure in the tank allows the pesticide to be forced into the pipe, and the combination of high temperature and pressure disperses the liquid as a mist, allowing quick and even coverage of the area being sprayed.

Mastercut JT-TS35A no spark plug ignition, fast start, less maintenance. Thermal fogger Mastercut JT-TS35A will allow you to disinfect and disinsect livestock facilities (e.g. barns, poultry houses), outdoor areas, greenhouses, feed stores. It will also help protect shrubs and orchard crops m.in. before frost.

Application:

Agriculture and horticulture

• pest control (e.g., mosquitoes, flies, aphids),
• plant protection sprays,
• disinfection of greenhouses, plastic tunnels and warehouses,
• humidification and microclimate regulation.
• Spraying pesticides, herbicides and fungicides in orchards, gardens, nurseries and agricultural crops
• Control of pests and plant diseases in large areas
• Efficient application of solutions to hard-to-reach areas

W fogger are the best manufacturing materials, such as the use of high-quality stainless steel for chemicals, fuel tank, fog pipe and resonator, cooling jacket and protective cover, thermal fogger can guarantee reliability in daily use and long life of equipment.

Industry and warehouses

• disinfection of production rooms, halls and warehouses,
• decontamination of spaces where food or feed is stored,
• elimination of mold, bacteria and fungi.

Animal husbandry

• disinfection of poultry houses, piggeries, barns and other livestock facilities,
• control of insects and parasites in livestock buildings,
• improve animal hygiene and health by reducing pathogens.

Sanitation and municipal sector

• control of mosquitoes, blackflies and other insects in open areas,
• disinfection of public spaces (e.g., stations, bus stops, squares),
• use in actions to combat epidemics and infectious diseases.

Summary:
Thermal foggers are used wherever fast, even distribution of chemicals, biocides or disinfectants is needed - whether in agriculture, sanitary hygiene or industry.
