MASTERCUT FH-G200-A DIESEL TURBINE TROLLEY SPRAYER WHEELBARROW WHEELCHAIR SPRAYER WITH TURBINE DRIVE 200L 5.5KM

Mastercut FH-G200-A diesel turbine trolley sprayer

Product description

The Mastercut FH-G200-A is a efficient trolley turbine sprayer, designed for professional applications in orchard, horticulture and nursery crops. The device allows fast and even distribution of the spray thanks to the turbine and adjustable nozzles.

Thanks to the trolley design, the sprayer is mobile and stable, and the overflow mixing system ensures uniform dosing of the crop protection product.

Advantages

• Large tank capacity (200 L) allows long-term operation without frequent refilling of the liquid

• Powerful turbine and 8 nozzles ensure even distribution of liquid over a large area

• Adjustable drive allows you to adjust the speed to the working conditions

• Overflow mixing system guarantees a uniform concentration of the plant protection product

• Trolley design ensures stability and easy movement

Application

• Professional spraying in orchards, plantations and large crops

• Cultivation and protection of plants in demanding field conditions

• Effective protection against pests and diseases

Technical specifications

• Net weight: 135 kg
• Engine: internal combustion 4-stroke OHV
• Liquid tank capacity: 200 L
• Pump: piston, maximum pressure 40 bar
• Drive: +2, +1, 0, -1
• Drive speed: 2-3.5 km/h
• Pump liquid flow rate: 13-33 l/min

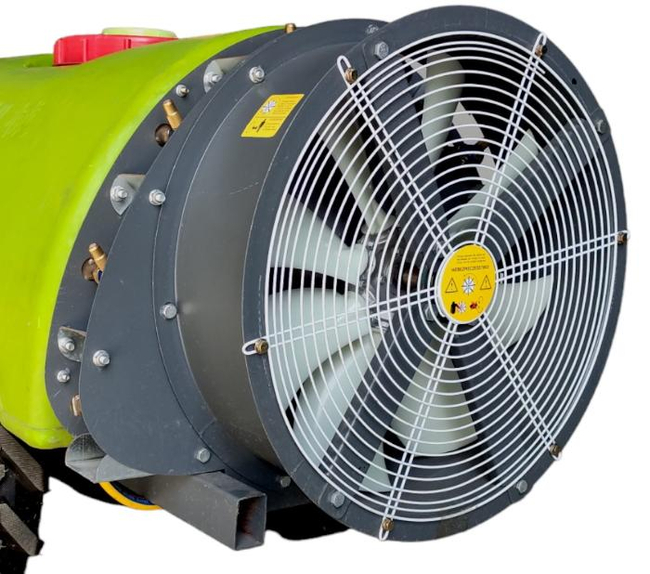

• Windmill diameter: 50 cm

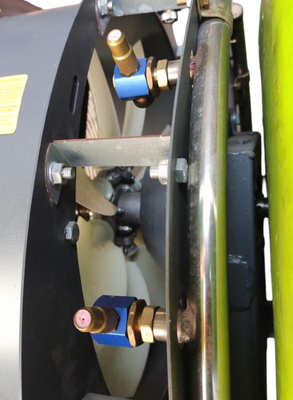

• Number of nozzles: 8 pcs.
• Dimensions: 190 × 85 × 85 cm
• Mixing system: overflow
• OHV 4-stroke internal combustion engine
• Engine power 5.5 hp
• Drive speed 2-3.5km/h
• Pump max 40bar
• Piston pump
• Diameter of the windmill 50cm
• Number of nozzles 8pcs
• Overflow mixing
• dimensions: 190cm x 85cm 85cm

Technical specifications:
