MASTERCUT JFRC100S BIJAK MOWING ROBOT REMOTE CONTROLLED HYBRYDIC MOWER SPRINKLING TREATMENT PLATFORM WITH PILOT DRIVE PHOTOVOLTAIKA 100cm
- Mastercut diesel-electric mower for special tasks JFRC100S is a remote control flail mower with tracks from MASTERCUT brand. It is equipped with a 14 hp B&S XR2100 engine.
MASTERCUT JFRC100S FLAIL MOWER ROBOT MOWER REMOTE CONTROL MOWER HYBRID CATERPILLAR DIESEL PANEL TRACTOR REMOTE CONTROL PHOTOVOLTAICS
Mastercut diesel-electric mower for special tasks
JFRC100S
Mastercut JFRC100S | 100 cm | 13 hp | Caterpillar | Remote control mower up to 100 m

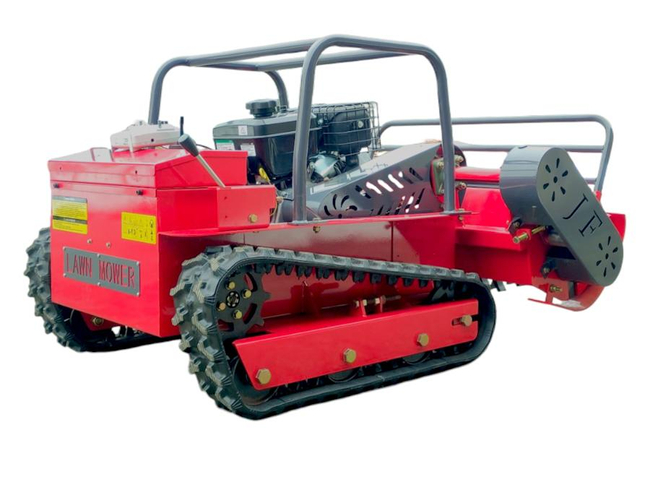

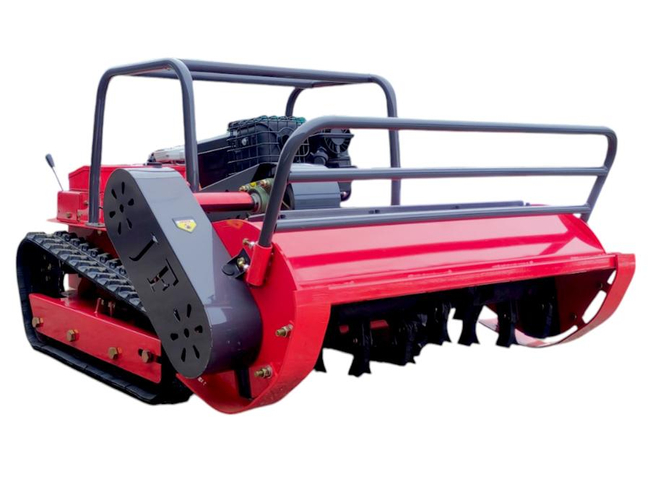

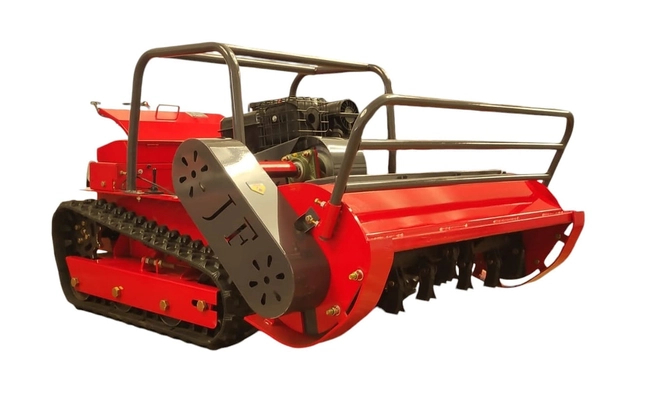

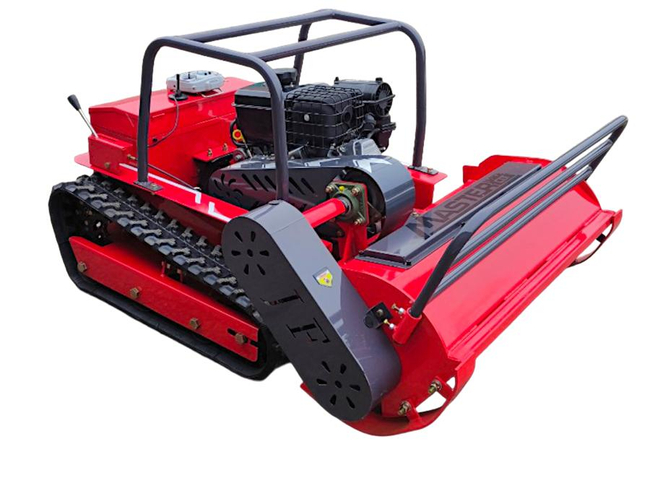

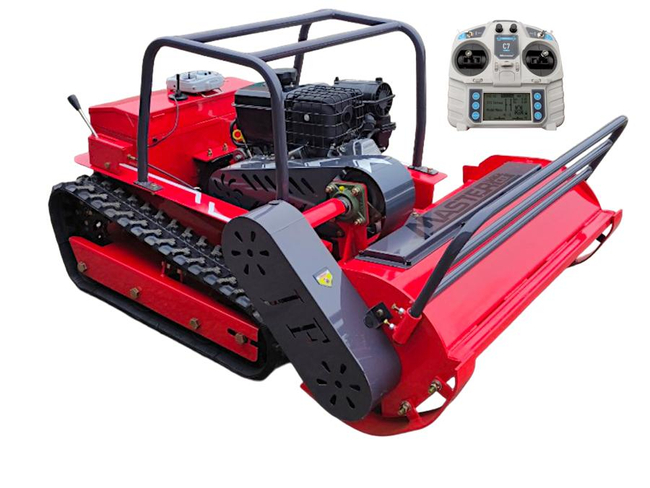

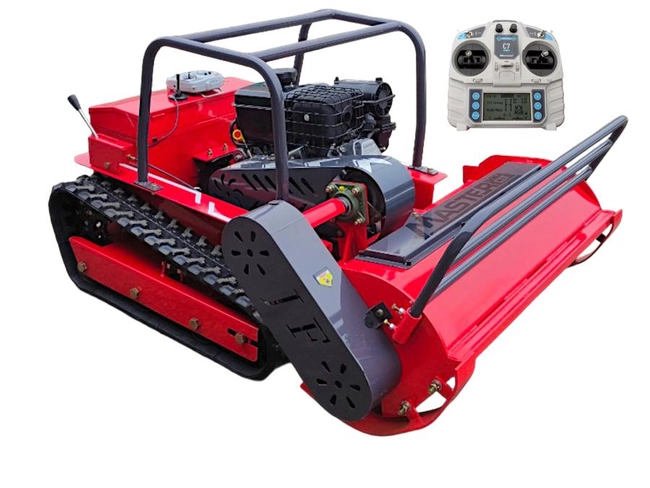

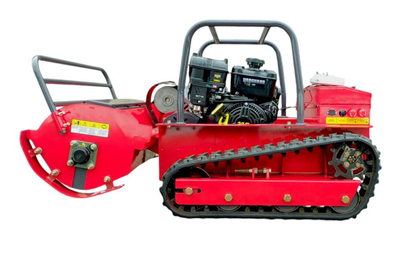

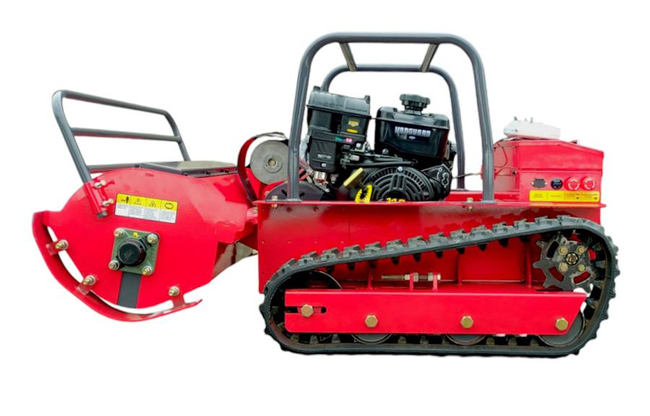

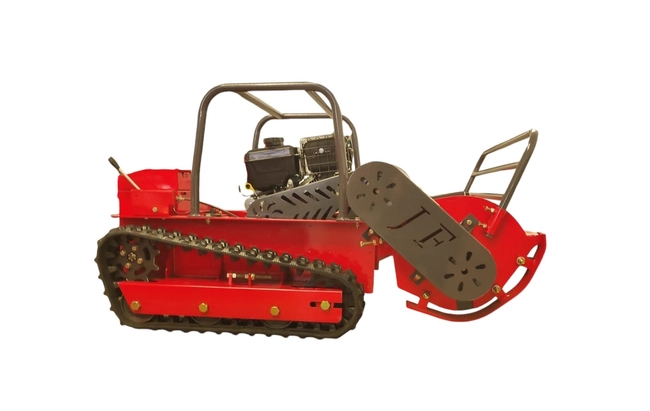

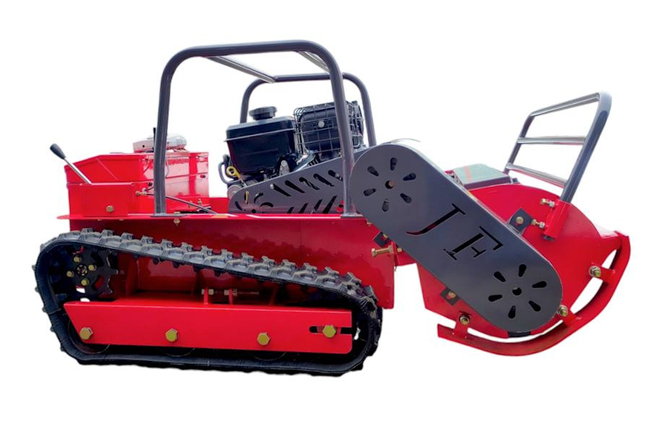

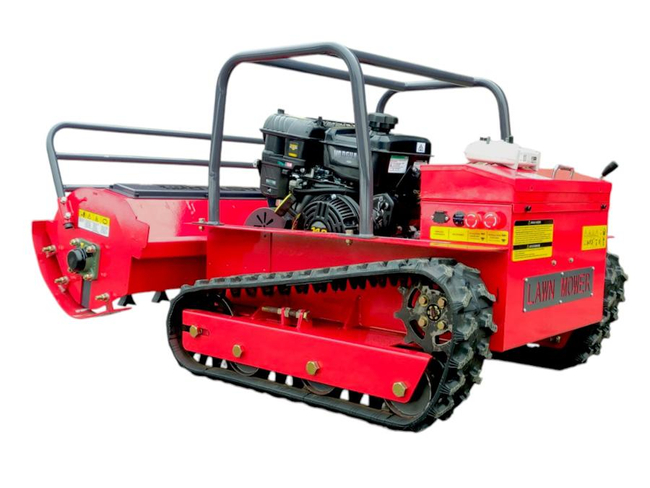

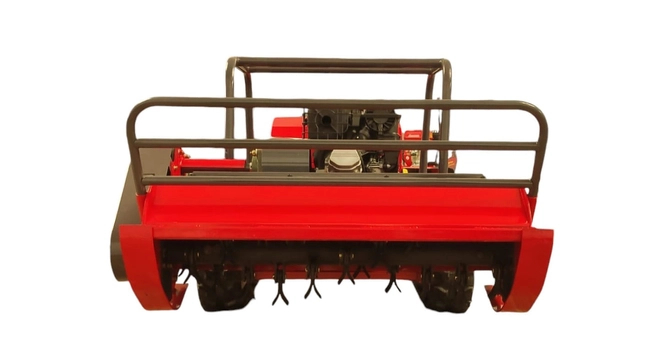

MASTERCUT JFRC100S is a remote control flail mower with tracks of the brand MASTERCUT. It is equipped with a 14 hp B&S XR2100 engine. The cutting width is 100 cm, and the cutting height can be adjusted from 5-15 cm. The mower has infinite central cutting height adjustment and is controlled via remote control.
Mastercut diesel-electric mower for special tasks.
Specification:
General:
- Hybrid drive
- Blade drive - diesel
- Takcji drive - electric
- Mowing width 100cm

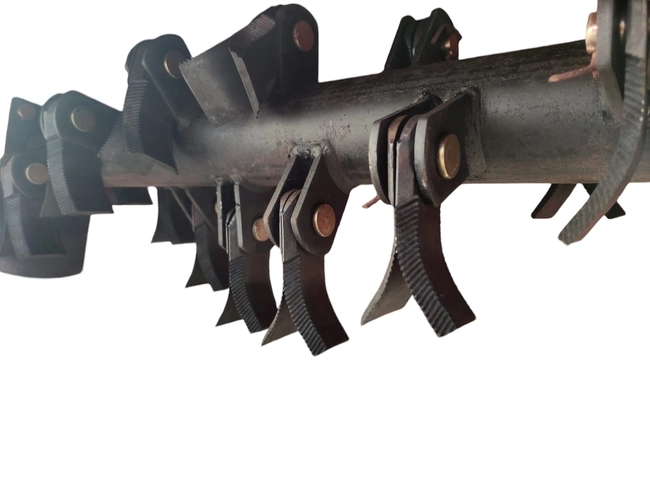

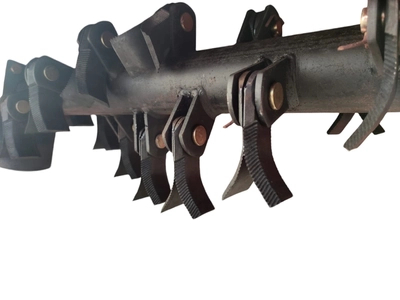

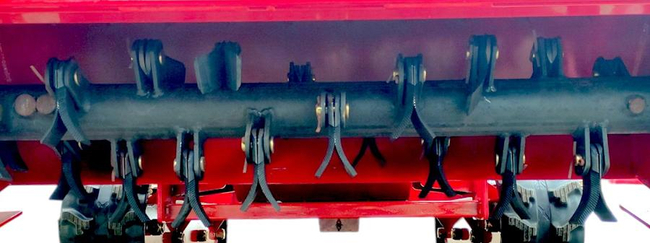

- Shaft with flail knives
- Mowing height adjustment electric central 50-150mm
- Control by remote control
- Range to remote control up to 100m
- Maximum tilt of mower operation 35o
- Zero turning radius
- Sizes 130*120*90cm
- Net weight 375kg
Modern mower for special tasks - safe, efficient and remote controlled
Mastercut JFRC100S mower is an advanced machine for remote mowing of difficult areas - slopes, ditches, roadsides, wastelands and areas with steep slopes. Thanks to the hybrid drive and the operation of the tracks, the device provides stability, traction and full control even in the most demanding conditions.
Brand engine Briggs & Stratton 13 horsepower combined with flail knives allows efficient shredding of dense vegetation, tall grass or weeds. Remote control with a range of up to 100 meters allows the operator to work from a safe distance.
Cutting system drive:

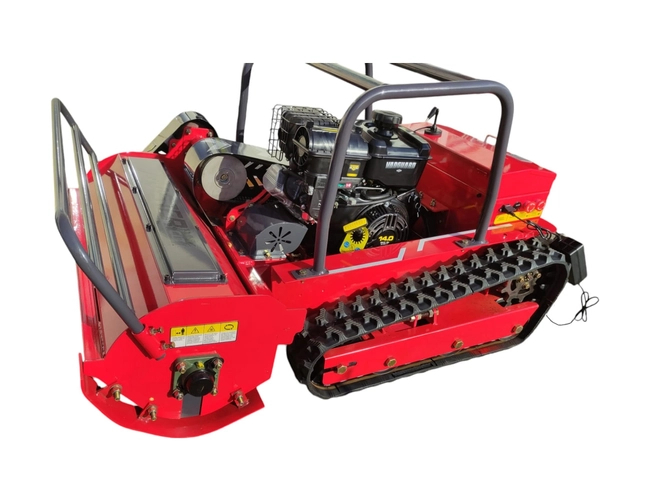

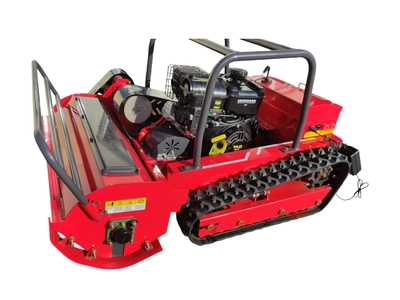

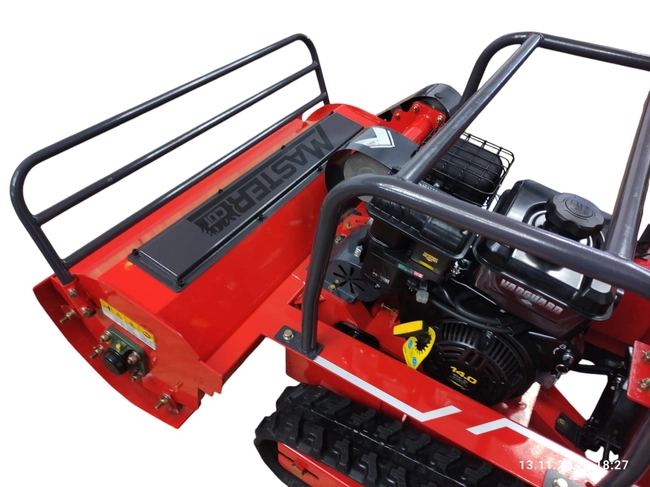

- BRIGGS&STRATTON VANGUARD XV2100, air-cooled, OHV 25V3 single-cylinder gasoline engine
- Engine capacity 408cm3
- Maximum power 14HP
- Electric starter
- Manual starter
- Fuel pump
- Horizontal shaft
- Cast iron cylinder liner
Drive train
- Traction on rubber tracks
- Brushless electric motor 650W x 2pcs
- Power supply for electric motors - 24V battery
- Battery generator driven by internal combustion engine
- Driving time without the combustion engine running about 10min
- Driving operation with the internal combustion engine running - continuous.
Advantages:
- Perfect for mowing areas with slopes up to 35°
- Remote control - comfort and safety at work
- Zero turning radius - ideal maneuverability in tight spaces
- Hybrid drive - continuous operation and additional power from the generator
- Rugged construction and industrial-grade components
Technical specifications:
- Weight: 375 kg
- Engine: BRIGGS & STRATTON VANGUARD XV2100, 1-cylinder, gasoline, OHV, air-cooled
- Engine capacity: 420 cm³
- Maximum power: 13 HP
- Mowing width: 100 cm
- Mowing height adjustment: manual, central (50-150 mm)
- Blade drive: internal combustion
- Traction drive: electric
- Hybrid drive: yes
- Shaft with knives: flail
- Control: remote control (range up to 100 m)
- Turning radius: nil
- Maks. job tilt: 35°
- Size of the device: 130 × 120 × 80 cm
- Traction: rubber tracks
- Starter: electric
- Oil pump: yes
- Shaft: levels
- Cylinder sleeve: cast iron
- Battery charging generator: powered by a combustion engine
- Driving time without the internal combustion engine running: ok. 10 min
- Operating time with a combustion engine: continuous
- Weight: 375kg
- EAN code: 5900652075867
- Commodity code: JFRC100S
- ID: 68437
