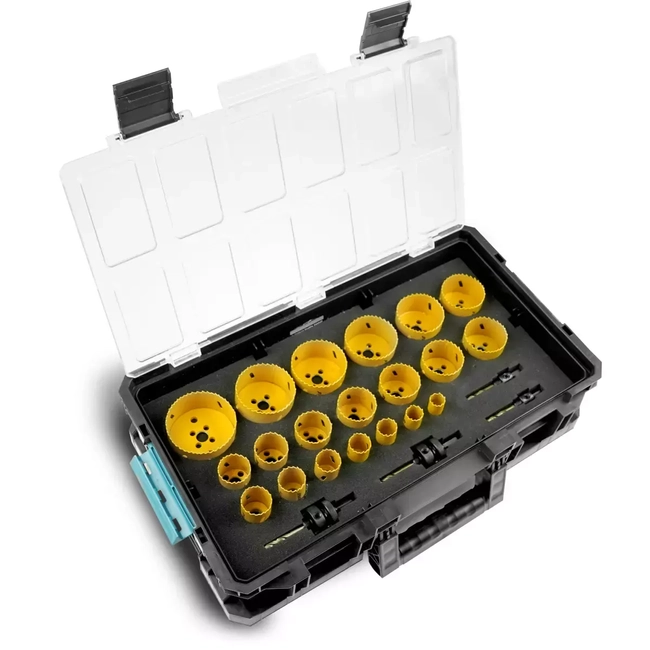

BI-METAL HOLE SAW SET 20-83MM IN SAS CASE

Set of holders for bi-metal hole saws. The set includes an HEX mount with a diameter of 10 and 13 mm. We can use the holders for holesaws with diameters:

• 08W001, HEX 13mm - 14-30mm
• 08W002, HEX 13mm - 32-168mm
• 08W006, HEX 10mm - 14-30mm
• 08W008, HEX 10mm - 32-168mm

The chucks are equipped with a pilot drill with a diameter of 6 mm. It should be remembered that the drill only performs the function of a pilot and should move in the previously drilled hole.

Set of 20pcs bi-metal hole saws for drilling holes in materials such as metal, stainless steel, non-ferrous metals, aluminum, wood or plastic. The holesaws are made of high-quality HSS high-speed steel. Appropriate angle of attack and tooth spacing ensure efficient and fast drilling. When working with the hole saw, remember to use the right coolant and adjust the speed to the material you want to make a hole in.

Technical Data:

• 08W020 - Bi-metal hole punch dia.20mm/25/32", 37mm deep
• 08W022 - Bi-metal hole punch dia.22mm/7/8", 37mm deep
• 08W025 - Bi-metal hole punch dia.25mm/1", 37mm deep
• 08W027 - Bi-metal hole punch dia.27mm/1-1/16", 37mm deep
• 08W030 - Bi-metal hole punch dia.30mm/1-3/16", 37mm deep
• 08W032 - Bi-metal hole punch dia.32mm/1-1/4", 34mm deep
• 08W035 - Bi-metal hole punch dia.35mm/1-3/8", 34mm deep
• 08W038 - Bi-metal hole punch dia.38mm/1-1/2", 34mm deep
• 08W040 - Bi-metal hole punch dia.40mm/1-9/16", 34mm deep
• 08W044 - Bi-metal hole punch dia.44mm/1-3/4", depth 34mm
• 08W048 - Bi-Metal hole punch dia.48mm/1-7/8", depth 34mm
• 08W051 - Bi-Metal hole punch dia.51mm/2", 34mm deep
• 08W054 - Bi-metal hole punch ¶r.54mm/2-1/8", 34mm deep
• 08W057 - Bi-metal hole punch ¶r.57mm/2-1/4", depth 34mm
• 08W060 - Bi-metal hole punch dia.60mm/2-3/8", depth 34mm
• 08W064 - Bi-metal hole punch dia.64mm/2-1/2", 34mm deep
• 08W068 - Bi-metal hole punch dia.68mm/2-11/16", 34mm deep
• 08W070 - Bi-metal hole punch dia.70mm/2-12/16", 34mm deep
• 08W073 - Bi-metal hole punch ¶r.73mm/2-7/8", 34mm deep
• 08W083 - Bi-Metal hole punch dia.83mm/3-1/4", depth 34mm






  This is one of the modular boxes of the DEDRA SAS+ transport system. The case measures 526x307x126mm and has a capacity of 14.3L. The toolbox is finished with 25mm and 40mm thick sponges with die-cut recesses for kit components. The lid of the box is made of transparent polycarbonate, so we have a view of the items stored in the box. The case has a strong, comfortable handle made of high-quality plastic, and polyamide hooks ensure a solid and durable fastener. Dense ribbing of the box provides high rigidity and resistance to deformation.

  Features of DEDRA SAS+ALL modular sponge toolbox N0303G

  • Convenient, spongy protection for your tools
  • Transparent cover
  • Durable polyamide fasteners
  • Comfortable handle
  • Modular toolbox for building personalized sets DEDRA SAS+

  Technical specifications of DEDRA SAS+ALL toolbox N0303G

  • Dimensions 526x307x126mm
  • Internal dimensions 470x237x114mm(without sponges)
  • Diagonal of the box 548mm
  • Capacity 14.3l(without sponges)
