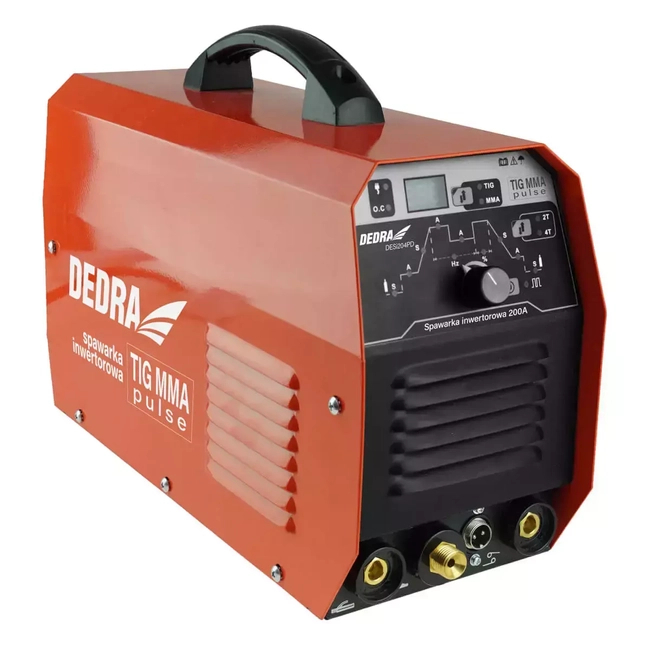

DEDRA DESTI204PD TIG/MMA WELDER PULSE FUNCTION, LCD DISPLAY

DEDRA DESTI204PD inverter welder is designed for welding with non-fusible electrodes with diameters of 1.6, 2.0 and 2.4 mm in gas shielding (TIG) and maximum welding current of 200 A.

With its help you can weld such materials as alloy steels, structural steels and cast irons. The welder can also weld with covered electrodes with a maximum diameter of 4 mm. In the TIG method, the PULSE function will be used to weld non-ferrous metals and very thin parts. The device is made with MOSFET technology. The comfort of use has been enhanced with an easy-to-read LCD display.

Welder DESTI204PD will work well for DIY enthusiasts as well as more advanced users with their own workshops up to industrial applications. The sturdy and comfortable handle and small size will make it easy to transport and store.

Features dEDRA DESTI204PD inverter welder:

• HOT START - a system that increases the current during arc ignition
• ANTI STICK- system that prevents electrode sticking
• ARC FORCE - starting increase of welding current, the system that regulates the arc dynamics and its stability
• MOSFET technology
• Welding current adjustment
• TIG welding
• MMA welding
• Small size and low weight
• Handle for convenient transportation
• Welder equipped with thermal protection and fan to protect against overheating

Technical data dEDRA DESTI204PD inverter welder:

• Power supply: 230V
• Degree of protection: IP21S
• Protection required: 16 A
• Maximum electrode diameter: 4 mm
• Maximum welding current: 200 A
• Welding current adjustment range: 10-200 A
• Cooling system: fan
• Weight: 9 kg

Completion:

• Inverter welder
• Welding cable with holder for non-fusible electrode - TIG (1 piece)
• Electrode (1 pc)
• Collet (3 pcs. of which 2 pcs. in package) - 1.6 mm, 2.0 mm, 2.4 mm
• Ceramic nozzle (3 pcs. of which 2 pcs. in the package)
• Rear long plug (1 pc)
• Welding cable with holder for covered electrode - MMA (1pc)
• Current wire with ground terminal (1 pc)
• Protective mask complete (1pc)
• Brush with hammer (1 pc)
