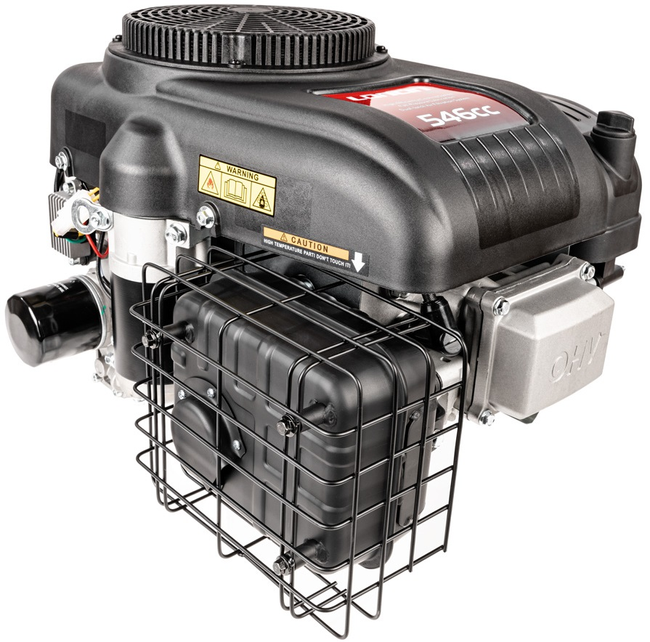

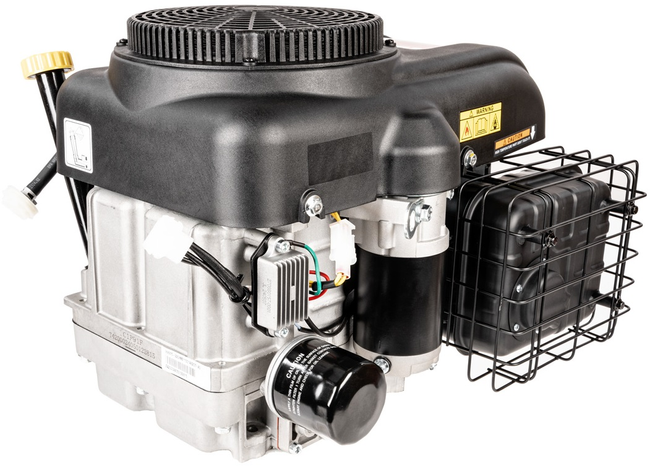

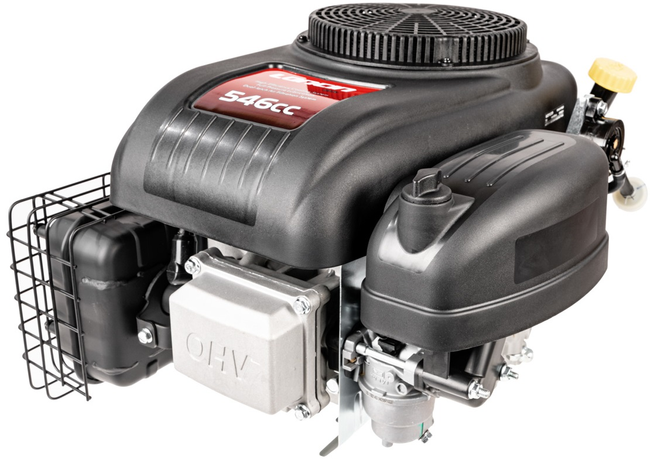

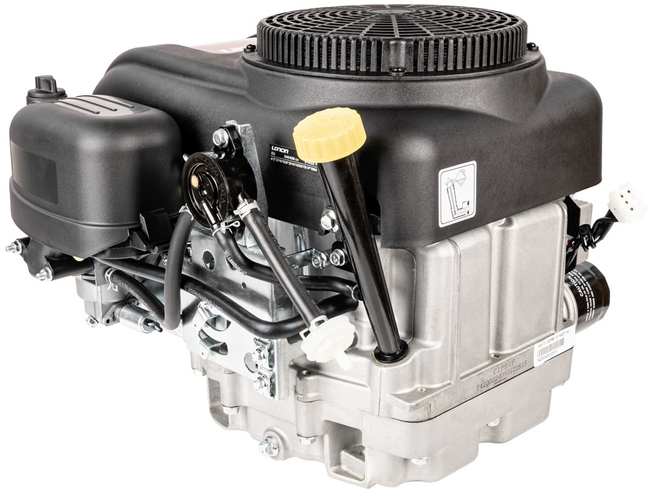

MOTOR LONCIN LC1P91F-A PETROL ENGINE 1P91 18 hp 546 cm3 SINGLE CYLINDRED VERTICAL VALVE SHAFT 25,4 mm MOTOR HONDA , VANGUARD , BRIGGS , KOHLER , HUSQVARNA , STIHL, STIGA, CEDRUS, OLEO-MAC, KAWASAKI
- MOTOR LONCIN LC1P91F-A PETROL ENGINE 1P91 18 hp 546 cm3 SINGLE CYLINDRED VERTICAL VALVE SHAFT 25,4 mm MOTOR HONDA , VANGUARD , BRIGGS , KOHLER , HUSQVARNA , STIHL, STIGA, CEDRUS, OLEO-MAC, KAWASAKI
LONCIN ENGINE LC1P91F-A TO THE TRACTOR SINGLE-CYLINDER PETROL INTERNAL COMBUSTION ENGINE 18 hp vertical shaft 25.4 mm
One of the largest and most powerful air-cooled single-cylinder engines for garden tractor 18 hp and 33 nm, 546 ccm with electric starter.
COMPLETE ENGINE / RICHEST VERSION OF EQUIPMENT ON THE MARKET - GRATIS SUCH EQUIPMENT AS :
- BACKGROUND
- OIL PUMP
- OIL FILTER
- FUEL PUMP
- ELECTRIC STARTER
- Charge coil and voltage regulator
Loncin uses modern technology in the production of engines and other products to meet customer demands. Much attention is also paid to environmental issues. The result is the production of fuel-efficient engines, which reduces the financial cost of fuel purchases and reduces carbon dioxide emissions into the environment.
Four-stroke,single-cylinder gasoline engine with power 18 KM is a universal power supply device.
Motor used for lawnmowers with seat, tractors, etc.
For brands: Stiga, Oleo-Mac, AL-KO , Alpina, Mountfield, McCulloch, Husqvarna, Stihl, Viking, Jonsered, Partner, etc.
Loncin engine is a single-cylinder, four-stroke unit in an overhead-valve configuration, air-cooled.
It has air filter, fuel filter and fuel pump, muffler
It is cooled by a forced-air circulation system that has proven itself in practice.
Loncin LC1P91F engine is a 1-cylinder power unit used by many tractor manufacturers. This engine can be found in tractors from Oleo-Mac or SOLO by AL-KO , CEDRUS etc. Very powerful and trouble-free engine with a cast iron sleeve in the cylinder and with a pump .
Your old, worn-out engine needs a major overhaul, the cost of which exceeds the value of the engine? The solution that is easiest and safest for you is to replace the engine with a new one!
The Loncin LC1P91F engine is a large, powerful drive motor designed for garden tractors working on larger areas. It has 1 cylinder , and its displacement is 546 ccm. It offers you a maximum power of 18 hp at 3600 rpm. /min and a maximum torque of 33 Nm available at just 2,400 rpm./min.
The oil pump and oil filter ensure proper lubrication and support air cooling of the engine during continuous operation. Cast iron cylinder liners and a bearing-mounted crankshaft significantly extend the life of the engine. The air filter consists of a preliminary and a main part, thanks to which it more effectively captures impurities sucked into the engine's interior.
The fuel pump feeds the carburetor through forced circulation of gasoline in the fuel system. This is important if you have a tractor in which the fuel tank is located at the rear under the seat, because in this situation gravity feeding of the carburetor is not possible!
The mounting bolts have standard spacing, so it will fit in place of your old engine without too much trouble. Dimensions allow installation under most engine covers. A shaft with a diameter of 25.4 mm and a length of 80 mm is also standard!
The engine runs evenly, smoothly making sounds that are pleasant to the ear. Thanks to the aforementioned high torque and high power, you don't have to worry about whether the tractor can handle mowing dense grass. This motor has been used for many years in top tractor models by the most well-known manufacturers!
Features
- cast iron sleeve with high strength and wear resistance
- efficient cooling system
- economy, low fuel consumption
- high power, high efficiency
- versatile use
- overheating prevention system
- easy to use and maintain
- electric starter - easy start
- 1-cylinder engine - high power and torque
Optimized balancing system , reduces vibration and results in more stable operation.
- One camshaft (OHV) ,best design and lower engine temperatures .
- A secondary oil filtration system enables improved engine lubrication, which reduces wear and prolongs engine life
- Cast Iron linings not only provides effective lubrication, but also makes the engine more resistant to abrasion extends the life of the engine
- Massive engine housing , reinforced engine crankshaft makes the engine more reliable and durable.
The best recommendation is the fact that this engine has been installed in tractors from leading manufacturers for many years.
Application:
- Lawn tractors
- Mowers
- Construction equipment
- Gardening equipment
- etc.
PARAMETERS:
- Status - new
- Manufacturer - LONCIN
Weight 42 kg
- Length 498 mm
- Width 305 mm
- Height 489 mm
- Series/model LC1P91F
- Engine type Single-cylinder, 4-stroke, air-cooled, OHV
- Fuel type Gasoline
- Piston diameter 92x68mm
- Speed [rpm] 3600
- Idle [rpm] 1800 ± 150
- Capacity [cm3] 546 cc
- Rated power [kW/hp] 10kW/14hp
- Maks. effect [kW/hp] 13kW/18hp
- Torque [Nm] 33 Nm/2800 rpm./min
- Compression 8,1:1
- Axle type Vertical
- Shaft diameter [mm] 25.4
- Axis length [mm] 78,5
- Ignition system Electric start, Starter
- Lubrication system Pressure + splash lubrication
- Oil capacity [L] 1,6 l
- Shaft type: Vertical cylindrical shaft; length: 80 mm; diameter: 25.4 mm / inch thread 7/16-20UNF depth 30 mm
- Weight: 33 kg
- Cast iron cylinder liner !!
- Starter: electric
- Charging coil 130W 11Ah
- Voltage regulator
- Equipment: oil filter, muffler, fuel pump, Euro 5
THE PRODUCT COMES FROM THE OFFICIAL DISTRIBUTION TO THE POLISH MARKET !
NOTE: The LONCIN engine is packaged without oil, so it is necessary to pour oil before the first use and it is recommended to read the instruction manual.
The wedge (keyway) is not part of the engine equipment and is a separate part not assigned to the engine. It is always found in an old engine or tractor.
Mounting holes without threads diameter 8.8 mm depth 40 mm (3 x blind, 1 x through)
