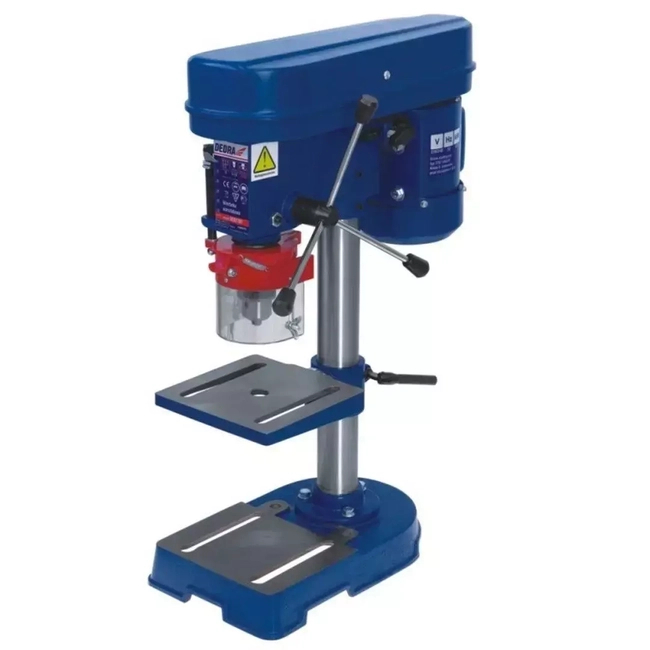

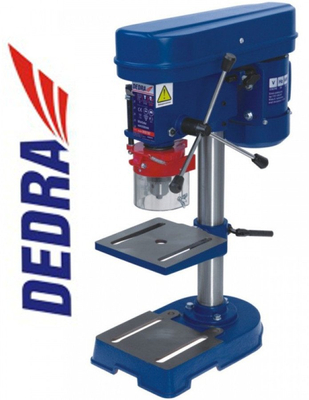

DEDRA DED7707 COLUMN METAL DRILLING MACHINE

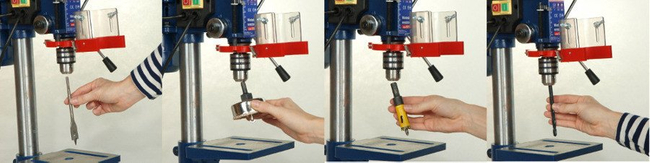

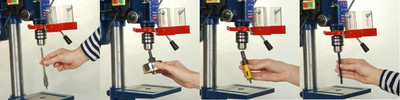

Workshop drill DEDRA DED7707 was designed for simple drilling work in small workshops and hobby studios. It is equipped with a 350-watt induction motor, which allows stable operation without overloading the equipment. The device allows you to perform drilling operations in the following materials: wood, wood-based materials, plastics, non-ferrous metals, light metals, general-purpose structural steels, cast irons.It is possible to make holes in composites and ceramics, provided the appropriate drill bits are used

Product Characteristics:

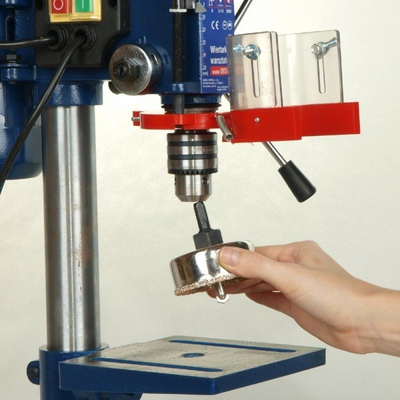

• It is possible to make holes in composites and ceramics, provided the appropriate drill bits are used.
• The 160×160 mm top table is adjustable in height and has a tilt angle of +/- 45 degrees.
• The lower table is 290×190 mm in size.
• Massive spacious base plate with T-shaped grooves guarantees the stability of the device.
• Transparent spindle guard protects against chips or sudden ejection of the workpiece.
• The drill body, base and work table are made of cast iron.
• A durable and quiet induction motor is used to drive the drill.

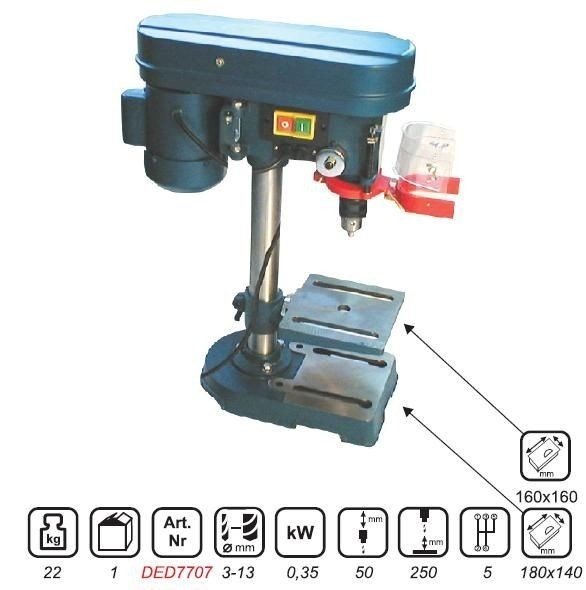

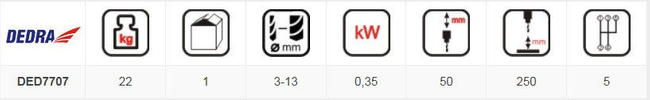

Technical Data:

• two-phase induction electric motor ( with starting phase)
• power supply 230 V 50Hz
• power 350 W
• speed 2800 rpm

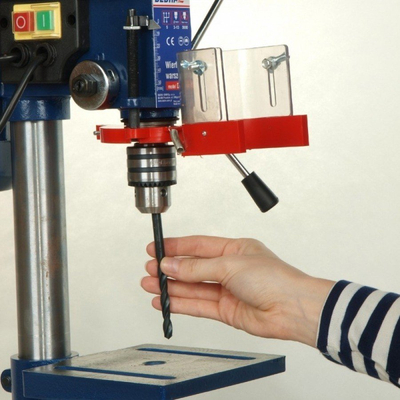

• drill chuck:
• shank diameter range 3 - 13 mm, mounting on cone Morse 2
• number of speeds/spindle pitch 5/ 50 mm
• dimensions of the movable table 158 mm x 162 mm
• bottom table dimensions 140 mm x 180 mm
• range of inclination of the movable table from 0 degrees to 45 degrees
• noise emissions (according to ISO 7960 Annex A 2/95) Under load No load
• lPA sound pressure level 79.9.0 dB (A) 73.0 dB (A)
• sound power level LWA 83.9 dB (A) 75.2 dB (A)
• weight 22.0 kg

EAN product code: 5902628770707

DEDRA is a reputable manufacturer of tools.Brand products DEDRA are characterized by high quality workmanship and reliability. The brand offers a wide range of tools, wood and tile saws, tiling tools and accessories, circular saws and air tools.DEDRA offers comprehensive service in the field of warranty and post-warranty repairs of the product range it offers, and also sells spare parts. Provides customers with technical advice and the fastest possible turnaround time for service orders. DEDRA implements warranty repairs in the 'door to door' system. The product is picked up by a courier and delivered to the company's service center, and after repair it is sent back. Shipping costs are covered by the manufacturer.
