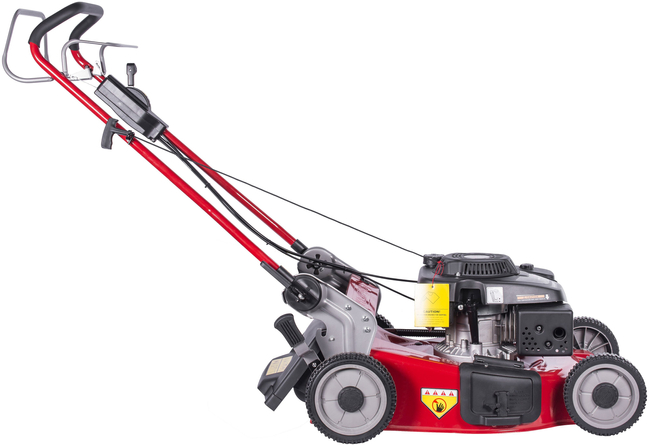

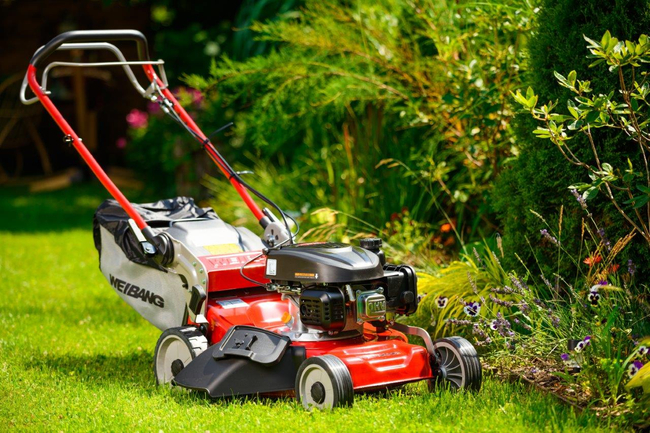

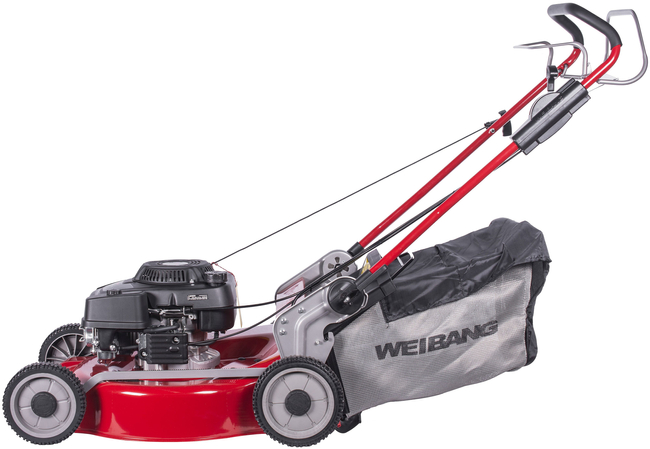

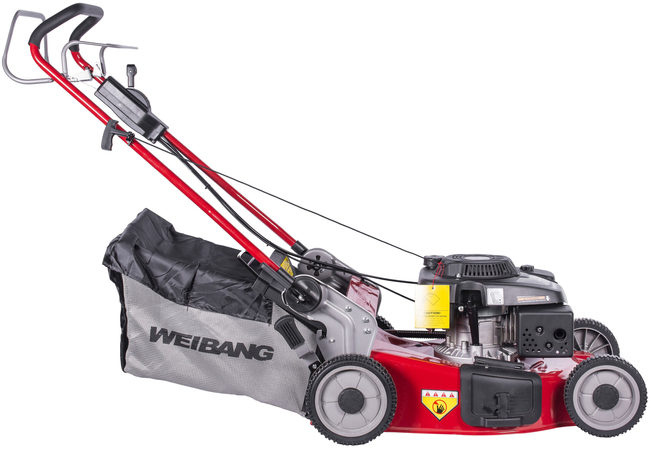

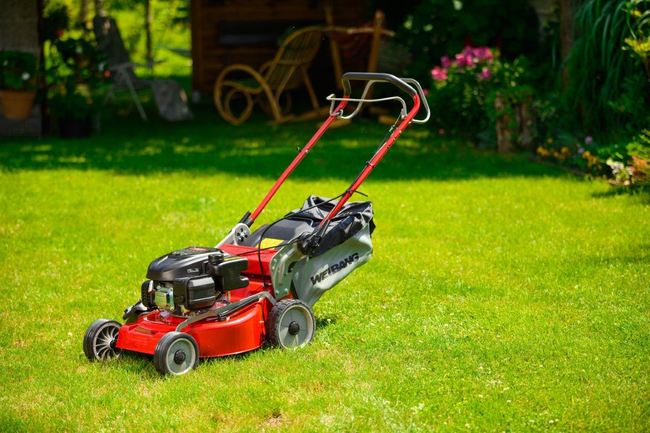

PETROL LAWN MOWER

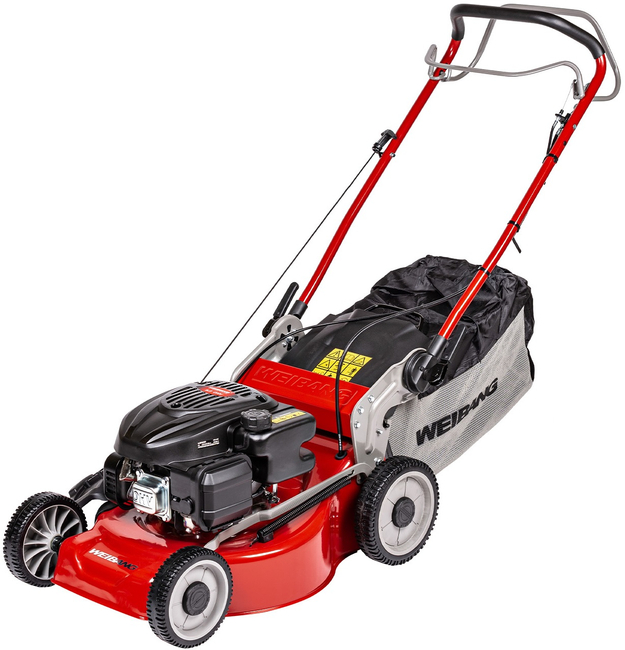

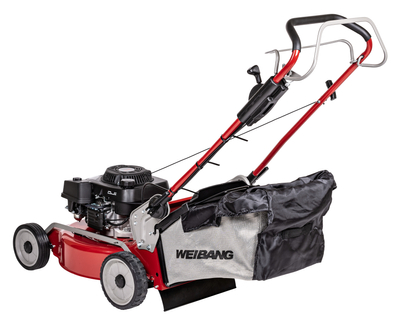

WEIBANG WB537SLC 3IN1
53 cm / 6.5 hp

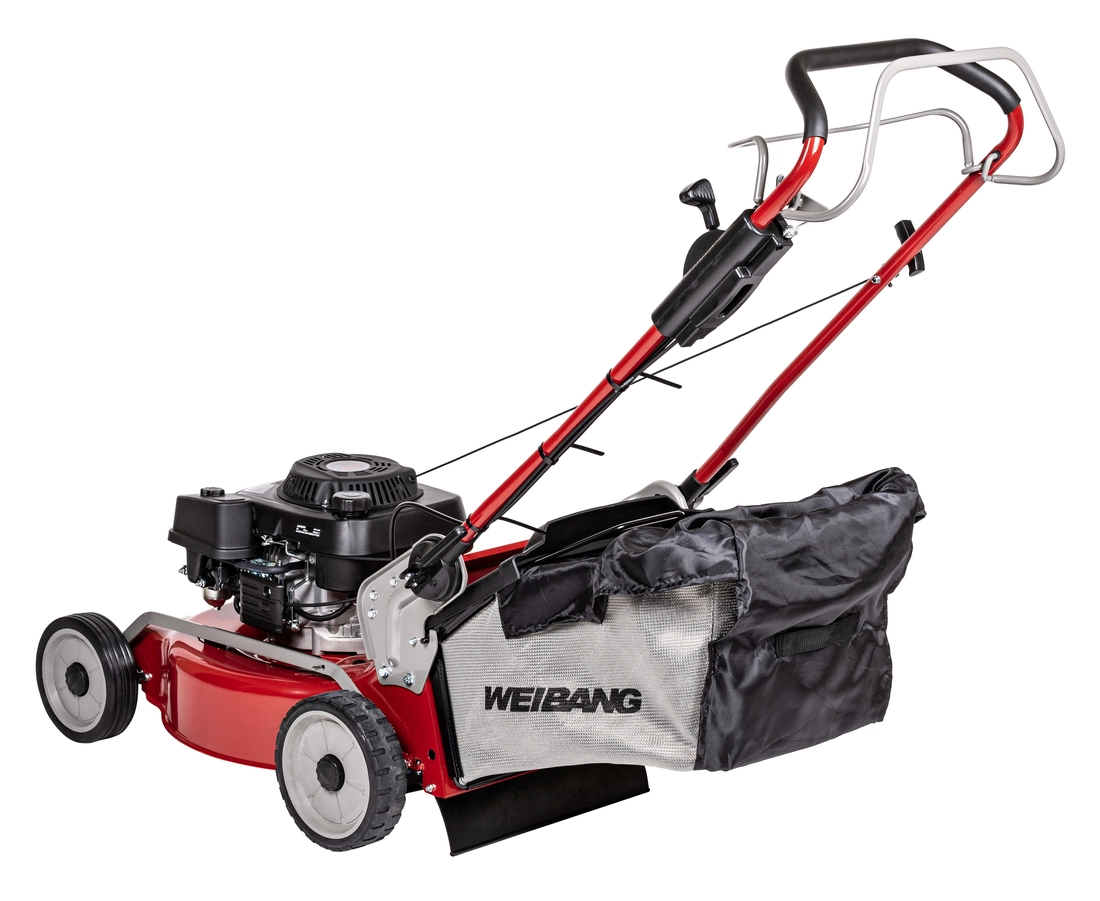

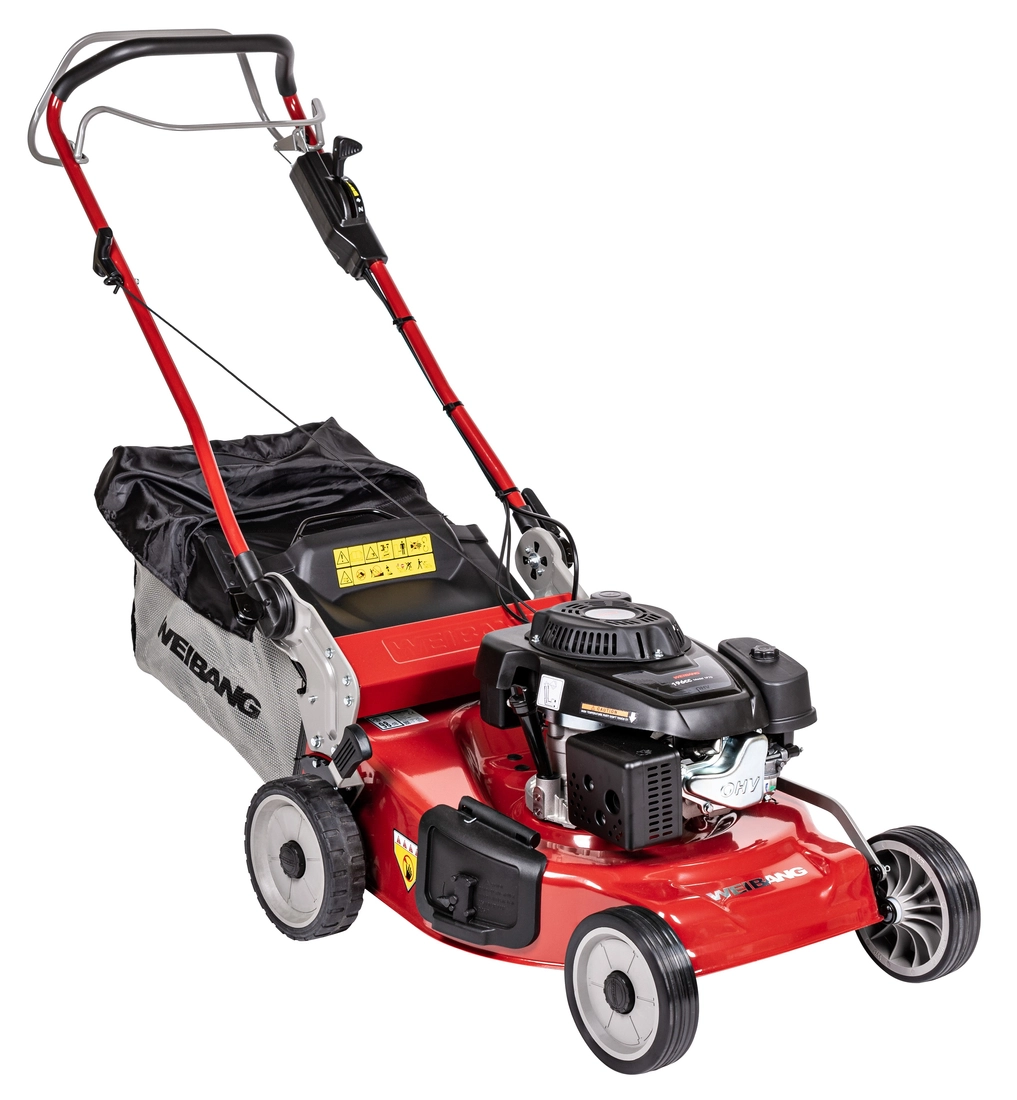

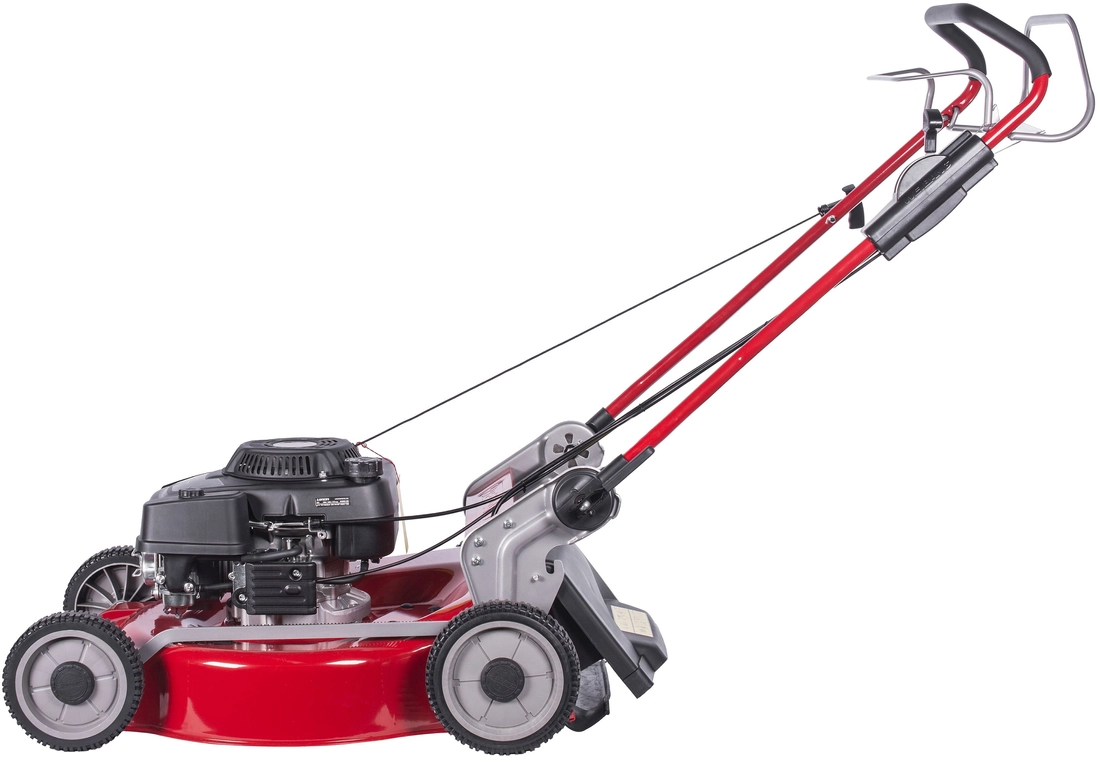

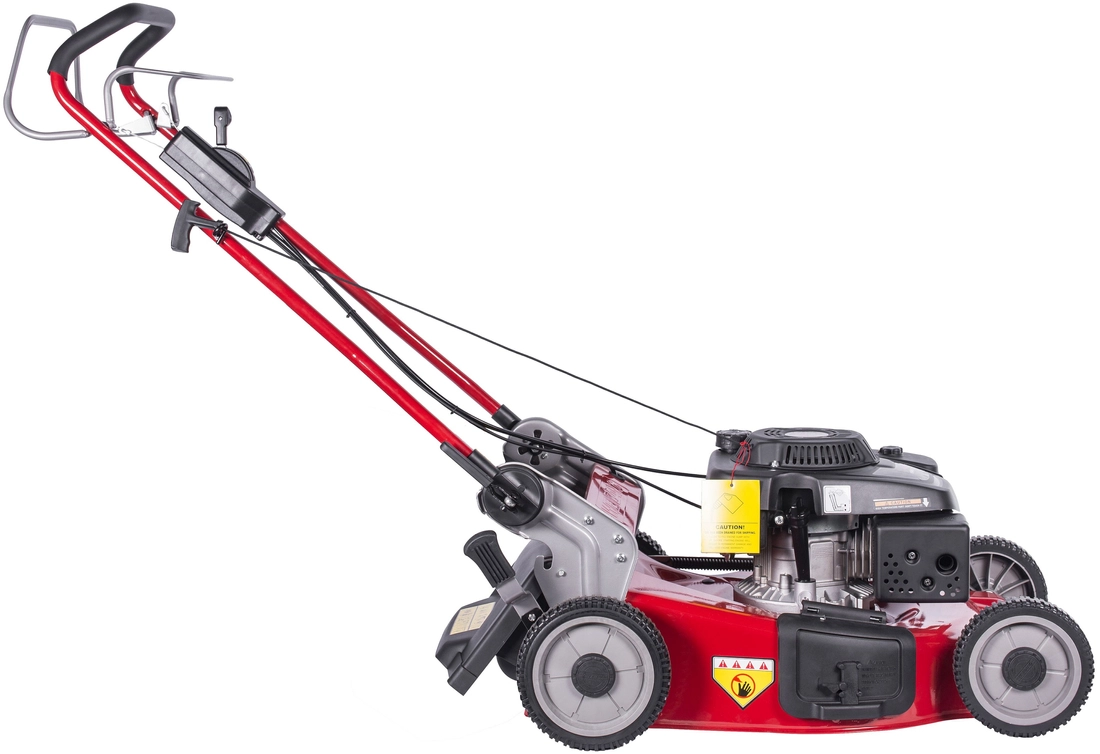

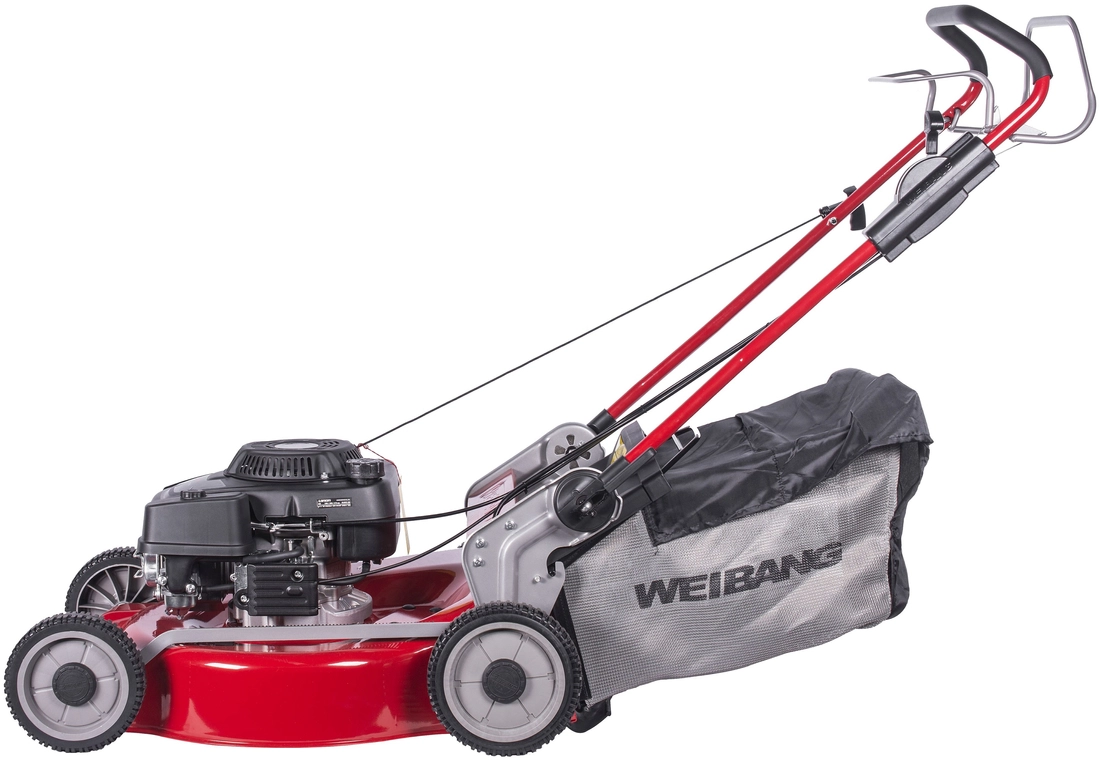

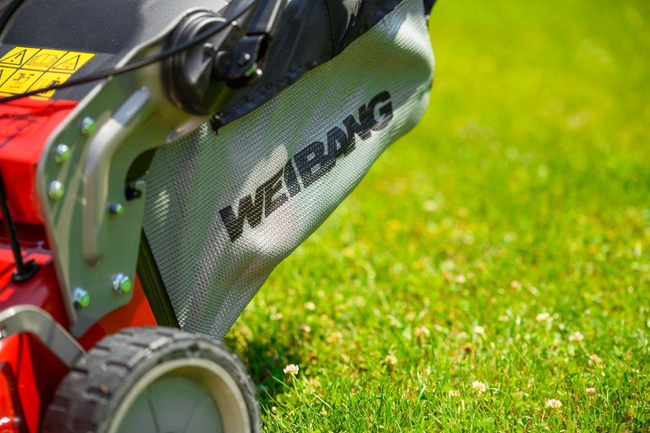

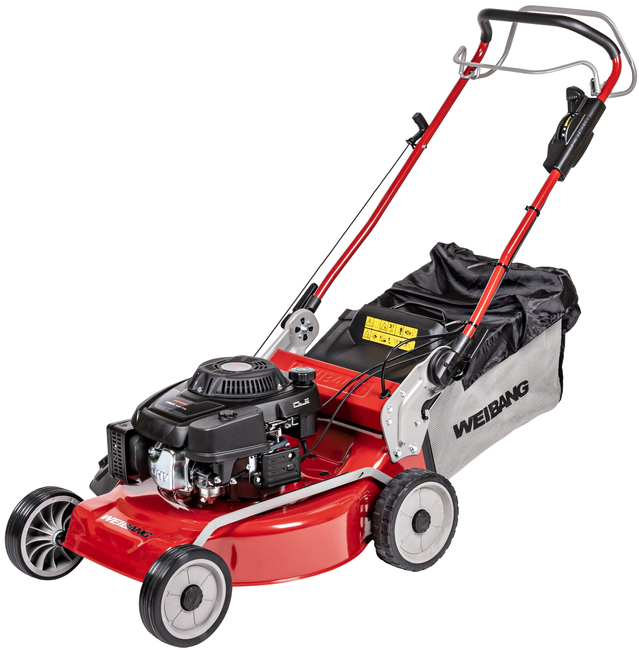

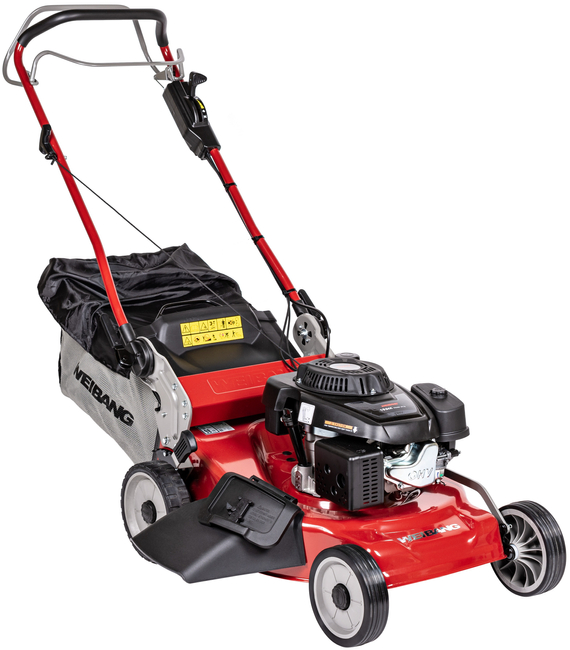

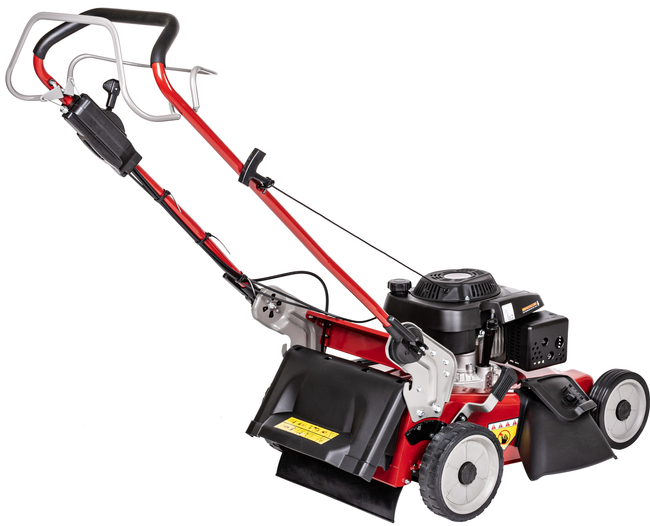

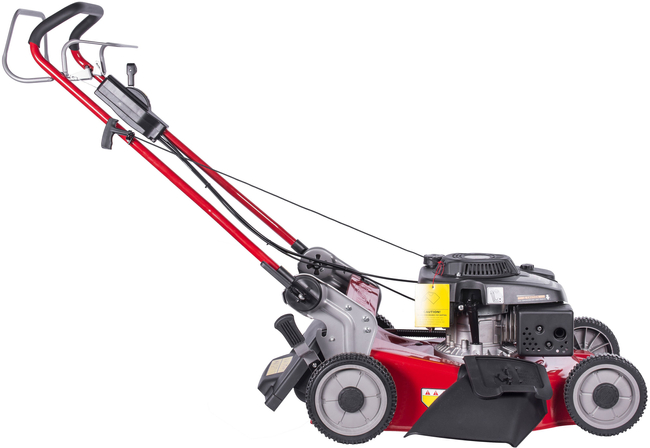

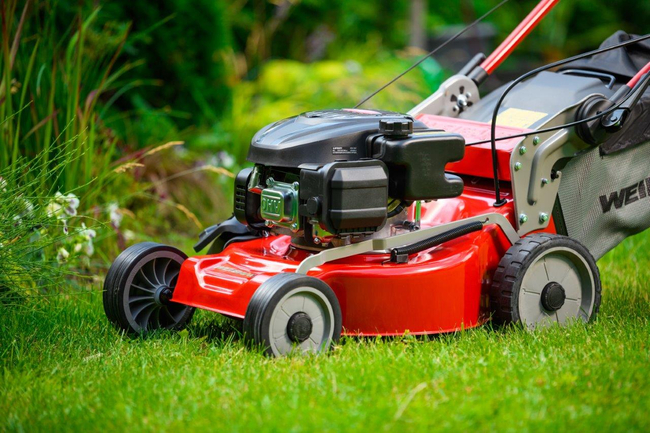

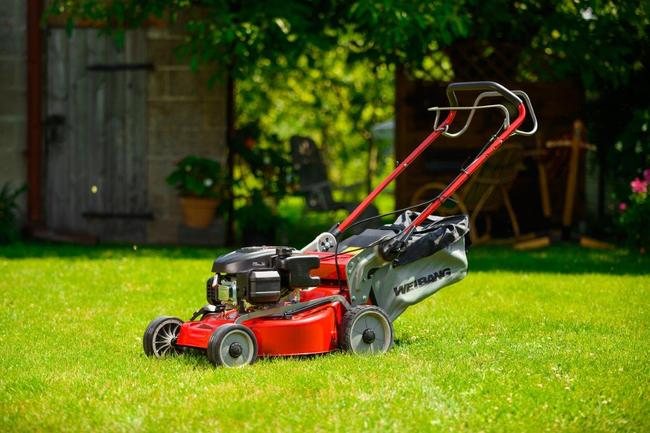

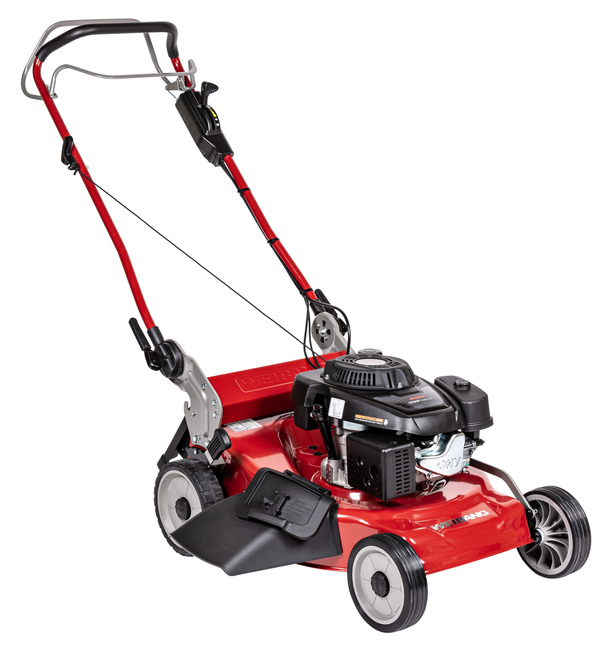

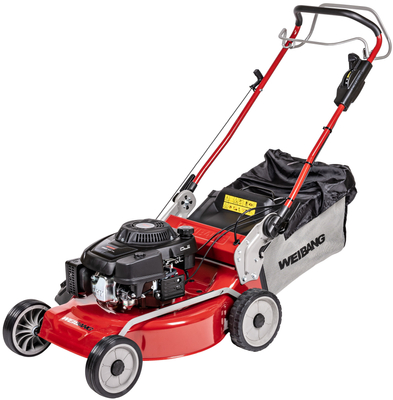

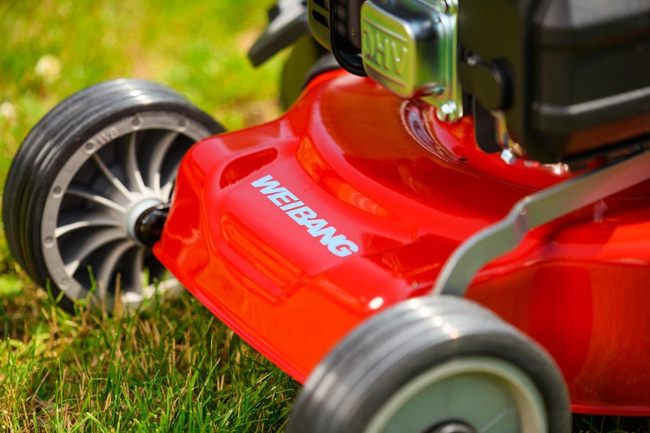

Weibang petrol mower WB537SLC with Loncin engine LC1P70F and side ejection is a very often chosen machine for both private and professional, service use. Combination mower 3 functions in one machine allows you to grind grass, use side ejection and rear ejection. Weibang petrol mower WB537SLC has 53cm cutting width and a capacious 70 liter grass catcher, if you don't want to collect the grass you can also use the grass mulching function or in more difficult conditions side ejection after attaching an additional deflector .The mower is equipped with a Loncin 1P70FA engine, this provides sufficient power for highly efficient operation, while guaranteeing many years of trouble-free operation. The height of cut can be conveniently adjusted in 8 levels from from 25mm to 80mm. The mower housing is powder coated with anti-corrosive paint, which greatly extends the use of the machine.

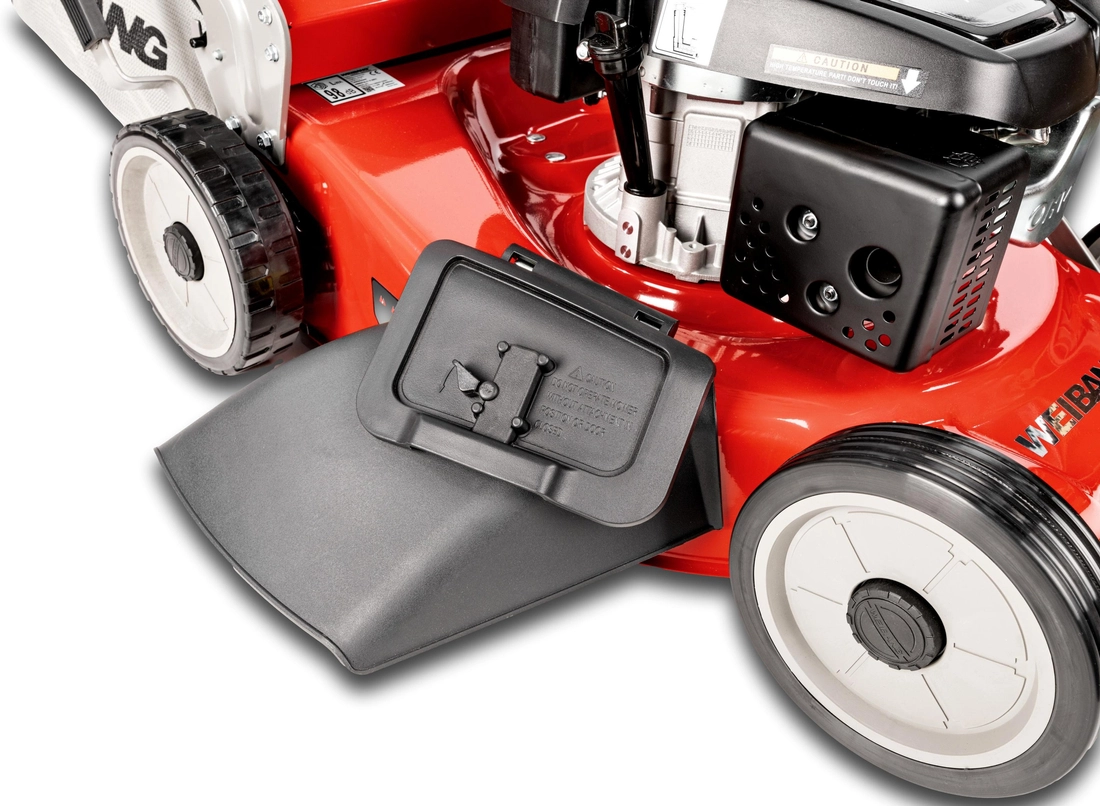

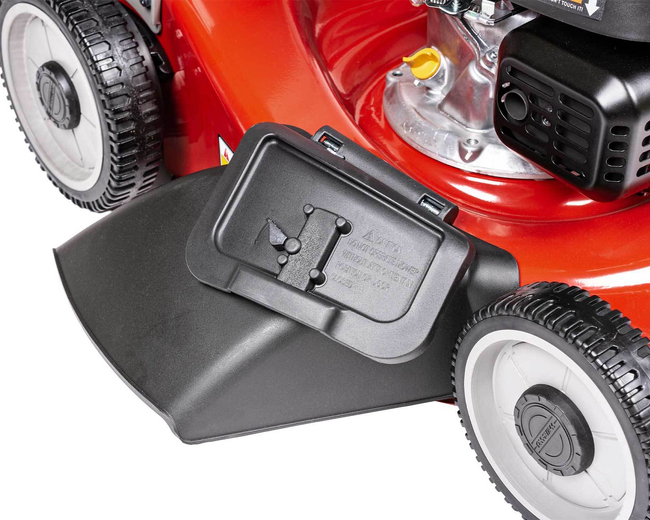

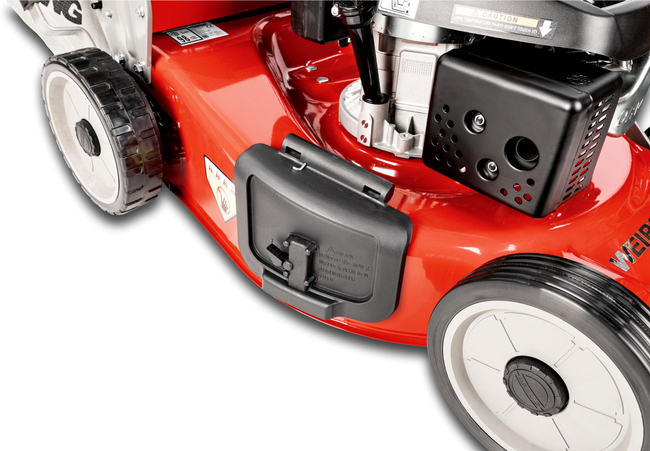

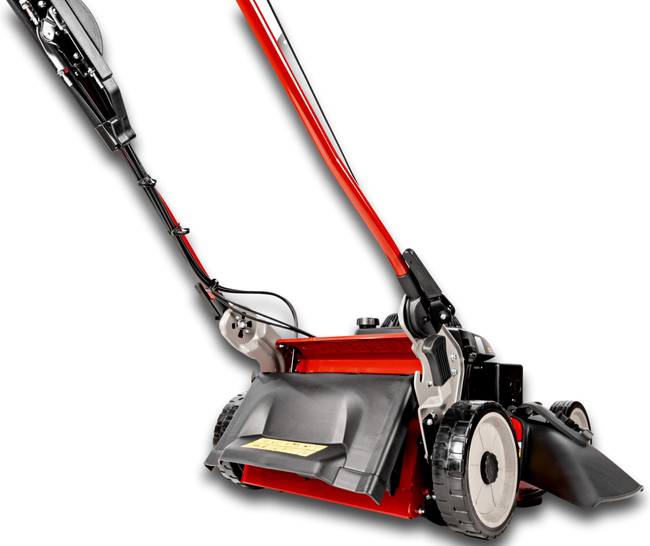

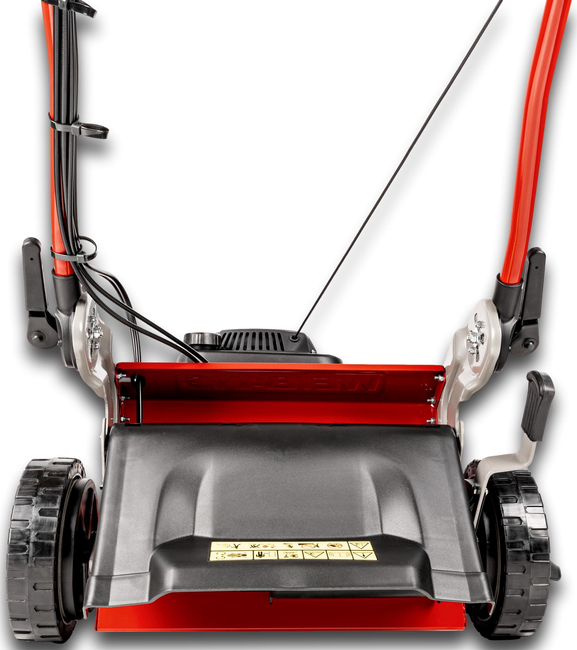

Mower this grass collection function has also been equipped with side ejection function, which comes in handy especially when you want to mow overgrown grass that hasn't been mowed for a long time, or if you mow grass very often and don't want to collect it. An additional option is grass grinding function, which at the same time naturally fertilizes our lawn. The light weight of the mower ensures comfortable operation and ease of use by having to exert a lot of physical force to push the machine.


Product Characteristics weibang WB 537 SLC 3IN1 petrol lawnmower




Technical Data:
Brand: Weibang

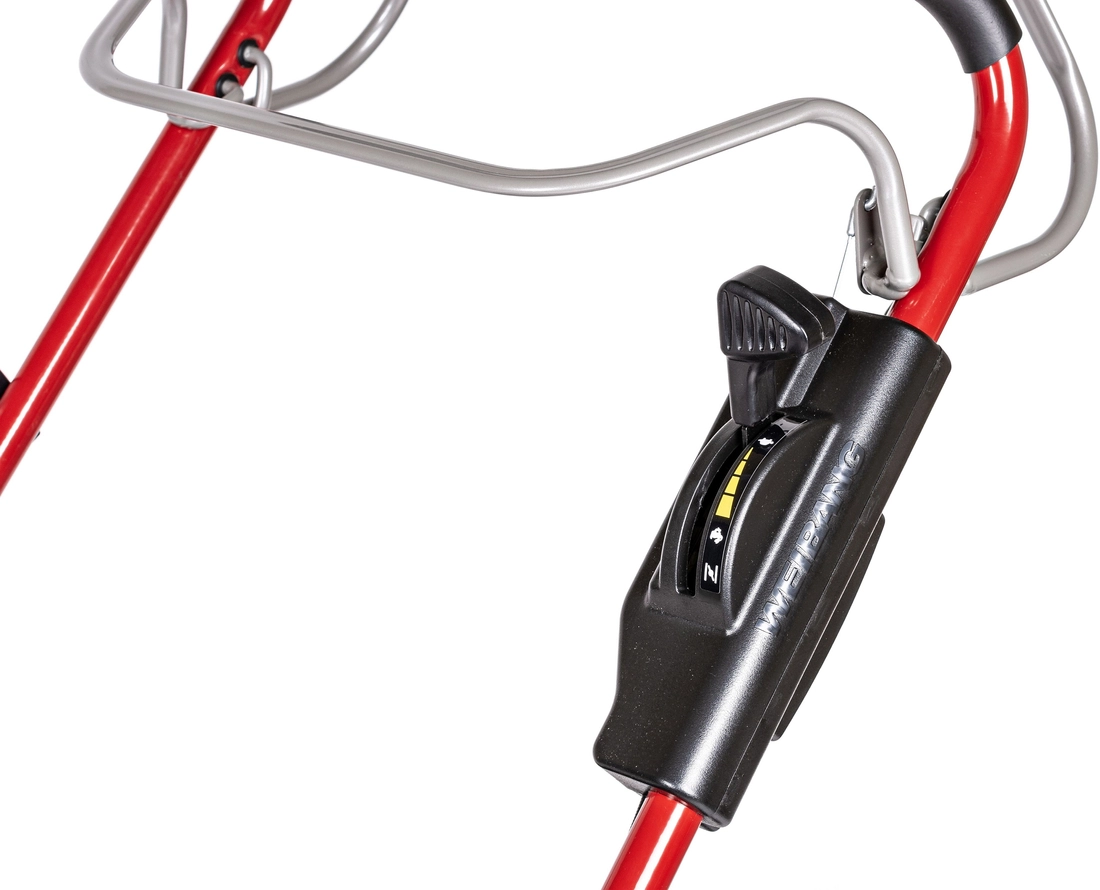

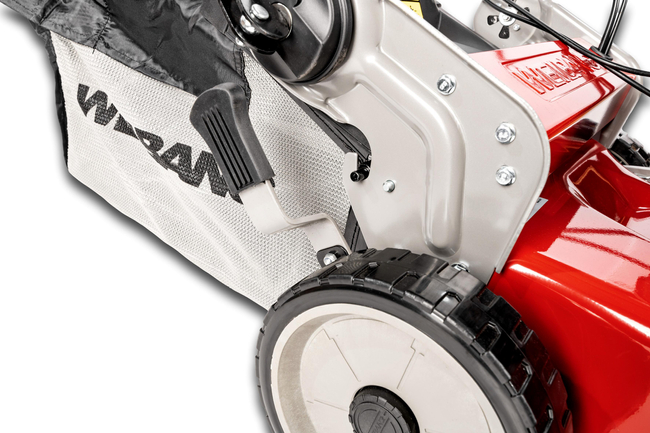

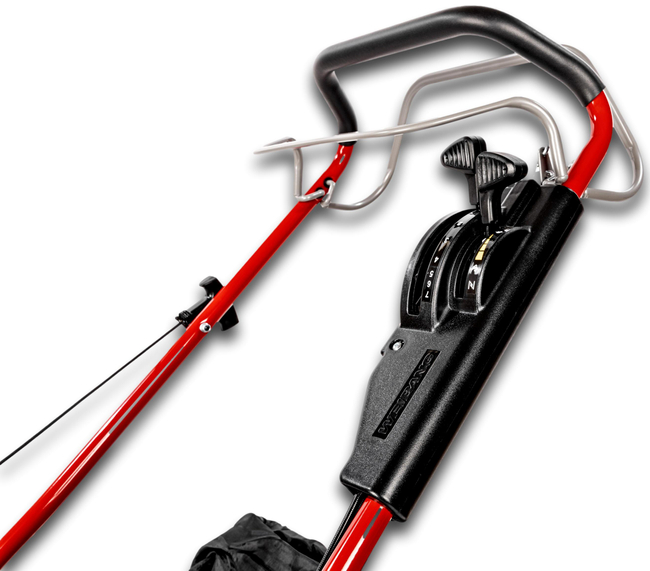

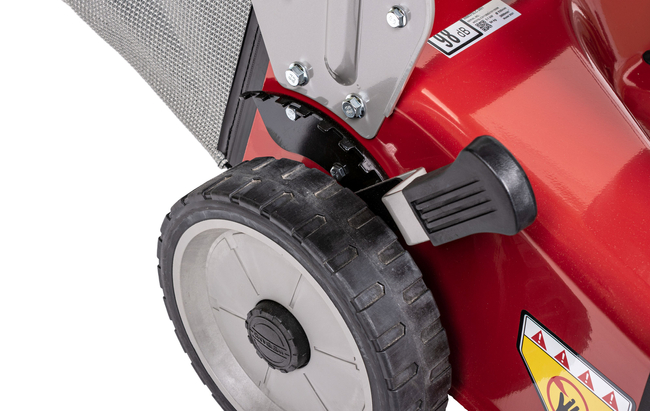

Mowing height adjustment: central 8 degrees
Mowing height: 25 - 80 mm
Working width: 530 mm
Engine Capacity: 196 cm³
Recommended area: 3000 m²

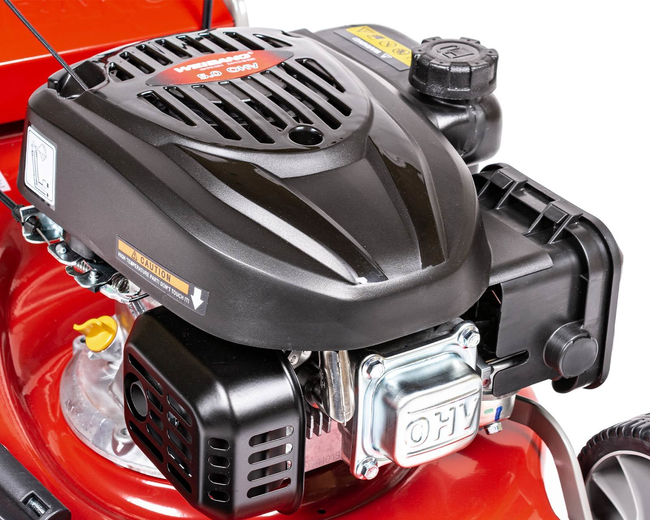

Engine manufacturer: Loncin

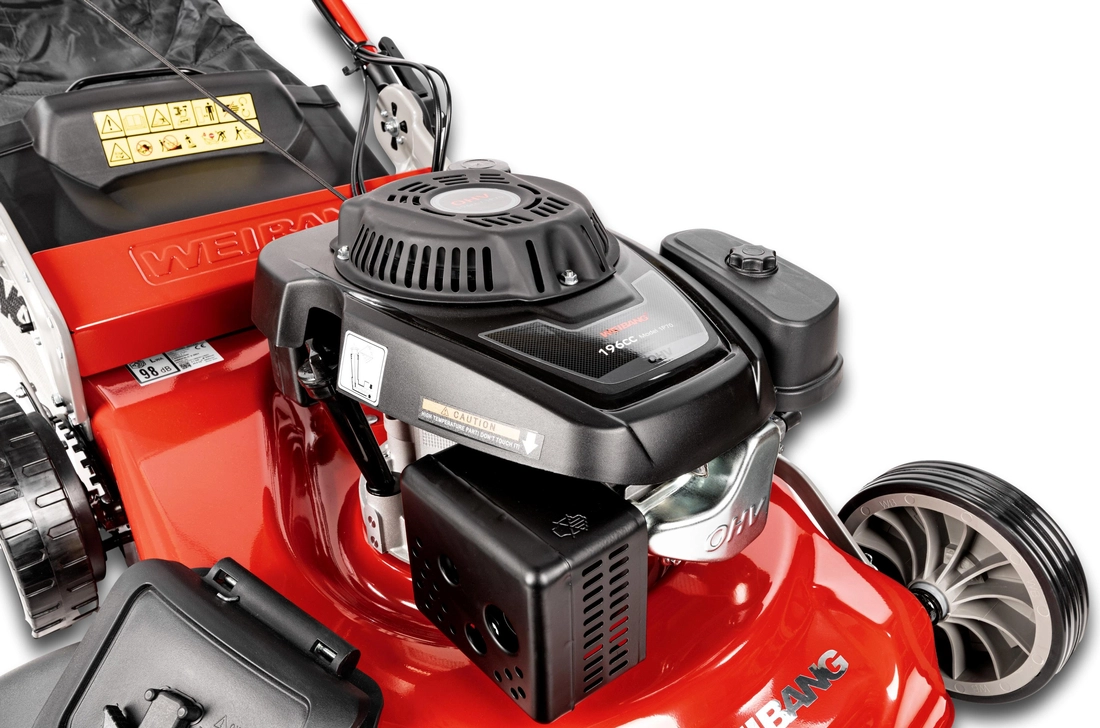

Engine model: 1P70FA

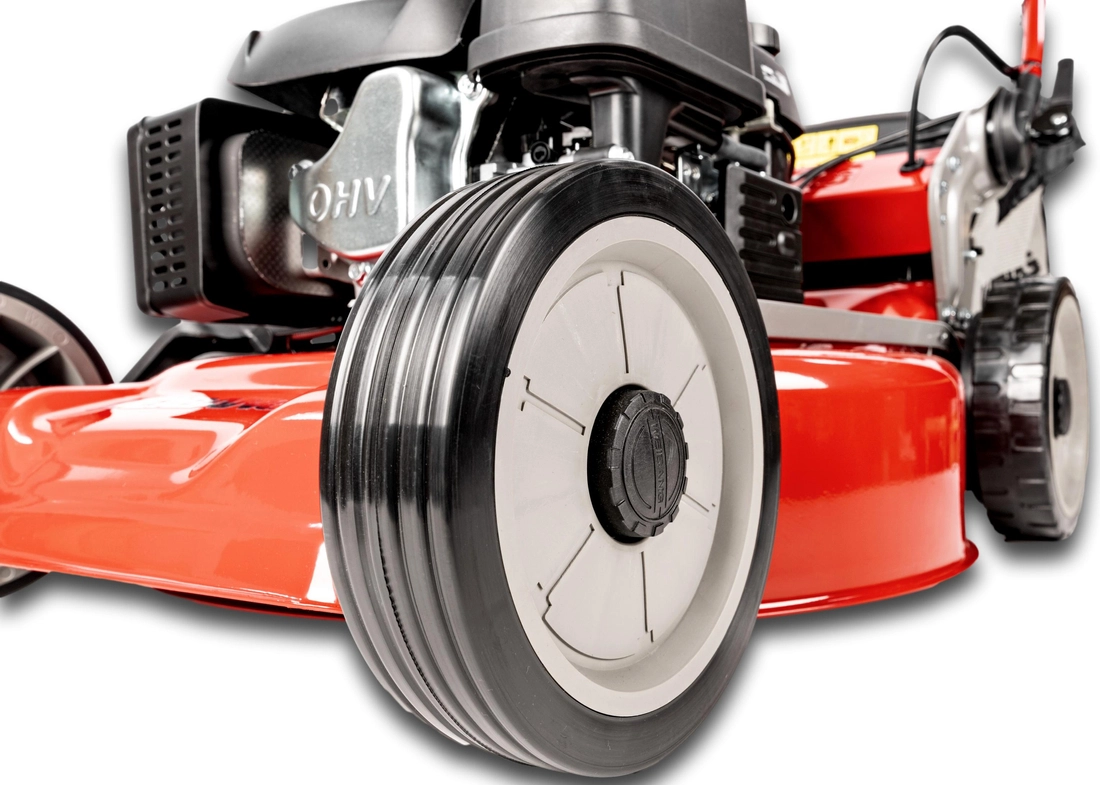

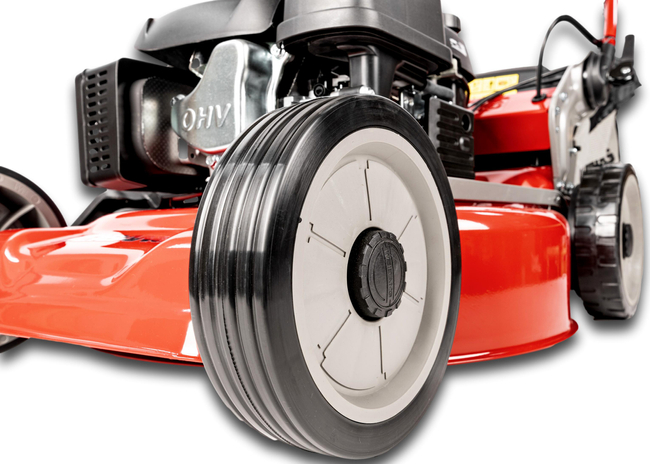

Wheel size (front/rear): 8 / 9 inches

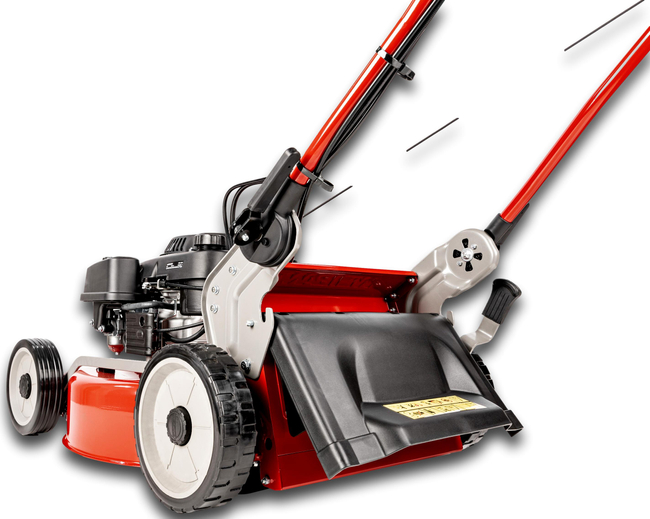

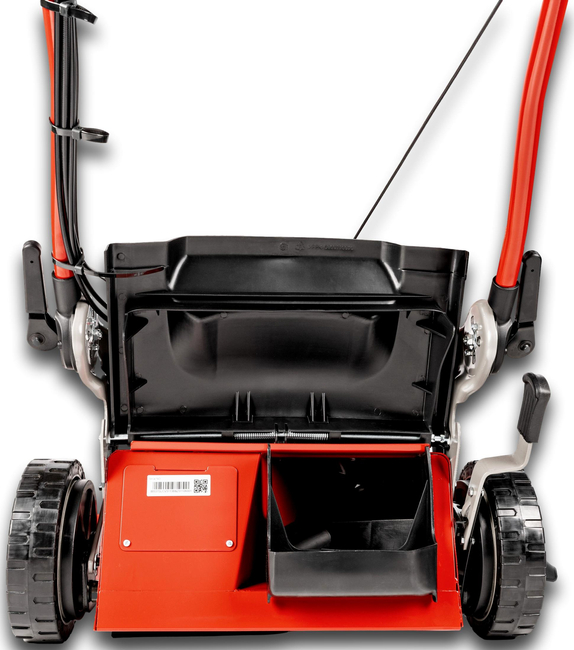

Ejection: Side/Rear
Trash: Yes
Wheel bearings: Yes

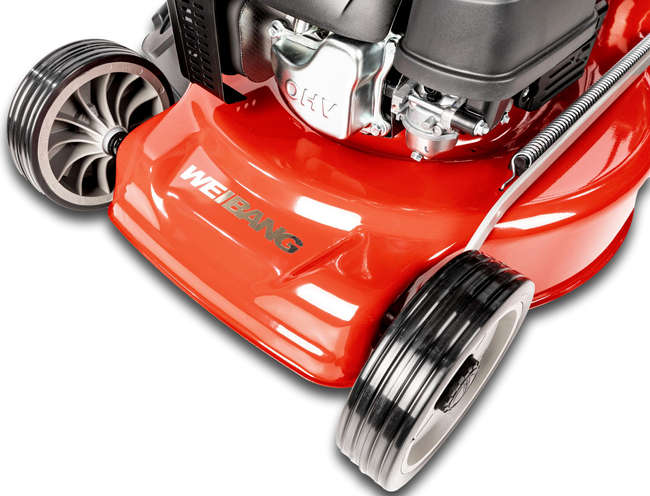

Housing: Steel

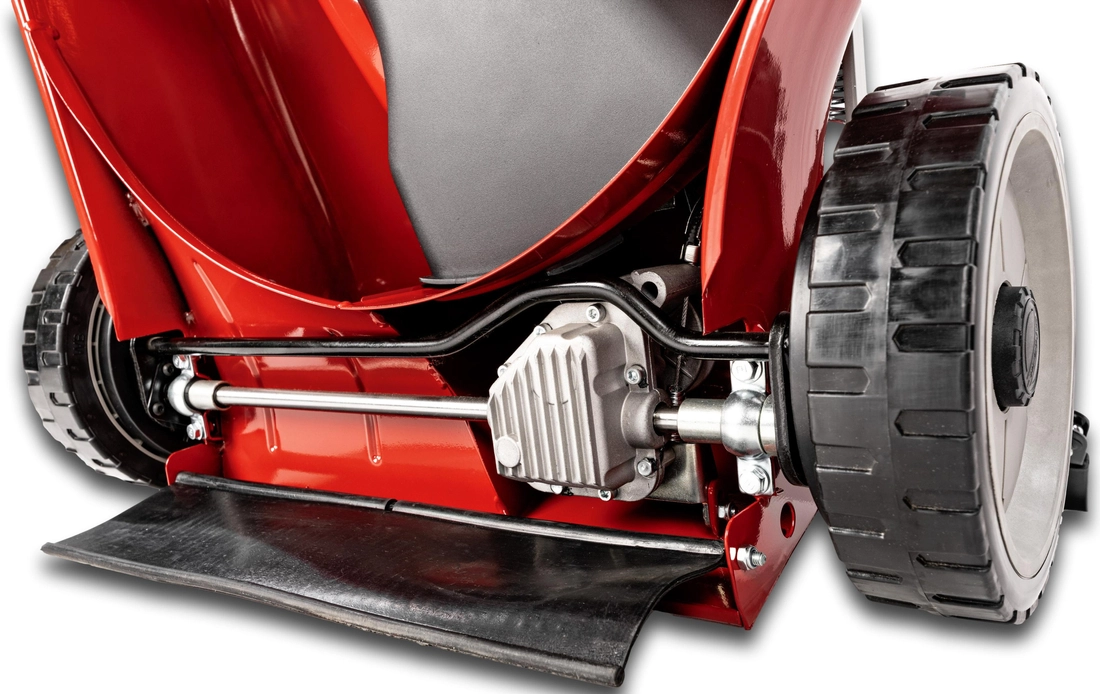

Transmission: V-belt

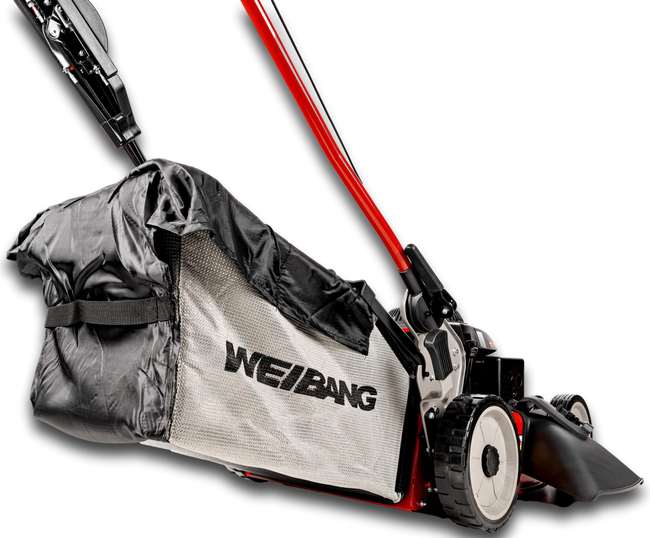

Garbage can capacity: 70 l
Weight: 47 kg




Warranty terms and conditions
1. The guarantee is granted by Cedrus Joint Stock Company for the period of 24 months from the date of sale for consumer purchases or for 12 months from the date of sale in other cases. Warranty
covers goods/equipment purchased on the territory of the Republic of Poland. Entitlements under this warranty do not extend to other claims related to damage
goods/equipment and claims for lost profits or incurred costs resulting from damage to the goods/equipment.
2. For the extended warranty of some manufacturers over 24 months annual service inspections are required (annotations in the warranty card):
- weibang mowers 60 months,
- cedrus tractors, Cedrus C-TRAC, Cedrus zero-turn C-TRAC, Simplicity 36 months,
- power tools 36 months,
- loncin brand engines and equipment sold by frma Cedrus 36 months,
- rato brand motors and equipment sold by frma Cedrus 36 months,
- cedrus brand aggregates 36 months,
- ariens zero-turn tractors Edge series 24 months or 150 hours, Ikon Xd 36 months or 300 hours, Apex 48 months or 500 hours (whichever comes first),
- ferris tractors 24 months unlimited hours, 48 months or 500 hours (whichever comes first). Drive belts, tires, brake pads, batteries, blades covered
are guaranteed for 90 days. the 2-belt drive train used on the IS 6200, ISX 3300, IS 3200Z, ISX 2200, IS 2100Z and ISX 800 is warranted for 36 months or 300 hours
(warranty covers in the first year parts and labor, in the second and third year only parts). Coilover shock absorbers and all suspension related components are covered under warranty
60 months with no limit on the number of hours.
Knife drive belts on FW35, FM35, SRSZ1 models are warranted for 12 months or 100 hours.
- pubert soilers with Honda engine 60 months,
- cedrus mowers with Kawasaki engine 36 months,
- wiper robotic mowers: the Trekker series 72 months (annotated in the Wiper service application),
- c-MOW automatic mowers, Sunseeker X 36 months,
- jonco D16, R13 shredders 36 months commercial purchase, 60 months consumer purchase.
3. In the case of equipment with extended warranties from some manufacturers, the warranty for motors (manufacturer), gearboxes and paint finish is 24 months consumer purchase or
12 months in other cases.
4. Warranty repair is understood as activities of a specialized nature, appropriate for the removal of a physical defect covered by the warranty .
5. Warranty is not covered:
a) parts subject to normal wear and tear:
- components of the cutting system (guides, chains, adapters, knives, wheels, discs, drills, augers, grinding wheels, component holders),
- cables: starter, drive, brake, adjustment cables,
- rubber parts (covers, shock absorbers, control orings),
- drive components (clutch drums, couplings, drive wheels, chains, drive shafts, pulleys, V-belts and toothed belts, equipment running wheels),
- air , oil, fuel, water, hydraulic fluid filters,
- spark plugs, ignition wires, springs, shock absorbers, bearings, pan, diaphragms, nozzles and carburetor valves,
- electrical, fuel lines, injectors, brushes, brushstops, fuses, light bulbs, manual and electric starters, safety bolts, chocks.
b) damages resulting from the use of oils other than those recommended by Cedrus Joint Stock Company and the manufacturer (applies to 2-stroke as well as 4-stroke engines).
c) damage caused by the use of fuel, low-quality mixtures.
d) damage to machinery and parts resulting from repairs outside the service network of Cedrus Joint Stock Company.
e) mechanical, thermal, chemical, corrosive and any other damage caused by an act or omission by the User.
f) damages resulting from natural partial or complete wear and tear in accordance with the characteristics or intended use of the equipment.
(g) damage caused by failure to follow the manufacturer's recommendations from the operating instructions and service messages.
h) damage resulting from:
- alterations, repairs and structural changes made by the User,
- improper or inconsistent with the instructions for installation, installation, use, lack of care for the equipment (use of non-original spare parts and accessories),
- transportation.
i) damage caused by the use of parts, accessories or the cutting system other than original parts.
j) intentional damage to equipment.
k) maintenance activities, cleaning, service inspections, adjustments, installation, operation, replacement of consumables.
l) damage caused by lightning, random events, accidents or natural disasters.
6. Batteries in power tools are guaranteed for a period of 6 months. Warranty for other batteries is 24 months consumer purchase or 12 months in other
cases.
7. Repairs and inspections of the equipment should be carried out in the service network of Cedrus Joint Stock Company.
8. The warranty for the parts used in the repair of the so-called "inserted parts" is given for a period of 6 months.
9. The complainant has the right to exchange the goods/device for a new one in the event that the Authorized Service Center determines in writing that the removal of the defect is impossible or
economically unjustified.
10. The complainant should deliver the goods/device to the Authorized Service Center. The claimed goods/equipment should be complete and in the condition they were in at the time of the
damages. It should also come in a suitably protective package.
11. The Authorized Service Provider is obliged to consider the complaint within the period of time 14 days from the date of delivery of the goods/equipment by the Complainant. In the case of recognition, the Authorized
The service is obliged to perform its duties within the time limit of 30 days.
12. The warranty card must be properly filled out. The rights under the guarantee may be exercised only upon presentation by the User important
warranty card and proof of purchase. Any arbitrary changes to the entries on the warranty card or making repairs on your own will void the warranty.
13. In the case of a guarantee for rechargeable devices the serial numbers of all components must be written in the warranty card set.
14. Goods, equipment and engines purchased for rental or hire are warranted for a period of 6 months.
