DEDRA DED7742 TABLE BOTTOM ROUTER FOR WOOD EWIMAX OFFICIAL DISTRIBUTOR - AUTHORIZED DEDRA DEALER
- Dedra DED7742 milling machine with a power of 1500 W is a device designed for processing wooden and wood-based elements. Adapted for collet 6, 8, 12 mm. The device is equipped with infinitely variable speed control.

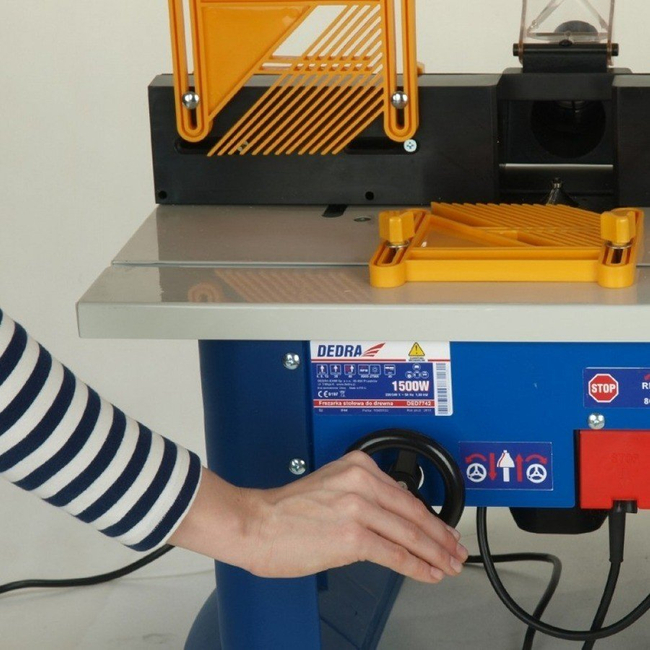

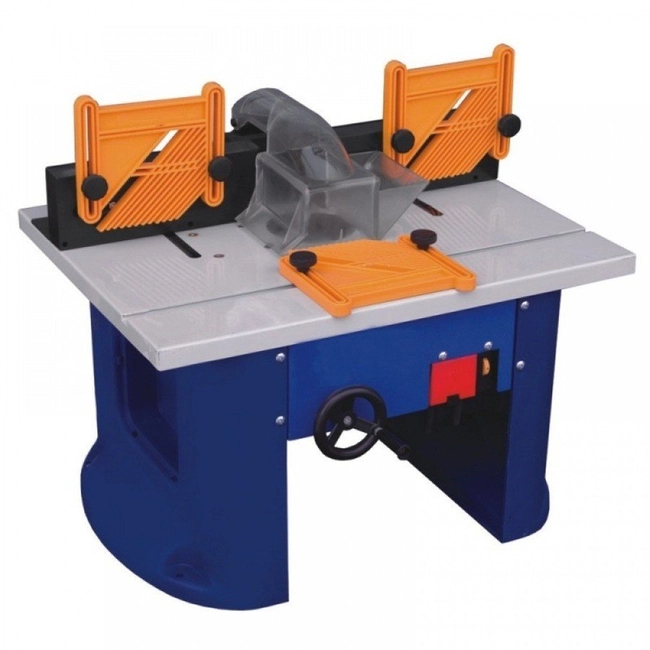

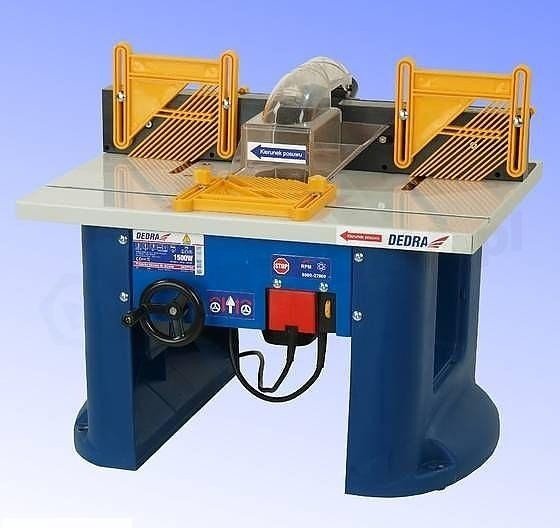

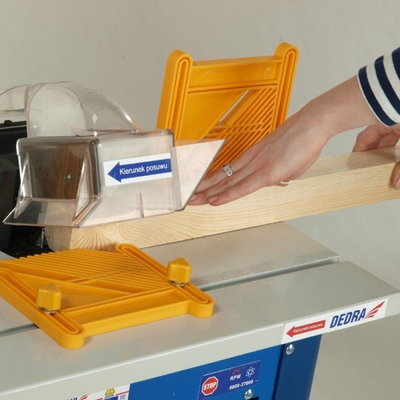

TABLE BOTTOM ROUTER FOR WOOD DEDRA DED7742
Dedra DED7742 milling machine of 1500 watts. Adapted for collet 6, 8, 12 mm. The device is equipped with infinitely variable speed control. The bottom spindle milling machine is a device designed for processing wooden and wood-based parts, as well as plastic and acrylic materials.

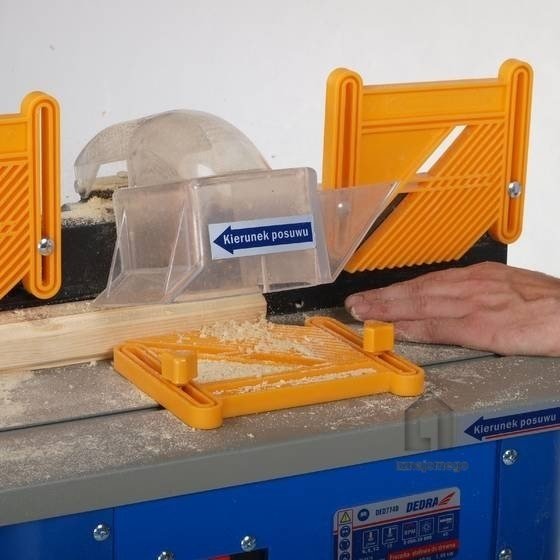

Depending on the cutters used, the milling machine can be used to make min. the following operations:
- profile milling of straight edges
- making quarter rounds, skirting boards, doors, etc.

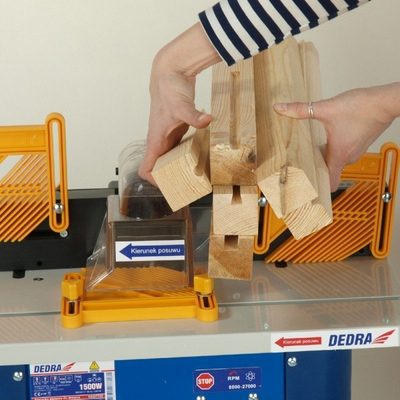

- making dowel, wedge and dovetail joints
- making grooves and depressions
- making longitudinal holes
- making of borings (e.g. for hinges )
Technical data
- Motor power - 1500W
- Spindle speed 8000- 27,000 rpm-1
- Cutter shank Ø 6, 8, 12 mm.
- Max. Ø of the working part of the cutter 35 mm.
- Work table dimensions 600 mm x 490 mm.
- Milling unit stroke 40 mm.
- Class II insulation
- Diameter of spigot discharge: 69mm (outside) / 57mm (inside)
- Power supply - 230V
- Weight - 20kg
Included:
- table milling machine DED7742
- longitudinal guide (tilt cover, guide body, guide caps, small clamping knobs,
- large clamping knobs, spoil ejector stub, set of screws).
- flexible resistance plate
- small clamping knob
- angle gauge
- wrench to fix the cutter
- key to move the cutter in the vertical plane
- collet cover
- milling cutter collet
- set of bolts, washers and nuts
DEDRA is a reputable manufacturer of tools.Brand products DEDRA are characterized by high quality workmanship and reliability. The brand offers a wide range of tools, wood and tile saws, tiling tools and accessories, circular saws and air tools.DEDRA offers comprehensive service in the field of warranty and post-warranty repairs of the product range it offers, and also sells spare parts. Provides customers with technical advice and the fastest possible turnaround times for service orders. DEDRA implements warranty repairs in the 'door to door' system. The product is picked up by a courier and delivered to the company's service center, and after repair it is sent back. Shipping costs are covered by the manufacturer.
