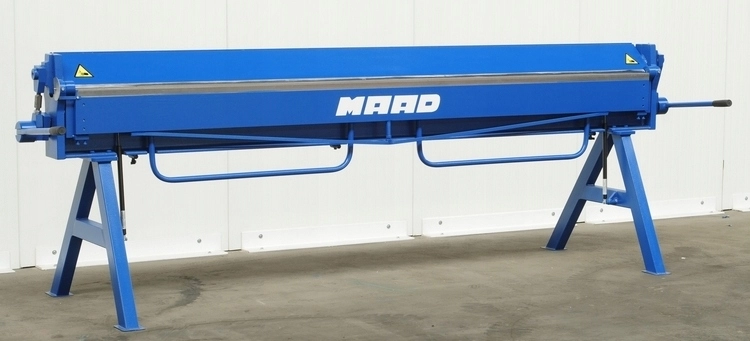

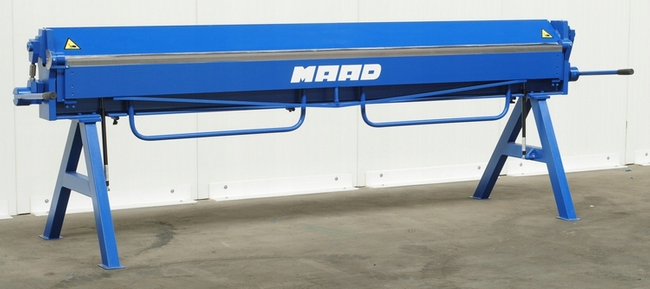

MAAD ZG-3000 /1mm BENDER DECKING BENDER for sheet metal with cutting MAAD ZG-3000 /1mm

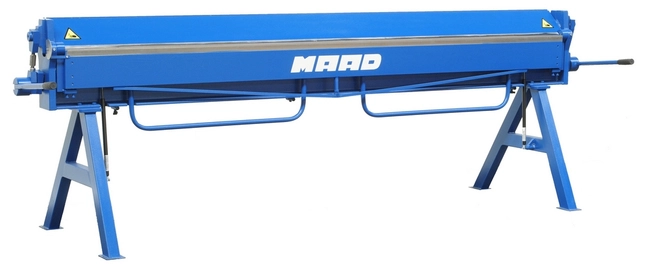

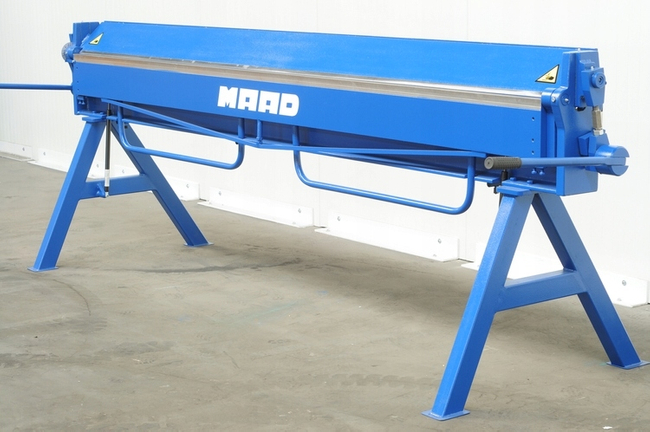

The ZG-3000/1.0 bending machine is a version of the machine for processing flat sheets up to 3 meters long!! It is equipped with three cylinders lifting the pressure bar and two cylinders lifting the bending bar, which gives it a very wide range of work possibilities. It is mainly produced for sheet metal workshops and companies dealing with ventilation and working on sheets up to 3000 mm long. Obtaining such performance of the bending machine is possible due to the use of strong and durable (with a thickness of 35 mm!) of the side mechanisms, and significantly increased cross-sections of the working beams. In addition, the side mechanisms have brass bushings with direct lubrication in each rotating element, which increases the life of the device.

Thanks to the high lift of the pressure bar (up to 100 mm!), the bending machine is useful for making ventilation ducts. The ability to work with rotary shears increases its functionality.

Technical parameters/equipment:

• - working width - 3100 mm
• - max. thickness of the bent sheet - 1.0 mm ( for Rm<400MPa )
• - width of the bending beam - 30 mm
• - maximum bending angle - 135 degrees ( on request it is possible to make a version with a bending angle of 155 degrees )
• - clearance between beams - 85-100 mm
• - weight of the machine - 700 kg
• - detachable legs - makes transportation and loading much easier

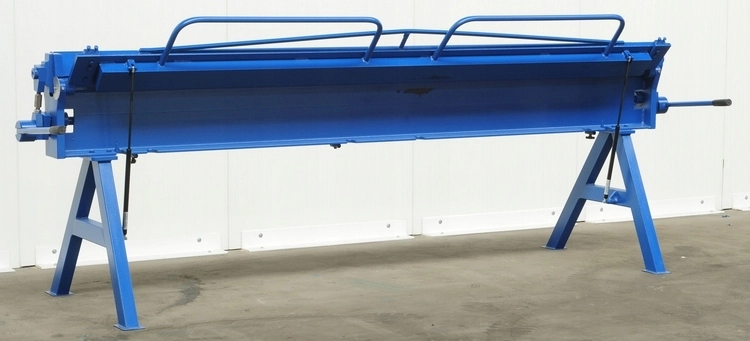

• - rack worn on the back of the machine to support sheet metal

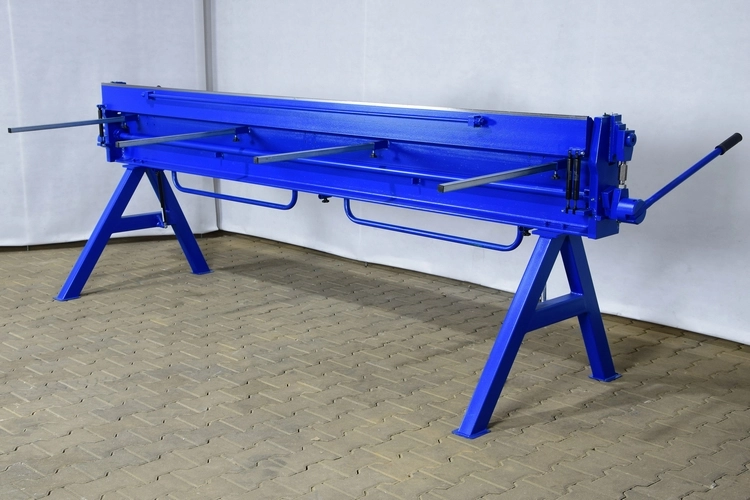

• - gauges for cutting sheet metal
• - protractor as standard equipment

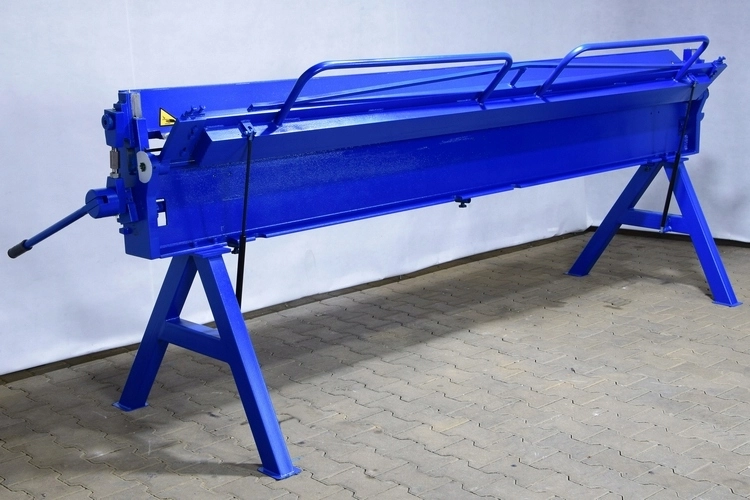

• - two gas cylinders to assist in lifting the bending beam
• - three gas cylinders to assist in lifting the pressure beam

Machine dimensions:

• height - 1,150 mm
• width - 3,580 mm
• depth - 1,000 mm

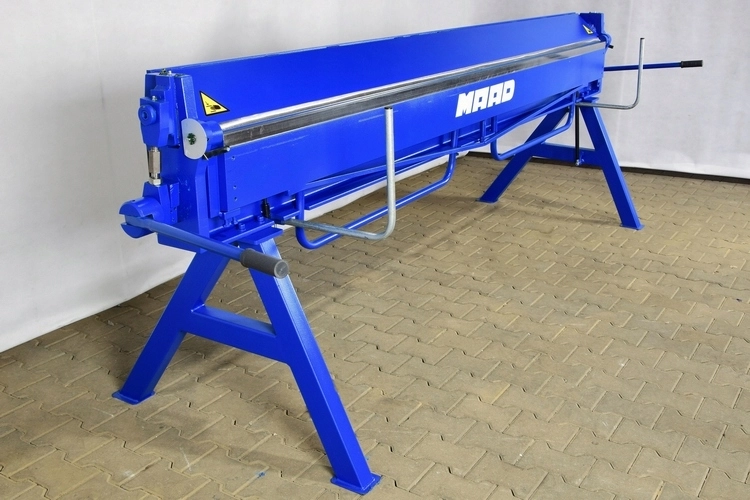

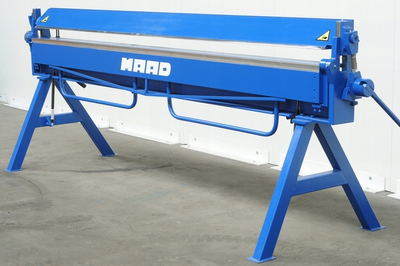

The main working elements of the bending machine are the beams: fixed, clamping and bending beams.

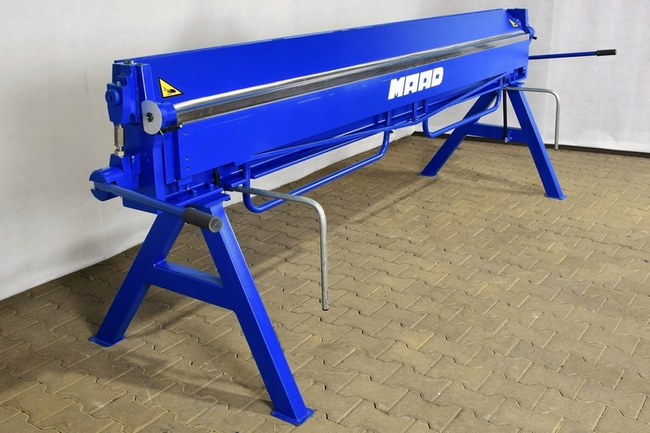

The pressure beam is a movable beam used to fix the sheet in the desired position. It is raised and lowered by a lever. Three gas cylinders assist in lifting the pressure beam. The pressure beam is designed so that its upper part is a guide for the roller shears.

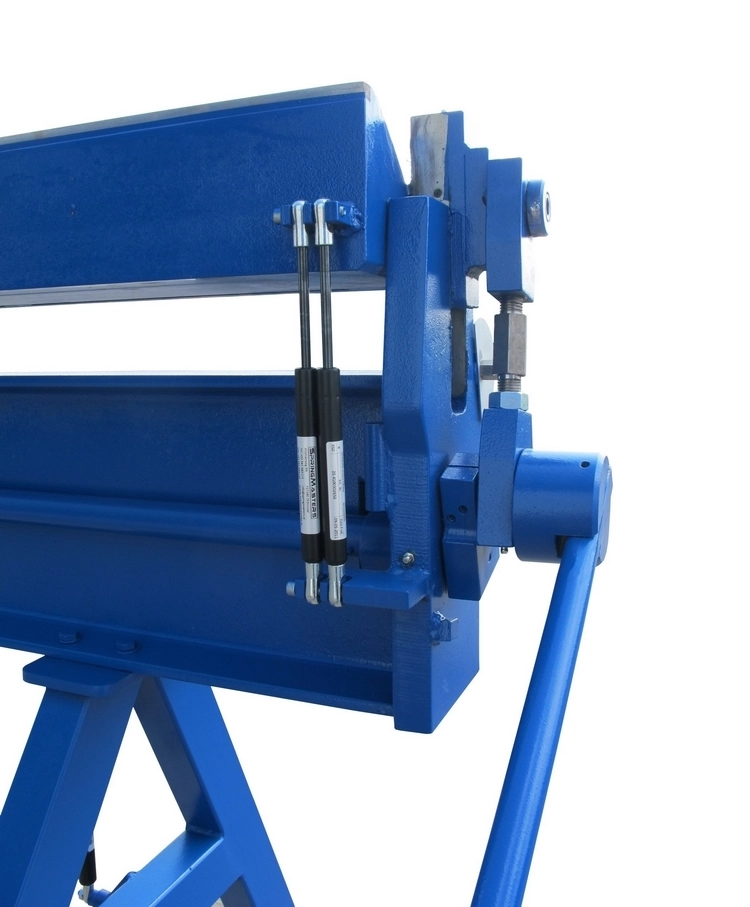

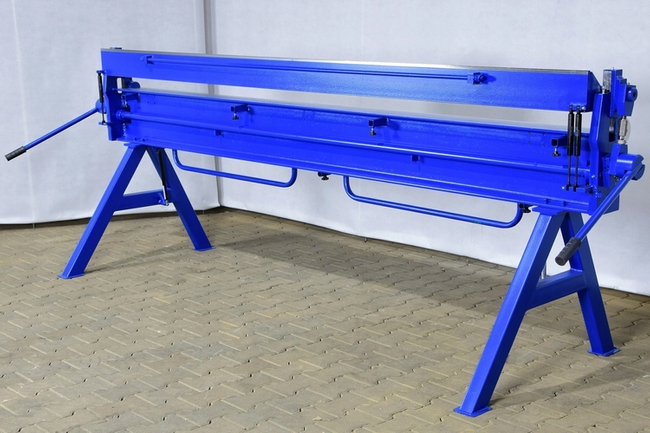

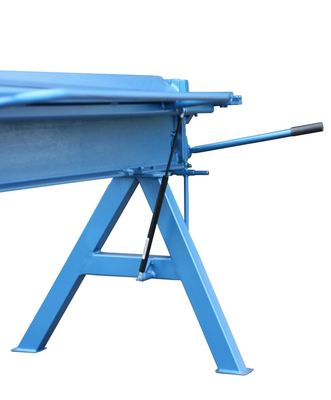

The bending operation is carried out by rotating the bending beam by a certain angular value using a handle. Two gas cylinders assist in lifting the bending bar. Angle gauge mounted on the left side of the bending machine when viewed from the front indicates the current angle of the sheet metal bend.

The bending beam has an adjustable position in relation to the fixed beam. This parameter affects the bending radius of the sheet and its size also depends on the thickness of the sheet to be bent.

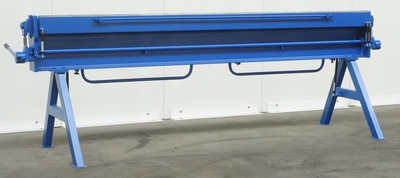

Working beams are equipped with turnbuckles for setting the straightness of the working edges.

Bending machine components are made on precision CNC machine tools.

The bending machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.
