DEDRA DED7726 WOODSHELD CONSTRUCTION TABLE Saw 315mm 2.2kW EWIMAX OFFICIAL DISTRIBUTOR - AUTHORIZED DEALER DEDRA
- Professional saw DEDRA DED7726 designed for all types of wood and wood-based materials (plywood, particle board) and plastics.Sawdust discharge through a spigot suitable for connection to a vacuum cleaner or extractor.
CONSTRUCTION TABLE WOOD CUTTER DEDRA DED7726

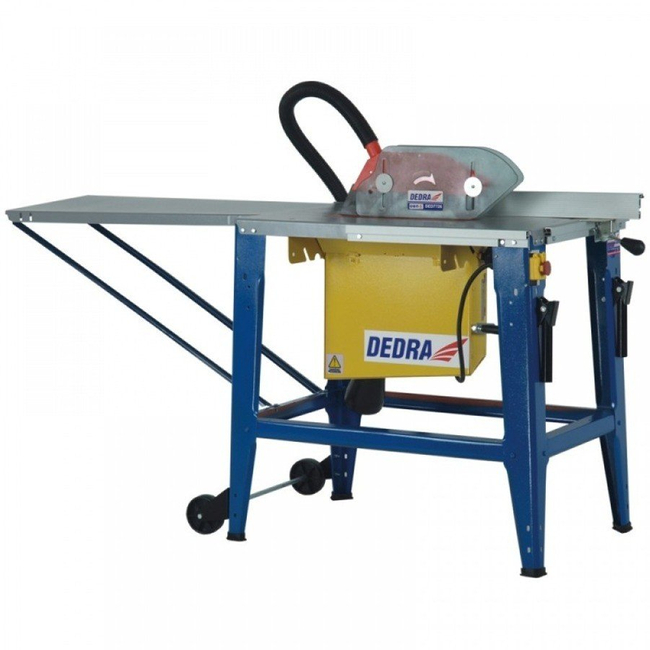

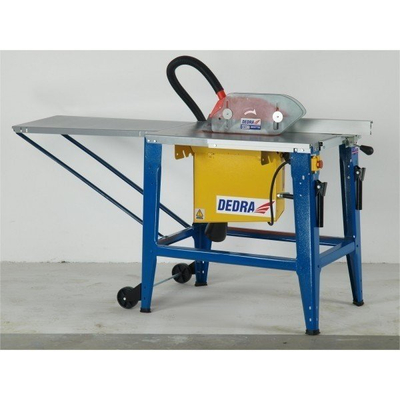

DEDRA table saw DED7726 is an equipment created for cutting wood and wood-based materials: boards, particle boards, plywood boards, mdf boards, osb boards. Allows you to perform basic cutting operations: longitudinal sawing, cross-cutting sawing, mitre sawing. Guarantees precise saw angle adjustment.
DEDRA DED7726 At the factory, the cutter is equipped with a circular saw with a diameter of 315 mm hole 30 mm and number of teeth 40.The cutting disc described has part number H31540. The saw can be equipped with circular saw blades with more 80 teeth cat. no. H25080. The saws we equip with have the Safety Sign of Use certificate No. B/11/383/2003 issued by the Institute of Metalworking in Krakow. Structurally, the saw is designed to work with DEDRA circular saws. It is permissible to use saws from other manufacturers, provided that the thickness of the saw body is approx. 2.1 mm, and the tooth width is 3.4 mm. The use of circular saws significantly deviating from the specified values is unacceptable. Circular saws with a larger number of teeth require proportionally smaller operating feeds.
The circular saw is designed for cross and longitudinal processing and beveling of wood and wood-based materials:
- boards
- chipboards
- plywood panels
- mdf
- osb boards
- scantlings
It is mainly used in carpentry shops, handicrafts and schools. Also suitable for do-it-yourselfers.
- Sawdust discharge system
- The machine allows you to perform the following operations: longitudinal, transverse and bevel cutting
- Solid and stable metal construction
- Additional folding top, enlarging the work surface
- Handles and casters provide easy transportation of the unit
- Technologically advanced machine designed for professional cutting of all types of wood, wood-based materials, plastics, etc.
- Has a sawdust discharge system - reduces the spread of spoil
- Works with 315mm diameter disc
- Allows you to cut a piece up to 82mm thick at a time
- Table on sturdy legs provides stability
Technical data:
- Electric motor: single phase induction motor
- Operating voltage: 230 V, 50Hz
- Motor rated power: 2200 W
- Weight: 54.0 kg
- Circular saw speed: 2900 rpm
- Toothed saw blade diameter: 315 mm
- Saw blade bore diameter: 30.0 mm
- Base table dimensions: 800 mm x 550 mm
- Dimensions of auxiliary table: 800 mm x 400 mm
- The maximum height of the wooden log for: sawing 82 mm
- bevel 45 measured vertically: 58 mm
- Working head tilt range (from vertical): 0 degrees to 45 degrees to the left
- diameter of the spigot hole of the spoil ejector: 53.5 mm/21.5 mm
- Noise emission (according to ISO 7960 Annex A 2/95) under load
- Sound power level LWA: 94 dB (A)
DEDRA is a reputable manufacturer of tools.Brand products DEDRA are characterized by high quality workmanship and reliability. The brand offers a wide range of tools, wood and tile saws, tiling tools and accessories, circular saws and air tools.DEDRA offers comprehensive service in the field of warranty and post-warranty repairs of the product range it offers, and also sells spare parts. Provides customers with technical advice and the fastest possible turnaround time for service orders. DEDRA implements warranty repairs in the 'door to door' system. The product is picked up by a courier and delivered to the company's service center, and after repair it is sent back. Shipping costs are covered by the manufacturer.
