DEDRA DED7622 CONCRETE DRILL HOLE SAW CONSTRUCTION DRILL EWIMAX OFFICIAL DISTRIBUTOR - AUTHORIZED DEDRA DEALER

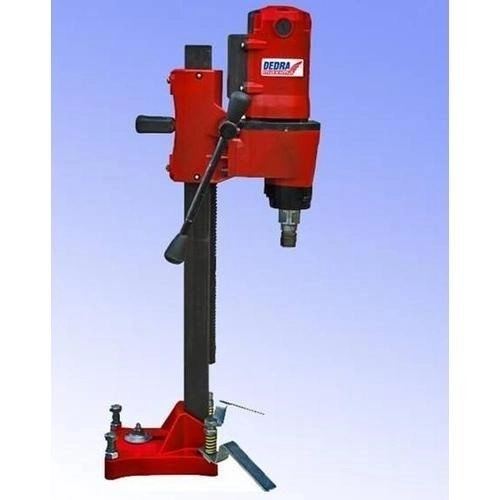

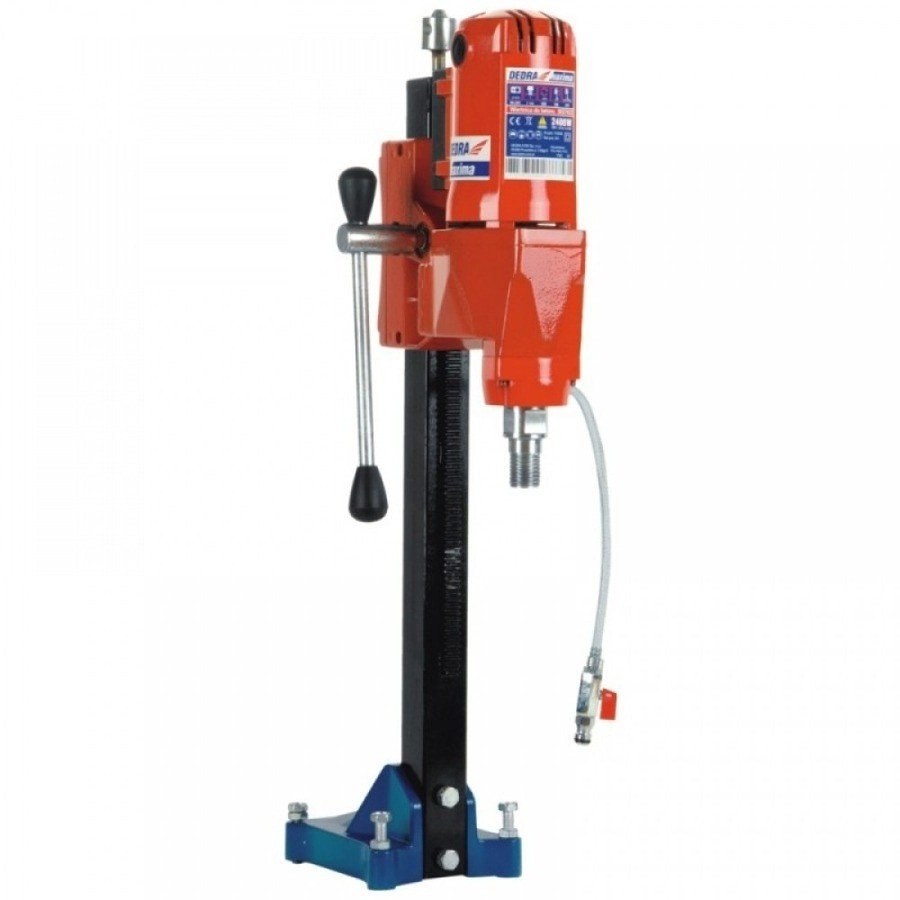

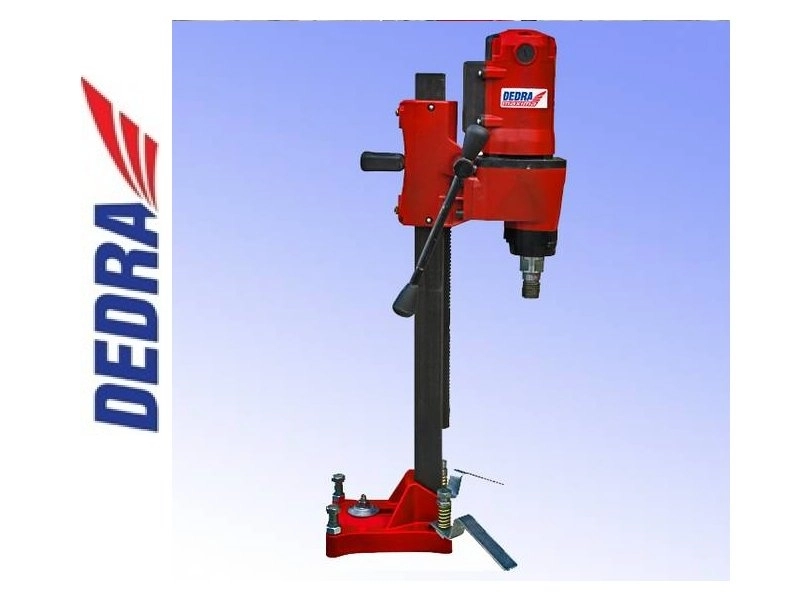

- DEDRA DED7622 drill rig is designed for drilling holes with diamond core drill bits in all ceramic building materials. The drill rig is equipped with a tripod, which allows it to be used as a column drill rig.
DEDRA DED7622 CONCRETE CONSTRUCTION HOLE SAW DRILL RIG

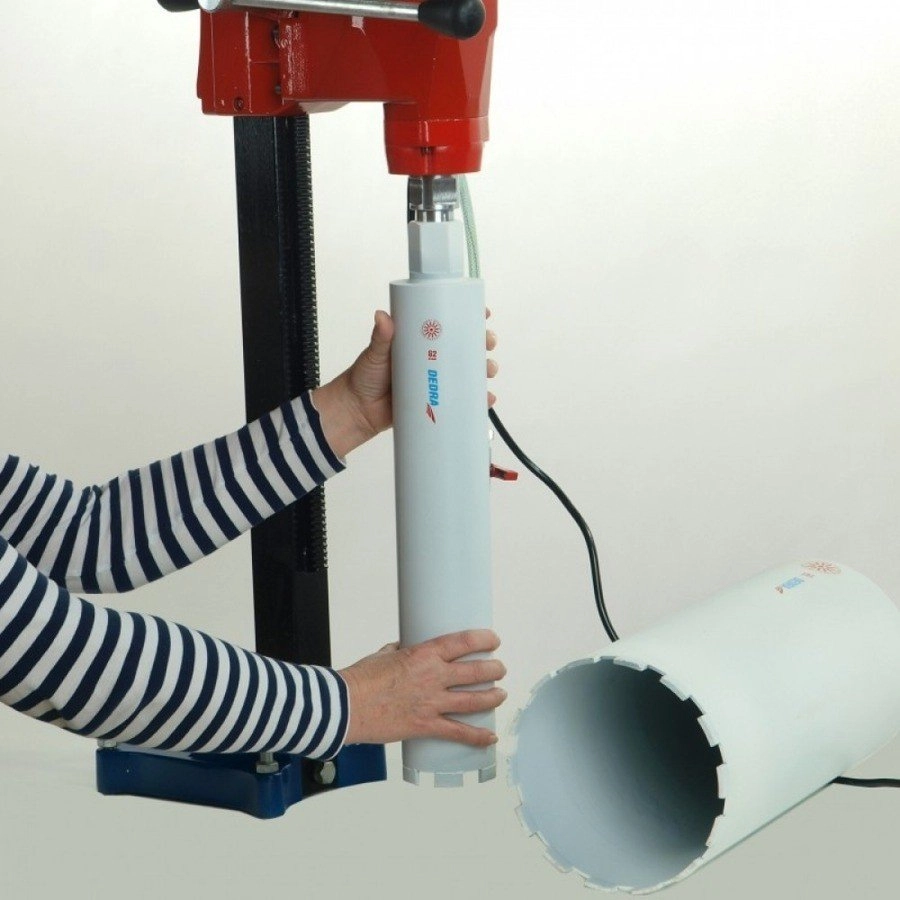

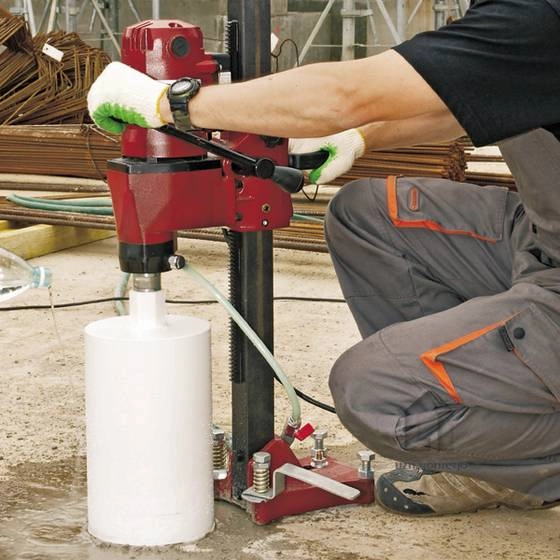

Concrete drilling rig model DED7622 designed for drilling holes in all ceramic building materials. The machine allows you to perform drilling operations with diamond crown drills in the diameter range from 80 - 205 mm. The drilling rig is designed to work with water as a coolant and to prevent excessive spread of excavated material. Dry work is not advisable. The drill can be used not only as a hand tool, but also with a tripod as a column drill rig. With the help of the drilling rig it is possible to drill both vertically and horizontally. Regardless of the position of the drill rig, drilling should always be done with the wet drilling option. Dry drilling is forbidden, it drastically shortens the life of the diamond crown drill bit, can lead to damage to the machine, and the efficiency of work is much lower than when working wet. Diamond coated crown drills with 1 and 1/4 inch mounting threads, 400 mm in length and diameters are available for the DED7622 drill: 82 mm cat. HW4082; 92 mm cat. no. HW4092; 102 mm cat. no. HW4102; 107 mm cat. no. HW4107; 117 mm cat. no. HW4117; 127 mm Cat No. HW4127; 152 mm Cat No. HW4152;162 mm Cat No. HW4162; 187 mm cat. no. HW 4187; 204 mm cat. no. HW4204. The aforementioned drills are used for drilling holes in all ceramic materials such as concrete, aerated concrete, brick, etc.
Product Characteristics:
- Concrete drilling rig DED7622
- It is designed for drilling holes in all building ceramic materials.
- The drilling rig is designed to work with water as a coolant and to discharge the excavated material.
- Dry work is not advisable.
- The machine allows you to perform drilling operations with diamond crown drills in the diameter range from 80-205 mm.
- The drill rig is equipped with a tripod, which allows it to be used as a column drill rig.
- Using a drill rig with a tripod, you can drill both vertically and horizontally.
- The machine has a mechanical overload clutch that prevents the tool from jamming.
Advantages:
- 2400 W high-powered motor,
- a mechanical overload clutch that prevents the tool from jamming,
- standard tool attachment,
- is equipped with a tripod, which allows it to be used as a column drill rig
- possible disassembly of the drive from the column without tools
Technical data:
- Weight: 27 kg
- Shank diameter range 80-205
- Power of the device 2,4KW
- Number of gears: 1
- Ground clearance 485mm
- Spindle stroke 470mm
- Thread diameter 1 1/4''
The set includes:
- Drilling rig
- Tripod
- Warranty
- User Manual
DEDRA is a reputable manufacturer of tools.Brand products DEDRA is characterized by high quality workmanship and reliability. The brand offers a wide range of tools, wood and tile saws, tiling tools and accessories, circular saws and air tools.DEDRA offers comprehensive service in the field of warranty and post-warranty repairs of the product range it offers, and also sells spare parts. Provides customers with technical advice and the fastest possible turnaround times for service orders. DEDRA implements warranty repairs in the 'door to door' system. The product is picked up by a courier and delivered to the company's service center, and after repair it is sent back. Shipping costs are covered by the manufacturer.
