Garden Tractor Self-Propelled Lawn Mower
CEDRUS C-TRAC 86MC 86cm
+ Towing hook + Milling system
G R A T I S !!!
Rugged yet compact and maneuverable mowers. Ideal for frequent use in domestic environments, medium-sized areas Designed using the same technological solutions , as in models for professional use, combine excellent performance and comfort, making work a pure pleasure.
Rear hopper models, compact in size, with controls easily accessible on the dashboard and equipped with manual or hydrostatic drive for a smooth ride and greater operator comfort. Designed for those who expect excellence and durability from their gardening machinery, the CEDRUS C-TRAC 86MC riding mower is a smart choice for those who want to achieve and maintain a beautiful lawn.

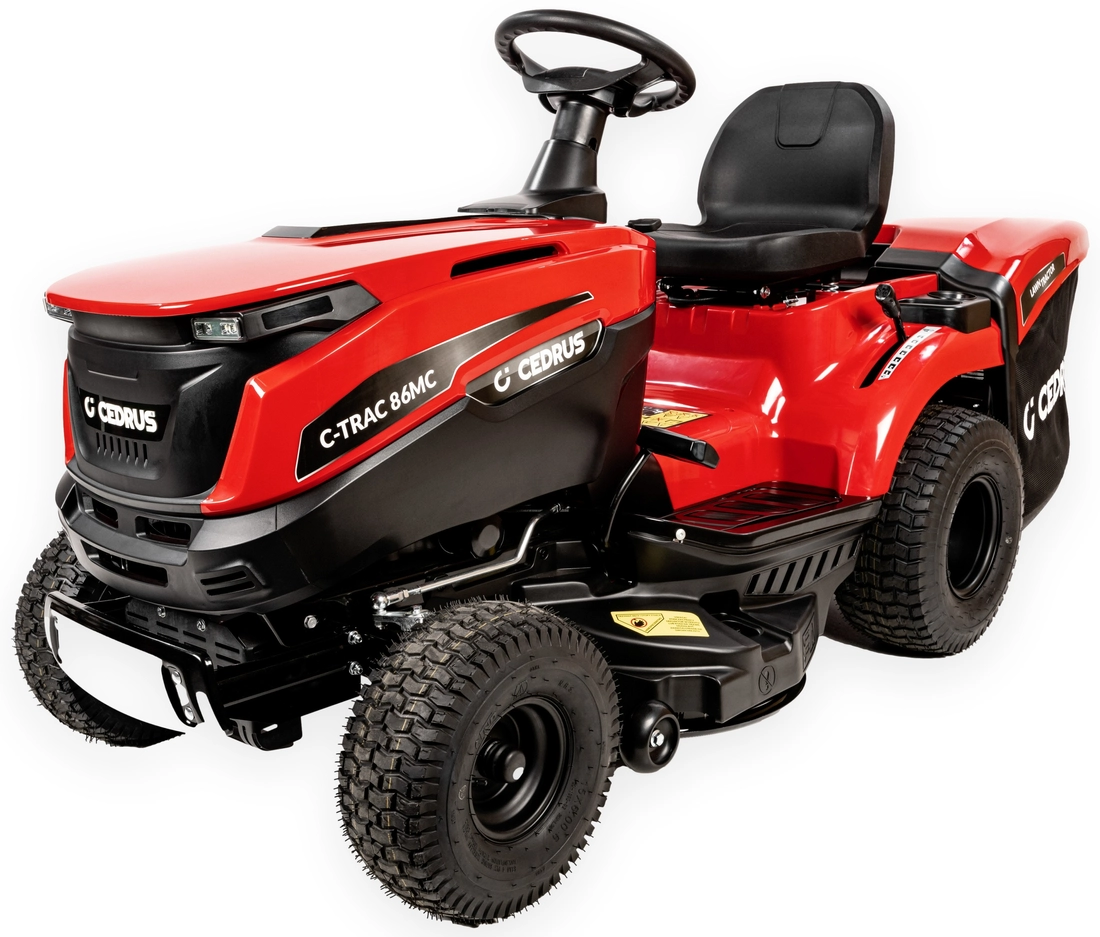

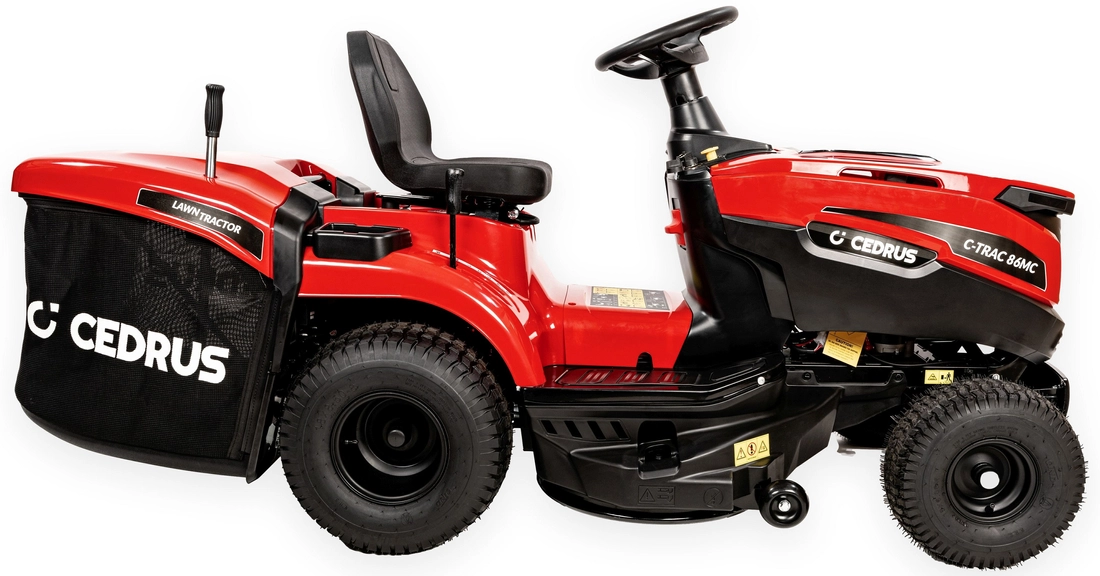

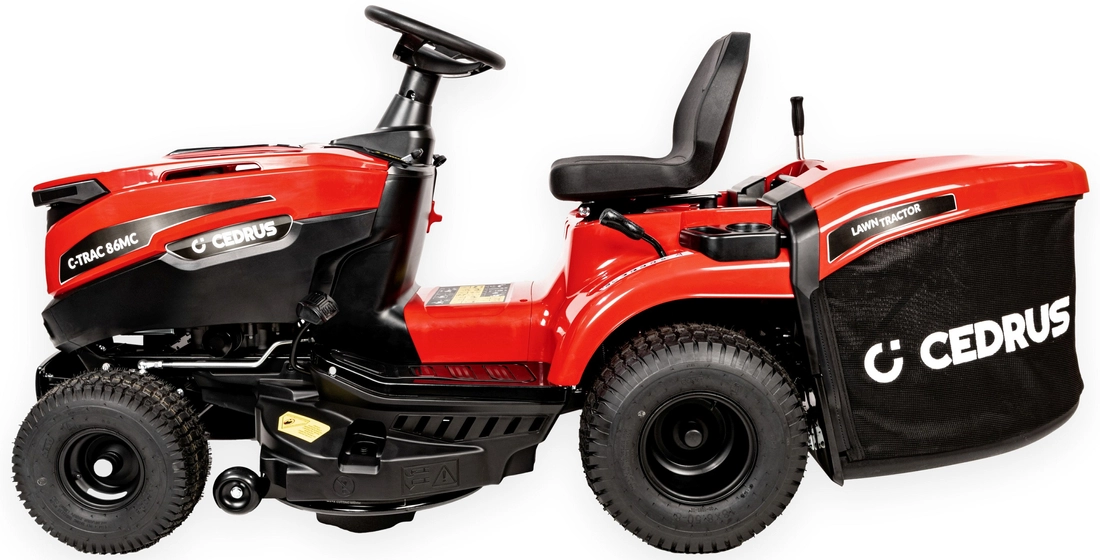

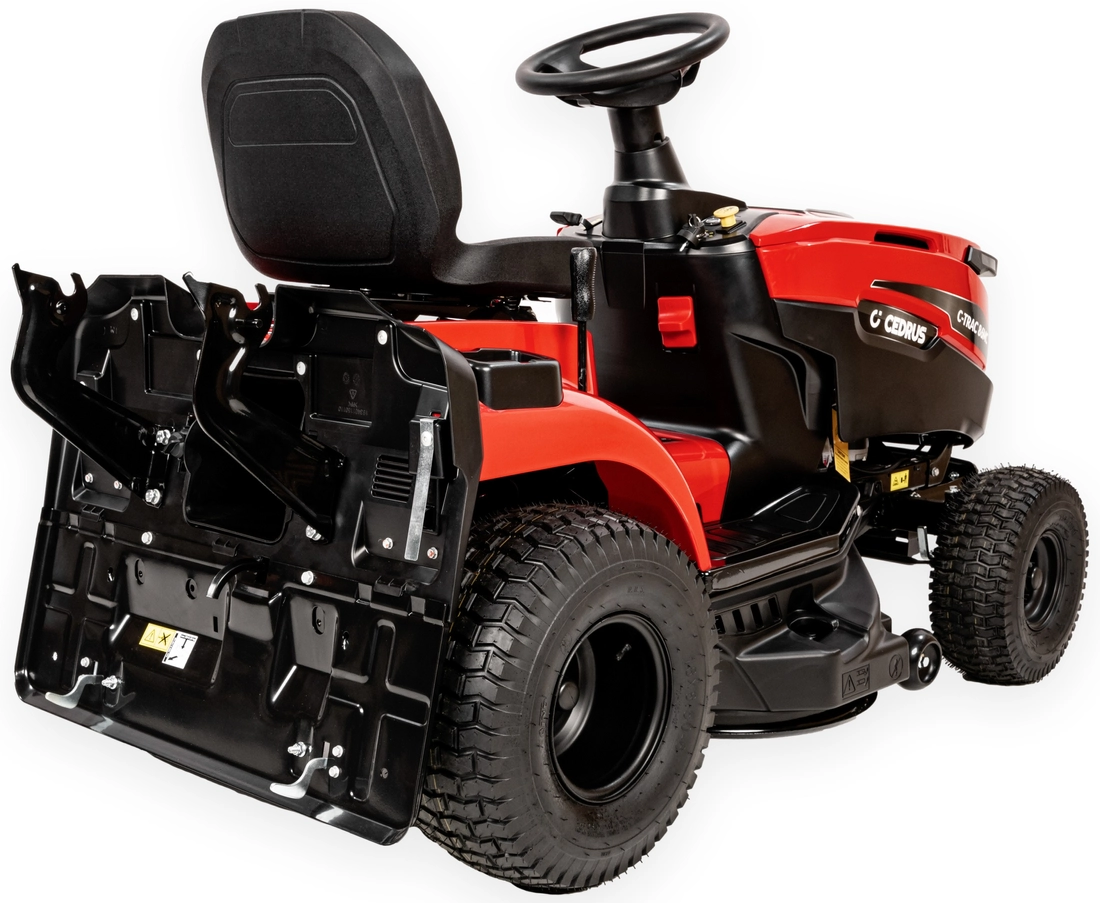

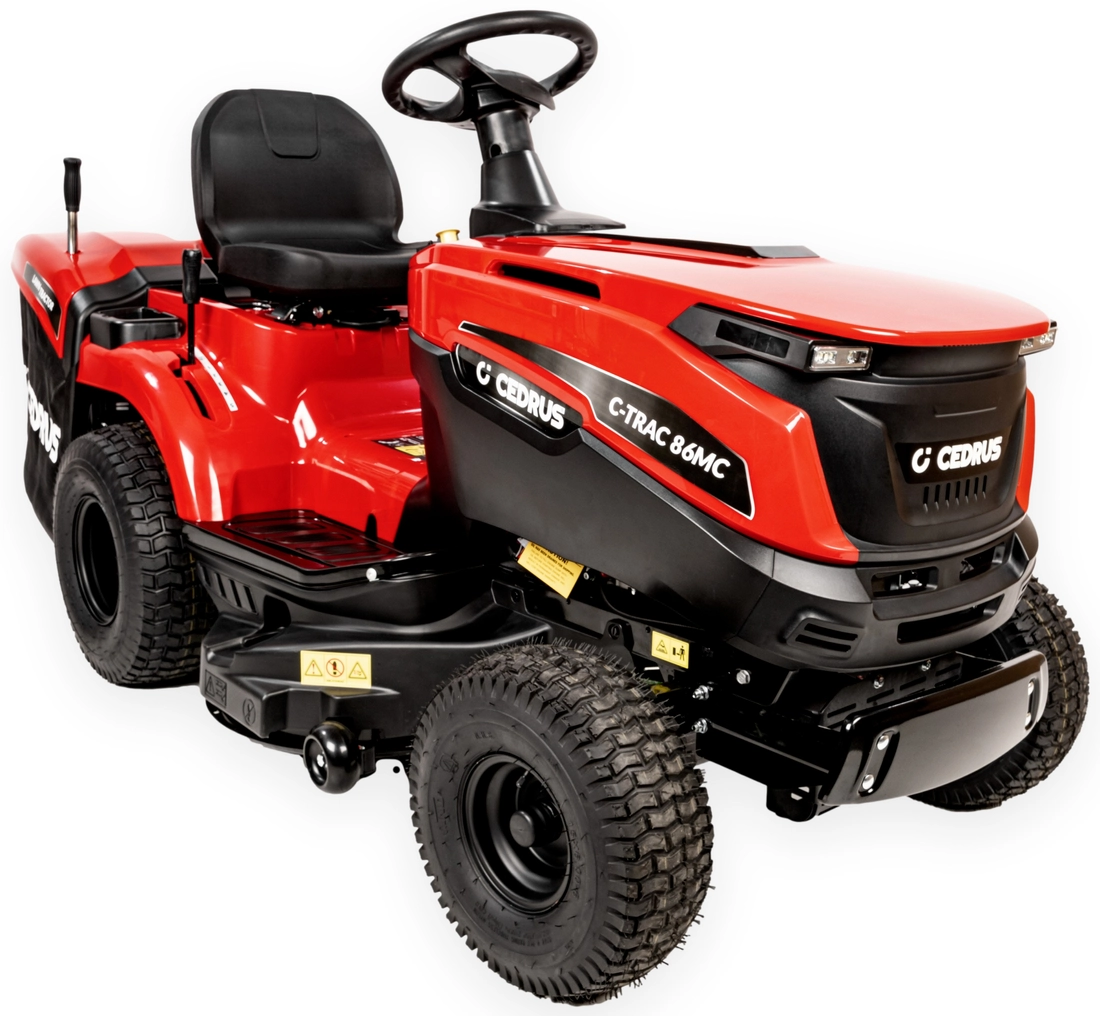

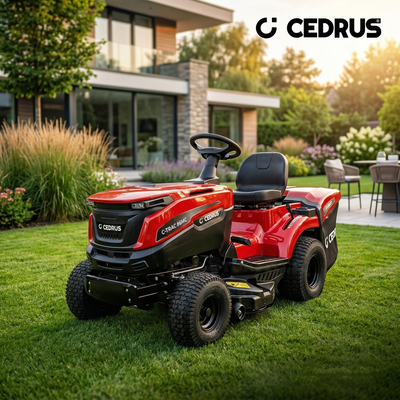

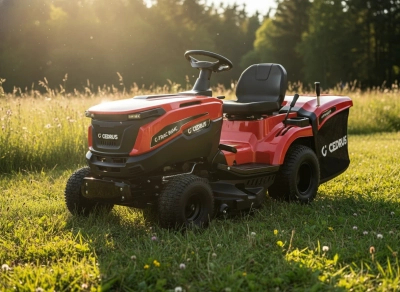

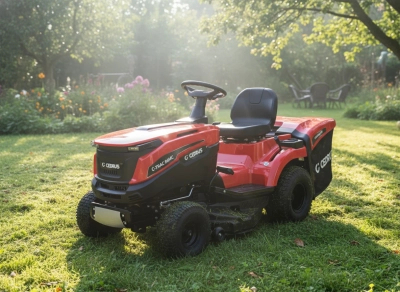

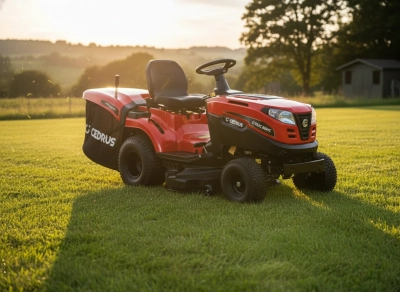

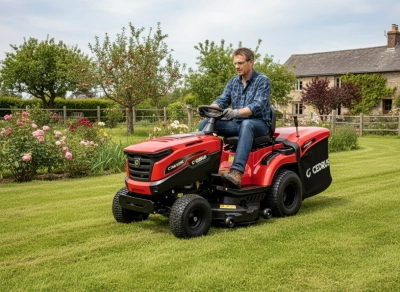

CEDRUS C-TRAC 86MC REAR DISCHARGE GARDEN TRACTOR RIDING MOWER is an excellent device for mowing grass in home gardens, next-door gardens and allotments. It is a device equipped with all the necessary functions. In addition, the presented model is characterized by excellent value for money. Garden tractor with high quality 4-stroke, 14 hp LONCIN engine. Knives with working width 86 cm with rear grass ejection. Responsible for precise mowing is a pair of counter-rotating steel blades, with an adjustable cutting height of 30-90 mm. (7 positions) Thanks to the powerful gearbox, acceleration is smooth and comfortable, giving you excellent control over speed The unit has, of course, an electric starter Grinding - mulching system and rear hitch.
The C-TRAC line of tractors offers both side discharge mowing and the option to collect the swath into a basket. The machines are light and maneuverable, equipped with wide tires, which directly translates into reduced pressure on the lawn turf and easier care. Easy to control and prepared for quick cleaning of the cutting unit with a quick water connection. All models have been equipped with loaders and milling sets, and by buying rear-mounted attachments (hitch as standard), the operator can also take advantage of other tractor capabilities.
Whether it's orchards, paddocks or wildflower meadows, this compact single-cylinder lawn tractor will perform in almost any situation. You can successfully deal with an overgrown lawn that is too tall for a regular mower.
In addition, the solid front bumper protects the mower from accidental impacts, and the reinforced frame provides high durability, making it ideal for frequent and heavy use. Large wheels provide incredibly good grip, even on difficult terrain. This modern ride-on mower CEDRUS C-TRAC 86MC can be used with rear discharge function or mulching system, which involves shredding the grass and spreading it on the lawn to fertilize the soil, so your lawn will always look prestigious. Robust and durable double blade mower deck design with a cutting width of 86 cm, has been precision engineered by CEDRUS' Polish engineers .
Additionally wheels on the cutting device are designed to prevent scalping of the lawn even in humid conditions. Another very positive advantage introduced to the tractor is that the mowing height can be freely adjusted in as many as 7 positions from 30 to 90 mm using the lever located next to the seat, thus saving time and effort. This versatile garden tractor CEDRUS C-TRAC 86MC was equipped with a reliable lONCIN LC1P90F-1 single-cylinder engine with a capacity of 432 cm3 and a proportionally high power of 14 hp. This engine guarantees optimum performance and long autonomy thanks to its capacious fuel tank. In addition, the tractor features trouble-free manual transmission. Easy to use and safe to drive - these sloping gardens will no longer be a challenge. Energy-efficient headlights on the front of the mower is another useful feature that will work at any time of the day. On the other hand, the practical washing joint will allow you after each mowing to quickly and easily remove debris from around the cutting unit.
Upgrade your mowing to a professional level with a ride-on mower CEDRUS C-TRAC 86MC. This model is every gardener's dream, thanks to its powerful rear ejection and mulching function, designed to handle a variety of lawn care tasks with ease.
At the heart of the machine is a powerful engine LONCIN LC1P90F-1 with a capacity of 432 cm3, providing the reliability and strength needed to maintain a pristine lawn. The convenience of daytime running lights increases safety and visibility so you can mow safely at any time.
The manual transmission provides easy handling and control, plus a tight turning radius of 45 cm allows maneuvering in difficult areas without losing a blade of grass. The 86cm mowing width makes quick work of medium-sized areas, and the 7.5-liter fuel tank allows for longer cuts.
Tractor CEDRUS C-TRAC 86MC doesn't just mow the grass; it takes care of your lawn with a standard mulching kit that feeds nutrients to the lawn by dumping the cut grass back into the soil. With a standard tow hitch, this mower is both versatile and sturdy, and makes it easy to pull attachments. The high power of 14 horsepower makes this mower a low-maintenance, high-performance machine.

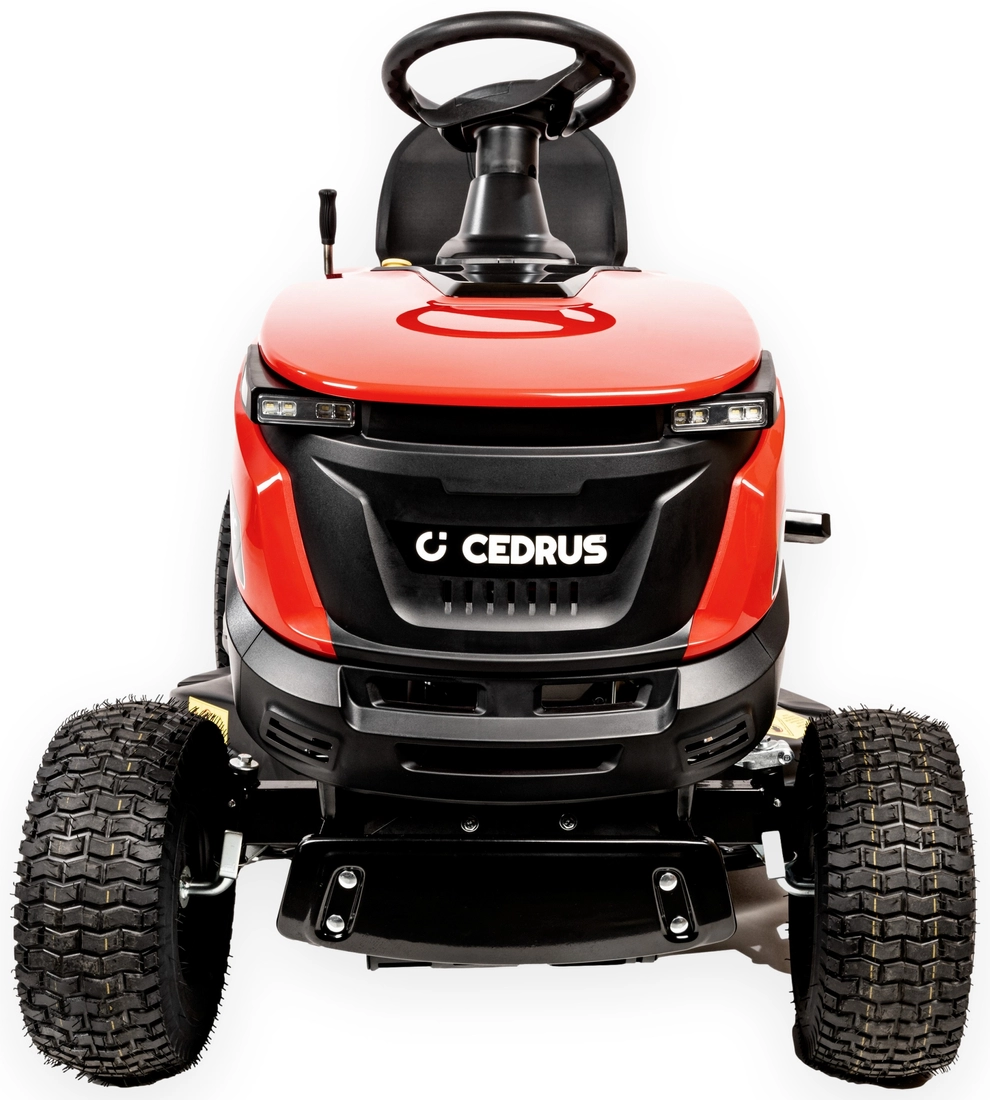

- Large front bumper for added protection in the event of a frontal collision

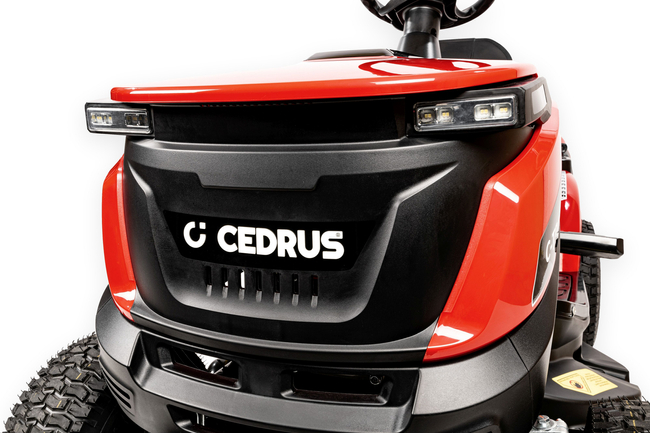

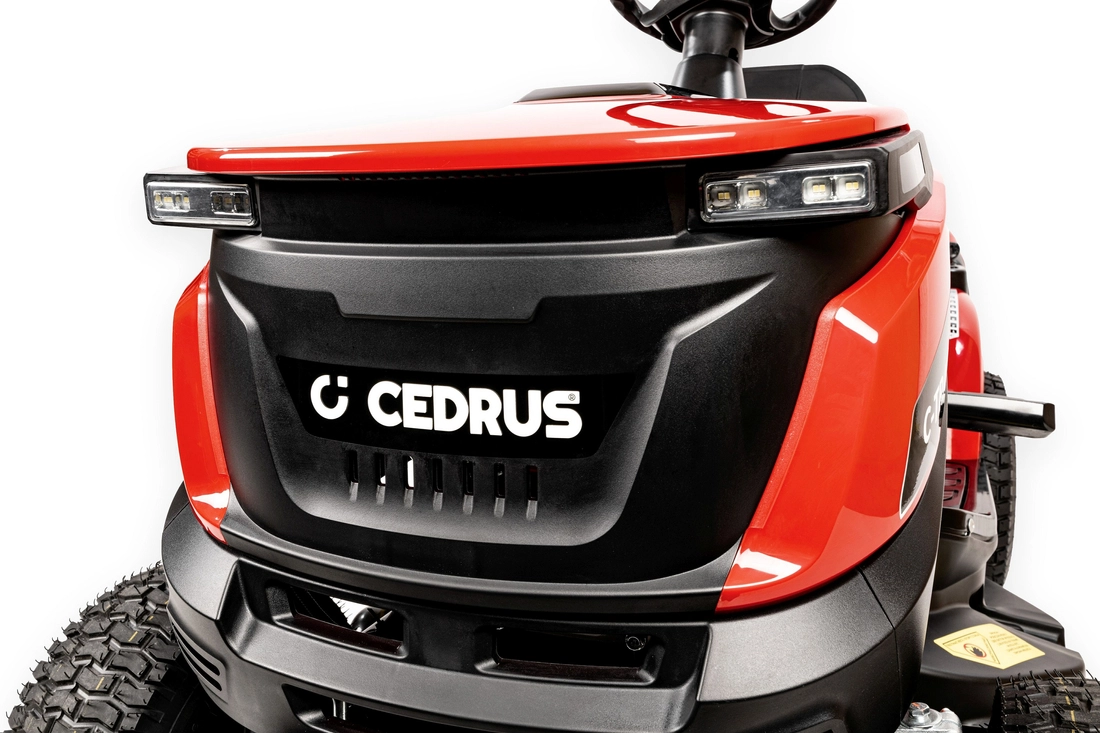

- Dimmed lighting with LED light source improves visibility in all working conditions.
- Practical mowing height adjustment via a frame-mounted arm; the scale next to the lever makes it easy to set the desired mowing height from 30 to 90 mm in 7 steps.
- Robust cutting table with two cutting knives (cutting knives are not synchronized) equipped with ball casters.
- With the help of a quick coupler, the water pipe can be connected to the cleaning system of the cutting table, so you can quickly and easily clean the inside of the cutting table.
- The towing eye is a basic accessory that makes the mower tractor even more versatile, it is possible to pull a trailer or even a lawn roller.

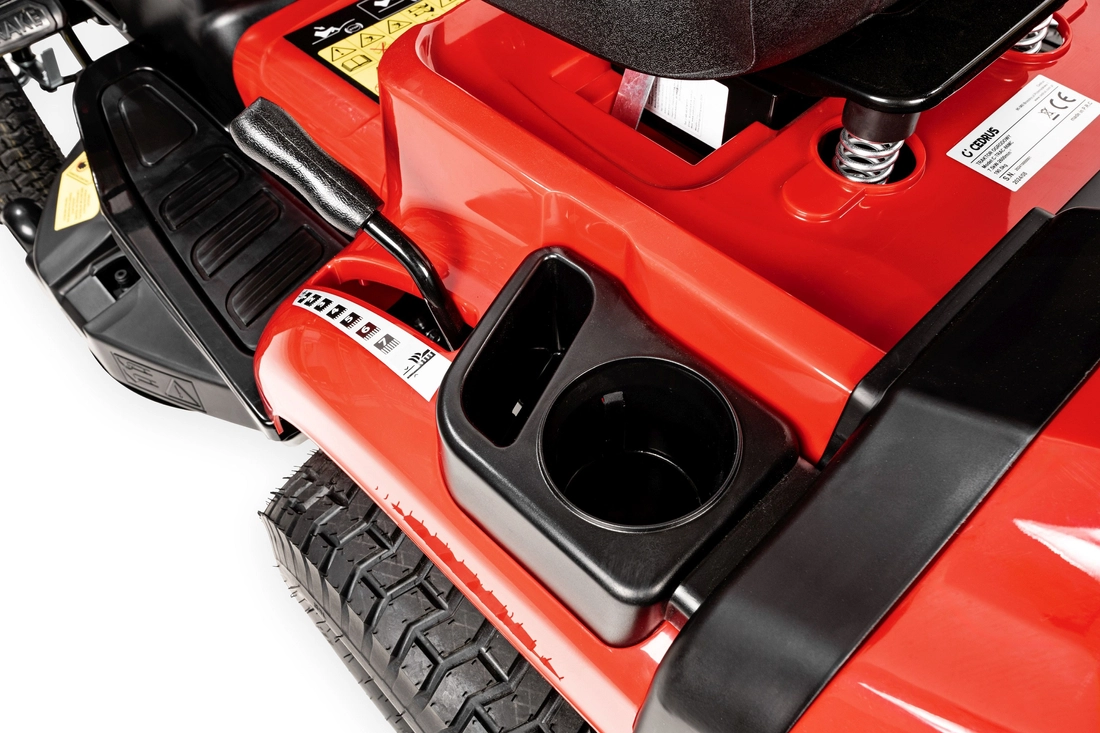

- cup and phone holder next to the machine operator

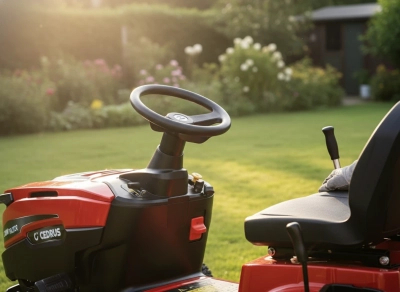

- Ergonomics for the operator, thanks to the wide entry and high positioned steering wheel and adjustable seat position.

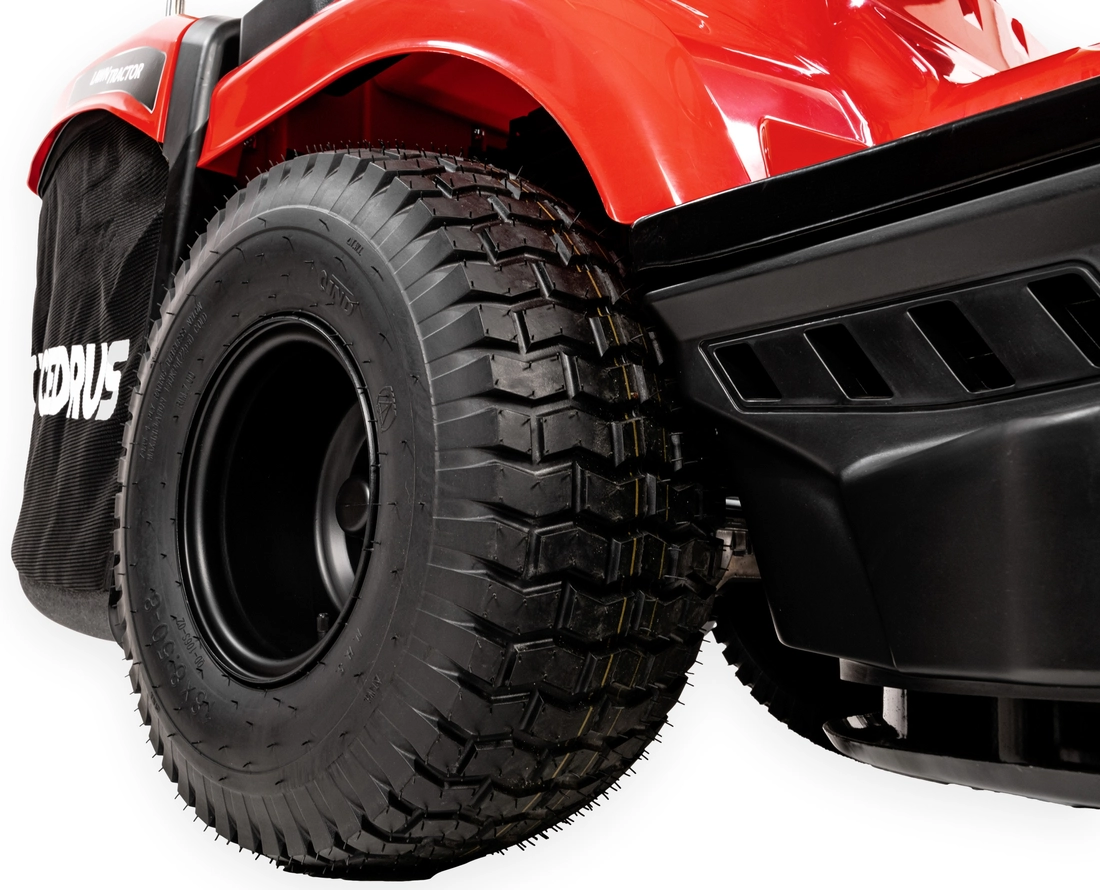

- The wide wheels have a special tread that does not damage the grass during operation.
- Oil filter
- Reduced turning radius (45 cm) makes it easy to move around plants and ornamental shrubs without unnecessary and cumbersome maneuvering in reverse gear or having to reposition the tractor.
- Capacious 7.5l fuel tank.

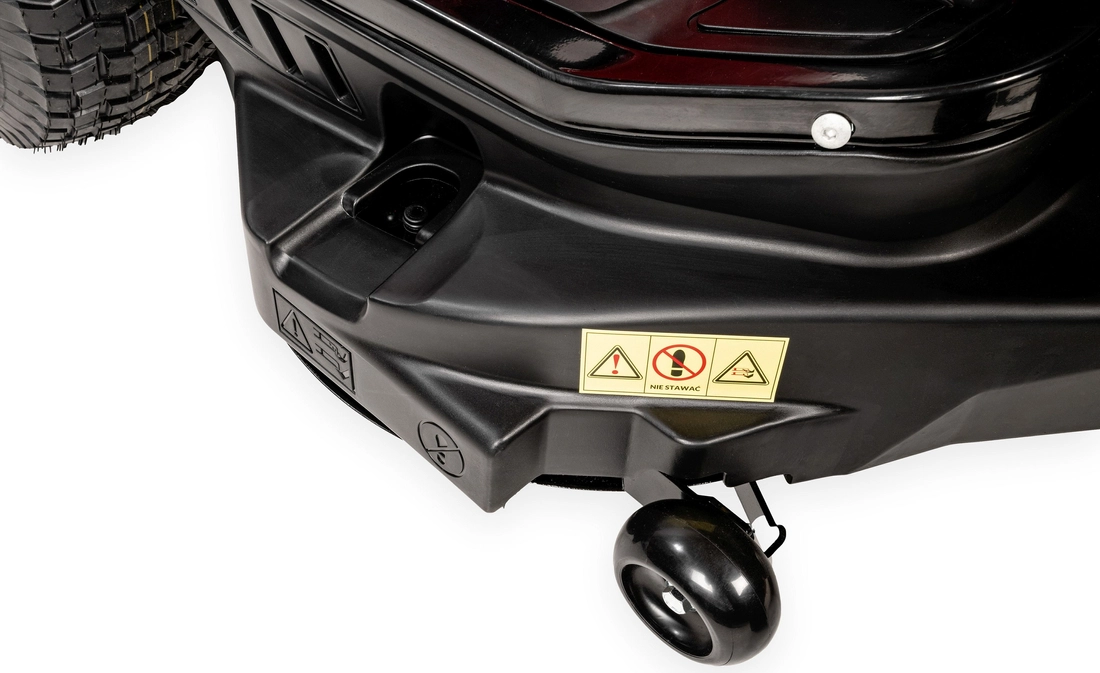

- The cutting unit is equipped with an anti-vibration system and two support wheels to protect the lawn from the "scalping effect".
- LED lighting.

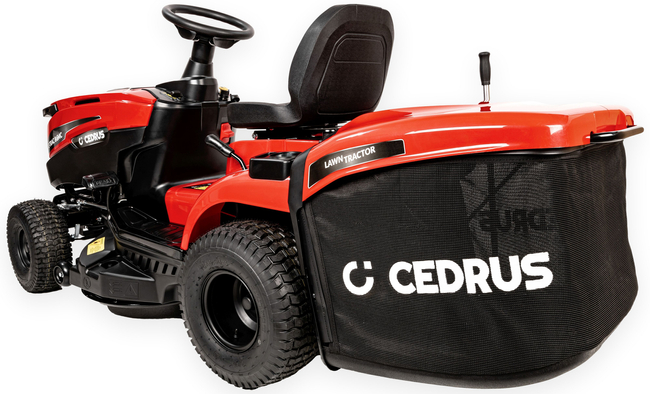

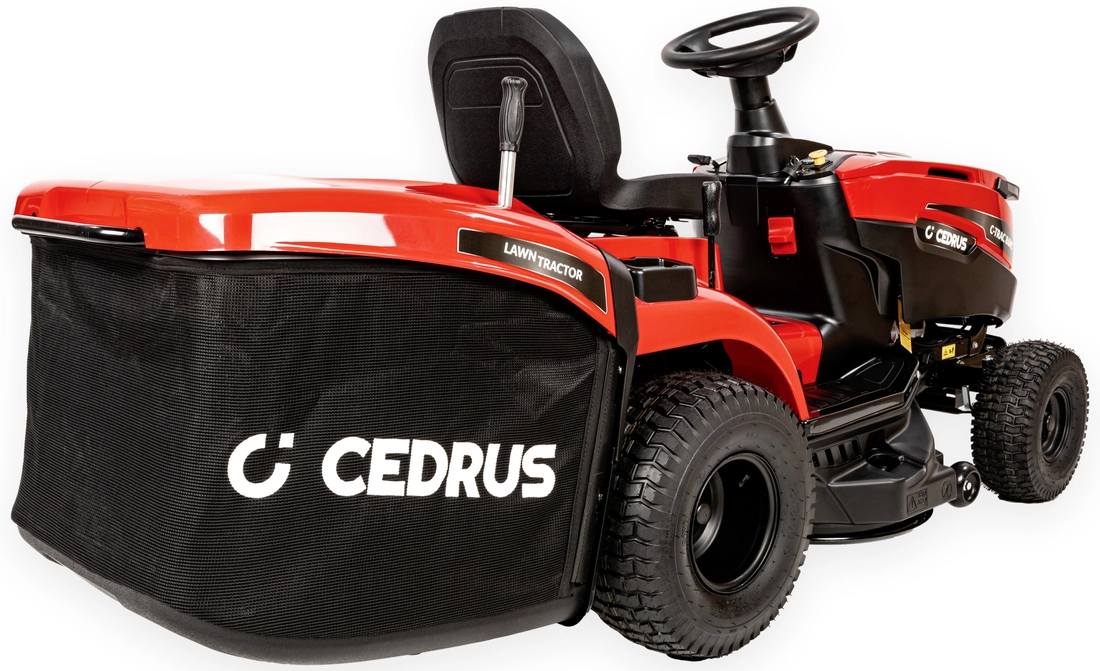

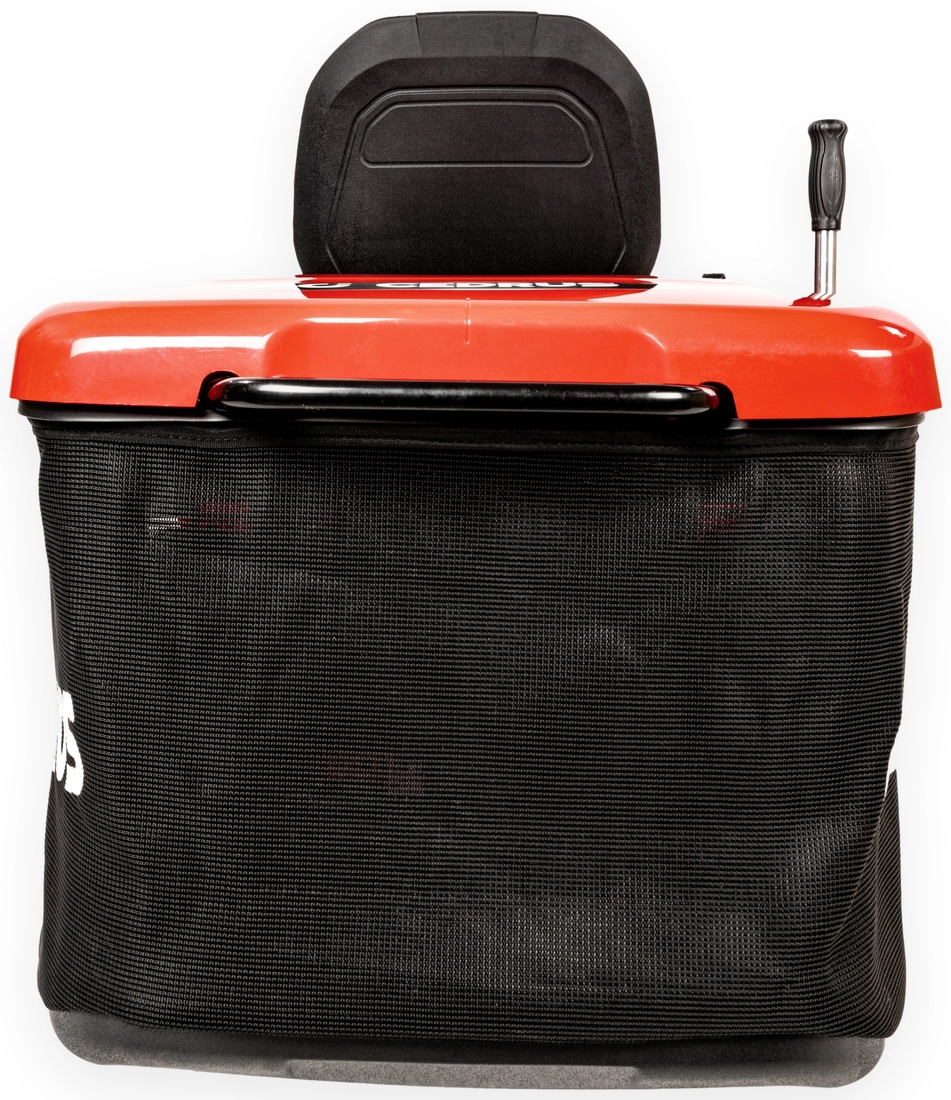

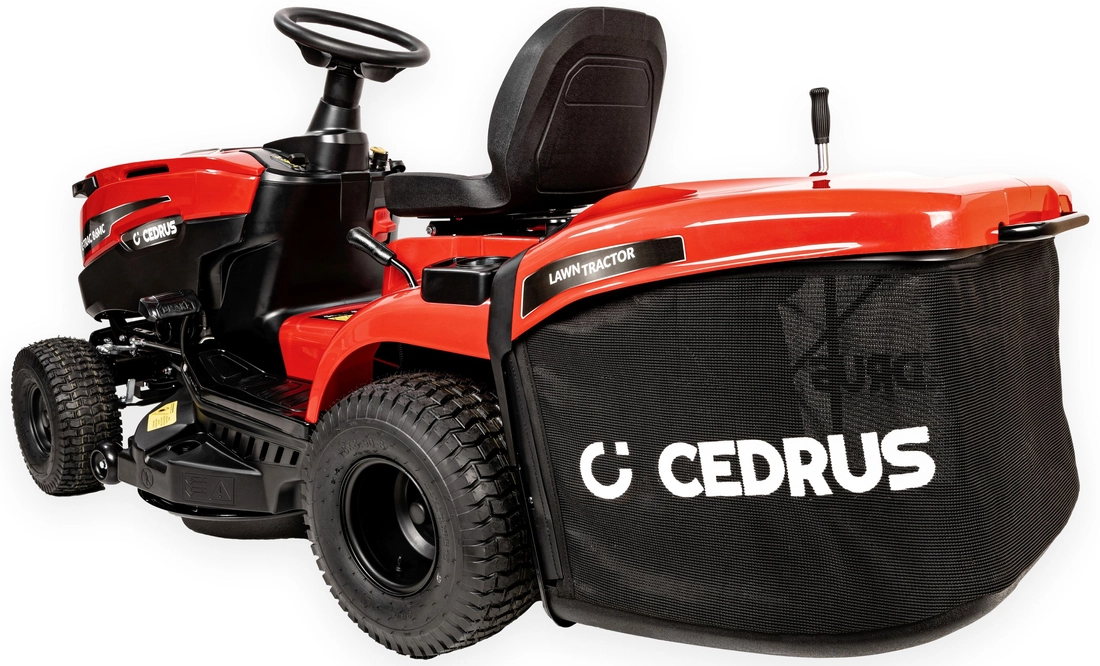

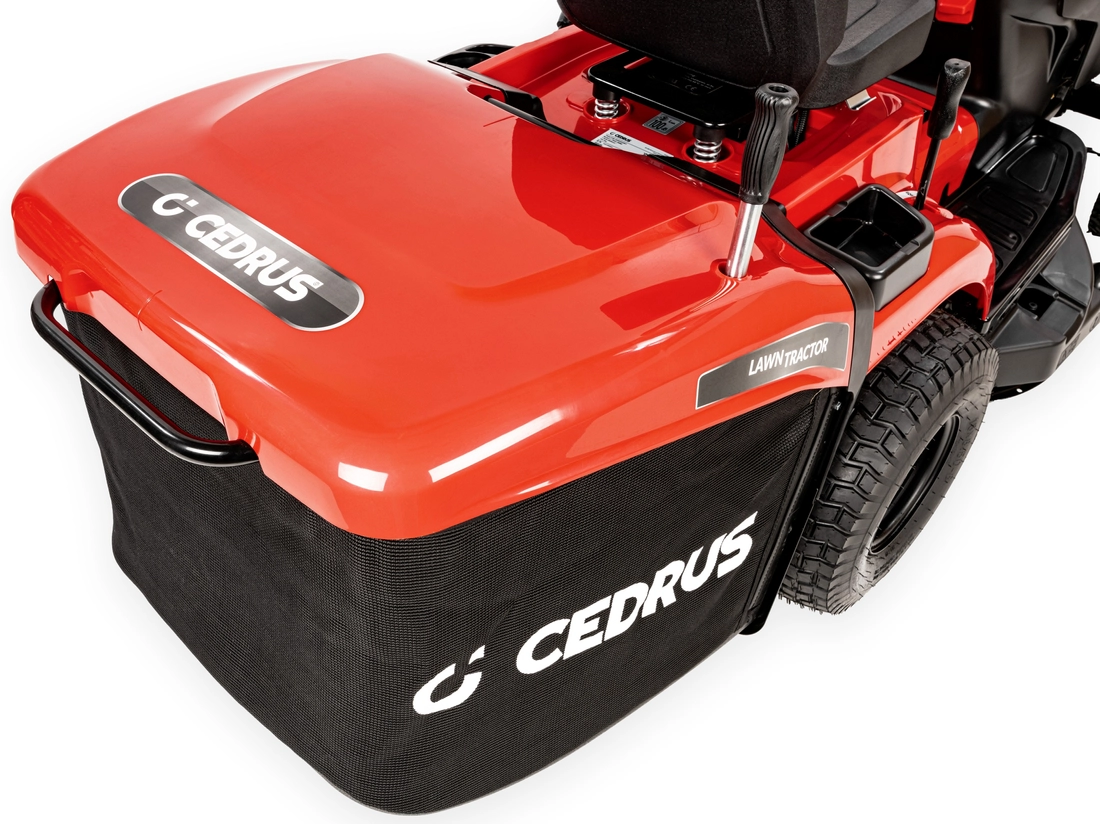

- Large 245l basket, emptied from the operator's position using a lever.

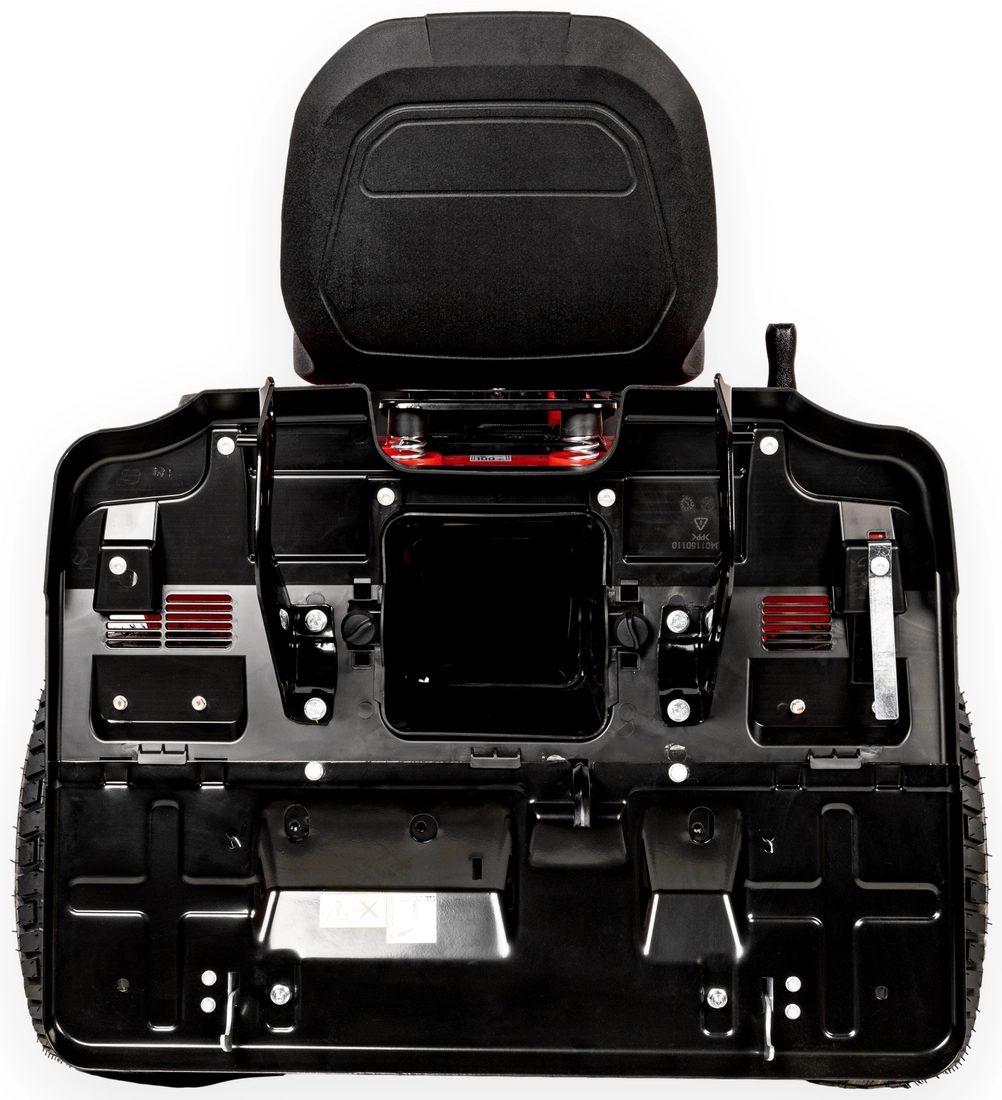

- The specially shaped, comfortable seat has a small opening to drain water and facilitate ventilation.

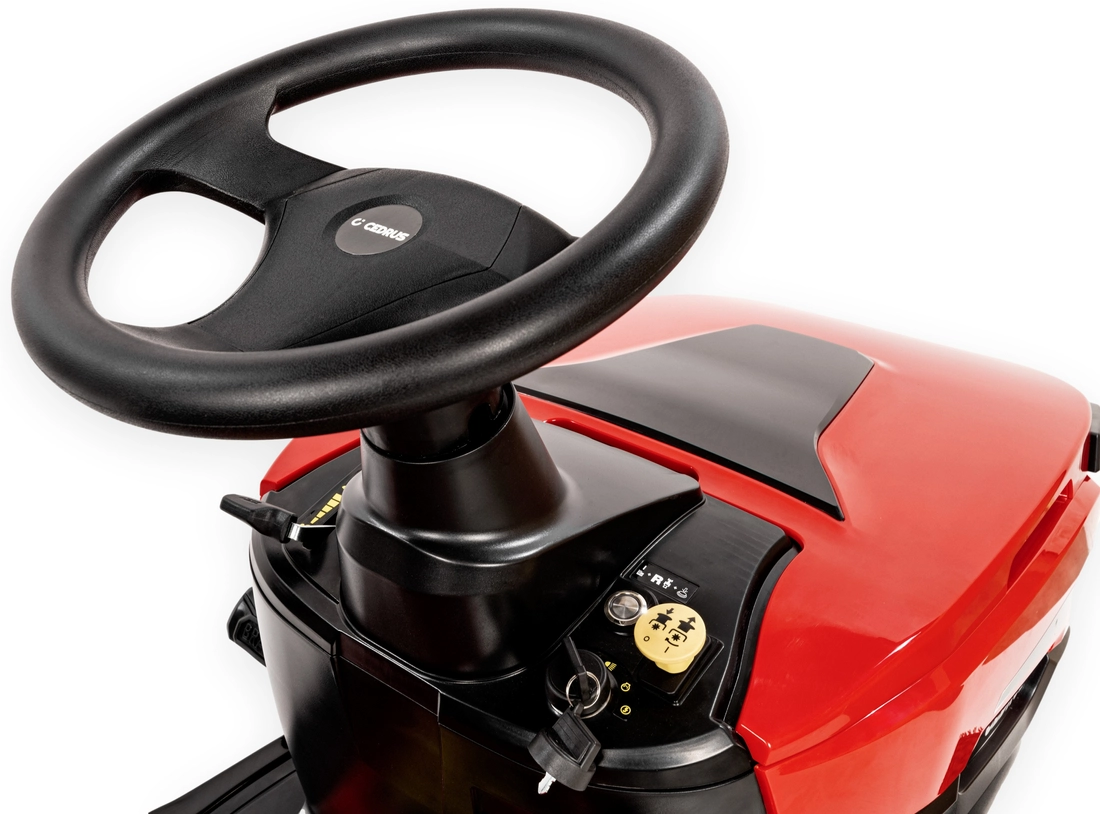

- The controls are located on an easy-to-read dashboard.
- Practical mowing height adjustment with a conveniently located lever with a scale (7 positions).
- The electromagnetic clutch is engaged quickly and quietly with a handy button on the dashboard.
- Wide front bumper made of high-strength steel to protect the mower in case of accidental impact.
- Towing hook supplied with the unit.
- Hour meter.
FULL EQUIPMENT FREE OF CHARGE !
BUYING THIS TRACTOR YOU GET A FULLY EQUIPPED MACHINE READY TO WORK:
- CEDRUS C-TRAC 86MC GARDEN TRACTOR
- Mulching plug
- Cutting and grinding blade
- Printed clear operating instructions
- Original carton
ALL ORIGINAL CEDRUS BRAND KIT
Technical data:
- Model: CEDRUS C-TRAC 86MC
- Type: Tractor Tractor Garden Tractor Self Propelled Lawn Mower Combustion
- Engine: Loncin LC1P90F-1
- Engine power: 14 HP
- Engine RPM: 3600/min
- Engine Capacity: 432 cc
- Drive: MANUAL

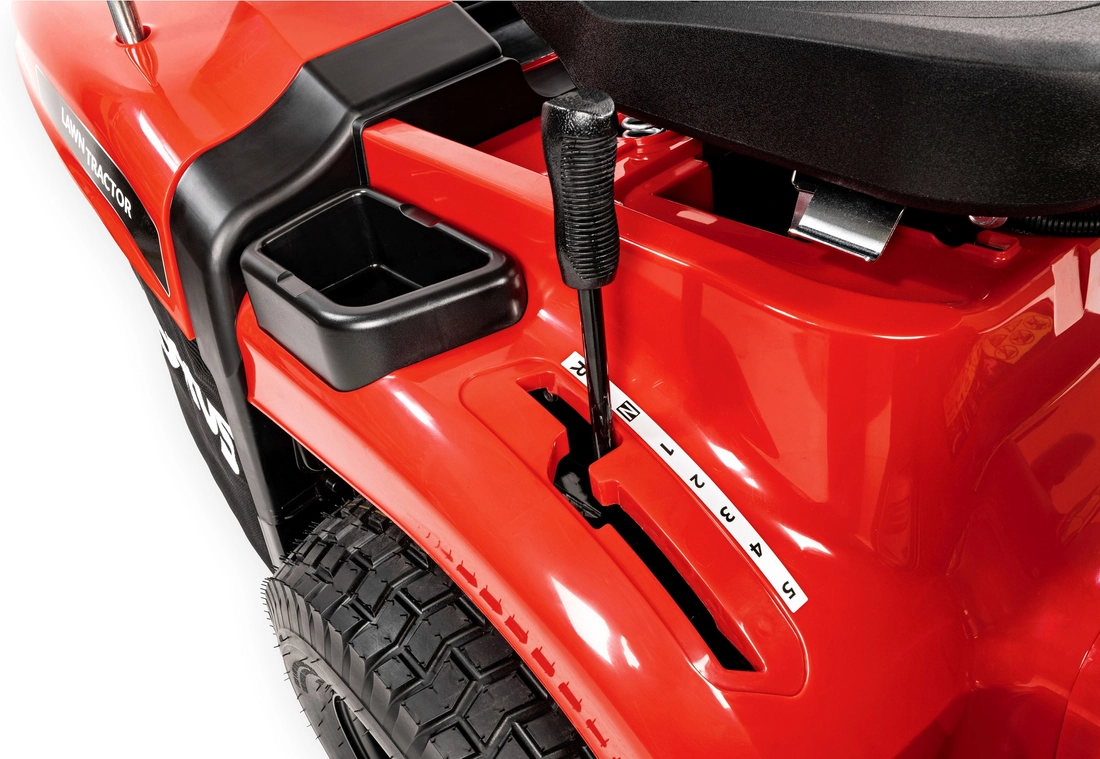

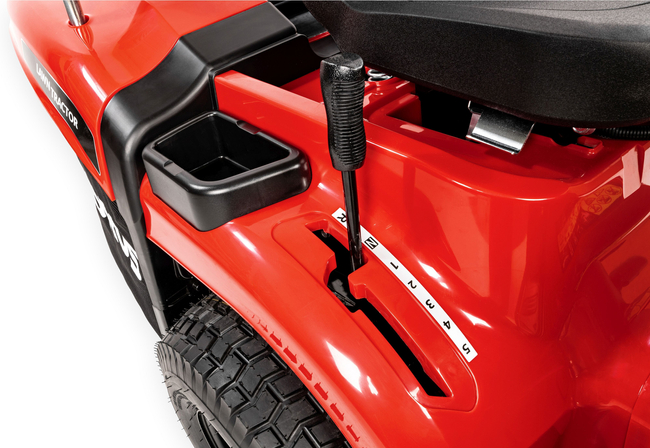

- Gears: 4 forward gears, 1 reverse gear
- Engine type: Loncin LC1P90F-1 OHV Four-stroke - 1 cylinder
- Engine type: Top-valve internal combustion
- Fuel: unleaded gasoline PB95
- Cutting working width: 86 cm (two knives)

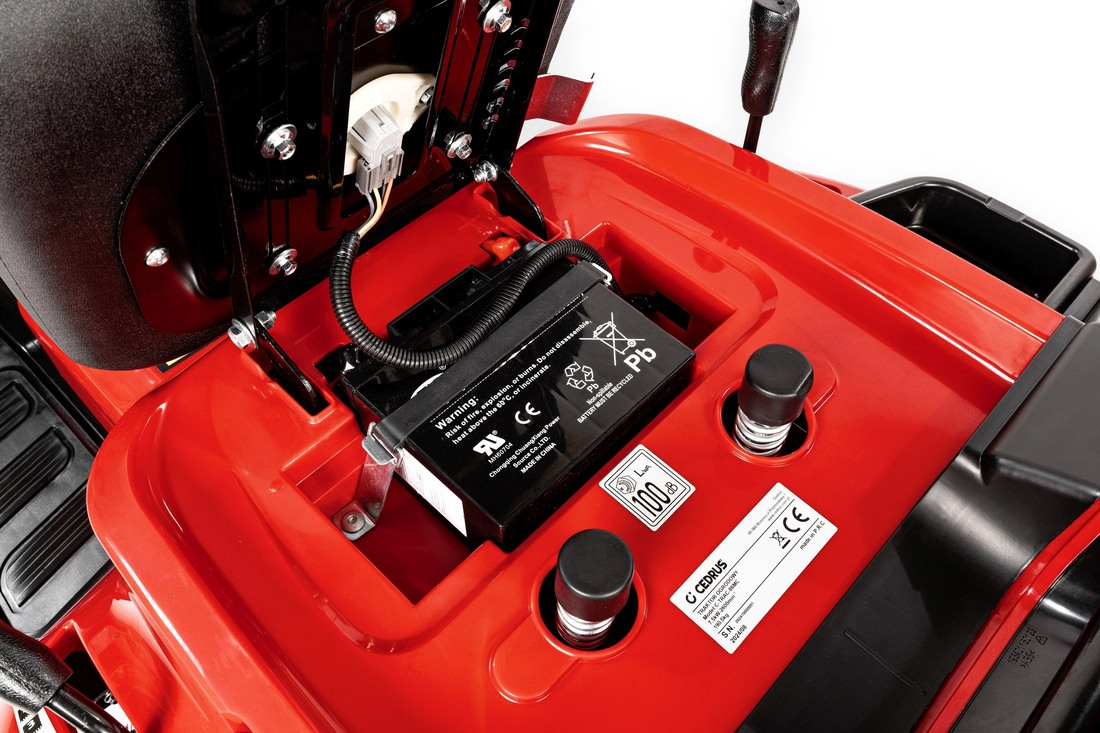

- Voltage: 12 V 18 Ah
- Battery data: acid, 18Ah
- Features: Collecting for the garbage can
- Basket type: Mesh
- Wheels: 15x6.00-6 (front); 18x8.50-8 (rear)
- Basket capacity: 245L
- Recommended oil type SAE 30
- Mowing height 30-90 mm
- Mowing height adjustment: 7 positions
- Speed: up to 8.6 (forward) / 4.5 (reverse) km/h
- Turning radius: 45 cm
- Weight of the device 195 kg
- Knife jointing system: Electromagnetic clutch
- Number of knives: 2
- Mulching kit: Yes
- Wheels to prevent lawn scalping: Yes
- Turning radius : only 45cm
Equipment
- Mulching : YES
- Washout connector: Yes
- Headlights: Yes
- Battery charger: Yes, included
- Bumper: Yes, front
Overall dimensions
- Size of the front wheels: 15x 5"
- Rear wheel size: 18x 8,5"
- Dimensions: 1720 x 1190 x 1060 mm
- Weight: 200 kg
- Proven 12.5 hp Emak brand drive unit - trouble-free operation, professional workmanship, incomparable performance
- Single-cylinder machine with a capacious 7.5-liter fuel tank
- It has an electromagnetic clutch
- Equipped with headlights on the front of the machine
- With side discharge and mulching function
- Front bumper
- Wheels on the cutting device to prevent scalping of the lawn
- Robust design of 98 cm wide cutting unit with two cutting blades
- Special connector for cleaning
- Charger and mulching plug included
- Easy availability of spare parts
- Service points located throughout Poland
CEDRUS Extended Warranty for 3 Years
WARRANTY AND SERVICE CONDITIONS
- In the event of a complaint, report the defect to the Seller or Authorized Service Point of the manufacturer of the device in question. If the defective product is covered by a door-to-door warranty, follow the procedure listed on the warranty card.
- Detailed Warranty Terms and Conditions can be found in the user manual
Warranty terms and conditions
1. The warranty is provided by Cedrus Joint Stock Company for a period of 24 months from the date of sale for consumer purchases or for 12 months from the date of sale in other cases.
The warranty covers goods/devices purchased on the territory of the Republic of Poland. Entitlements under this warranty do not extend to other claims relating to
damage to the goods/device and claims for loss of profits or incurred costs resulting from damage to the goods/device.
2. For extended warranties of some manufacturers beyond 24 months, annual service inspections are required (annotations in the warranty card):
- weibang mowers 60 months,
- cedrus tractors, Simplicity 36 months,
- ariens zero-turn tractors Edge series 24 months or 150 hours, Ikon Xd 36 months or 300 hours, Apex 48 months or 500 hours (whichever comes first),Zenith 48 months or 750 hours (whichever comes first)
- ferris tractors 24 months unlimited hours, 48 months or 500 hours (whichever comes first). Drive belts, tires, brake pads, batteries, knives
are guaranteed for 90 days. the 2-belt drivetrain used on IS 6200, ISX 3300, IS 3200Z, ISX 2200, IS 2100Z and ISX 800 models is warranted for 36 months or 300 hours (the warranty covers parts and labor in the first year, parts only in the second and third years). Coilover shock absorbers and all suspension related components are warranted for 60 months with no limit on hours.
Knife drive belts on FW35, FM35, SRSZ1 models are warranted for 12 months or 100 hours.
- pubert soilers with Honda engine 60 months,
- cedrus mowers with Kawasaki engine 36 months,
- wiper robotic mowers: Trekker series 72 months (annotated in the warranty card and Wiper service application).
3. For equipment with extended warranties from some manufacturers, the warranty for motors (manufacturer) and gearboxes is 24 months consumer purchase or 12 months in the
other cases.
4. Warranty repair is understood to be activities of a specialized nature appropriate for the removal of a physical defect covered by the warranty.
5. Warranty is not covered:
(a) parts subject to normal wear and tear:
- components of the cutting system (guides, chains, adapters, knives, wheels, discs, drills, grinding wheels, holders of components),
- cables: starter, drive, brake, adjustment cables,
- drive components (clutch drums, clutches drive wheels, drive shafts, pulleys, V-belts and toothed belts, equipment running wheels),
- filters for air, oil, fuel, water, hydraulic fluids,
- spark plugs, ignition wires, springs, rubber dampers, diaphragms, nozzles and carburetor valves,
- electrical wires, brushes, brush-holders, fuses, light bulbs, manual and electric starters.
b) damage resulting from the use of oils other than those recommended by Cedrus Joint Stock Company and the manufacturer (applies to 2-stroke as well as 4-stroke engines).
(c) damage caused by the use of fuel, low-quality mixture.
d) damage that occurred as a result of repairs outside the service network of Cedrus Joint Stock Company.
(e) mechanical, thermal, chemical and all other damages caused by an act or omission by the User.
f) damage caused by natural partial or complete wear and tear in accordance with the characteristics or intended use of the equipment.
(g) damage caused by failure to follow the manufacturer's recommendations from the operating instructions and service messages.
(h) damage resulting from:
- alterations, repairs and structural changes made by the User,
- improper or inconsistent with the instructions for installation, use, lack of care for the equipment (use of non-original materials),
- transportation.
(i) intentional damage to equipment.
(j) maintenance activities - cleaning, replacement of consumables, service inspections.
6. Batteries are guaranteed for a period of 6 months.
7. Repairs and inspections of the equipment should be carried out in the service network of Cedrus Joint Stock Company.
8. The warranty for the parts used in the repair of the so-called "inserted parts" is given for a period of 6 months.
9. The complainant has the right to exchange the goods/device for a new one in the event that the Authorized Service Center determines in writing that removal of the defect is impossible or economically unreasonable.
10. The complainant should deliver the goods/device to the Authorized Service Center. The goods/device under complaint should be complete and in the condition they were in at the time of damage. It should also come in a suitably protective package.
11. The Authorized Service Provider is obliged to consider the legitimacy of the complaint within 14 days from the date of delivery by the Complainant of the goods/device. In the case of recognition of the warranty, the Authorized Service Provider is obliged to perform its obligations within 30 days.
12. The warranty card must be properly filled out. Warranty rights can be exercised only upon presentation by the user of a valid warranty card and proof of purchase. Any arbitrary changes to the entries on the warranty card or making repairs on your own will void the warranty.
13. In the case of a warranty for rechargeable devices, the serial numbers of all components of the set must be entered in the warranty card.
