NORTON CLIPPER CSB1 D13 SPRINKLING HAND CUTTING BLADES Saw for concrete asphalt Ø 500mm 13HP HATZ1D81 Z - OFFICIAL DISTRIBUTOR - AUTHORIZED DEALER NORTON CLIPPER

NORTON CLIPPER CSB1 D13

PETROL SAW CUT-OFF SAW ROAD MOBILE FOR CONCRETE ASPHALT CONSTRUCTION

Ø 500mm 13HP HATZ 1D81 Z

Norton Clipper CSB1 P21, D13 Combustion Floor Cutting Machine

The Norton Clipper CSB1 P21 and D13 floor cutter is a rugged tool designed for deep cutting, equipped with a system of manual and hydraulic raising and lowering of the blade. The Norton Clipper CSB1 P21 is equipped with a diesel drive, while the Norton Clipper CSB1 D13 is equipped with a diesel drive. These machines are suitable for both wet and dry cutting thanks to their detachable water tank. Mobile Norton Clipper CSB1 D13, P21 floor cutter provides the ultimate in working comfort and stands out:

• rugged and reliable design,
• customizable machine,
• ability to easily and precisely adjust the depth of cut.

These are excellent machines designed to meet even the highest expectations of customers.

All the above features make Norton Clipper CSB1 is the machine of choice for professionals.

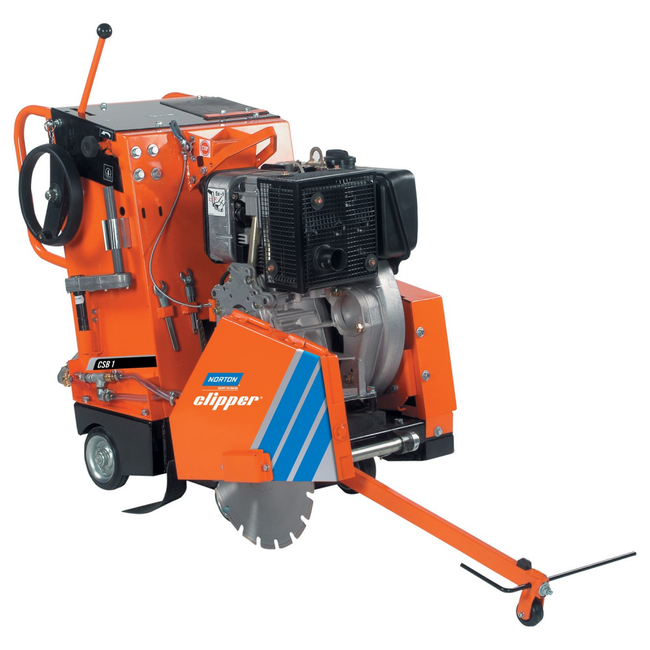

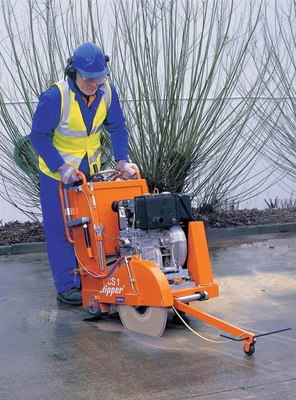

Mobile cutting-off machine CLIPPER CLIPPER CSB1 D13

It is a new-generation mobile cutter designed to combine robustness, functionality and a 40 percent reduction in vibration levels for user comfort

NORTON Features CLIPPER CSB1 D13 :

• Durable, contour-welded steel frame
• Detachable water tank allows the machine to be used even in places far from a water source
• Automatic forward feed increases user comfort

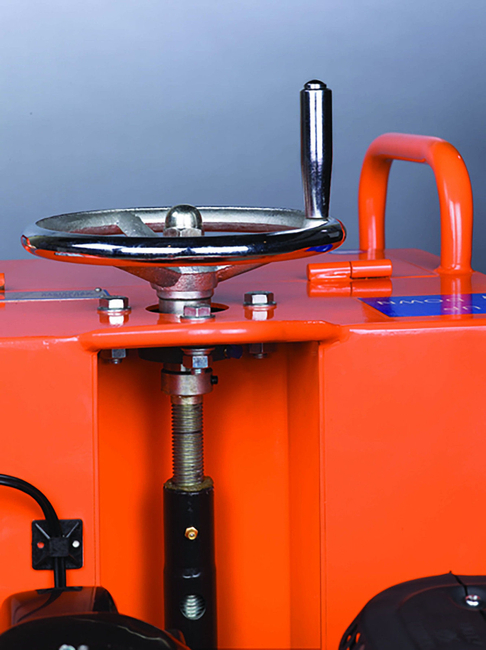

• Manual and hydraulic raising and lowering of the blade helps the user to precisely adjust the depth of cut
• Two front drive options (handwheel, self-propelled)

Technical specifications NORTON CLIPPER CSB1 D13 :

• PART NO:70184613925
• EAN:5450248142829
• Power supply: combustion engine
• Engine type: HATZ 1D81 Z
• Power: 13HP
• Speed: 1950 rpm./min
• Disc diameter: 500mm
• Disc bore diameter: 25.4mm
• Maximum depth of cut: 190mm
• Startup: Crank
• Lifting and lowering: manual-hydraulic
• Feed rate: automatic
• Hand/arm vibration: 5.08m/s2
• Sound power/sound pressure level: 114/101dB(A)
• Machine dimensions (length x width x height): 1200x600x1040mm
• Weight: 240kg
• Asphalt Disc : NORTON CLIPPER-CLASSIC ASPHALT 500-10X3.2 / 70184601944 additionally optional
• Concrete Disc : NORTON CLIPPER-CLASSIC BETON 500-10X3.4 / 701846 94416 additionally optional

NORTON Application CLIPPER CSB1 D13 :

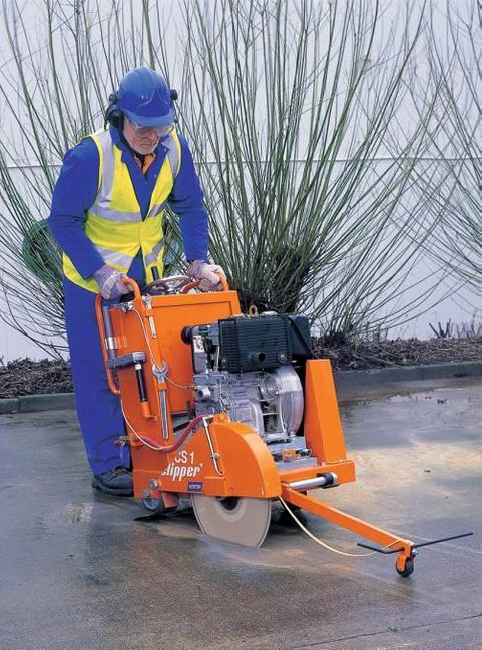

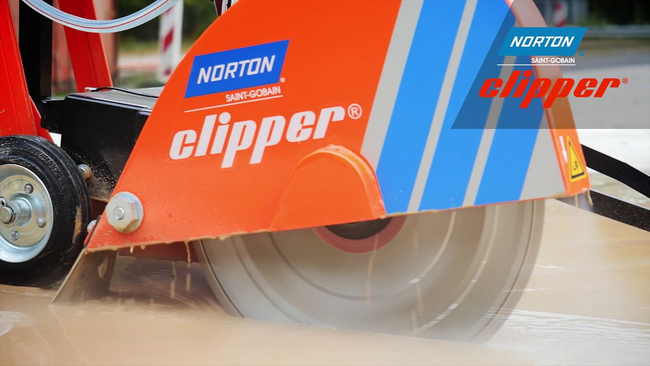

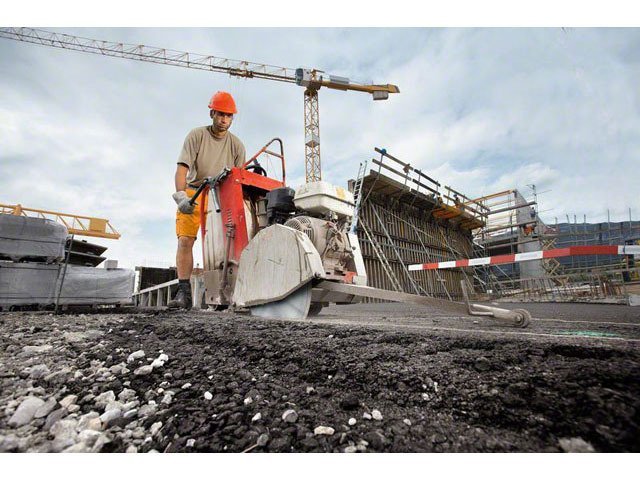

• For wet as well as dry cutting of concrete and asphalt

NORTON CLIPPER is a reputable manufacturer of tools. Brand products NORTON CLIPPER is characterized by high quality workmanship and reliability. The brand offers a wide range of tools, wood and tile saws, tiling tools and accessories, circular saws and air tools. NORTON CLIPPER offers comprehensive service in the field of warranty and post-warranty repairs of the product range it offers, and also sells spare parts. Provides customers with technical advice and the fastest possible turnaround times for service orders.
