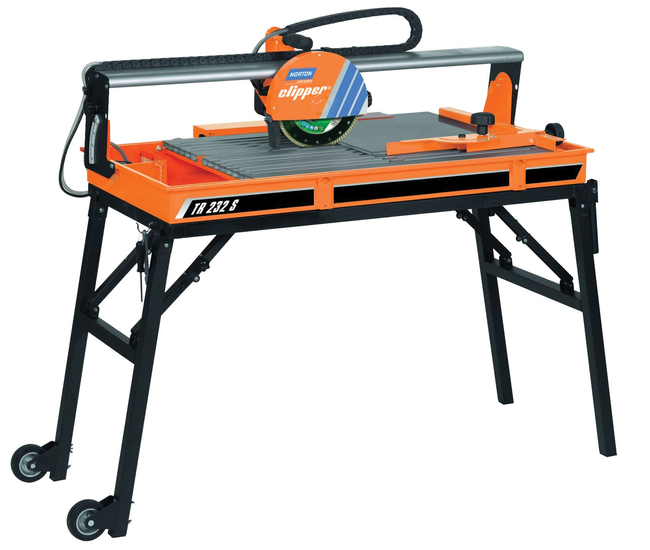

Norton Clipper TR232S Tile Cutter

with Extreme Ceram Turbo 230mm disc

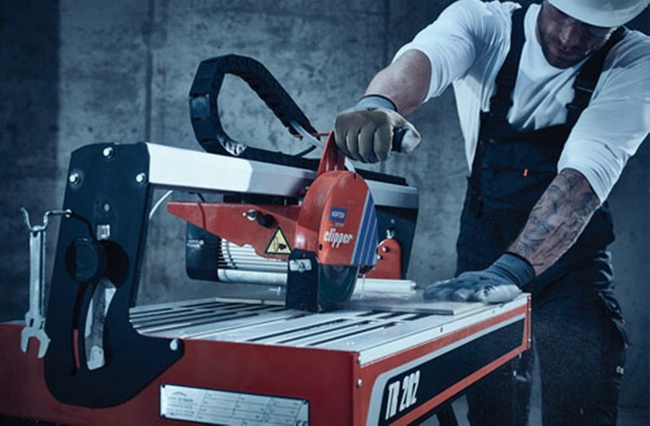

Compact and easy to transport, the NORTON CLIPPER TR232S is an efficient and practical tile saw. These machines are designed for all types and sizes of ceramic tiles, providing the best results in combination with the NORTON CLIPPER diamond cutting wheel.

The Norton Clipper TR 232 S is a cutter from a new series of machines with a number of design changes from the previous model.

The machine has a revised cutting guide and motor guide bearing system. This solution is used in much more expensive machines, is reliable and very durable. Completely new cutting quality.

Powerful cutter TR 232 S thanks to its fast and trouble-free installation, it is an excellent solution for both stationary and mobile use. With a variety of capabilities, the device works well in many applications. NORTON CLIPPER TR 232 S cutter is designed for precision cutting of various sizes of concrete tiles, paving stones, marble slabs, concrete slabs, bricks and tiles of all kinds. Seamlessly adjustable bevel cut, double bevel cut and Jolly cut. Thanks to the built-in cooling pump, cooling of the diamond blade and dust-free operation is ensured. Inclined head allows trouble-free processing of workpieces up to 860 mm long.

BENEFITS - Norton Clipper TR232S Tile Cutter

• Smooth cutting head feed, easy maintenance.
• Ideal device for bevel cutting from 0° to 45°.
• Ability to cut through large/wide materials.
• Easy transportation and space saving.
• Precise cutting angle.
• Easy to clean water bowl.

FEATURES - Norton Clipper TR232S Tile Cutter

• Durable guide.
• Swivel head.
• Built-in work table extension.
• Folding handles, legs and transport wheels.

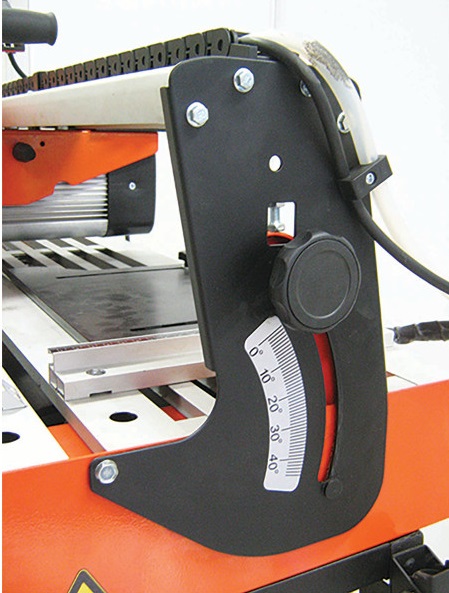

• Adjustable cutting angle guide.
• Easily removable cutting table.

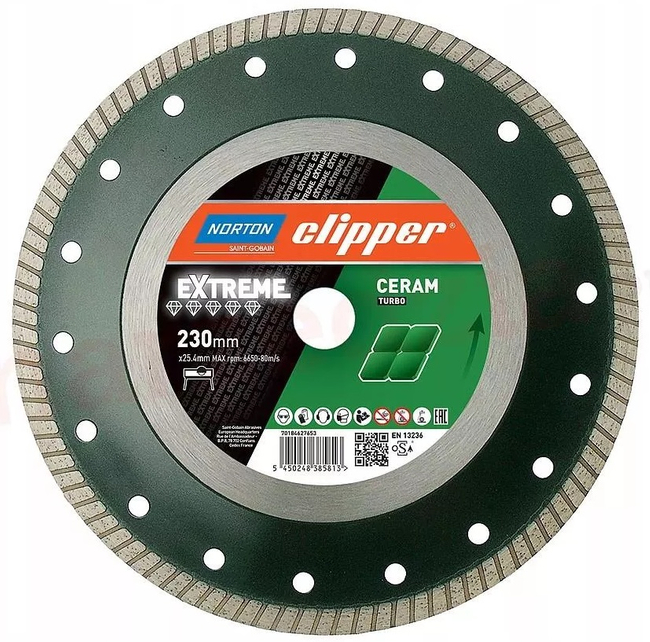

Ø230mm Clipper Extreme Ceram Turbo (SUPER GRESS XT)

MOUNTED ON THE MACHINE

Tile discs Norton Clipper Extreme Ceram Turbo are specialized tools designed to cut even the hardest ceramic and porcelain tiles. They can also cut glass, marble, terracotta, granite and other hard materials. Norton Clipper Extreme Ceram Turbo will find use on angle grinders, tile cutters and masonry cutters. Cuts made with this diamond disc are characterized by high quality. This is due to the segments with a height of 10mm, forming a continuous edge. In addition, the tool's narrow width has the benefit that material loss during operation is minimal. Norton Clipper Extreme Ceram Turbo Diamond Discs are certified by the oSa association. This means that they are fully safe for the user.

Technical Data :

• Voltage: 230 V (single-phase)
• Engine type: Electric [230 V]
• Engine power: 1.1 [kW]
• Engine manufacturer and model: Romway TR 232
• Generator power: 3 kVA
• Fuse: 16 A
• Turnover: 2950/min
• Maximum cutting length: 860 mm
• Maximum depth of cut: 45 mm, 10 mm (at 45°), 15 mm (at 90°)
• Disc diameter: 230 mm (maximum)
• Disc mounting hole diameter: 25.4 mm
• Sound power level: 71 dB(A)
• Sound pressure level: 79 dB(A)
• table dimensions: 860 x 565 mm
• Length x width x height: 1560 x 600 x 1175 mm
• Weight: 61 kg
• Cutting depth max.: 45 [mm]
• Disc diameter max.: 230 [mm]
• TARGET IN KIT Ø 230mm Extreme Ceram Turbo with a gross value of nearly PLN 500!

NORTON Application CLIPPER TR 232 S :

• glazes
• terracotta
• tiles
• ceramic tiles
• marble tiles
• stoneware
• stoneware

NORTON CLIPPER is a reputable manufacturer of tools. Brand products NORTON CLIPPER are characterized by high quality workmanship and reliability. The brand offers a wide range of tools, wood and tile saws, tiling tools and accessories, circular saws and air tools. NORTON CLIPPER offers comprehensive service in the field of warranty and post-warranty repairs of the product range it offers, and also sells spare parts. Provides customers with technical advice and the fastest possible turnaround times for service orders.
