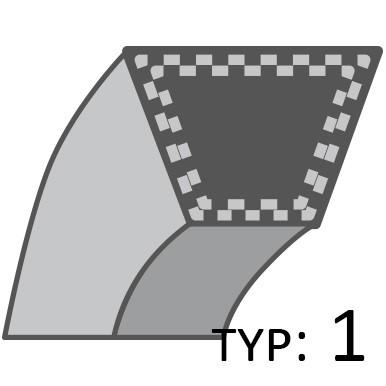

- MTD blade drive belt JA115 /15.8x1283/ RO5177
MTD blade drive belt JA115 /15.8x1283/
Width (mm) - 15.88 Outer length La (mm) - 1283
Inner length Li (mm) 1220 Pitch length Ld (mm) 1265
catalog number
BELT (INDUSTRY NUMBER): 5L500
E-Z ROLL: A-209
FORD: 234594
MTD: 754-0138, 954-0138, 754-0445,
ROTARY: 7595
models
MTD belt blade drive 30" mower apparatus, Spider 76, JA115
BlackEdition 130/102 / 136N762N615 (1996)
BlackEdition MBT 130/102 / 13AA762N615 (1998)
Bricobi BA 15/1020 / 13AD763N601 (1997)
Bricobi BA 13/1020 / 13AA763N601 (1998)
Bricobi BA 13/1020 / 13CA763N601 (1999)
Brill 102/13 RTH / 135N767N629 (1995)
Columbia 160/102 / 135T761N626 (1995)
Edenparc N 145102 / 13CP765N608 (1999)
Edenparc N 145102 / 13BM760N608 (1998)
Edt EDT 130-102 / 13AN762N610 (1997)
Edt EDT 130-102 / 13DA763N610 (2000)
Fleurelle Budget AMH 1252 / 13DH769N619 (2001)
Fleurelle Budget AMH 1251 / 13CH763N619 (1999)
Fleurelle Budget AMH 1252 / 13DH769N619 (2003)
Fleurelle Budget AMH 1450 / 13DP769N619 (2002)
Fleurelle Budget AMH 1450 / 13DP769N619 (2003)
Greencat GC 13/102 / 13AN767N639 (1997)
Gutbrod Sprint SLX 102 R / 13DP766N690 (2001)
Gutbrod Sprint 3000 / 136T765N604 (1996)
Gutbrod Sprint 3000 / 13AT76GN604 (1997)
Gutbrod Sprint 2000 / 13CY76GN604 (1999)
Gutbrod Sprint 2000 / 13AA76GN604 (1998)
Gutbrod Sprint 2000 / 136N765N604 (1996)
Gutbrod Sprint 2000 / 13AN76GN604 (2001)
Hagro 155/102 / 13AD761N607 (1998)
Harry 131 B 13 / 13DA763N662 (2000)
Hvc 4600/102 H / 135N769N609 (1995)
Lawnflite 906 / 13AO765N611 (1998)
Lawnflite 906 / 13XO765N611 (1997)
Lawnflite 906 / 13AF765N611 (1998)
Lawnflite 904 / 13BL765N611 (1998)
Lawnflite 904 / 13AL765N611 (1997)
Lawnflite 906 / 13DO768N611 (2002)
Mastercut 155/102 / 13AM762N659 (1998)
Mastercut 145/102 / 13CP762N659 (1999)
Mastercut RH 125 / 13C3760N659 (1999)
Mastercut 20/102 / 13DU764N659 (2000)
Mastercut 13/102 / 13AN761N657 (1997)
Mastercut 145/102 / 13AP762N659 (1998)
Mastercut 13/102 / 13AN761N659 (1997)
Motec GT 160 RD / 135T764N632 (1995)
Mtd E/130 / 13CA768N678 (2000)
Mtd E/165 / 13DO768N678 (2000)
Mtd E/165 / 13DO768N678 (2001)
Mtd Eurotrac 155/102 / 13DP760N600 (2001)
Mtd 125/40 / 134-765N678 (1994)
Mtd 13/102 / 135N765N678 (1995)
Mtd 125/102 / 134K765N678 (1994)
Mtd 125/102 / 135K761N602 (1995)
Mtd E 125 / 13AL760N678 (1997)
Mtd E 145 / 13AM765N678 (1997)
Mtd E 145 / 136M765N678 (1996)
Mtd E 125 / 13BL760N678 (1998)
Mtd E 145 / 13BM765N678 (1998)
Mtd E 125 / 13BL764N678 (1998)
Mtd E 125 / 13BL760N678 (1998)
Mtd E 124 / 13CH765N661 (1999)
Mtd E/165 / 13CO768N678 (1999)
Mtd IB 130 / 13AA765N606 (1998)
Mtd E/165 / 136T765N678 (1996)
Mtd E/160 / 13CD768N678 (1999)
Mtd E 160 / 136R765N678 (1996)
Mtd E 130 / 13BN765N678 (1998)
Mtd E/130 / 13CA768N678 (1999)
Mtd 1 B 145 / 13AM765N606 (1997)
Mtd RH 180 / 13D7768N600 (2003)
Mtd RH 180 / 13D7765N600 (2002)
Mtd E 2000 Millennium ... / 13DU764N678 (2000)
Mtd RH 125 / 13D3760N600 (2002)
Mtd E/165 / 13CO768N678 (2000)
Mtd Eurotrac 18/102 / 13DT765N600 (2002)
Raiffeisen RMH 13/102 / 135N765N628 (1995)
Raiffeisen RMH 13/102 / 13AN763N628 (1998)
Raiffeisen RMH 13/102 / 13AN763N628 (1997)
Raiffeisen RMH 13-102 / 13CA763N628 (1999)
Raiffeisen RMH 13-102 / 13CY763N628 (1999)
Univert UN 145 BN / 13AP764N663 (1998)
Univert 145 BN / 13DP76UN663 (2000)
White ET 145 / 13DP766N680 (2000)
White W 13/102 / 13DA763N682 (2000)
White ET 130 / 13DA766N680 (2000)
White ET 130 / 13AA766N679 (1998)
White ET 160 / 13CD766N679 (1999)
White ET 13 / 13BN766N679 (1998)
White ET 13 / 13AN766N679 (1997)
White ET 180 / 13BT766N679 (1998)
White ET 130 / 13CA766N679 (1999)
White ET 13 / 136N766N679 (1996)
White ET 160 / 13BD766N679 (1998)
Yardman TN 7145 / 13CP764N643 (1999)
Yardman TN 7145 / 13AP764N643 (1998)
Yardman TN 7145 / 13DP764N643 (1999)
Yardman TN 7140 / 13AA764N643 (1997)
Yardman TN 7135 / 13A7764N643 (1997)
Yardman TN 7145 / 13DP764N643 (2000)
Yardman TN 7145 / 13EP764N643 (2000)
