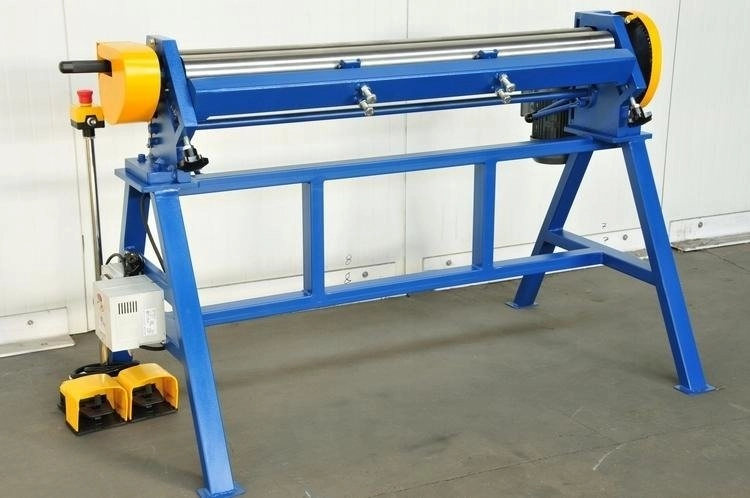

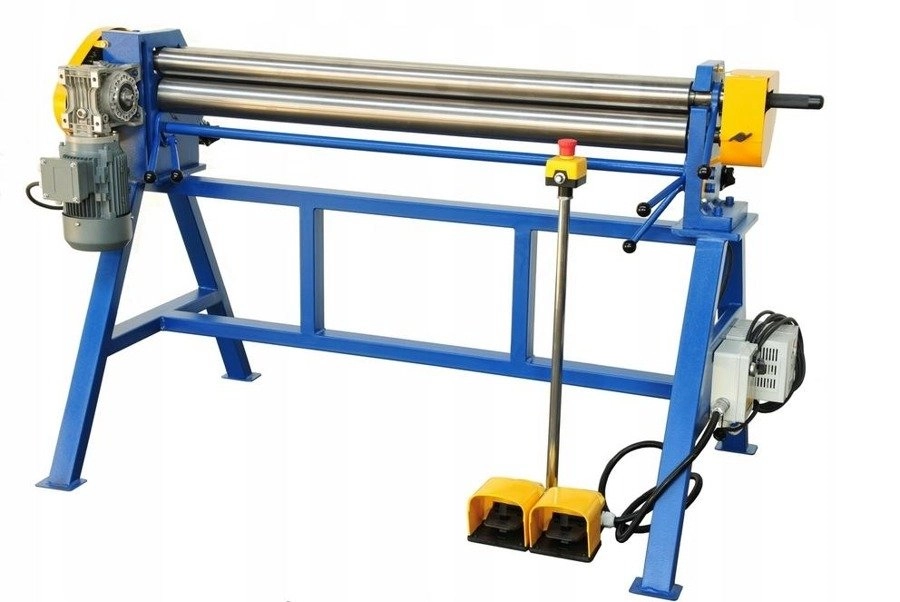

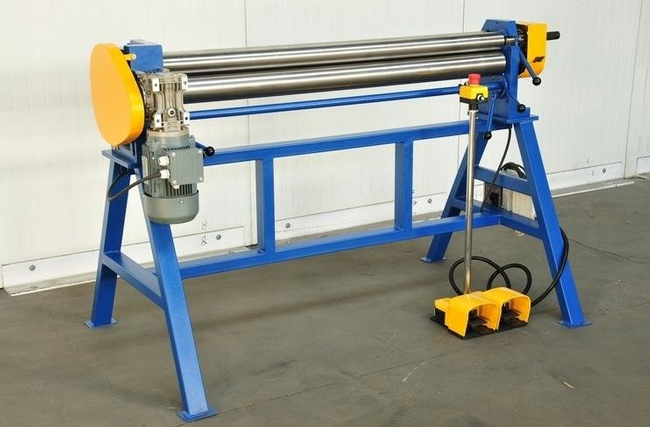

MAAD ZW-1300/1.5/EL 1-PHASE ELECTRIC CUTTING ROLLER MAAD ZW-1300 /1.5mm EL sheet rolling machine
- MAAD ZW-1300/1.5/EL WALLING machine ideally suited for roofing flashings and simple workshop work on flat sheets up to 1.5 mm thick. Thanks to the use of proven and durable technical solutions, the machine can be used for many years.
1-PHASE

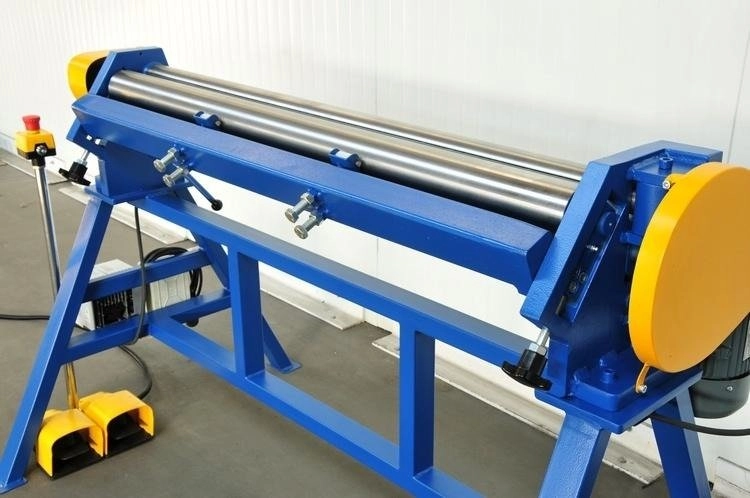

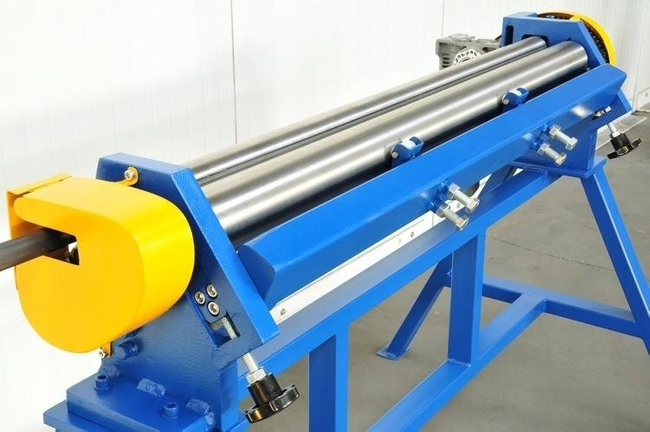

The main working elements of the coiler are 3 shafts. Two of them located in the front part of the machine (upper and lower) perform the function of pulling in the rolled sheet metal. The third, at the back of the device, the so-called loose thanks to the adjustable position gives the right diameter of the sheet to be processed. The loose shaft is supported by two roller carriages mounted on a carriage frame that moves with the shaft during its adjustment. Such a design solution prevents the shaft from deforming during sheet rolling.

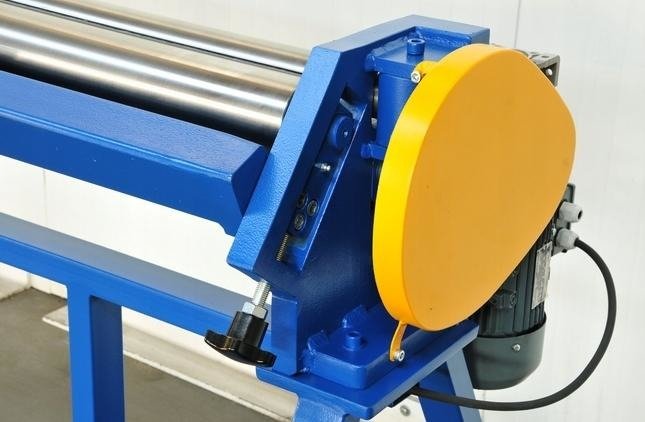

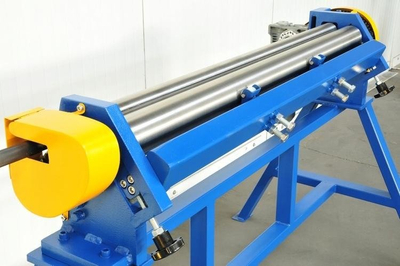

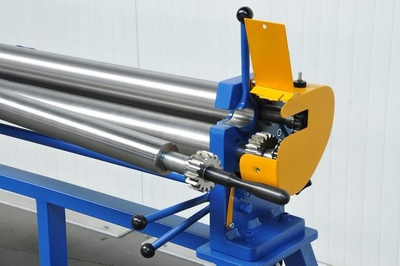

Thanks to the additional milling in the upper shaft, it is possible to make drain pipe locks on the coiler. Detachable top shaft on one side for quick removal of the workpiece. The use of an additional chain transmission in the reel that drives the slack shaft improves the performance during reeling.

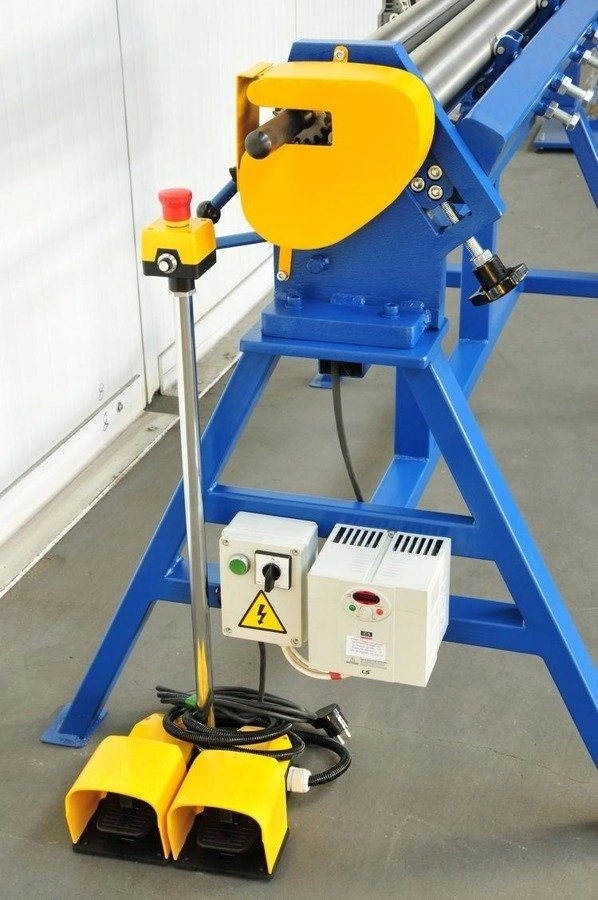

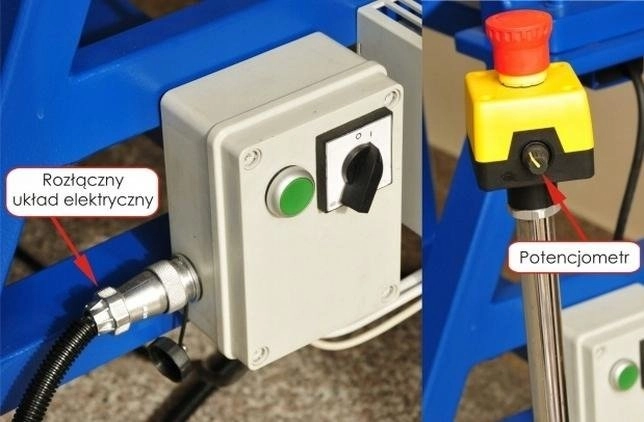

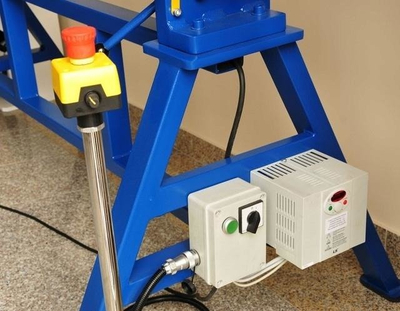

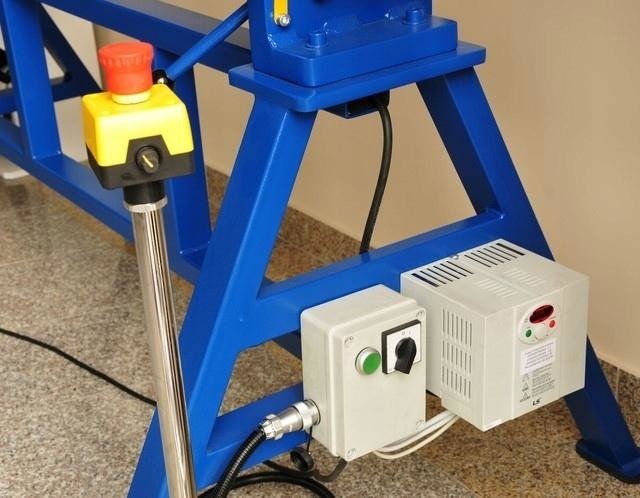

The use of an inverter in the electrical system allows for stepless adjustment of the speed of the working shafts from the inverter's faceplate or with a potentiometer located at the machine's control pedals (which engage the left and right speeds). Three-phase power is not needed to drive the coiler - the power supply is single-phase voltage 230 V.
The machine is equipped with a safety switch and has a declaration of conformity with European Union standards.
Technical parameters:
- Max. sheet thickness: 1.5 mm for Rm < 400 MPa
- Motor power: 1.1 kW

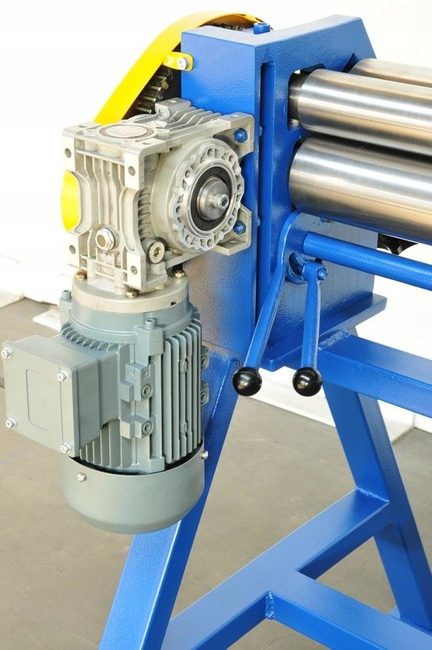

- Geared motor transmission: 1:30
- Machine power supply: single-phase
- Speed of upper and lower shafts: 0 - 26 rpm
- Workpiece sheet travel speed: 0 - 7.3 m/min
- Maximum sheet width: 1,250 mm
- Diameter of working shafts: 1x60 mm, 2x90 mm
- Minimum diameter of rolled sheet: 100 mm
- Maximum diameter of rolled sheet: 1000 mm
- Weight: 330 kg
- Upper removable shaft with milled groove.
Machine dimensions:
- height - 1,100 mm
- width - 1,800 mm
- depth - 700 mm
- Upper removable shaft with milled groove.
Components of the coiler are made on precision CNC machine tools.
The machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.
