MAAD ZGM-2000/2.0 SHEET METAL BENDING MACHINE MECHANICAL ELECTRIC MAAD ZGM-2000/2.0

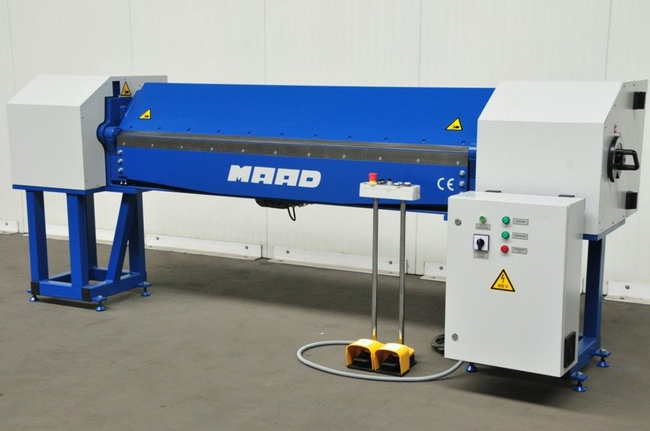

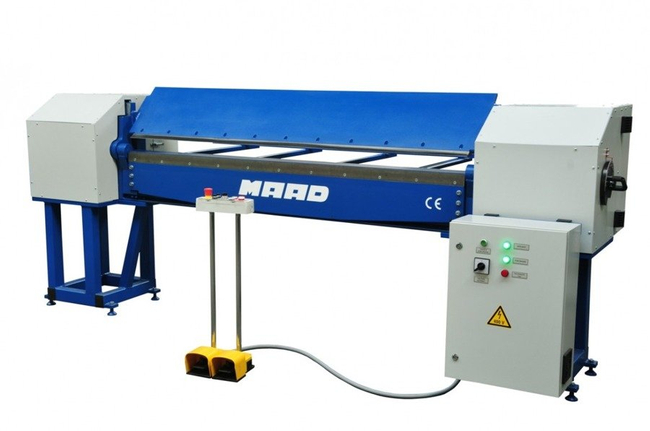

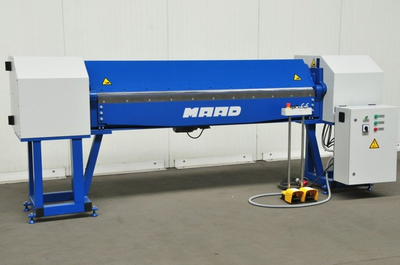

MAAD ZGM-2000/2.0 BENDING MACHINE is a modern machine with a compact design, simple in operation, functional and reliable in use. Used to bend thin sheets up to 2.0 mm thick for Rm<400 MPa along a straight line at a specified angle. The interchangeable working segments used in the clamping and bending beams provide great opportunities for the use of the bending machine not only in the roofing industry, but also in various industries where repeatability and high efficiency of sheet metal work is needed. Stepless adjustment of the speed of the working beams from the bending machine desktop and the ability to set the angle of the sheet metal bending machine puts this model of the bending machine in the group of the most functional machines of its kind offered in our market by domestic and foreign manufacturers.

Technical parameters:

• working width - 2100 mm
• max. thickness of the bent sheet - 2.0 mm ( for Rm<400 MPa )
• width of the bending beam - 20 mm
• maximum bending angle - 135 degrees
• clearance between beams - 80 mm
• weight of the machine - 1350 kg
• electrical system 400 V
• motors on the bending beam - 2x2,2 kW
• motor on pressure bar 0,55 kW
• setting the bending angle in the range of 0 - 155 degrees

Machine dimensions:

• height - 1,320 mm
• width - 3,490 mm
• depth - 1,400 mm

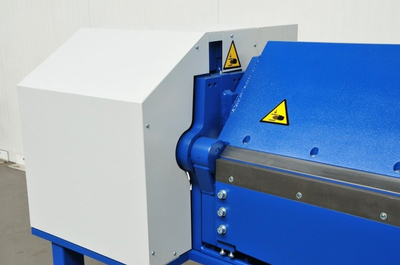

The main working elements of the bending machine are the beams: fixed, clamping and bending beams.

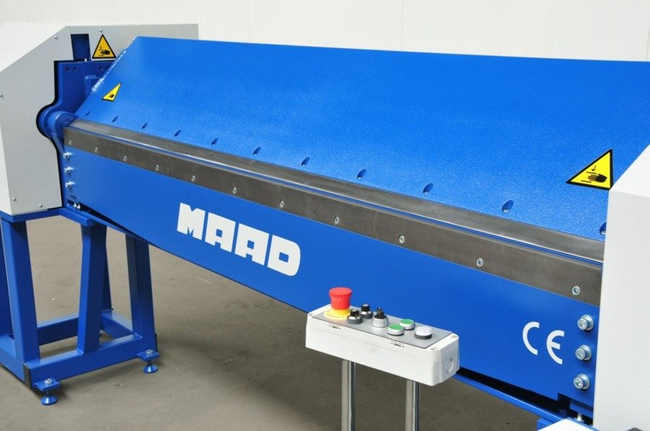

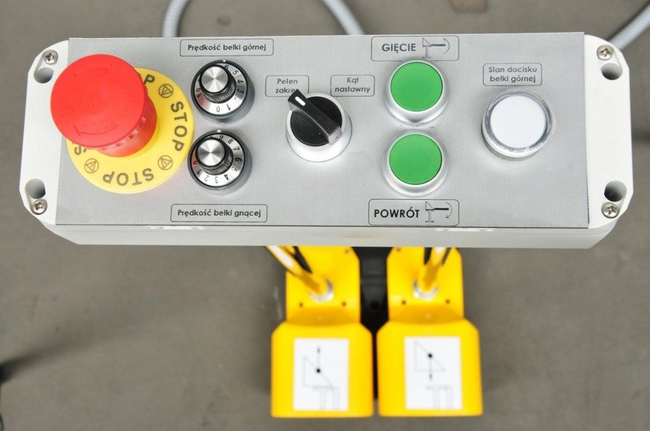

The pressure beam is a movable beam used to fix the sheet in the desired position. It is equipped with a replaceable working segment attached to the beam body with screws. It also has adjustable clamping force/height. It is raised and lowered by foot pedals and the speed of the beam is set by a potentiometer located on the control panel.

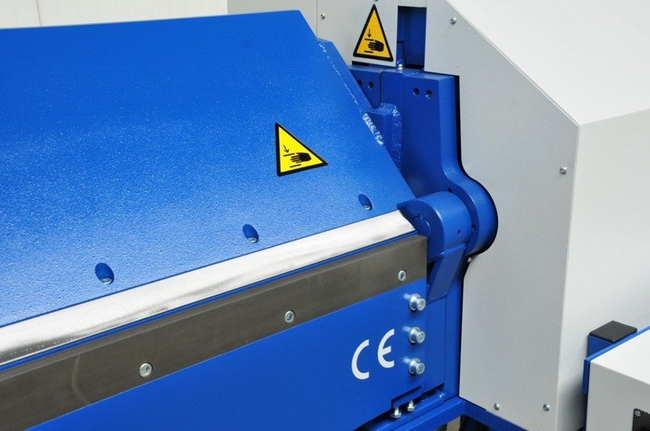

The bending beam, like the pressure beam, is equipped with an interchangeable working segment attached to the beam body with screws. The rotary movement of the bending beam is carried out by means of buttons from the control panel, and its speed is infinitely adjustable by means of an independent potentiometer located on the control panel.

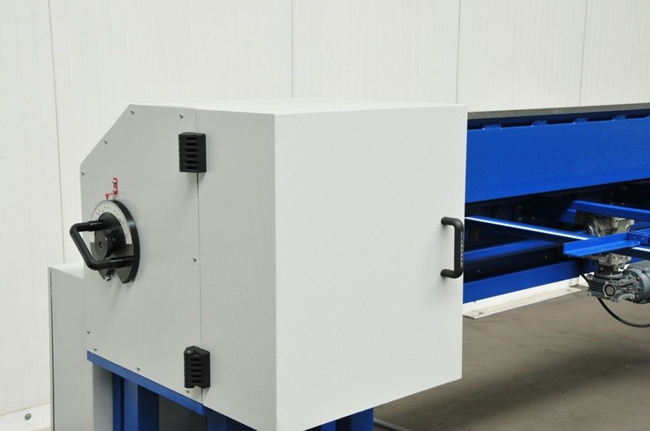

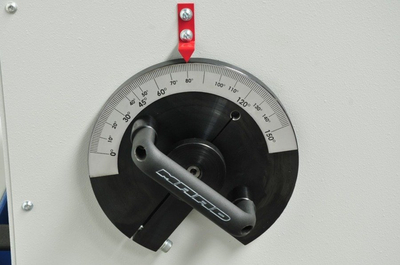

Locking knob allows stepless adjustment of the bending angle of the bent sheet from 0 to 155 degrees. The selection of the range of movement of the bending beam (movement up to the set bending angle or movement over the entire range of bending beam operation) is made using a switch located on the control panel of the bending machine.

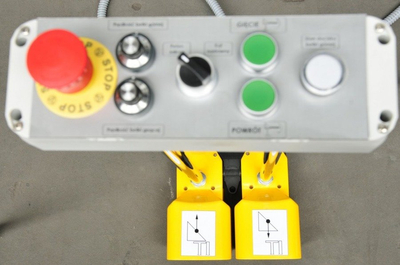

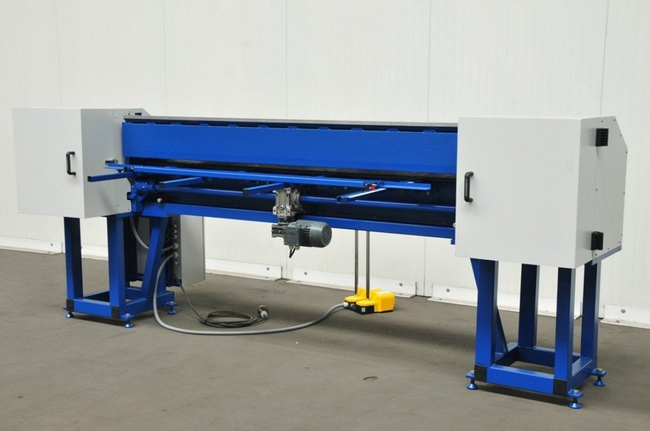

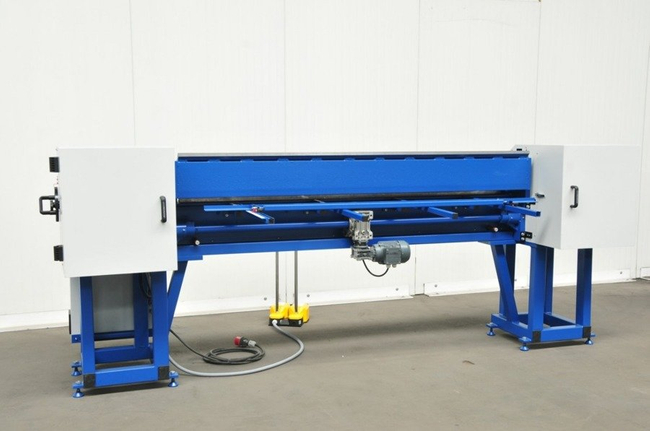

Electric-mechanical drive controlled by pedals allows the operator to use both hands - the movement of the pressure bar with foot pedals allows the operator to accurately position the sheet metal in the working space of the bending machine with both hands.

Bending machine ZGM-2000/2.0 with electric drive:

• Innovative design,

• Modern technical solutions,

• Overhang control,

• Fast work,

• Adjustable operating speeds,

• Interchangeable working parts.

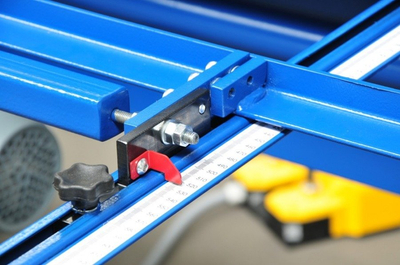

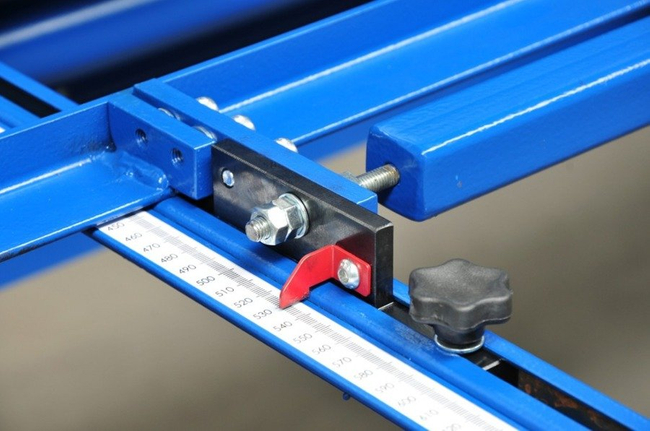

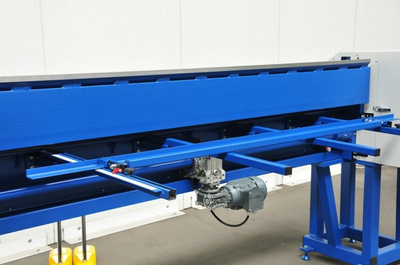

The machine is equipped as standard with bumpers with millimeter graduations for setting the position of the workpiece also acting as a table.

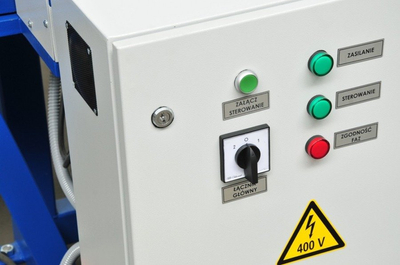

The electrical system of the bending machine adapted for power supply from a three-phase AC network 400 V / 50 Hz in a 5-wire TN-S or TN-C-S system.

For the safety of the operator, all controls of the working beams and mounted in the bending machine desktop are powered by 24 V.

Bending machine components are made on precision CNC machine tools.

The bending machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.

ZGM-2000/2.0 bending machine won the GOLD MEDAL of BUDMA 2017 trade fair!

The innovative design of the ZGM-2000-2.0 bending machine and design solutions protected by patents made MAAD as the manufacturer of this bending machine was awarded a gold medal at the BUDMA 2017 International Construction and Architecture Fair in Poznań
