ROOFING SHEET METAL BENDING MACHINE
MAAD ZG-2000/1.2

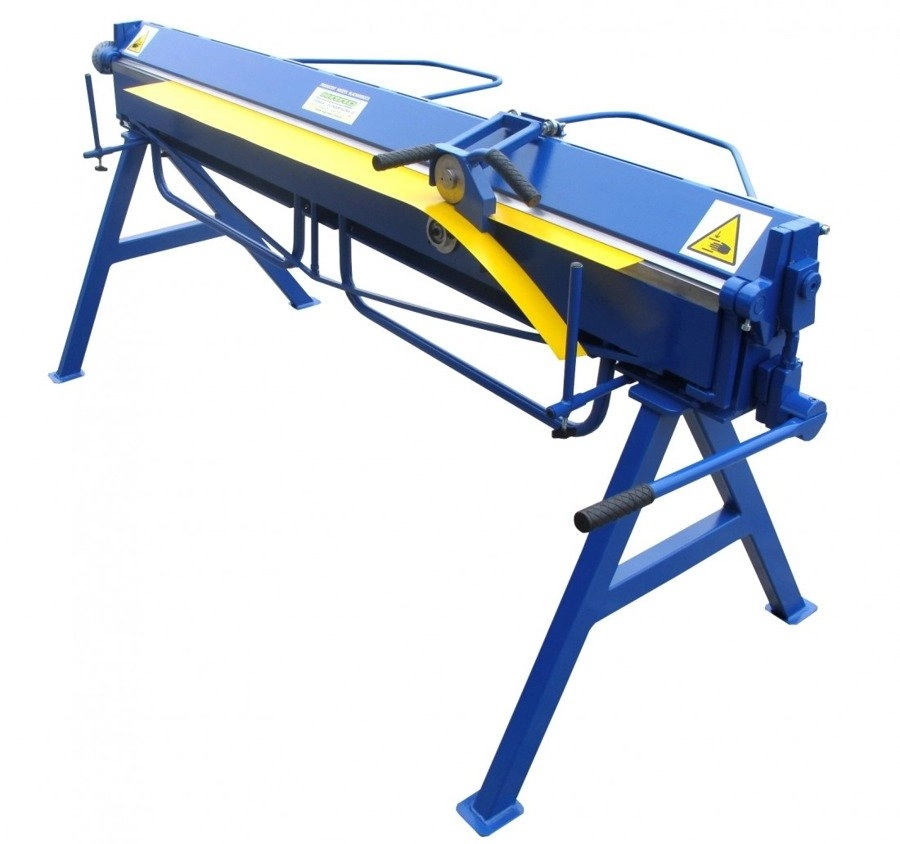

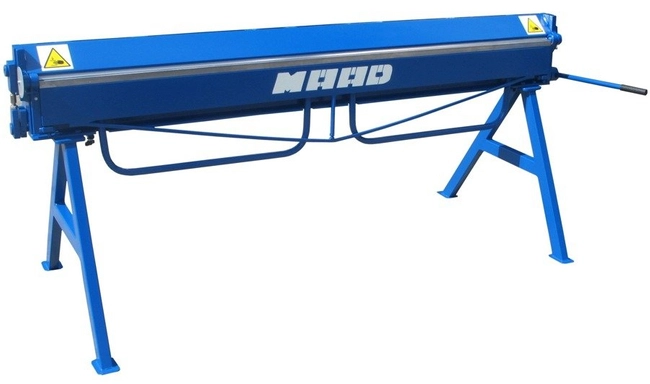

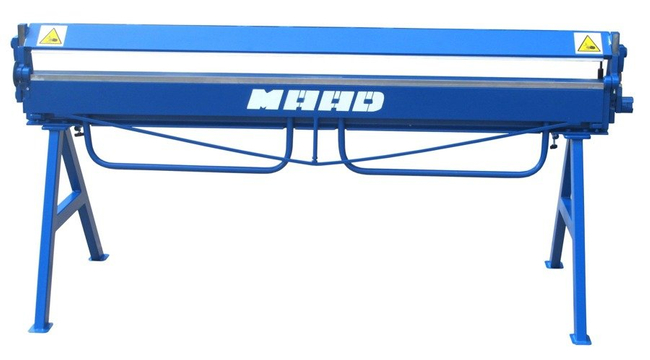

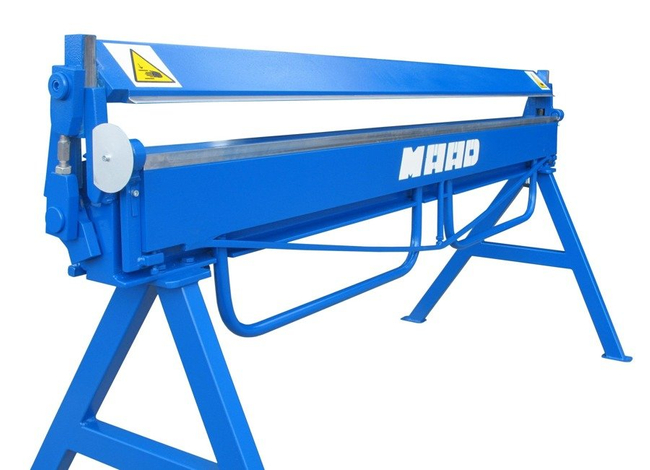

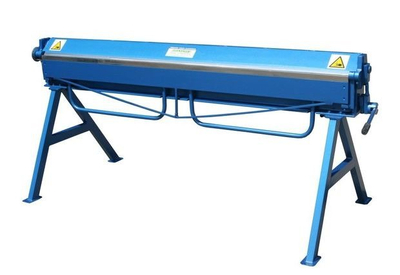

MAAD ZG-2000/1.2 bending machine is an ideal workshop machine. Stable construction and high quality of working elements allow bending of steel sheets up to 1.2mm thick over a length of 2000mm. Such parameters and attractive price put the machine in the forefront among other available products on the market.

The functionality of the machine is emphasized by the narrow dimensions of the working: bending (20x150), pressing (angle bar 100x100x10 + flat bar 150x20) and fixed (I-beam 220).



MAAD ZG-2000 bending machines are used by such companies as BLACHOTRAPEZ, RUUKKI, FAKRO that is, companies closely related to the roofing industry!
MAAD ZG-2000/1.2 bending machine is a machine with a compact design, simple in operation, created mainly for roofers. Functional and reliable in use, guarantees trouble-free operation without deformation of working parts. Narrow bending beam makes it possible to perform complex flashings.

Technical parameters/equipment:

  • - working width - 2140 mm
  • - max. thickness of the bent sheet - 1.2 mm ( for Rm<400MPa )
  • - clearance between beams - 85-100 mm
  • - width of the bending beam - 20 mm

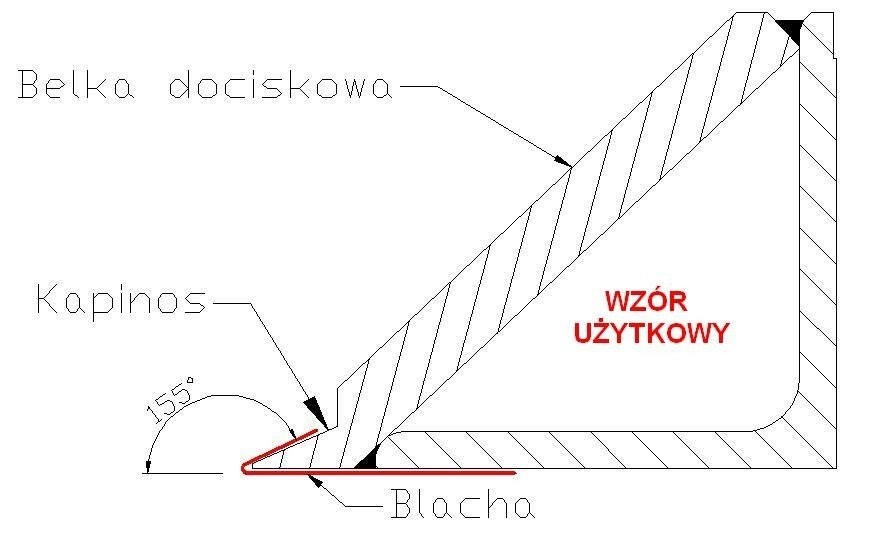

  • - maximum bending angle - 135 degrees ( on request it is possible to make a version with a bending angle of 155 degrees )
  • - weight of the machine - 250 kg

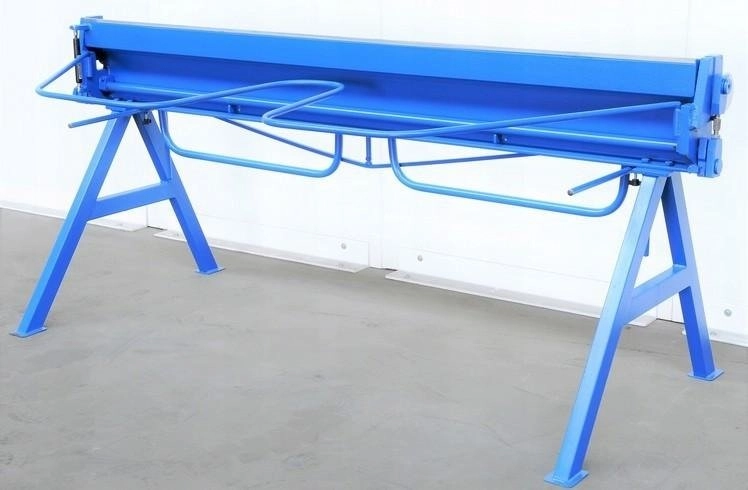

  • - detachable legs - makes transportation and loading much easier

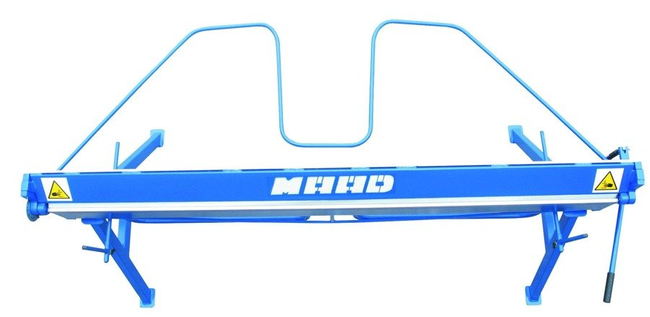

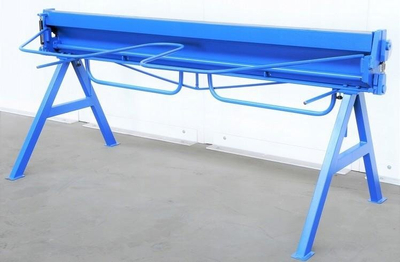

  • - overlapping rack attached to the back of the machine to support the sheet metal
  • - gauges for cutting sheet metal

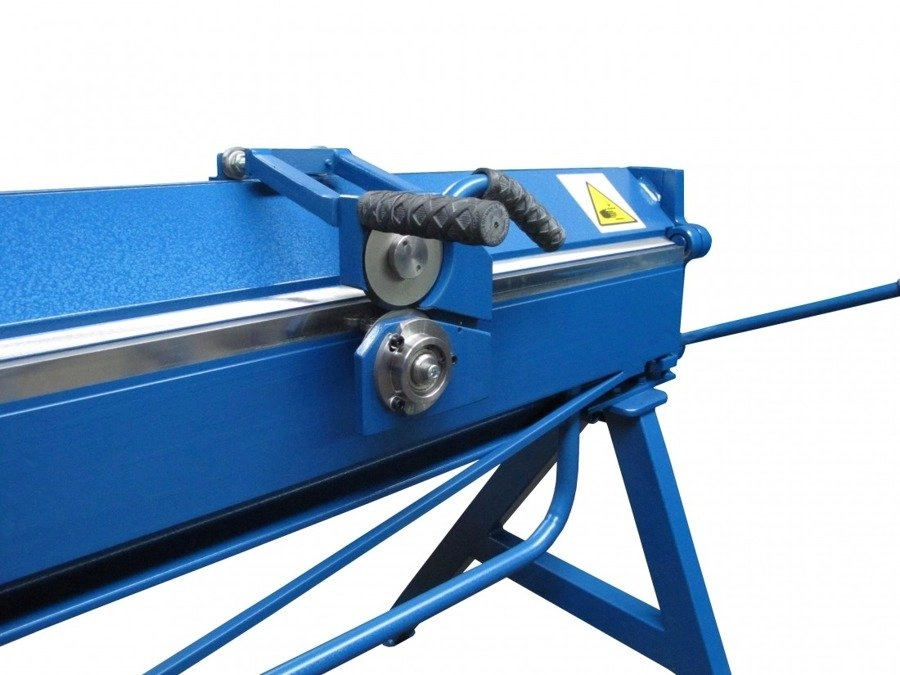

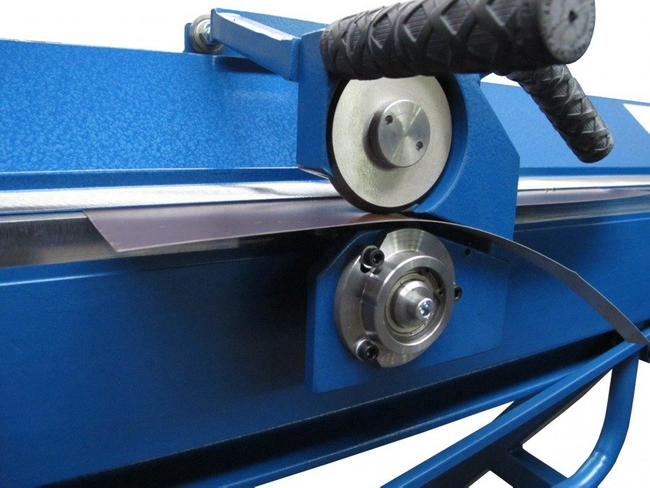

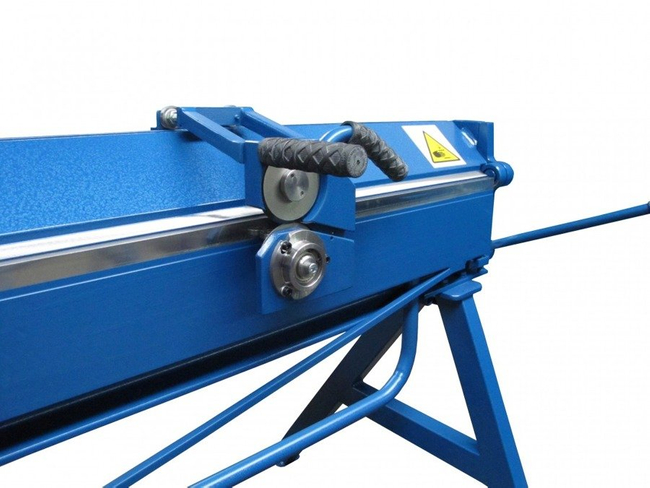

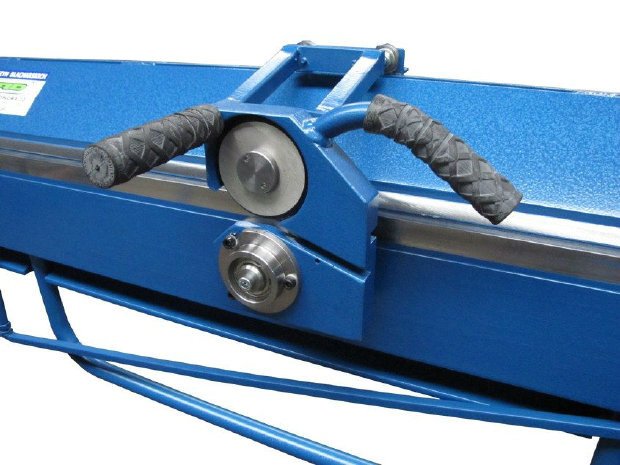

  • - roller shears (optional)
  • - protractor as standard equipment

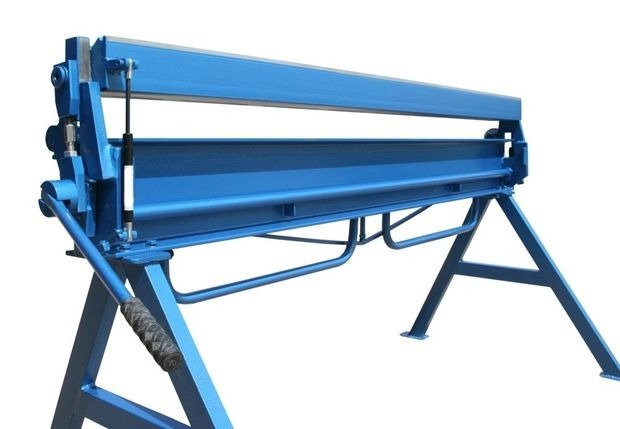

  • - pressure beam gas cylinder

Machine dimensions:

  • height - 1,005 mm
  • width - 2,350 mm
  • depth - 930 mm

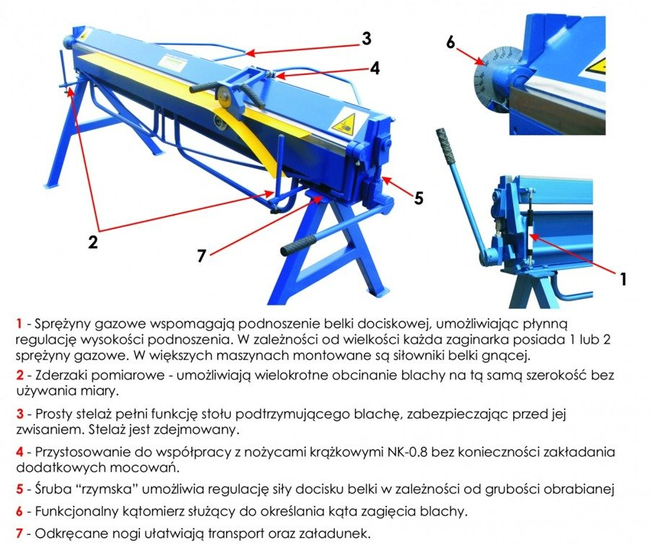

The main working elements of the bending machine are the beams: fixed, clamping and bending beams.

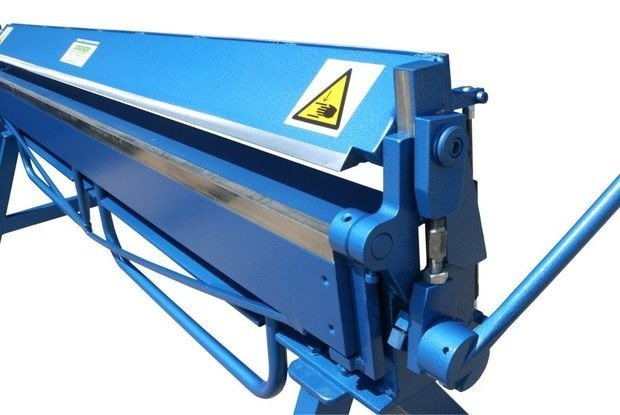

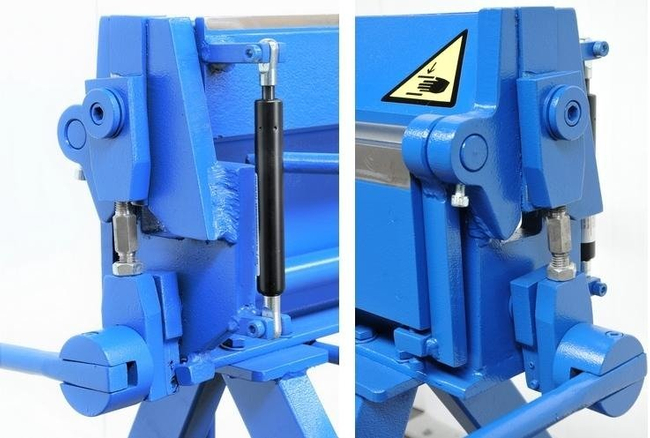

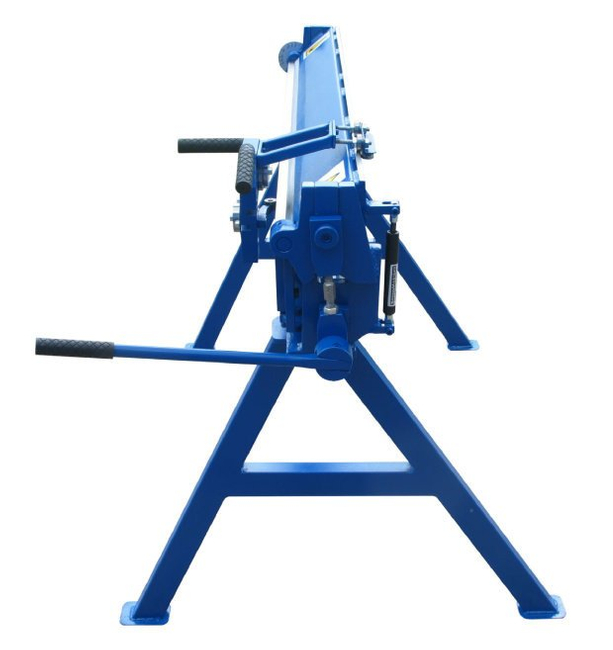

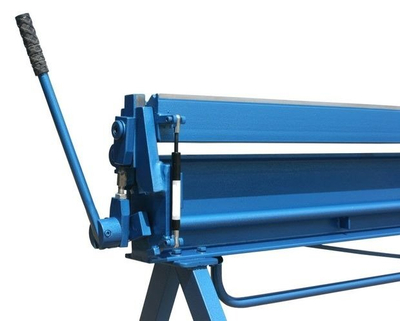

The pressure beam is a movable beam used to fix the sheet in the desired position. It is raised and lowered by a lever. Gas cylinder assists in raising the pressure beam. The pressure beam is designed so that its upper part is a guide for the roller shears.

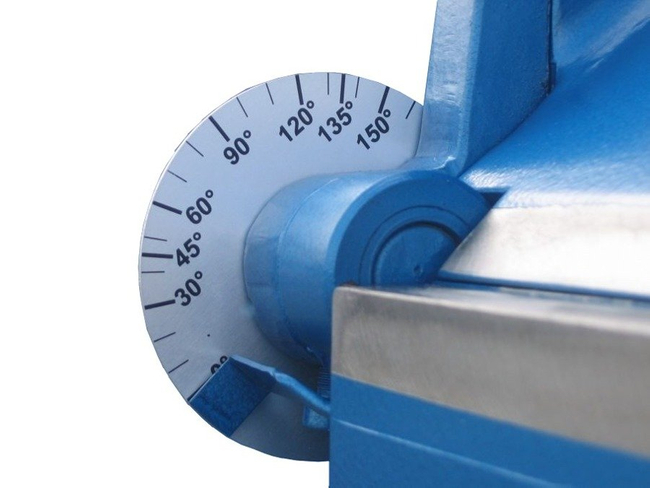

The bending operation is carried out by rotating the bending beam by a certain angular value using a handle. Angle gauge mounted on the left side of the bending machine when viewed from the front indicates the current angle of the sheet metal bend.

The bending beam has an adjustable position in relation to the fixed beam. This parameter affects the bending radius of the sheet and its size also depends on the thickness of the sheet to be bent.

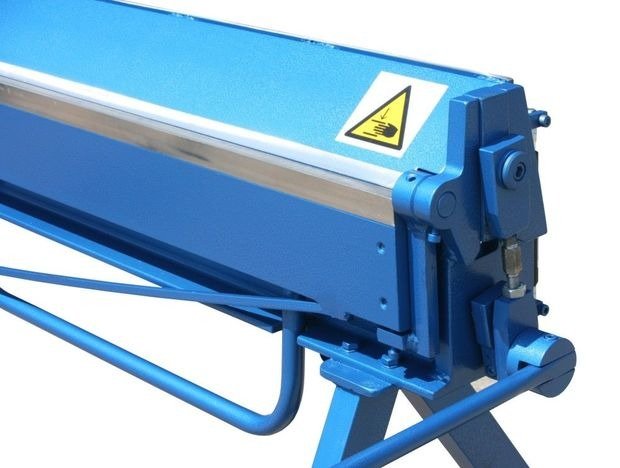

Working beams are equipped with turnbuckles for setting the straightness of the working edges.

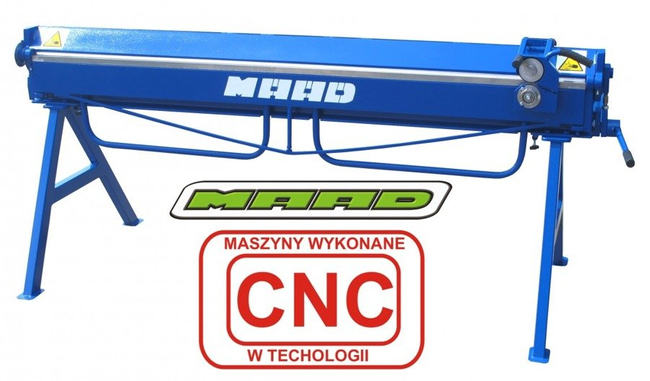

Bending machine components are made on precision CNC machine tools.

The bending machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.

Brand:
Symbol:
MAAD ZG-2000/1.2 ZAGINARKA GIĘTARKA KRAWĘDZIA
Producer code:
MAAD ZG-2000/1.2
WARRANTY 12/24 Months
