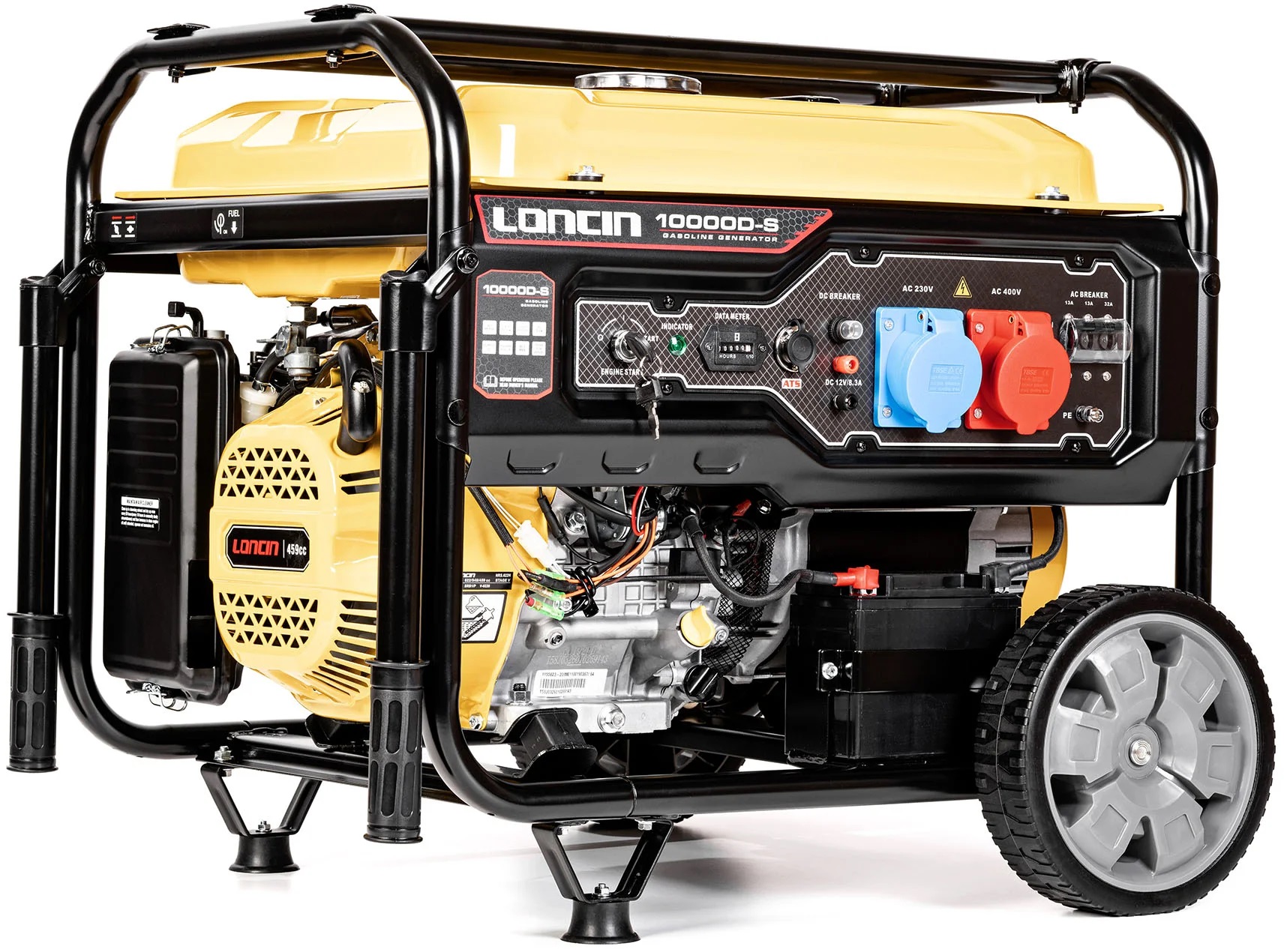

LONCIN LC10000D-S – Powerful Dual Power 230V/400V AVR 10 kW generator for home, business, workshop, and construction sites

LONCIN LC10000D-S This is a high-performance, professional-grade gasoline-powered generator, designed to provide independent power to electrical equipment in locations without access to the power grid and to serve as an effective emergency power source.. The model offers 10,000 W starting power,8,000 W rated power, operation with a voltage of 230 V and 400 V, voltage stabilization AVR, copper generator windings, electric and manual start, and a sturdy protective frame.

The LONCIN generator is equipped with innovative DUAL POWER technology. The generator's new design allows it to produce the same power output in both operating modes (230 V and 400 V), whereas standard three-phase generators provide no more than 30% of their rated power at a single-phase outlet.

It's an excellent choice for users who expect reliability, plenty of power in reserve, and versatility. LONCIN LC10000D Generator-S is ideal for powering power tools, pumps, compressors, construction machinery, workshop equipment, lighting, auxiliary systems, agricultural equipment, service equipment, and select household appliances during power outages.

LONCIN LC10000D-S Dual Power 230V/400V Generator – Independent Power Wherever You Need It

The LONCIN LC10000D-S is a power generator designed to generate electricity off the grid. This means you can use electricity on your property, at a construction site, on a farm, during fieldwork, at a mobile service station, or as a backup in case of a power outage. This device is particularly useful in situations where downtime results in a loss of time, money, or comfort.

• Rated Power and Starting Power allow for an accurate assessment of continuous-duty capabilities and short-term reserve capacity when starting loads with higher inrush currents. Starting power should not be considered as power that is available continuously.
• Voltage 230/400 V allows for use with single-phase and three-phase loads.
• AVR Automatic voltage regulation helps stabilize power supply parameters.
• Copper windings of the generator is a permanent component of the generator.
• Large-capacity fuel tank reduces the frequency of refueling during extended operation.
• Electric and manual start provides two ways to start the engine.
• ATS Socket allows the generator set to be integrated with the appropriate automatic backup power supply system.
• Oil Level Sensor helps protect the engine when the lubricant level is too low.
• Off-Grid Power Supply The generator allows you to power compatible devices in places where there is no access to a permanent power connection.

With support for voltages 230 V and 400 V The generator can power both standard single-phase loads and select three-phase devices. In practice, this means greater flexibility: the same generator can power power tools, work lights, pumps, concrete mixers, compressors, workshop equipment, and farm equipment. The Dual Power feature enhances the generator's versatility for everyday tasks, as the user is not limited to just one type of appliance.

The LC10000D-S model features a robust design, a large fuel tank, and safety enhancements. This equipment is designed for people who need a powerful, durable, and practical generator for regular use—not just for occasional emergency start-ups.

What is the LONCIN LC10000D-S used for? – An emergency and portable power source

The primary function of the LONCIN LC10000D-S generator is to provide electricity in situations where the grid power supply is unavailable, unstable, or insufficient. The generator can serve as a power source on a construction site, in a workshop, on a farm, at a service company, in a single-family home, at a recreational facility, or while working in the field.

In residential applications, a generator can help keep certain appliances running during power outages, such as a central heating pump, a water pump, lighting, an automatic gate, a refrigerator, a freezer, or basic building systems.. In professional applications, it allows power tools, measuring devices, service equipment, or machines that require a stable power supply to continue operating.

On a construction site, the LONCIN LC10000D-S can power work equipment, job site lighting, and auxiliary devices. In agriculture, it is ideal for powering pumps, farm equipment, and auxiliary equipment. In a workshop, it can serve as a backup in case of a power outage or as a portable power source for work away from a fixed power source.

Loncin LC10000D-S Generator – a powerful 230/400 V power source for demanding loads

The Loncin LC10000D-S generator is designed to power off-grid loads or serve as a backup power source. Rated power specifies the capacity to supply power to loads during continuous operation. 230/400 V voltage – allows operation with single-phase and three-phase loads. This solution is particularly useful on construction sites, on farms, in workshops, and in emergency situations.

AVR Voltage Stabilization – Safer Operation of Connected Devices

The unit is equipped with a AVR, that is, an automatic voltage regulator. Its purpose is to limit voltage fluctuations during generator operation, which is particularly important when powering devices that are sensitive to unstable current parameters. A more stable voltage translates to greater comfort and safety when using connected devices.

The AVR is very important for the practical use of the generator set. When starting power tools, pumps, or devices with electric motors, the load may change suddenly. Automatic voltage regulation helps maintain operating parameters at the proper level and reduces the risk of problems caused by sudden voltage drops or surges.

This solution will be appreciated by both home users and professionals. Whether you're working in a workshop, on a construction site, or on a farm, a stable power supply means greater reliability of your equipment, a lower risk of downtime, and better protection for your investment in connected devices.

Rated power and starting power

The prime mover must maintain generator operation under varying loads on the consumers. The internal combustion engine drives a generator, which supplies power to the connected loads within the generator set's operating parameters. The importance of this feature is particularly evident when the generator set powers loads with varying energy demands and must maintain a stable operating rhythm. The starting power provides the short-term reserve needed to start loads with higher starting currents. When used regularly, this helps maintain a more predictable work rhythm, even when the workload fluctuates during a task. The power of the engine and the generator should be considered as part of the overall power generation system. The most important thing is for the unit to operate within the parameters specified for that model and not to be constantly overloaded.

10 kW of power and a robust LONCIN engine—performance for demanding tasks

The LONCIN LC10000D-S offers a starting power of 10,000 W and a rated power of 8,000 W, making it suitable for powering devices with higher power requirements. A large power reserve is particularly important for loads that draw more power during startup than during normal operation, such as pumps, compressors, electric motors, or certain types of construction equipment.

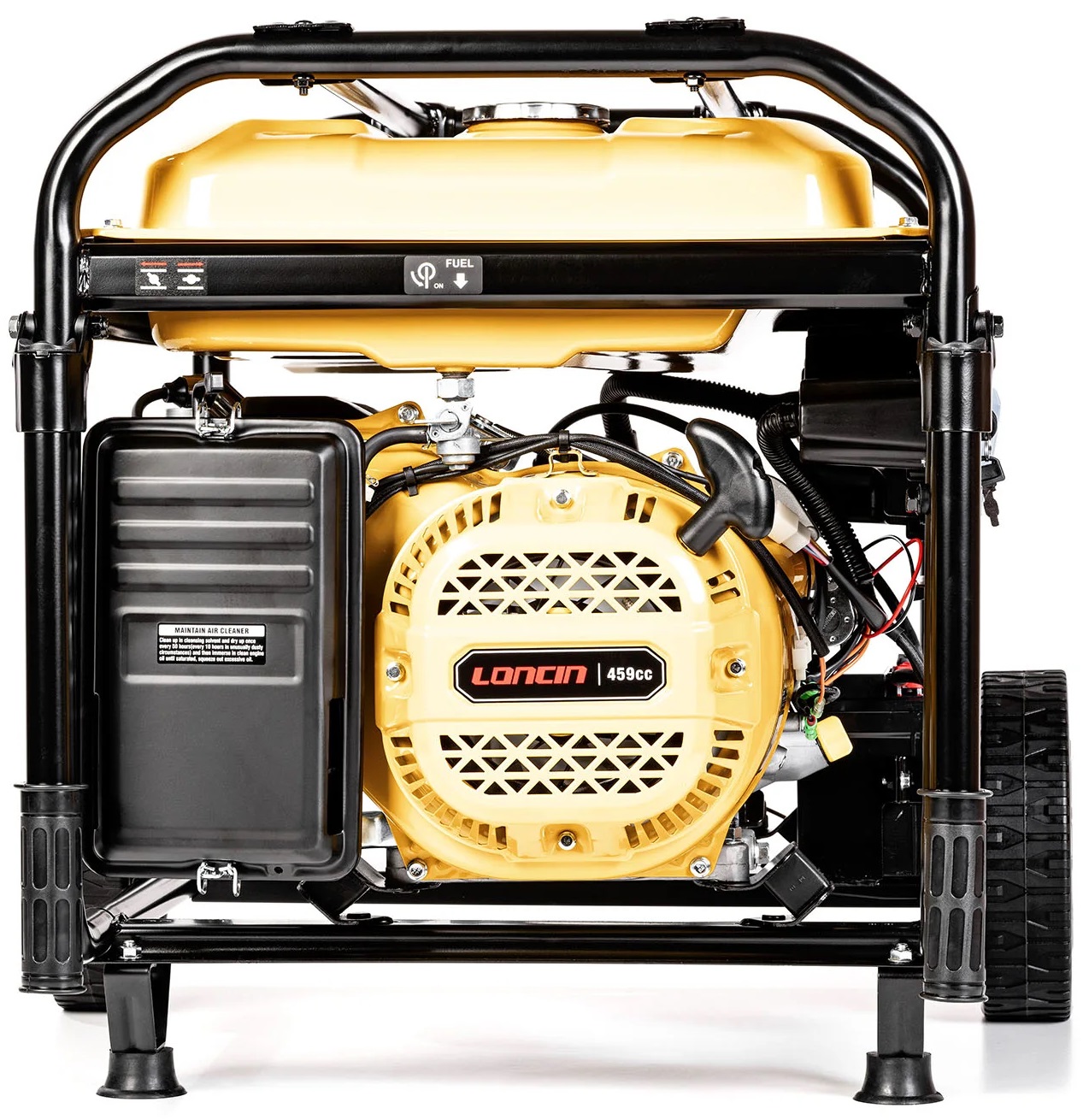

The heart of the unit is the engine Loncin LC192FD-1, known for its good balance of performance and durability. The generator is designed for use in harsh conditions—on construction sites, on farms, in mobile service operations, or during emergency operations. A sturdy frame protects the components from mechanical damage and makes it safer to use the device in the field.

In practice, the generator's power output is sufficient to comfortably power work lights, power tools, pumps, workshop equipment, household appliances, and other devices whose specifications fall within the generator's capabilities. Before connecting devices, it's always a good idea to add up their total power requirements and take the inrush current into account.

230/400 V voltage and AVR

In a power unit, the way energy is transferred is just as important as the engine's operation itself. Properly selected voltage and protective measures help power compatible loads in a predictable manner. AVR – Automatic Voltage Regulation helps stabilize power supply parameters. The voltage and available outputs determine which devices can be connected and how to practically set up the power supply on site. Starting power is particularly important for loads with electric motors or other components that draw a higher current during startup. However, it does not replace the rated power, which determines the continuous operating capacity.

230 V and 400 V in a single generator—versatile use at home, in the office, and on the farm

One of the most important advantages of the LONCIN LC10000D-S model is the ability to use 230 V and 400 V. As a result, this generator is more versatile than typical generators designed exclusively for simple single-phase applications. Users can use it to power common household and workshop appliances, as well as select three-phase loads.

In a single-family home, a generator can serve as an emergency power source for the most critical circuits, provided that a licensed electrician has made the appropriate and safe connections. At the company, he or she may ensure the proper functioning of technical equipment, tools, or auxiliary devices. On a farm, it ensures the continuous operation of equipment that requires an independent power source.

Its universal voltage makes the LONCIN LC10000D-S a practical choice for users who don't want to buy several separate devices for different tasks. A single generator can handle a wide range of operating scenarios—from emergency power to heavy-duty off-road use.

The generator's copper windings and a large-capacity fuel tank

The copper windings of the alternator—a durable component of the generator. The parameters of the power supply system affect how loads are connected and how operations are organized; therefore, it is important to consider them in conjunction with the generator’s power and voltage. Large fuel tank – reduces the frequency of refueling during extended operation. During normal operation, this parameter helps extend the duration of a single stage without requiring additional intervention. This makes it easier to plan future breaks. The tank capacity and the number of available ports affect the practical organization of the power supply. They help reduce refueling stops and allow for a more efficient distribution of power among loads that are compatible with the generator's specifications.

Where to Install the LONCIN LC10000D-S Generator – Safe Placement and Connection

The LONCIN LC10000D-S is a portable generator mounted on a sturdy frame, so it is not permanently installed in a living space like stationary units are. The unit must be placed on a stable, level, and load-bearing surface, in a location that ensures adequate ventilation and safe exhaust gas discharge.

The generator should be operated outdoors or in a specially prepared, well-ventilated utility room that complies with safety regulations. Do not operate the generator in enclosed living spaces, basements, unventilated garages, or in areas where exhaust fumes could enter the building. While in operation, the device emits exhaust gases and requires a supply of air.

If the generator is to power the building's electrical system, the connection should be made by a qualified electrician using an appropriate mains/generator switch or a suitable power transfer system. This solution prevents dangerous voltage from being fed into the power grid and protects both users and the electrical system.

Copper generator windings, an oil sensor, and a sturdy frame—built to last for years

The LONCIN LC10000D-S generator set is designed for reliable operation in demanding conditions. Copper windings of the generator improves durability and resistance during operation under load. This is an important feature for users who plan to use the generator regularly, rather than just occasionally.

Electric and manual start, and an ATS outlet

Electric and manual start—offers two ways to start the engine. When powering loads, the importance of this feature is evident in the stable operation of the generator set and its easier adaptation to actual energy demand. ATS socket – allows the generator to be integrated with a compatible automatic backup power system. When powering equipment for extended periods, this solution simplifies generator operation and helps minimize unnecessary downtime. For long-term use, it is important to consider not only the startup procedure, but also the power supply configuration for the equipment and access to fuel. The actual operating time of the unit depends on the load; therefore, it is best to evaluate its performance parameters in relation to the planned equipment.

Oil Level Sensor protects the engine from running with insufficient lubricant. This is particularly important during extended operation, when the unit runs for many hours and powers critical equipment. Oil protection helps reduce the risk of engine damage caused by inadequate lubrication.

Steel protective frame protects key components and makes it easier to transport and set up the unit at the job site. On a construction site, on a farm, or in a workshop, the equipment is exposed to accidental impacts, being moved around, and use in conditions that are less comfortable than those in a utility room. The sturdy construction increases the equipment's durability and ensures greater reliability.

Construction, Farming, and Emergency Power—Practical Applications of a Generator Set

The Loncin LC10000D-S generator performs best on construction sites, on farms, in workshops, and in emergency situations. The generator should be selected based on the actual power requirements of the loads, the supply voltage, and the expected duration of off-grid operation. The internal combustion engine drives a generator, which supplies power to the loads within the device's operating parameters. Oil level sensor – helps protect the engine when the oil level is too low. Off-grid power supply – the generator allows you to power compatible devices in locations where there is no access to a permanent power connection. In practice, it is best to select a generator set with a margin of capacity appropriate to the nature of the connected loads, but without treating the starting power as power that is continuously available. The correct load affects both the stability of the power supply and the operating time on a single tank. The runtime of the generator on a single tank of fuel depends on the actual load. The greater the power demand of the loads, the higher the fuel consumption tends to be; therefore, the stated operating time should always be considered in relation to the conditions for which it was specified.

Electric and manual start—convenience in any situation

The LC10000D-S model is equipped with electric start, which makes it easy to start the generator quickly without having to use a lot of force. This is a very convenient solution for frequent use, especially when the generator serves as an emergency backup and must be ready to operate at short notice.

In addition, the unit features the option of manual start-up. This is a practical safeguard in situations where, for some reason, the electric starter cannot be used. The dual-start system increases independence and allows the user to maintain control over the power supply even under more challenging conditions.

In everyday use, this means greater convenience, fewer downtimes, and faster setup of the equipment for work. Whether the generator is used on a construction site, in a workshop, on a farm, or at home, easy starting is one of the features that truly enhances ease of use.

Applications of the LONCIN LC10000D-S Power Unit

• Home Emergency Power Supply – keeping selected devices running during power outages.
• Construction and Renovation – powering power tools, lighting, pumps, concrete mixers, and auxiliary equipment.
• Workshop – an emergency or portable power source for tools, compressors, and technical equipment.
• Farm – power supply for pumps, utility equipment, and auxiliary equipment.
• Service company – field work, mobile service, workplace safety.
• Land and Recreation – independent power supply in areas far from the power grid.
• Technical Facilities – power supply for auxiliary equipment, lighting, and work systems.

A reliable source of energy where the grid falls short

The Loncin LC10000D-S generator is a model designed primarily for applications where off-grid power is required or where a backup power source is needed in situations where a power outage hinders operations. The most important features of this configuration are the rated power, 230/400 V voltage, copper generator windings, and electric and manual start-up. For the generator set, the parameters related to power, voltage, startup, the fuel tank, and safety devices must be considered as a single power supply system. Before making a selection, it is a good idea to compare the specifications with your specific conditions: the power of the loads, their inrush current, voltage, expected operating time, and whether the generator will be used as a primary or backup power source. When selecting a generator set, it is necessary to distinguish between the power required for continuous operation and the temporary power demand during the startup of certain loads.. Voltage, the number of outlets, and the expected operating time are equally important, as these factors determine how the power supply can be practically organized on-site. If this method of use is suitable for the intended tasks, the Loncin LC10000D-S power generator allows you to take full advantage of this configuration during regular operation without having to perform unnecessary steps between successive stages. It is also worth noting that the actual result depends on how the device is operated and prepared, as well as on the conditions at the workplace. Regular inspection of consumable parts and using the settings specified in the manual help ensure predictable performance during subsequent tasks.

Technical Specifications for the LONCIN LC10000D-S

• Manufacturer: Loncin
• Model LC10000D-S
• Engine model Loncin LC192FD-1
• Starting power 10,000 W
• Rated power 8,000 W
• Voltage/Frequency 400 V / 230 V / 50 Hz
• Power outlets 1 × 400 V / 16 A, 1 × 230 V / 32 A, 2 × DC, 1 × ATS
• Starter electric + manual
• Copper windings of the generator Yes
• AVR Yes
• Oil Sensor Yes
• Fuel tank capacity 30 liters
• Continuous operating time ok. 7 hours
• Operating time at half load 11 a.m.
• Transport Kit Yes
• Weight 92 kg
• EAN code 5906434279232

Key Benefits for the User

• High power: 10 kW – the ability to power demanding loads and devices with higher inrush current.
• Dual Power 230 V / 400 V – Full power, compatible with single-phase and three-phase devices.
• AVR – more stable voltage and greater protection for connected equipment.
• Copper winding – longer generator life during operation under load.
• Electric and manual start – quick startup and additional security when needed.
• Oil Level Sensor – protection of the engine against operation under conditions of insufficient lubrication.
• Large 30-liter tank – longer runtime without frequent refueling.
• Sturdy frame – protection of the unit during transport and operation.
• Transport Kit – easier to move the device.
• Professional Use – construction, workshops, agriculture, home, business, and field work.

Why Choose the LONCIN LC10000D-S from EWIMAX

When you buy the LONCIN LC10000D-S from EWIMAX, you’re choosing a machine designed for demanding applications, offered by an official distributor and authorized dealer of the LONCIN brand. This is important because when purchasing a generator, it's not just power that matters, but also assurance of origin, access to support, product authenticity, and safety of use.

The LONCIN LC10000D-S is a generator designed for those who demand true reliability: homeowners, construction companies, renovation crews, farmers, repair shops, mobile service providers, and hobby gardeners. Its design combines high power, practical features, robust safety measures, and versatility, allowing the generator to serve as both an emergency power source and a mobile power source for everyday tasks.
