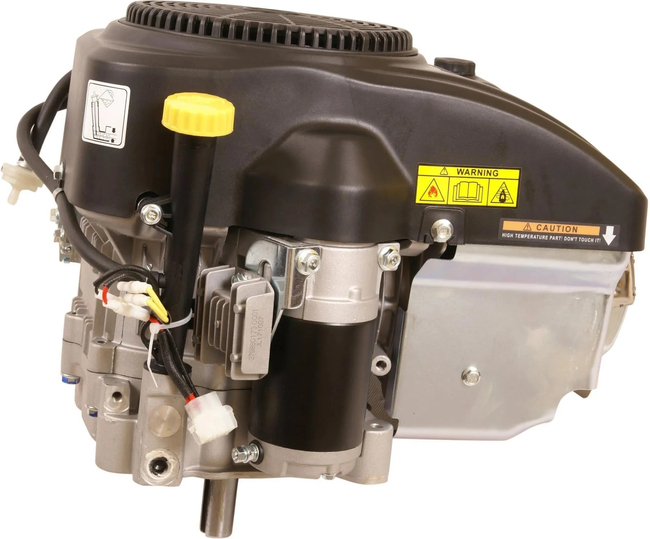

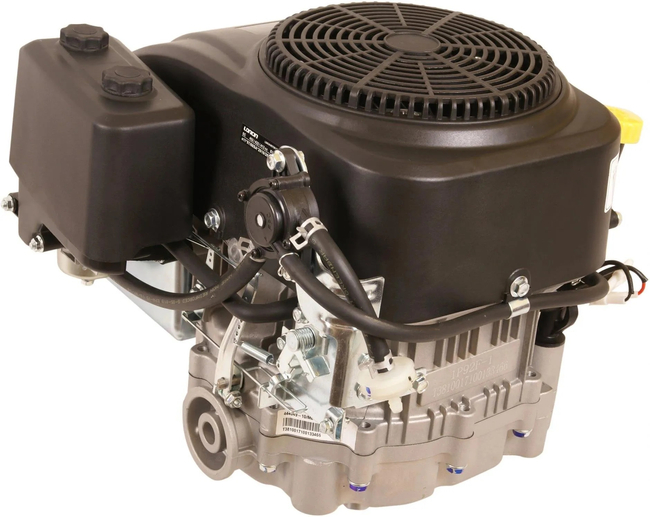

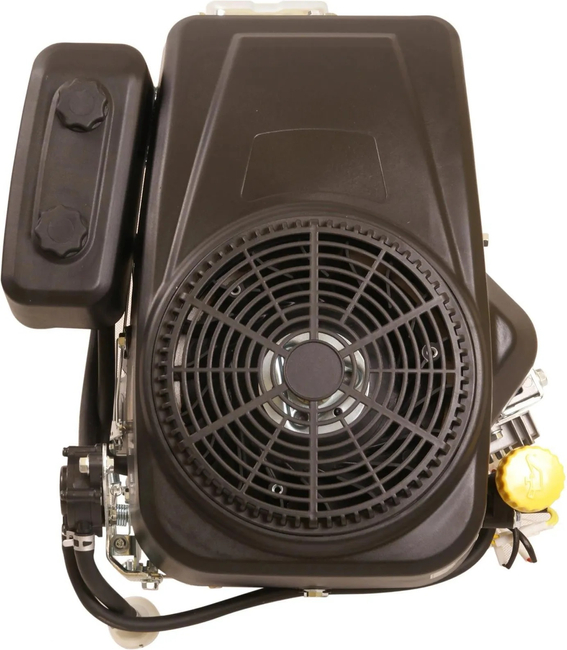

ENGINE LONCIN LC1P92F PETROL ENGINE 1P92 16 hp 452 cm3 / EMAK K1600 / AL-KO Pro 450 / LONCIN 1P92 SINGLE CYLINDRED VERTICAL SHAFT 25,4 mm MOTOR HONDA , VANGUARD , BRIGGS , KOHLER, HUSQVARNA , STIHL, STIGA, CEDRUS, OLEO-MAC, KAWASAKI
- Brand new, brand new, high quality LONCIN petrol internal combustion engine from the factory
- ENGINE LONCIN LC1P92F FOR TRAKTOR SPRINK BENZINIC ENGINE 1P92 16 hp 452 cm3 SINGLE CYLINDRED VERTICAL VALVE SHAFT 25,4 mm MOTOR HONDA , VANGUARD , BRIGGS , KOHLER
LONCIN ENGINE LC1P92F / EMAK K1600 /
AL-KO Pro 450 TO THE TRACTOR SINGLE-CYLINDER PETROL INTERNAL COMBUSTION ENGINE 16 hp vertical shaft 25.4 mm
Version Without Oil Filter and Muffler
One of the largest and most powerful air-cooled single-cylinder engines for garden tractor 16 hp and 22 nm, 452 ccm with electric starter.
Loncin uses modern technology in the production of engines and other products to meet customer demands. Much attention is also paid to environmental issues. The result is the production of fuel-efficient engines, which reduces the financial cost of fuel purchases and reduces carbon dioxide emissions into the environment.
Four-stroke,single-cylinder gasoline engine with power 16 KM is a universal power supply device.
Motor used for lawnmowers with seat, tractors, etc.
For brands: Stiga, Oleo-Mac, AL-KO , Alpina, Mountfield, McCulloch, Husqvarna, Stihl, Viking, Jonsered, Partner, etc.
Trade Names :

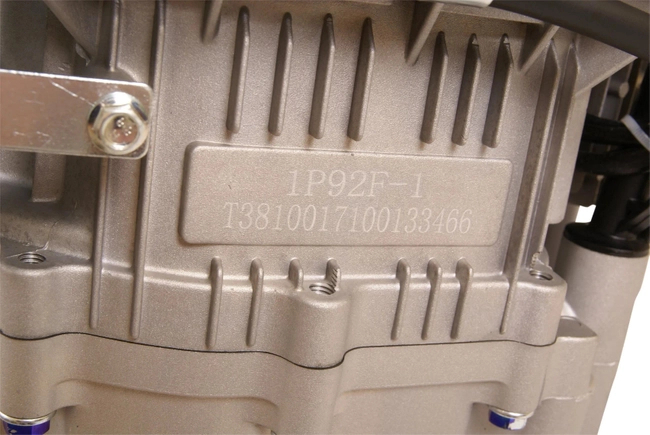

- LONCIN 1P92F MOTOR - LC1P92F-1-A

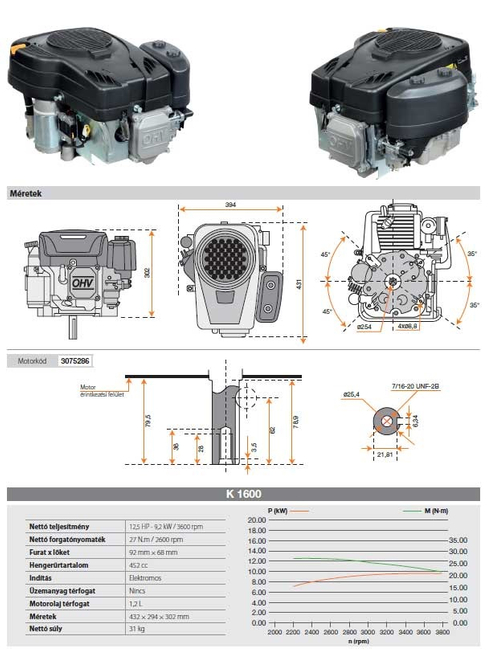

- OLEO-MAC EMAK K1600 AWD ENGINE - SGN482349032L
- AL-KO PRO 450 ENGINE - 464929
Loncin engine is a single-cylinder, four-stroke unit in an overhead-valve configuration, air-cooled.
It is cooled by a forced-air circulation system that has proven itself in practice.

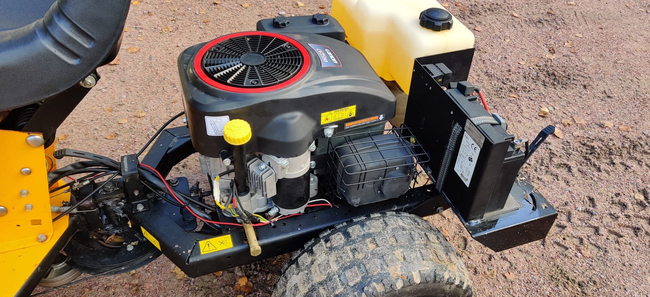

Loncin LC1P92F engine is a 1-cylinder power unit used by many tractor manufacturers. This engine can be found in tractors from Oleo-Mac or SOLO by AL-KO , CEDRUS etc. Very powerful and trouble-free engine with a cast iron sleeve in the cylinder and with a pump .
Your old, worn-out engine needs a major overhaul, the cost of which exceeds the value of the engine? The solution that is easiest and safest for you is to replace the engine with a new one!
Loncin LC1P92F engine is a large, powerful drive motor designed for garden tractors working on larger areas. It has 1 cylinder , and its displacement is 452 ccm. It offers you a maximum power of 16 horsepower at 3,600 rpm. /min and a maximum torque of 22 Nm available at just 2,400 rpm./min.
Cast iron cylinder liners and a bearing-mounted crankshaft significantly extend the life of the engine. The air filter consists of a preliminary and a main part, thanks to which it more effectively captures impurities sucked into the engine's interior.
The fuel pump feeds the carburetor through forced circulation of gasoline in the fuel system. This is important if you have a tractor in which the fuel tank is located at the rear under the seat, because in this situation gravity feeding of the carburetor is not possible!
The mounting bolts have standard spacing, so it will fit in place of your old engine without too much trouble. The external dimensions are: 432x388x300 mm and allow installation under most engine covers. A shaft with a diameter of 25.4 mm and a length of 80 mm is also standard!
The engine runs evenly, smoothly making sounds that are pleasant to the ear. Thanks to the aforementioned high torque and high power, you don't have to worry about whether the tractor can handle mowing dense grass. This motor has been used for many years in top tractor models by the most well-known manufacturers!
Features
- cast iron sleeve with high strength and wear resistance
- efficient cooling system
- economy, low fuel consumption
- high power, high efficiency
- versatile use
- overheating prevention system
- easy to use and maintain
- electric starter - easy start
- 1-cylinder engine - high power and torque
Optimized balancing system , reduces vibration and results in more stable operation.
- One camshaft (OHV) ,best design and lower engine temperatures .
- Massive engine housing , reinforced engine crankshaft makes the engine more reliable and durable.
The best recommendation is the fact that this engine has been installed in tractors from leading manufacturers for many years.
Application:
- Lawn tractors
- Mowers
- Construction equipment
- Gardening equipment
- etc.
PARAMETERS:
- Status - new
- Manufacturer - LONCIN
- Model: LC1P92F
- Power max.: 16 HP
- Engine Capacity: 452 cc
- Engine type: With vertical shaft
- Shaft: 25.4mm x 80mm
- Application: Tractors
- Cast iron sleeve cylinder
- Electric starter
- Alternator
- Voltage regulator

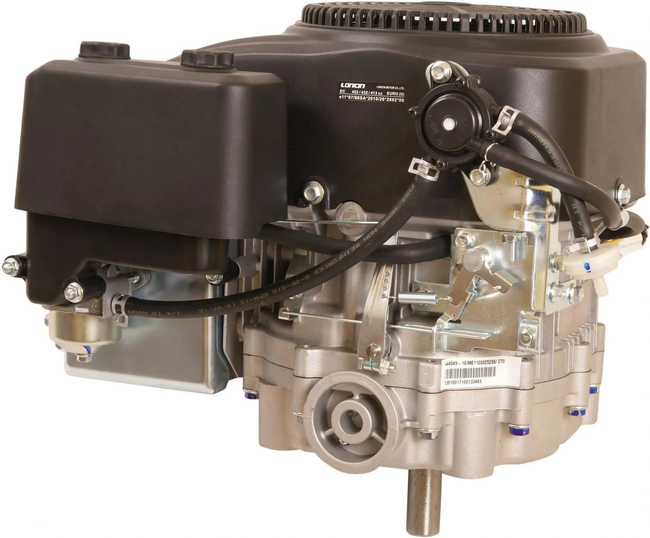

- Fuel pump
- Crankshaft bearing on both sides

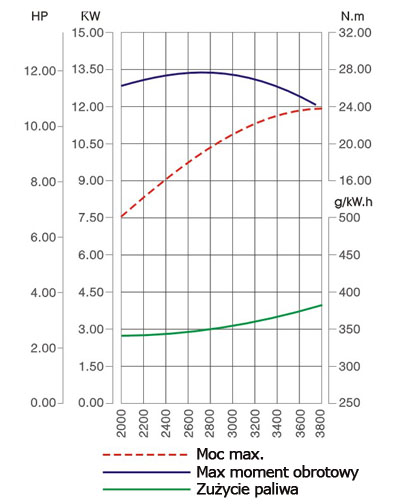

- Max. torque: 22 Nm
- Starter: Electric
- Muffler in kpl.: Not
- Version without oil filter: YES
- Oil sump capacity: 1.2 liters

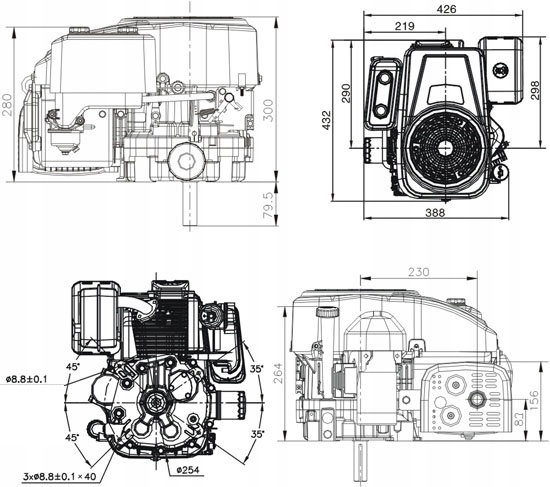

- External dimensions. engines: 432x388x300mm
Number of cylinders: 1 , vertical cylindrical shaft

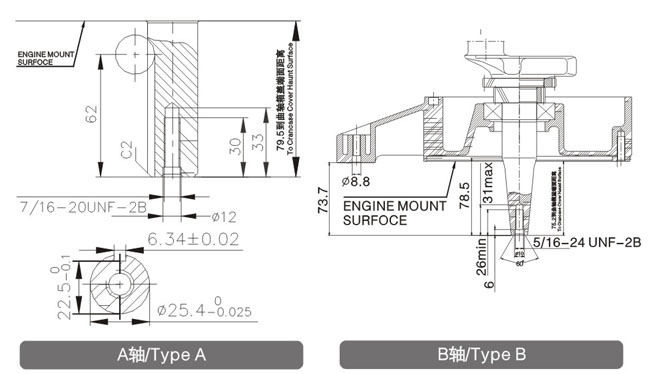

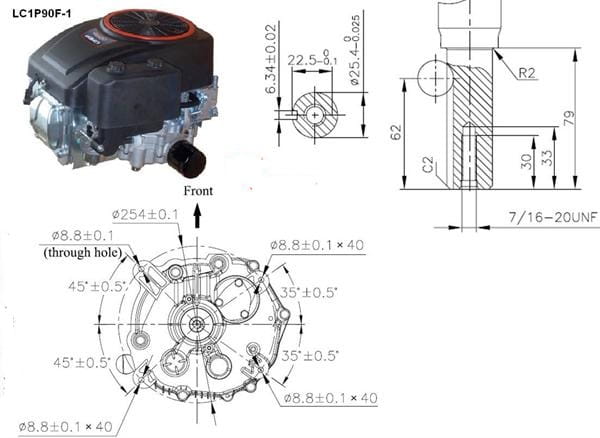

- Shaft type: Vertical cylindrical shaft; length: 80 mm; diameter: 25.4 mm / inch thread 7/16-20UNF depth 30 mm
- Weight: 33 kg
- Cast iron cylinder liner !!
- Starter: electric
Charging coil 130W 11Ah
- Voltage regulator
- Equipment: fuel pump, Euro 5
THE PRODUCT COMES FROM THE OFFICIAL DISTRIBUTION TO THE POLISH MARKET !
NOTE: The LONCIN engine is packaged without oil, so it is necessary to pour oil before the first use and it is recommended to read the instruction manual.
The wedge (keyway) is not part of the engine equipment and is a separate part not assigned to the engine. It is always found in an old engine or tractor.

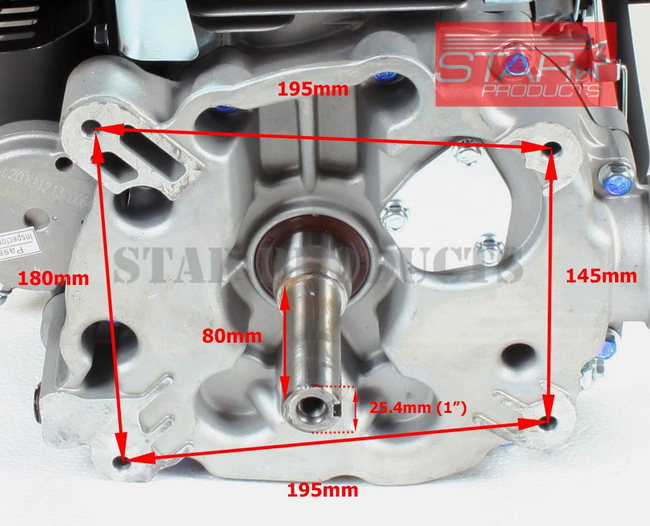

Mounting holes without threads diameter 8.8 mm depth 40 mm (3 x blind, 1 x through)
