MASTERCUT SF200 CONSTRUCTION HAULER GARDEN WHEELBARROW DIESEL DUMP TRUCK

WHEELBARROW MINI TRANSPORTER SF200

Specification:

• rubber front tires 12x3. 5-6 with high tread
• rear wheels with a diameter of 200 mm, rotating 360°
• Width 740 mm
• Gears: 1 FRONT
• Loncin engine with 3.2 hp (2.4 kW), air-cooled
• Engine capacity 139cm³
• manual start
• net torque: 7.5 Nm/2500 rpm
• capacity 90 L
• payload: 200 kg
• oil sump capacity: 0.5L (SAE10W-30)

Versatile, compact and economical motorized wheelbarrow with Loncin gasoline engine. A practical alternative to the traditional wheelbarrow, especially in conditions where you want to avoid heavy body loads. Thanks to its mobility and efficiency, it is an indispensable tool for transporting and unloading materials on construction sites, gardens and other places where easy and efficient movement of heavy loads is required.

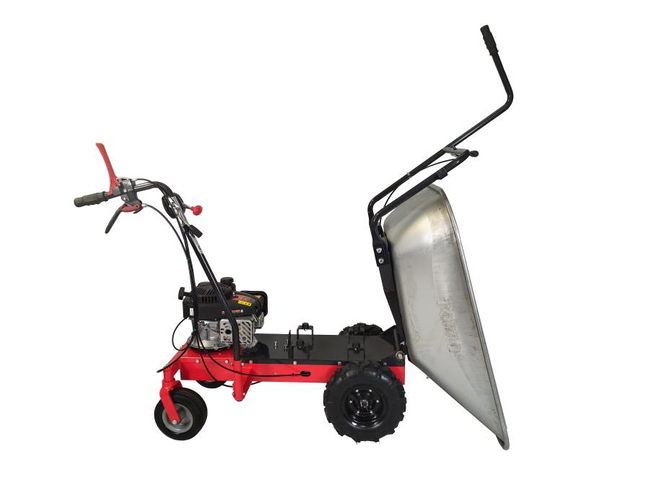

Large loading container, galvanized steel with a capacity of 200 kg and 90 liters. Manual tipping of the container. The left control lever also serves as a handle for tilting the container, allowing tipping and spreading in a controlled manner with plenty of freedom of movement during unloading.

Turning radius limited to 2 meters, thanks to rear wheels that rotate freely 360°. Front axle with differential gear for easy turning.

Compact 3.2 hp (2.4 kW) Loncin 4-stroke gasoline engine with manual starting.

Gears: 1 front + 1 rear. The direction of travel is selected using the large, secure handles on the handlebars. The manual release lever allows the dump truck drive to be disconnected so that it can be moved by hand. When the engine is off, the lever is also used to lock the drive wheels, such as on an incline or when transporting a wheelbarrow. The galvanized container with rounded corners is weatherproof and suitable for transporting wet bulk products such as concrete, mortar, mud and silt, etc. Cleaning is also easy, and dirt, cement and pet food do not stick to the corners. The thickness of the container's sheet metal is 1 mm.

The center pivot point under the dump body allows it to be tilted manually without much effort, even when fully loaded. With a width of only 740 mm, the wheelbarrow can easily pass through exterior and interior doors and other obstacles on the job site. 2 rubber front tires 12x3. 5-6 with high tread, providing good grip on the ground, meadows, construction sites, etc. 2 solid rear wheels with a diameter of 200 mm, rotating 360°. Maximum slope: 20° Maximum side slope 12°.

Notes: Depending on the application and the work to be performed, always choose a safe speed low enough to ensure the safety of the user and the materials being transported. Shifting/selecting gears should be carried out with the engine running, the transmission off and while stationary. The device is delivered in a shipping box and must be assembled before use.

It is important to top up the engine oil before first use. SAE10W30 type oil can be used as engine oil The machine is supplied without engine oil.

The motorized wheelbarrow is equipped with a Loncin brand engine, which has more than 30 years of experience in manufacturing engines of all types. With a Loncin engine, you choose quality at an affordable price. Loncin gasoline engines are rugged, reliable and designed for intensive work in agriculture, construction, industry, sports, etc. The Loncin brand is often chosen as an alternative to Japanese or American brands such as Honda, Robin, Briggs & Stratton, etc. Loncin engine components are developed to meet the strictest European standards.

Technical specifications:
