CERAMIC TILE CUTTER PANSAM A040010

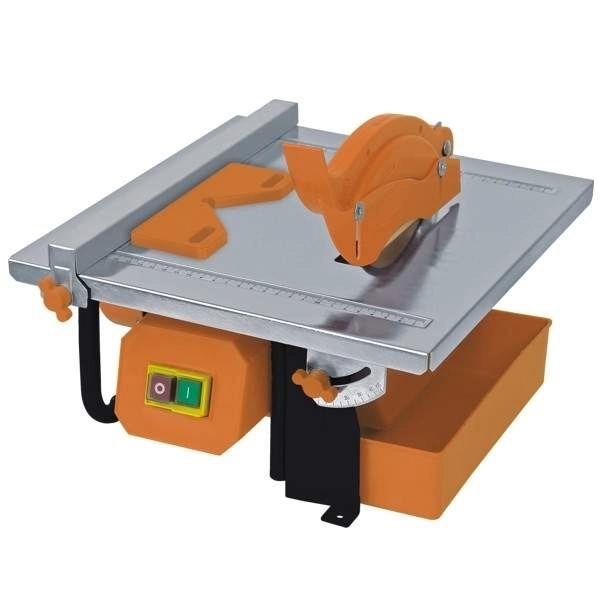

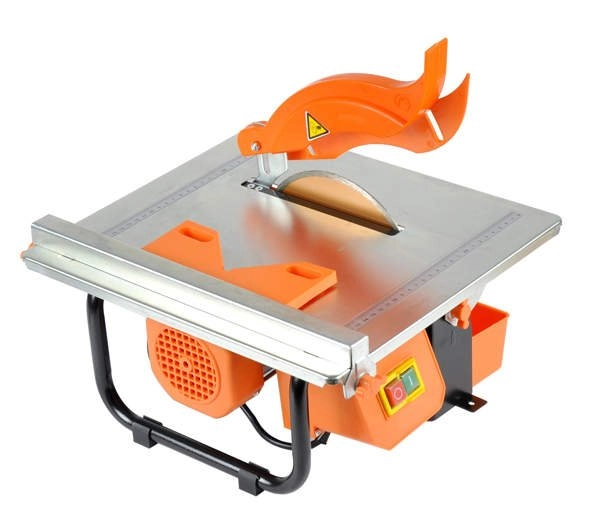

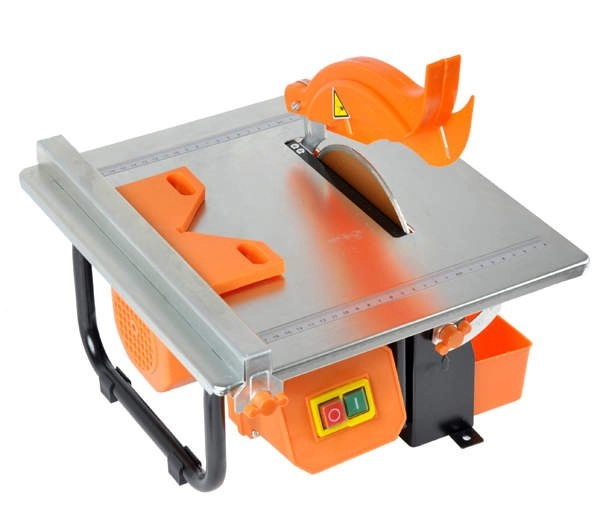

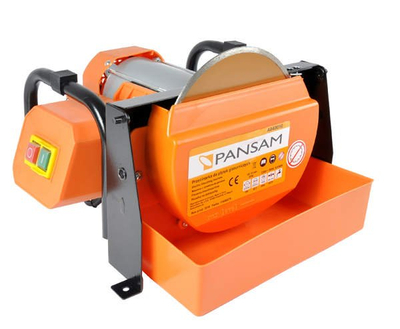

DEDRA cutter PANSAM A040010 with circular diamond saw is a technologically advanced product designed for cutting small to medium-sized ceramic, wall or floor tiles. Wet processing system with water was used here. This eliminates the presence of dust during operation. The machine allows you to perform the basic operations of cutting ceramic tiles: strip cutting,longitudinal cutting of strips, cross-cutting, cutting along the diagonal, bevelling. The machine is factory equipped with a diamond circular saw with a diamond rim diameter of 180 mm, (continuous diamond rim) and a mounting hole of 22.2 mm. As replacement discs, we recommend using DEDRA part number H1134 and H1124. The use of circular saws with a rim type other than continuous or super turbo is absolutely prohibited.

Characteristics:

• DEDRA cutter PANSAM A040010 designed for cutting all types of ceramic tiles.

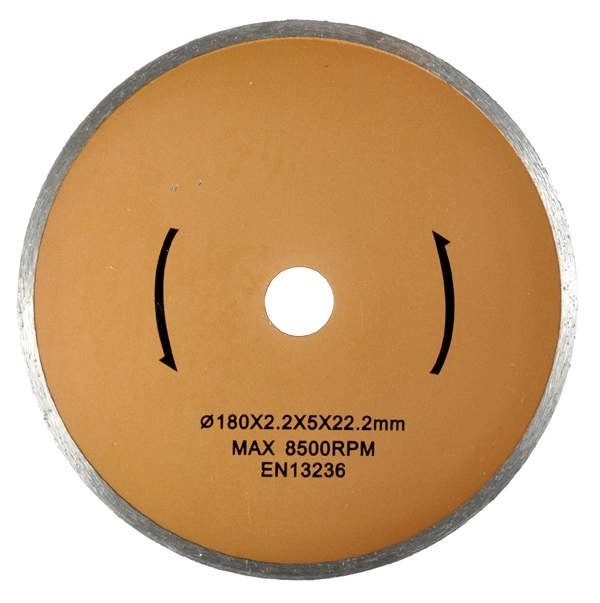

• DEDRA cutter PANSAM A040010 was factory equipped with a diamond circular saw with a diamond rim diameter of 180 mm
• Wet processing system using water as a coolant and dust suppressant.
• The machine allows you to perform basic operations of cutting ceramic parts.

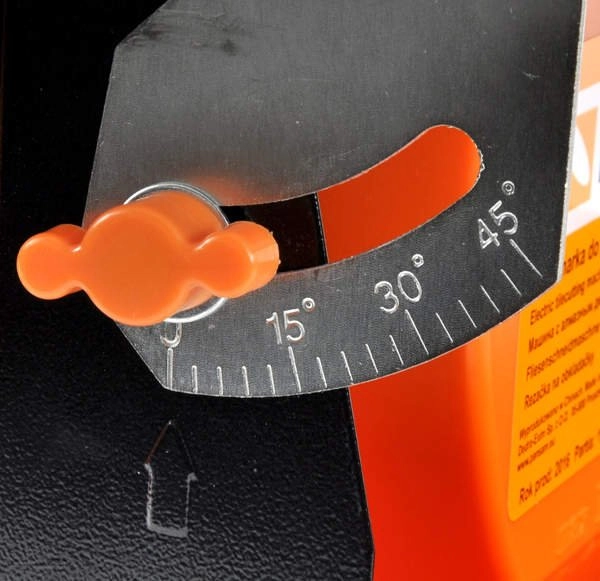

• Work table tiltable from 0-45°
• The machine allows you to perform basic operations for cutting ceramic parts: longitudinal cutting of strips, cross-cutting, diagonal cutting, beveling of edges.

The machine allows you to perform basic operations of cutting ceramic parts:
-strip slitting,
-cross-cutting,
-cutting along the diagonal,
-bevelling.

Technical data:

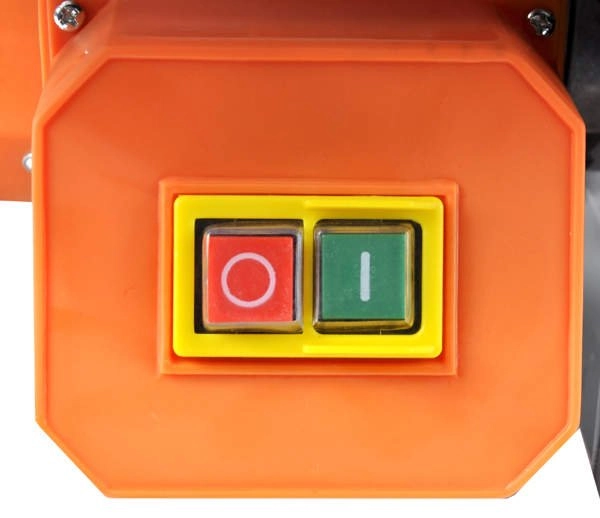

• Single-phase electric motor, with thermal protection
• Operating voltage 230 V 50Hz
• Rated motor power 450W
• Rotational speed 2800 rpm
• Net weight 13 kg
• Water tank capacity 1.5 l

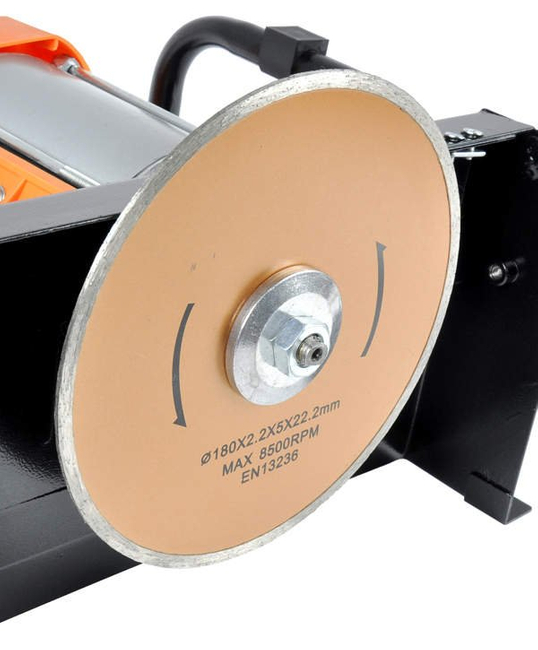

• Diameter of diamond saw blade 180 mm
• Minimum rim width diam. 2.2 mm
• Disc bore diameter 22.2 mm
• Max. thickness of cut material 35 mm

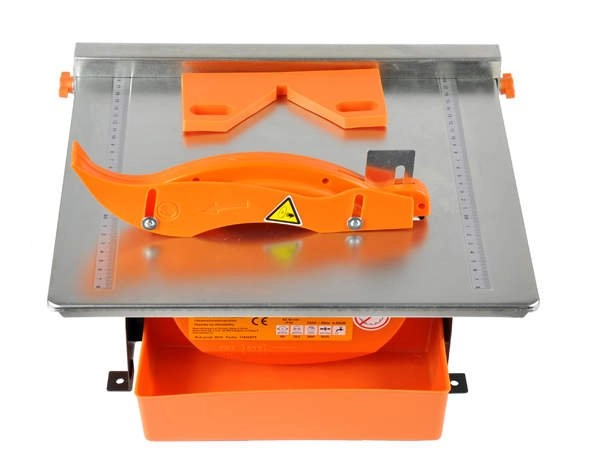

• Work table dimensions 330 mm x 360 mm
• Noise emissions (according to ISO 7960AnexA2/95):
• Sound pressure level 61 dB(A)
• Sound power level 71.2 dB(A)

EAN product code: 5902628001924

Included:

• Ceramic tile cutting machine;
• Plate Guide;
• Water tank
• Positioner for diagonal cutting;
• Diamond circular saw;
• Safety shield

DEDRA is a reputable manufacturer of tools.Brand products DEDRA are characterized by high quality workmanship and reliability. The brand offers a wide range of tools, wood and tile saws, tiling tools and accessories, circular saws and air tools.DEDRA offers comprehensive service in the field of warranty and post-warranty repairs of the product range it offers, and also sells spare parts. Provides customers with technical advice and the fastest possible turnaround times for service orders. DEDRA implements warranty repairs in the 'door to door' system. The product is picked up by a courier and delivered to the company's service center, and after repair it is sent back. Shipping costs are covered by the manufacturer.
