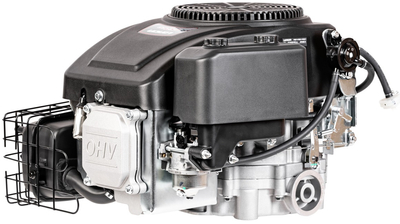

Loncin LC1P92F Tractor Engine, 16 KM, 452 cm³, 25.4 mm Shaft, EMAK K1600, AL-KO 450
- Brand-new Loncin LC1P92F 16 KM 452 cm³ engine with a 25.4 mm vertical shaft for garden tractors. A powerful, single-cylinder OHV engine with a cast-iron liner, fuel pump, electric starter, and alternator. Replacement for the EMAK K1600, AL-KO Pro 450,
LONCIN LC1P92F ENGINE FOR GASOLINE-POWERED TRACTOR 1P92 16 KM 452 cm3 / EMAK K1600 / AL-KO Pro 450 / LONCIN 1P92 Single-Cylinder Vertical Cylinder Block, 25.4 mm Bore; HONDA, VANGUARD, BRIGGS, KOHLER, HUSQVARNA, STIHL, STIGA, CEDRUS, OLEO-MAC, KAWASAKI
LONCIN LC1P92F ENGINE / EMAK K1600 /
AL-KO Pro 450 FOR THE TRACTOR SINGLE-CYLINDER GASOLINE ENGINE 16 KM VERTICAL SHAFT 25.4 mm
Version Without Oil Filter and Muffler
One of the largest and most powerful air-cooled single-cylinder engines for garden tractors, with 16 KM and 22 nm, 452 ccm, and an electric starter.
Loncin uses state-of-the-art technology in the production of engines and other products to meet customer requirements. A great deal of attention is also devoted to environmental issues. The result is the production of fuel-efficient engines, which reduces fuel costs and limits carbon dioxide emissions into the environment.
Four-stroke,single-cylinder gasoline engine with a power output of 16 KM This is a universal power supply device.
An engine used in ride-on mowers, lawn tractors, etc..
For brands such as: Stiga, Oleo-Mac, AL-KO, Alpina, Mountfield, McCulloch, Husqvarna, Stihl, Viking, Jonsered, Partner, etc..
Trade Names:
- LONCIN 1P92F ENGINE - LC1P92F-1-A
- OLEO-MAC EMAK K1600 AWD ENGINE - SGN482349032L
- AL-KO PRO 450 ENGINE - 464929
The Loncin engine is a single-cylinder, four-stroke, overhead-valve, air-cooled engine.
It is cooled by a forced-air circulation system that has proven effective in practice.
The Loncin LC1P92F engine is a single-cylinder power unit used by many tractor manufacturers. This engine can be found in tractors manufactured by Oleo-Mac, SOLO by AL-KO, CEDRUS, and others.. A very powerful and reliable motor with a cast-iron cylinder liner and a pump .
Your old, worn-out engine needs a major overhaul, the cost of which exceeds the engine's value? The simplest and safest solution for you is to replace the motor with a new one!
The Loncin LC1P92F engine is a large, powerful engine designed for use in garden tractors that operate on larger areas. It has 1 cylinder, and its displacement is 452 ccm. It delivers a maximum power output of 16 KM at 3,600 rpm. /min and maximum torque of 22 Nm available as low as 2,400 rpm./min.
Cast-iron cylinder liners and a crankshaft with bearings significantly extend the engine's service life. The air filter consists of a pre-filter and a main filter, which allows it to more effectively trap contaminants drawn into the engine.
The fuel pump supplies the carburetor by forcing gasoline to circulate through the fuel system. This is important if you have a small tractor with the fuel tank located in the rear, under the seat, because in that case, gravity-fed fuel to the carburetor is not possible!
The mounting bolts have standard spacing, so it will fit in place of your old motor without any major problems. The external dimensions are: 432x388x300 mm and can be installed under most engine covers. A shaft with a diameter of 25.4 mm and a length of 80 mm is also standard!
The engine runs smoothly and evenly, producing a pleasant sound.. Thanks to the high torque and power mentioned above, you don't have to worry about whether the tractor will be able to handle mowing thick grass. This engine has been used for many years in the top tractor models from the most well-known manufacturers!
Features
- cast iron sleeve with high strength and wear resistance
- efficient cooling system
- fuel efficiency, low fuel consumption
- high power, high efficiency
- versatile applications
- overheating prevention system
- easy to use and maintain
- electric starter - easy start
- Single-cylinder engine—high power and torque
An optimized balancing system reduces vibrations and ensures more stable operation.
- Single camshaft (OHV), optimal design, and lower engine temperatures .
- The engine's sturdy housing and reinforced crankshaft make it more reliable and durable.
The best endorsement is the fact that this engine has been installed in tractors from leading manufacturers for many years.
Application:
- Lawn Tractors
- Lawn Mowers
- Construction Equipment
- Gardening Equipment
- etc..
SPECIFICATIONS:
- Status - new
- Manufacturer - LONCIN
- Model: LC1P92F
- Max Power.: 16 km
- Engine displacement: 452 cm³
- Engine type: With a vertical shaft
- Shaft: 25.4 mm x 80 mm
- Application: Toy Tractors
- Cast-iron sleeve cylinder
- Electric starter
- Alternator
- Voltage Regulator
- Fuel pump
- Crankshaft with bearings on both ends
- Max. torque: 22 Nm
- Starter: Electric
- Muffler (set).: No
- Version without an oil filter: YES
- Oil pan capacity: 1.2 liters
- External dimensions. engine: 432 x 388 x 300 mm
Number of cylinders: 1, vertical cylindrical shaft
- Shaft type: Vertical cylindrical shaft; length: 80 mm; diameter: 25.4 mm / 7/16-20 UNF thread, depth 30 mm
- Weight: 33 kg
- Cast-iron cylinder liner !!
- Starter: electric
Charging coil 130W 11Ah
- Voltage Regulator
- Features: fuel pump, Euro 5
THIS PRODUCT IS SOURCED FROM AN OFFICIAL DISTRIBUTOR FOR THE POLISH MARKET !
NOTE: The LONCIN engine is shipped without oil, so be sure to fill it with oil before using it for the first time, and we recommend that you read the owner's manual.
The key (groove) is not a component of the engine; it is a separate part not assigned to the engine. It's always found in an old engine or tractor.
Unthreaded mounting holes: 8.8 mm in diameter, 40 mm deep (3 x blind holes, 1 x through hole)
