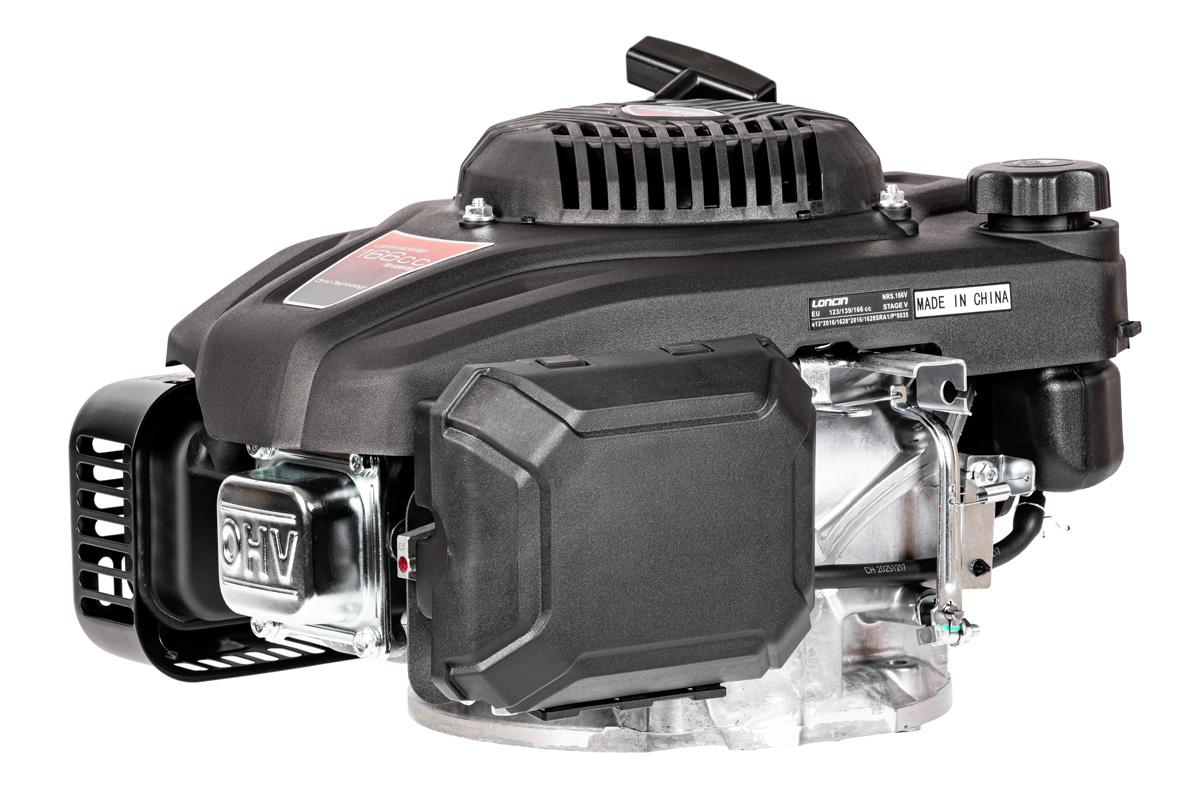

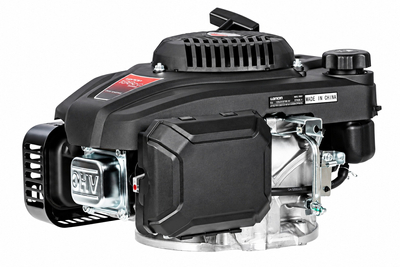

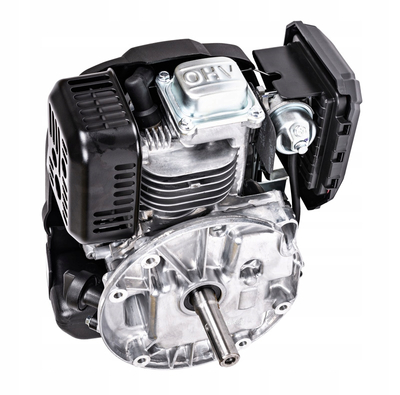

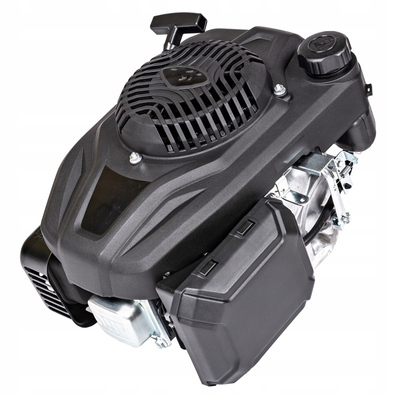

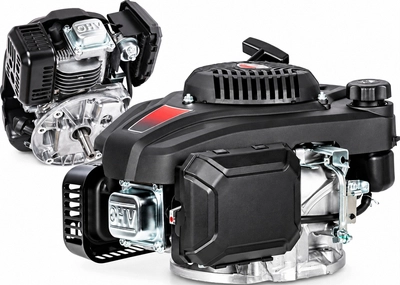

Loncin LC1P65FE-2-B Lawn Mower Motor, Vertical Shaft, Type B, 22.2 mm, 62 mm
- Loncin LC1P65FE-2-B engine for a vertical-shaft lawn mower, Type B, 22.2 mm / 62 mm. 166 cm³ displacement, 2.9 kW power, automatic choke, and paper filter—a reliable choice for repairing or replacing a lawn mower engine.
Loncin LC1P65FE-2-B 166 cm³ engine with a vertical shaft, type B, 22.2 mm / 62 mm – a reliable engine for lawn mowers and gardening equipment
Loncin LC1P65FE-2 vertical shaft engine, Type B, 22.2 mm / 62 mm, LC1P65FE-2-B This is a reliable internal combustion engine designed to power gardening equipment, particularly lawn mowers with a vertical shaft configuration.. This model combines a compact design, practical operating parameters, and ease of use, making it ideal as a replacement or service motor for equipment requiring a vertical shaft with a diameter of 22.2 mm and a length of 62 mm.
This product was designed for users who expect reliability, easy startup, and stable performance during regular lawn care. Thanks to its displacement of 166 cm³, maximum power 2.9 kW at 3,600 rpm./min and maximum torque 9.5 Nm at 2,500 rpm./min, The Loncin LC1P65FE-2-B engine provides sufficient power for mowing grass in home gardens, recreational lots, and green spaces.
Loncin LC1P65FE-2-B Engine with Type B Vertical Shaft – Power, Compatibility, and Ease of Installation
The most important feature of the Loncin LC1P65FE-2-B It is a Type B vertical cylindrical shaft with a diameter of 22.2 mm and a length of 62 mm. This configuration is often used in gas-powered mowers, where the engine is located above the cutting mechanism and transmits power directly to the blade. Properly matching the shaft's diameter and length is crucial for safe installation, proper blade alignment, and stable operation of the entire machine.
The second major benefit is a maximum power of 2.9 kW at 3,600 rpm./min, which ensures efficient operation when mowing grass of varying heights. This engine is well-suited for everyday gardening tasks, such as regularly mowing the lawn around the house, tidying up the yard after a long break, or maintaining the green spaces around the house.
The third advantage is a practical design that makes replacement easier. The motor can be used as a replacement unit in equipment where the previous motor has worn out or failed. Instead of buying a new lawn mower, you can restore your existing mower to working order by selecting a motor with the appropriate shaft type and technical specifications.
What is the Loncin LC1P65FE-2 Vertical Shaft Motor, Type B, 22.2 mm / 62 mm (LC1P65FE-2-B)??
Loncin LC1P65FE-2-B Engine It is a four-stroke internal combustion engine with a vertical drive shaft, designed to power gardening equipment. It is a working component responsible for generating the power needed to rotate the cutting blade or another working mechanism in the machine.
The first key feature of this product is a displacement of 166 cm³, which provides ample power for typical gardening tasks. In practice, this means efficiently mowing the lawn on your property, at your summer home, or on your recreational lot.
Another important feature is maximum torque of 9.5 Nm at 2,500 rpm./min. Torque is particularly important when operating under load, such as when a lawn mower blade encounters thicker grass or a section of more challenging terrain.
The third advantage is the use of automatic suction, which improves ease of use. The user does not have to manually adjust the suction every time the mower is started, which is especially convenient when using the mower frequently during the spring and summer seasons.
What is the Loncin LC1P65FE-2-B engine used for??
Engine Loncin LC1P65FE-2-B is used to power lawn mowers and select gardening equipment equipped with a vertical drive system. Its function is to transfer mechanical energy to the device's working component, most often the cutting blade in a gas-powered lawn mower.
The first typical application is repairing a gas-powered lawn mower. If an old engine has lost compression, runs rough, consumes excessive amounts of fuel, or is not worth repairing, replacing it with a new Loncin engine may be a sensible and cost-effective solution.
The second application is upgrading the device. In many cases, the mower's mechanical components, housing, and drivetrain may still function properly, and the only problem is a worn-out engine. Installing a properly selected unit helps extend the machine's service life and improve working comfort.
The third application is the construction or maintenance of specialized gardening equipment, in which a vertical-shaft motor of a specific size is required. Thanks to its compact size and practical technical specifications, the LC1P65FE-2-B model can be used in service workshops, households, and by users who perform repairs on their own.
Where is the Loncin LC1P65FE-2-B engine with a 22.2 mm / 62 mm vertical shaft installed??
The engine is installed in equipment designed to accommodate an internal combustion engine with a a vertical shaft. Most often, these are gas-powered mowers in which the engine is located above the cutting deck and the shaft points downward toward the blade.
The first requirement for installation is the shaft dimensions must match. This model uses a Type B cylindrical shaft with a diameter of 22.2 mm and a length of 62 mm. Before purchasing, it's a good idea to compare these dimensions with those of the original engine or the machine's technical documentation.
The second important element is adapting the method of mounting the motor to the frame or housing of the device. Proper installation affects operational safety, vibration levels, and the durability of drive components.
The third element is compatibility with the mower's operating system, that is, with a knife, a hub, a clutch, or an adapter. The motor should be installed in accordance with the equipment's technical specifications to ensure stable rotation, proper cutting, and safe operation.
Garden Use – Performance, Durability, and Everyday Reliability
Engine Loncin LC1P65FE-2-B It was designed for intensive seasonal use, when the mower needs to start reliably and operate smoothly for extended periods of time. This is a good choice for users who regularly maintain their lawns and want to be sure the mower will be ready to go when they need it.
The first advantage in everyday use is stable operation under typical loads. The engine performs well when mowing the lawn around the house, along the fence, along paths, or on a plot of land, where the mower often operates in varying conditions.
The second advantage is paper air filter, which helps protect the individual from contaminants. When mowing, dust, grass clippings, and debris are kicked up into the air, which is why effective filtration is crucial for the engine's service life.
The third benefit is its compact design. The dimensions of 385 mm × 340 mm × 250 mm make it easy to integrate the unit into a variety of gardening machine designs, while also providing convenient access to key controls.
Technical Specifications: Loncin LC1P65FE-2-B Engine
Below are the most important technical specifications for the product, which make it easier to select a motor for a specific machine. Before installation, verify that the specifications are compatible with the equipment in which the motor is to be used.
- Product Name: Loncin LC1P65FE-2 vertical shaft engine, Type B, 22.2 mm / 62 mm, LC1P65FE-2-B
- Model: LC1P65FE-2-B
- Manufacturer: Loncin
- Capacity: 166 cm³
- Maximum power: 2.9 kW / 3,600 rpm./min
- Maximum torque: 9.5 Nm / 2,500 rpm./min
- Shaft type: vertical, cylindrical, Type B
- Shaft diameter: 22.2 mm
- Shaft length: 62 mm
- Suction: automatic
- Air filter: paper
- Weight according to the technical specifications: 9.0 kg
- Weight in the product specifications: 7,000 kg
- Dimensions: 385 mm × 340 mm × 250 mm
- EAN Code: 5906434229145
- External system code: LC1P65FE-2-B
Full Technical Description of the Product
Displacement: 166 cm³
Max power: 2.9 kW / 3,600 rpm
Torque. max 9.5 Nm / 2,500 rpm
Type B Vertical Cylindrical Shaft - Diameter. 22.2 mm long. 62 mm
Automatic suction, paper air filter
weight 9.0 kg,
Dimensions: 385 mm × 340 mm × 250 mm
Why Choose the Loncin LC1P65FE-2-B Engine??
When choosing the Loncin LC1P65FE-2-B engine, You get a practical power unit for garden equipment that combines optimal performance, ease of use, and solid construction. This product is designed for people who want to quickly and effectively restore their lawn mower to working order or equip it with a reliable power source.
Key benefits for the user:
- Saving Money – Replacing the engine may be a cheaper alternative to buying a new lawn mower.
- Good operating performance – With a displacement of 166 cm³, 2.9 kW of power, and 9.5 Nm of torque, it ensures efficient work in the garden.
- Convenient operation – Automatic suction makes it easier to start up and use on a daily basis.
- Engine Protection – A paper air filter helps reduce the entry of contaminants.
- Compatibility with a wide range of devices – Type B vertical shaft, 22.2 mm / 62 mm, is suitable for machines that require this design.
- Versatile Applications – This product is ideal for use in a workshop, around the house, in the garden, and on a plot of land.
FAQ – Frequently Asked Questions
Does the Loncin LC1P65FE-2-B engine fit any lawn mower??
Not every. The engine must be selected for a specific mower based on the shaft type, diameter, length, mounting method, and compatibility with the cutting system.. This model has a Type B vertical cylindrical shaft with a diameter of 22.2 mm and a length of 62 mm.
What types of devices can this motor be used with??
The engine is primarily designed for gas-powered lawn mowers and select gardening equipment that require a vertical-shaft engine with dimensions of 22.2 mm / 62 mm..
Does the engine have an automatic choke??
Yes, the Loncin LC1P65FE-2-B model is equipped with an automatic choke, which makes starting the engine more convenient and simplifies daily operation.
What is the displacement of this engine??
The engine displacement is 166 cm³. This is a practical feature for lawn mowers and gardening equipment designed for regular yard work.
What is the power rating of the Loncin LC1P65FE-2-B engine??
The engine's maximum power is 2.9 kW at 3,600 rpm./min, which allows for efficient grass mowing under typical garden conditions.
What to Look for Before Buying?
Before purchasing, check the shaft diameter and length, shaft type, mounting spacing, compatibility with the blade or adapter, and the equipment manufacturer’s technical requirements.
