MASTERCUT HSDT80A2 SPRINEL BLADER 2 speed / 7 hp / 35cm to 80cm

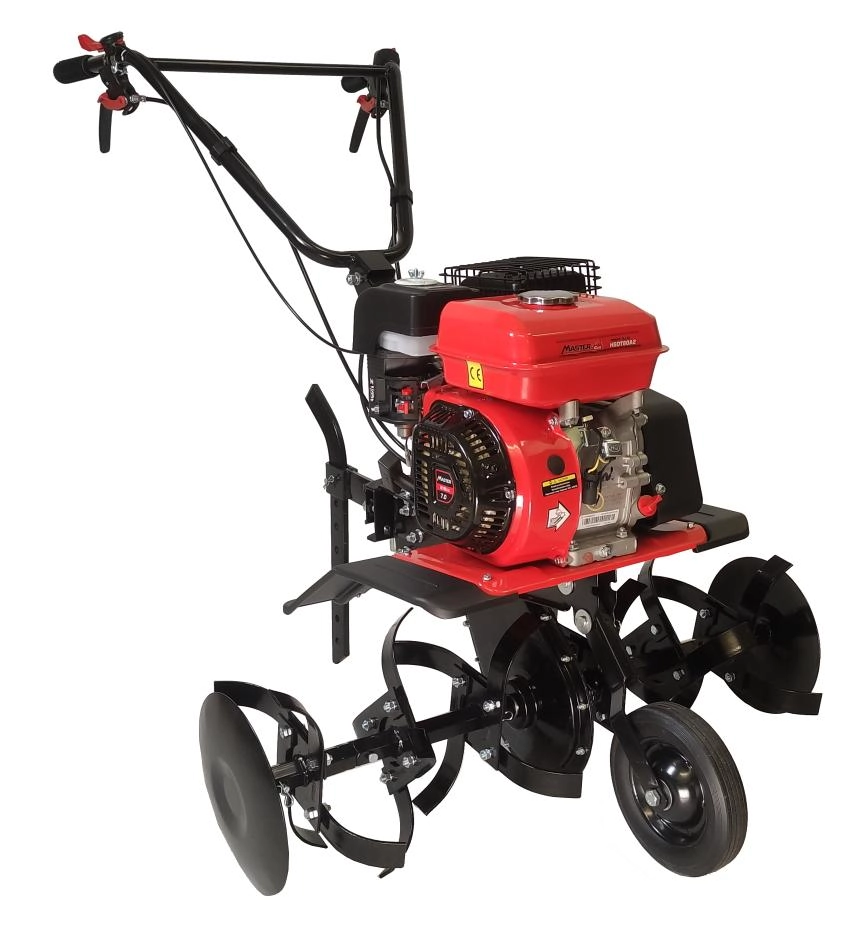

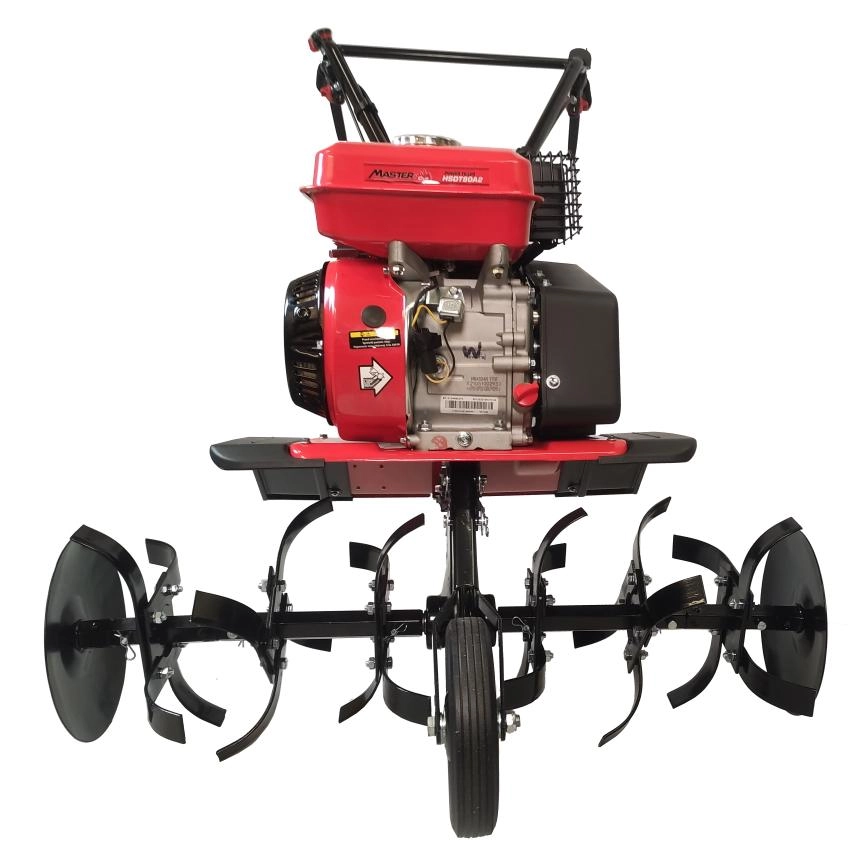

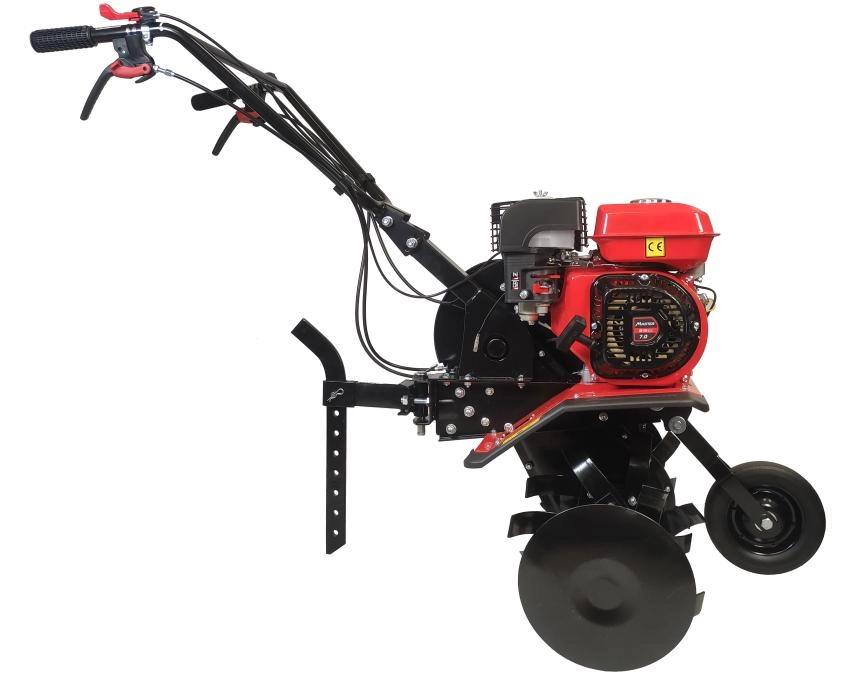

Powerful 7.0 horsepower petrol rotovator Mastercut HSDT80A2 with belt-and-tooth drive transmission. Power transmission to the knives is by means of a chain enclosed in a metal housing. The chain guard consists of two halves, joined by screws, this gives easy access to the axle sprockets and drive chain for maintenance of the unit.

Adjustable working width in three ranges. Widening or narrowing the width of the scarifier unit is done easily and simply without the need for tools. With the maximum number of blades set, the width and work is 80cm. Knives ending in discs that cut the edge of the ground.

Three-range adjustable handles of the tiller will allow to adjust their position to the operator and working conditions. Switching of the knives is done by pressing the levers located in an ergonomic position under the operator's fingers. The gear engagement levers are equipped with protection against accidental engagement of the blades In addition, the handles are made of durable plastic. There is an engine stop button and an engine speed control lever on the handles of the soil planter.

The drive unit of the tiller is a heavy-duty four-stroke engine equipped with an effective wet air filter that meets the latest emission and noise standards. The front transport wheel can be easily tilted upwards when working in the ground.

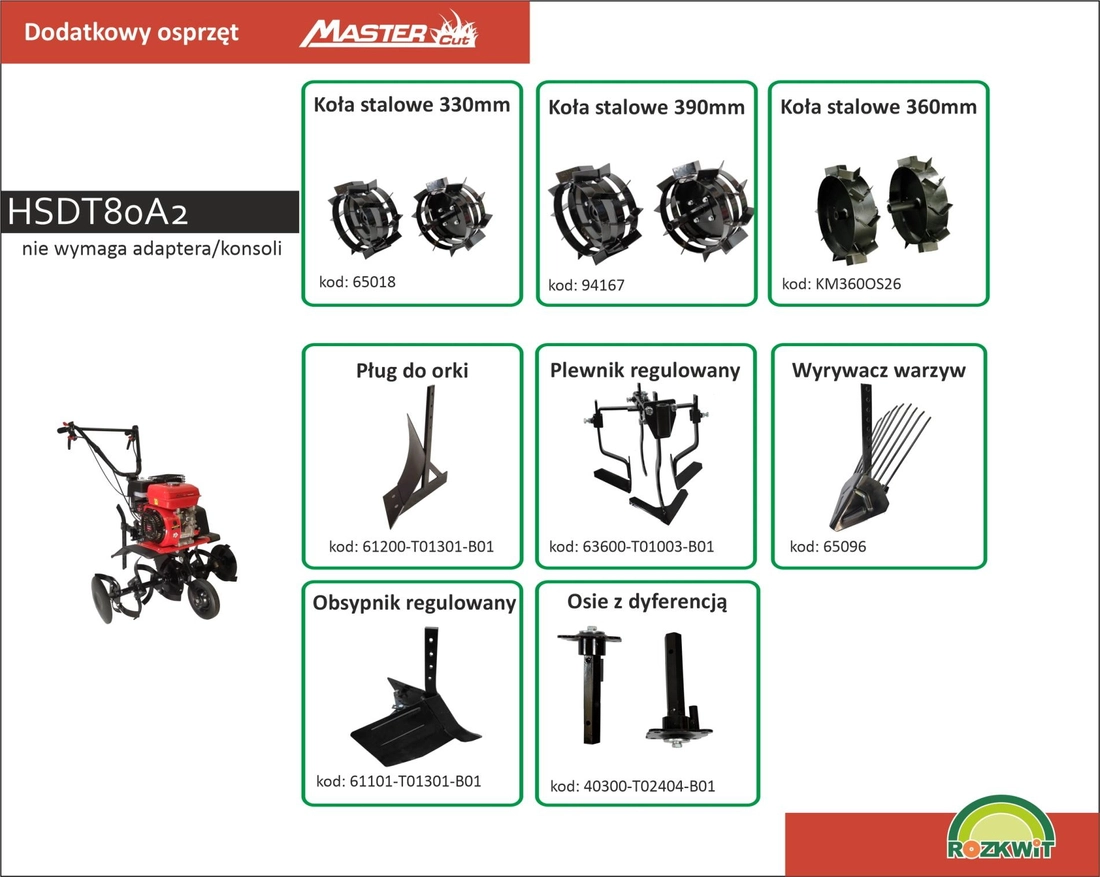

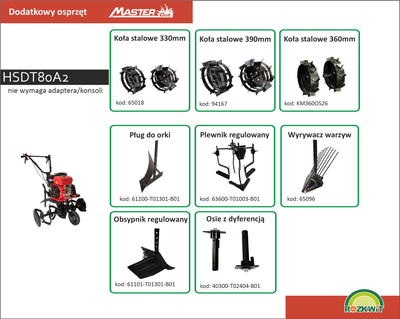

The machine can be retrofitted with additional attachments such as plow for plowing, soil planter, cultivator (chaffer), vegetable puller, metal wheels. Steel wheels are necessary to work with the listed attachments. Soiler in its basic equipment already has consoles / adapter of additional accessories.

Mastercut HSDT80A2 petrol soil planter specification:

• Mastercut OHV engine with wet filter
• Engine capacity 212cm³
• Maximum engine power 7HP
• Working width adjustable 35/65/80cm
• Maximum working depth of 32cm
• Knife drive 1 forward gear 1 reverse gear
• Transmission of the drive to the knives by means of a chain
• Adjustment of the engine speed by means of a handle at the handles
• Vertically adjustable handle
• Front access wheel
• Accessory adapter on standard equipment
• Weight 52kg

* Factory machine not flooded with engine oil. Recommended oil - SAE30, ~0.6L (accurate measurement on the device gauge).

Technical specifications:
