NORTON CLIPPER CS401 P9 SPRINKLING HAND CUTTING BLADES saw for asphalt concrete Ø 400mm 9HP - OFFICIAL DISTRIBUTOR - AUTHORIZED DEALER NORTON CLIPPER

NORTON CLIPPER CS401 P9

PETROL SAW CUT-OFF SAW ROAD MOBILE FOR CONCRETE ASPHALT CONSTRUCTION

Ø 400mm 9KM

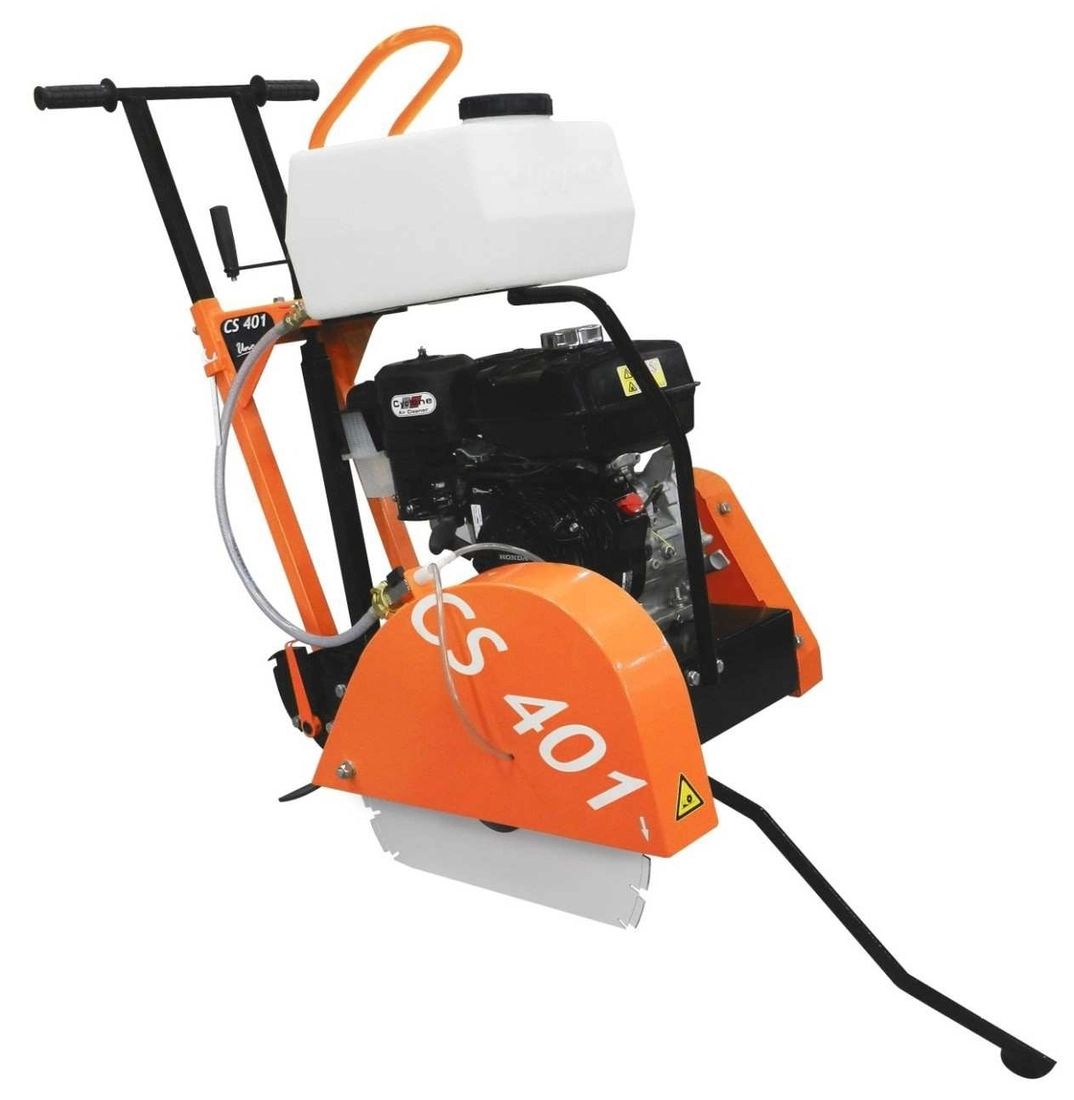

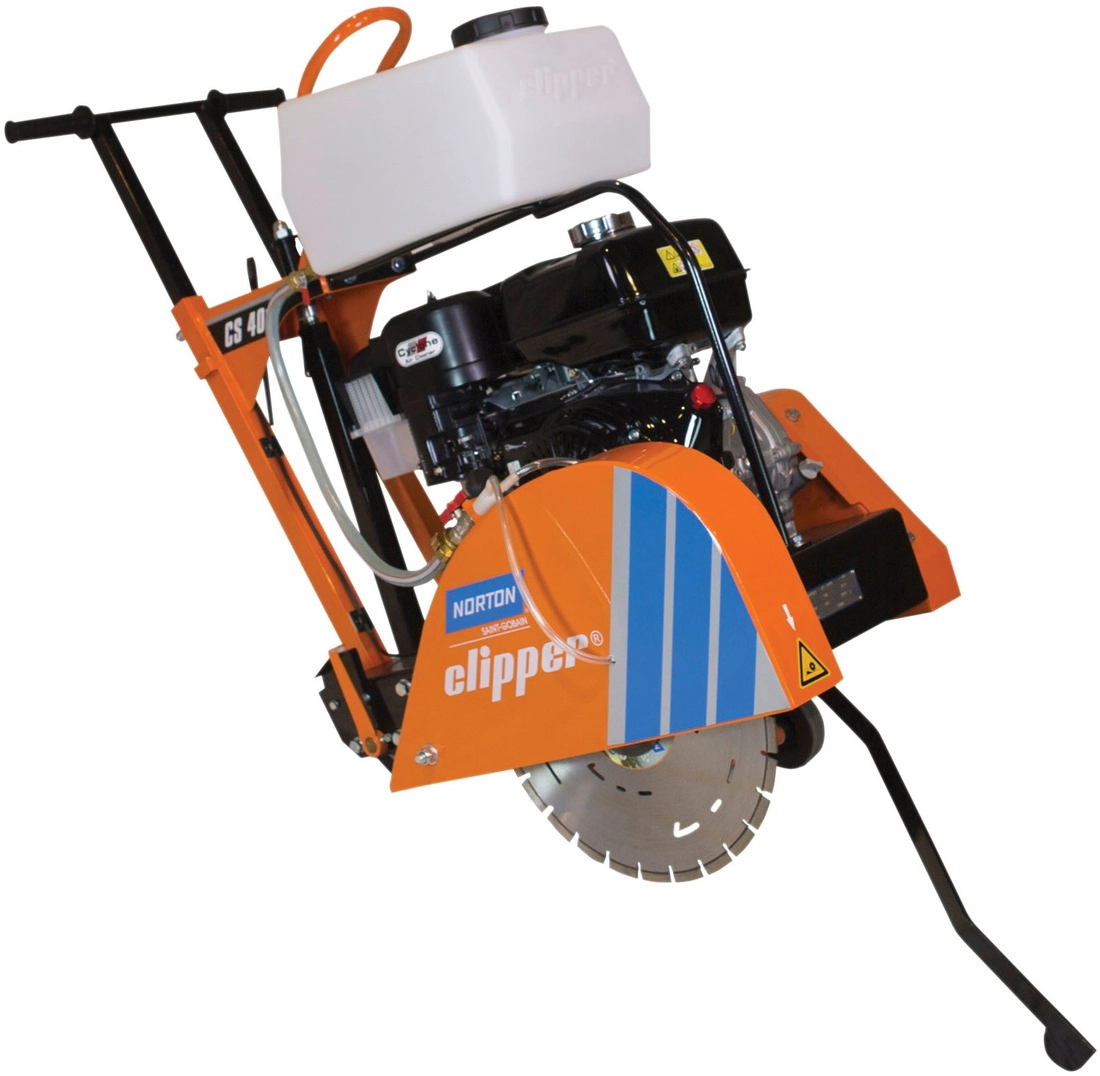

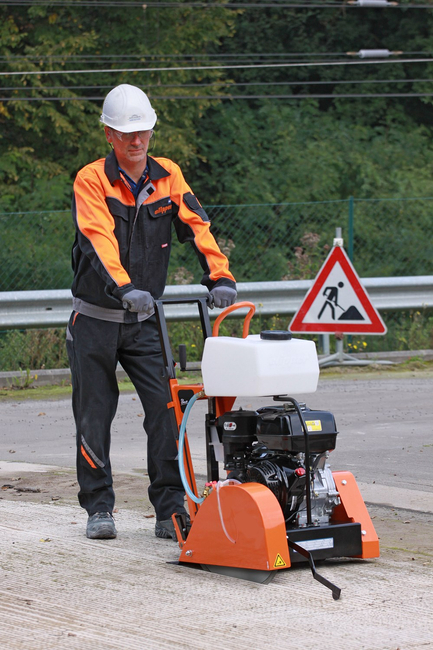

NORTON Clipper CS401 petrol cutting machine is the perfect solution for cutting asphalt and concrete. Equipped with a 9-horsepower HONDA engine, it provides trouble-free cutting at a depth of 145 mm. The design of the machine allows infinite adjustment of the depth of cut, adjustable handle provides comfortable positions even for the tallest operators. The new design is a wide frame and a low center of gravity to increase the stability of the machine. In the 13 hp Version, the engine is additionally equipped with CYCLONE AIR CLEANER which provides extended air filter life, resulting in better engine protection and trouble-free operation. The cutter is equipped with four wheels (two rear larger ones), a cutting guide and a 20 L water tank.

CS401 mobile cutting machine is a device designed for cutting in concrete and asphalt. It will find its use in the course of works related to the repair of roads, sidewalks, but also various repair and finishing works. Available in two versions, mobile The Norton Clipper CS401 Combustion Floor Cutter is suitable for both dry and wet cutting, even in isolated areas. This compact and economical tool is appreciated by industry professionals. Norton Clipper CS401 allows for better directional control and precise cutting depth adjustment. Additional features of this tool include a detachable water tank, as well as a safety-enhancing blade guard. Norton Clipper CS401 Combustion Floor Cutter provides the ultimate in comfort, among other things, thanks to:

• adjustable handle that allows you to maintain an ergonomic working position,
• the sturdy, wide frame and low center of gravity,

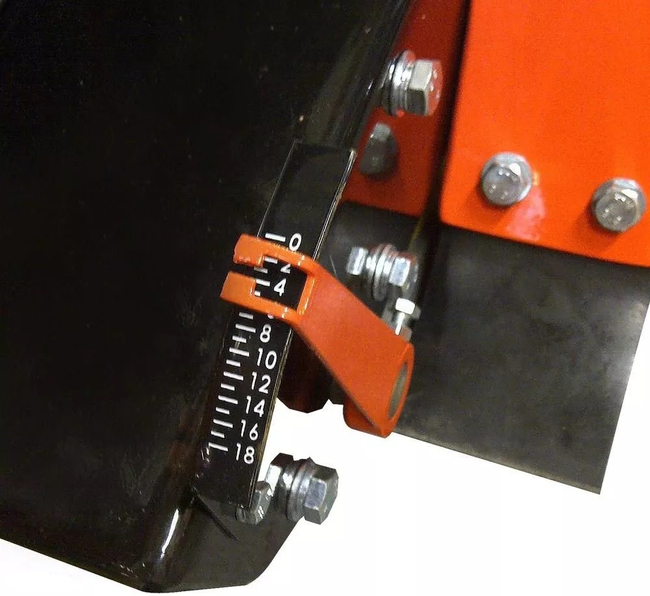

• practical cutting depth indicator.

It is an excellent choice for anyone who cares about a good pace of work and its convenience and safety.

NORTON Features CLIPPER CS401 :

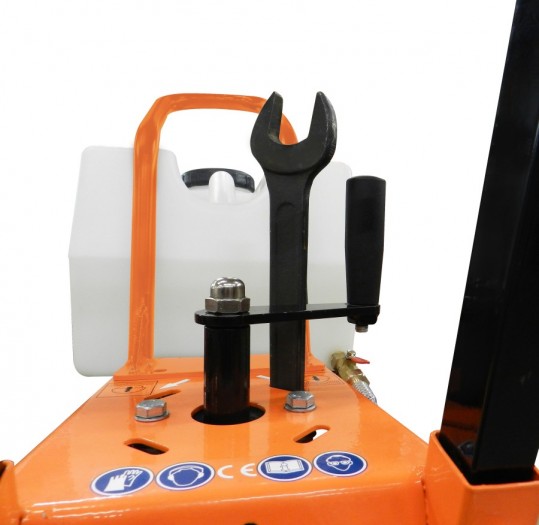

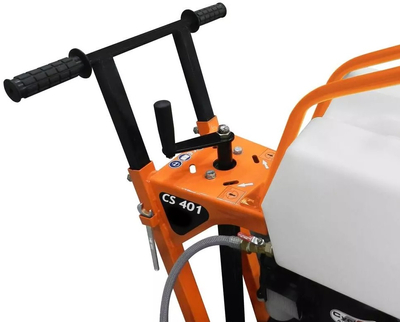

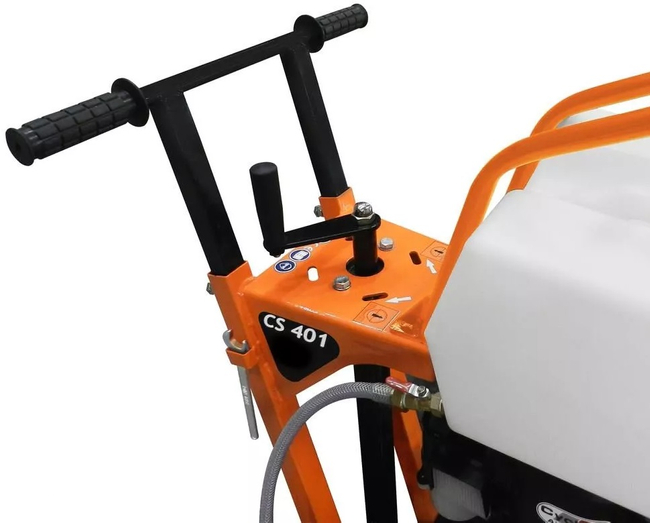

• Crank cutting depth adjustment
• Adjustable handle height at any depth of cut
• Compact
• Sealed wheel bearings

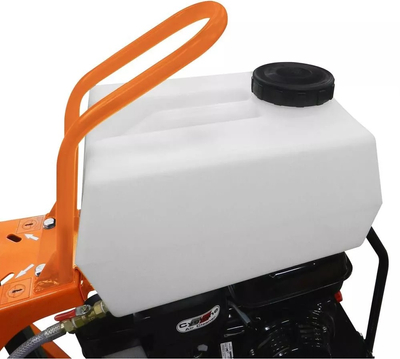

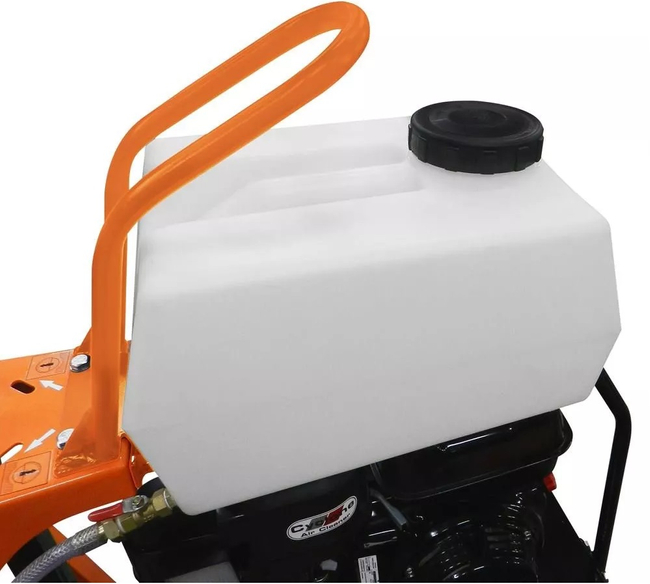

• Removable 20-liter polyurethane water tank
• Cutting guide attached to the machine frame
• Water hose coupling
• Low center of gravity for better control of cutting direction.
• Two alternative versions better suited to user requirements.
• Quick, simple and precise cutting depth adjustment.
• Ease of wet cutting in isolated areas.
• Ergonomic working position.

NORTON Benefits CLIPPER CS401 :

• Better working conditions
• Ergonomic user position
• Great cutting results
• Possibility of wet cutting even far from the water supply
• User-friendly
• Helps the user maintain a straight and accurate cut
• Quick, easy and accurate setup
• Easy loading and transportation
• Easy cutting along the open trench
• Reliability
• Ease of maintenance
• Security
• Durable, wide frame.
• Available in 2 versions: with a 400 mm blade guard and 9 HP power and with a 450 mm blade guard and 13 HP power.
• Depth control with dial and counter.
• Detachable polyurethane water tank with a capacity of 20 l.
• Adjustable handle.

Technical specifications NORTON CLIPPER CS401 :

• PART NO:70184647624
• EAN:5450248563631
• Engine type: Combustion [gasoline]
• Engine power: 9 KM
• Engine manufacturer and model: Honda GX 270
• Turnover: 2600/min
• Maximum depth of cut: 145 mm
• Disc diameter: 400 mm (maximum)
• Disc mounting hole diameter: 25.4 mm
• Sound power level: 100 dB(A)
• Sound pressure level: 84 dB(A)
• Water tank capacity: 20 l
• Startup: Manual
• Feed rate: Manual
• Hand/arm vibration: 3.75 m/s²
• Length x width x height: 1180 x 650 x 1000 mm
• Weight: 93 kg
• Cutting depth max.: 145 [mm]
• Disc diameter max.: 400 [mm]
• Asphalt Disc : NORTON CLIPPER-CLASSIC ASPHALT 400-10X3.2 / 70184626880 additionally in option
• Concrete Disc : NORTON CLIPPER-CLASSIC CONCRETE 400-10X3.2 / 70184626873 additionally in option

NORTON Application CLIPPER CS401 :

• For wet as well as dry cutting of concrete and asphalt
