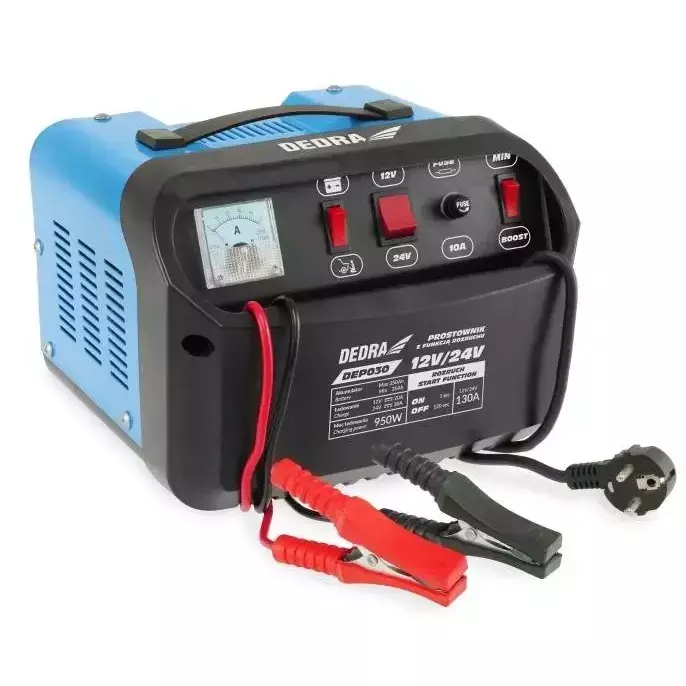

RECTIFIER WITH STARTER DEDRA DEP030 12/24V 20-350AH

DEDRA DEP030 12/24V 20-350Ah rectifier with starter

The DEP030 rectifier is a device designed to charge lead-acid batteries with a voltage of 12/24Vi capacity of 20-350Ah and free-flowing electrolyte, which are used in motorcycles, cars, vans, yachts, etc. The DEP030 charger can operate in "BOOST" fast charging mode. The use of this mode is advisable when fast charging of batteries is required.

The "START" function with which the charger is equipped is used to start a completely discharged battery.

In order to use the start-up function, you need to:

• set the switch to the start position
• set the charging voltage switch to the appropriate battery voltage value
• perform a quick charge for approx. 10 minutes according to the mode described on the panel (3 seconds of charging, approx. 120 second interval, 5 cycles)
• turn the key in the ignition of the car

Commissioning should be done with strict adherence to the procedure given above.

Before starting from a charger, read the vehicle manufacturer's recommendations.

Features of the DEP030 starter rectifier:

• BOOST function - fast charging
• START function - start-up
• Current indicator
• Cable pocket
• Compact housing
• Sturdy transport handle

Technical specifications of the DEP030 starter rectifier:

• Supply voltage: 230V
• Frequency: 50kHz
• Charging power: 950W
• Output voltage: 12/24V
• Output current: 25/30A
• Minimum battery capacity: 20Ah
• Maximum battery capacity: 350Ah
• Current protection: 10A
• Fast charging mode: YES
• Start-up mode: YES

Completion:

• Rectifier
• Spare fuses
