MEASURING TOOL KIT: CROSS LASER GREEN + LASER RANGEFINDER 40M DEDRA MC0920 LASER RANGEFINDER MEASURING DEVICE LASER MEASURE

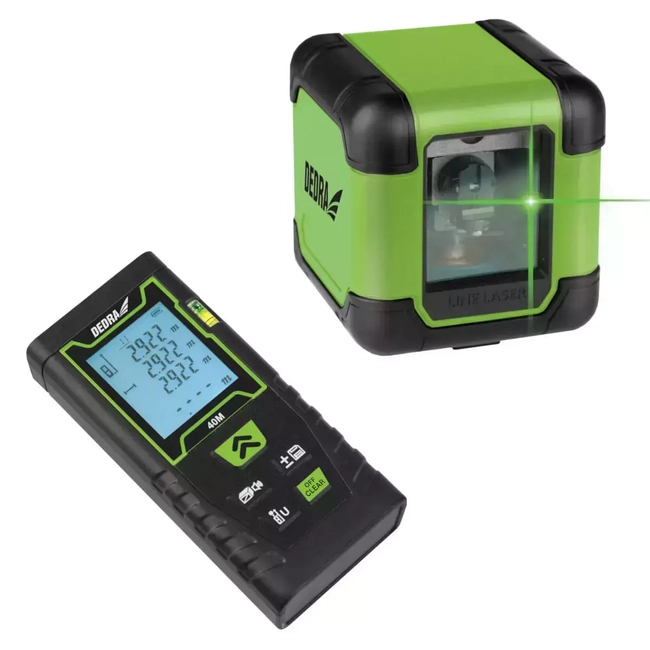

The DEDRA MC0920 measuring tool set, consisting of a laser spirit level and a laser rangefinder, is a complete solution that allows you to carry out a number of precise works.

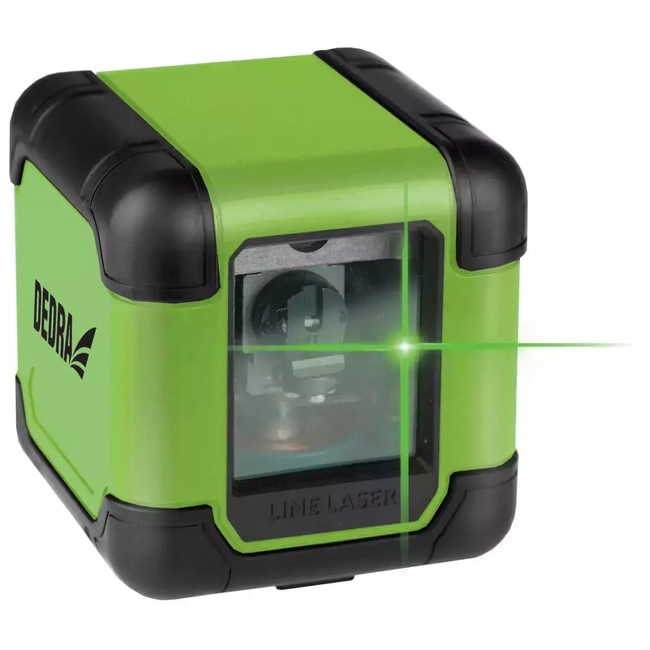

DEDRA MC0920 laser spirit level is a tool that will find use not only during renovation and construction work, but will also prove useful when decorating walls or hanging cabinets. The laser will allow us to automatically delineate the cross line. The laser range of this model is 30m. The laser has a 4° self-leveling system, which allows us to work without having to manually calibrate the laser. Robust housing protects the laser from accidental damage. The use of a branded diode from OSRAM ensures excellent visibility of the beam even in sunlight - the green color of the laser beam.

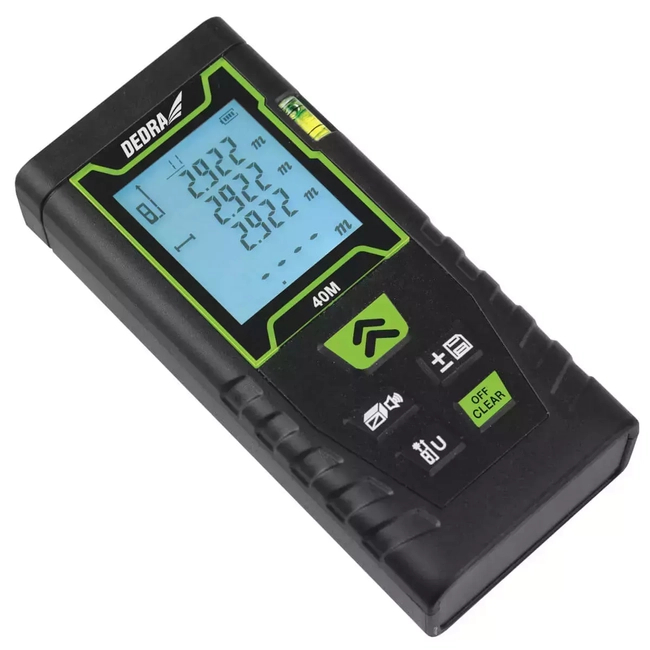

Laser rangefinder MC0920 is the ideal tool for DIY enthusiasts or repair crews.

Thanks to the laser beam, it is possible to take quick and precise distance measurements from surfaces of interest, such as doorway, window, wall distance. With built-in functions to calculate volume, area, etc. work becomes much faster and without unwanted mistakes. Using automatic trigonometric functions, the laser rangefinder makes it possible to calculate the height of a pole, for example. This is a useful and accurate method of measurement if the component to be measured does not have a point that we can measure, such as the ceiling, or a stand-off flange. We measure the distance to the base and, without changing the position, the distance to the top of the element. The device itself will calculate the height of the element from the obtained data.

The measurement range of the laser rangefinder is from 5mm to 40m with sensational precision of ±3mm/10m gives a very high accuracy compared to standard measurement methods, and the measurement time is incomparably shorter. In case of high sunlight, it is worth using the included reflective plate, which facilitates measurement in such conditions, and also allows measurements on mirrored, glass, highly light-absorbing and other surfaces on which direct measurement with a laser beam would be impossible.

The device is powered by two small sticks (2xAAA), which are enough to take 8,000 measurements.

Features of the level, cross laser DEDRA MC0920:

• Long range of the laser beam
• Self-levelling system
• Long working time - 6h
• Adapted to work with magnetic holder
• Deviation alarm
• Self-leveling system lock

Technical data of the level, cross laser DEDRA MC0920:

• Device power: 0.9mW
• Laser range: 30m
• Beam color: green
• Number of LEDs: 1
• Planes: cross
• Laser class: II
• Mounting threads: 1/4"
• Power supply type: 4xAA
• Self-leveling range: ±4°
• Accuracy: ±3mm/10m
• Protection class: IPS54

Features of the DEDRA MC0920 laser rangefinder:

• Large laser beam range of 40m
• Precision optics
• High measurement accuracy: ±3mm/10m
• Two reference points (forehead or base of the rangefinder)
• Six functions:

  • continuous measurement
  • area measurement
  • volume measurement
  • trigonometric functions
  • addition/subtraction
  • minimum/maximum
• Ability to store 99 measurements in memory
• Ability to change measurement units (meters, inches, feet)
• Battery life 8000 measurements
• Automatic backlight off after 15s, rangefinder off after 2.5min
• Calibration function within +/-9mm
• Built-in vial
• Six-line display

Technical specifications of the DEDRA MC0920 laser rangefinder:

• Device power: <1mW
• Laser range: 40m
• Measurement range: 0.05m-50m
• Beam color: red
• Laser beam length: 635nm
• Laser class: II
• Power supply type: 2xAAA
• Accuracy: ±3mm/10m
• Protection class: IP54

Completion:

• Rangefinder

  • User manual (1 pc)

  • Package (1 pc)
  • Reflective plate (1 pc)
• Cross laser

  • Magnetic holder (1 pc)
  • Batteries (1 kpl)
