MAAD ZB-1.5 GROOVING MACHINE FOLDING MACHINE SHEET METAL FOLDING MACHINE

GROOVING MACHINE GROOVING MACHINE MAAD ZB-1.5

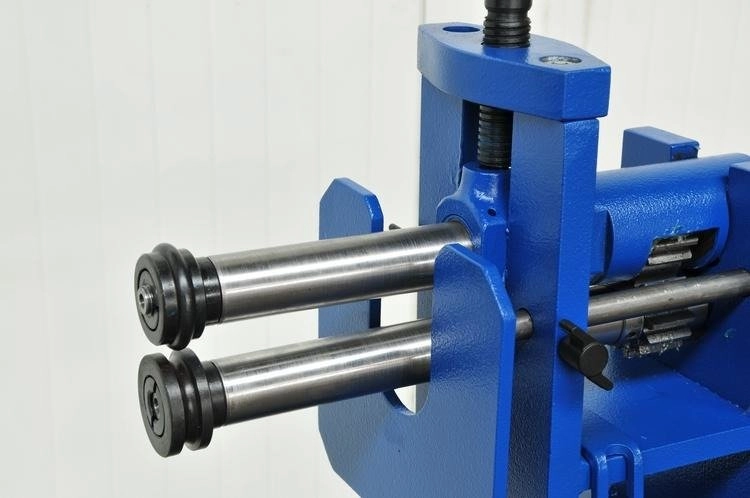

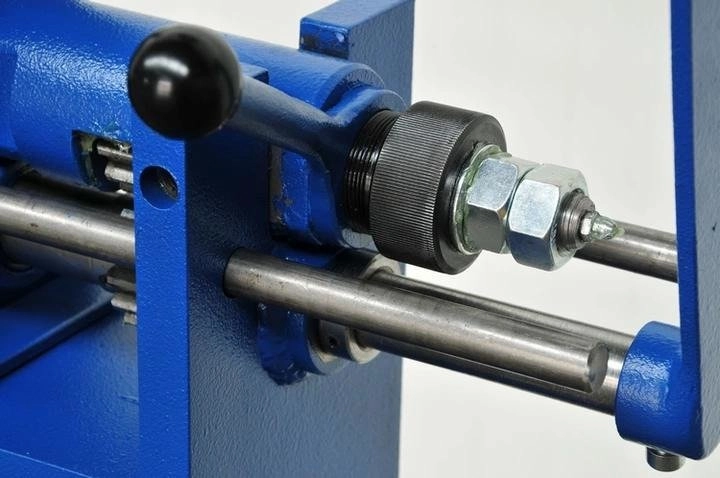

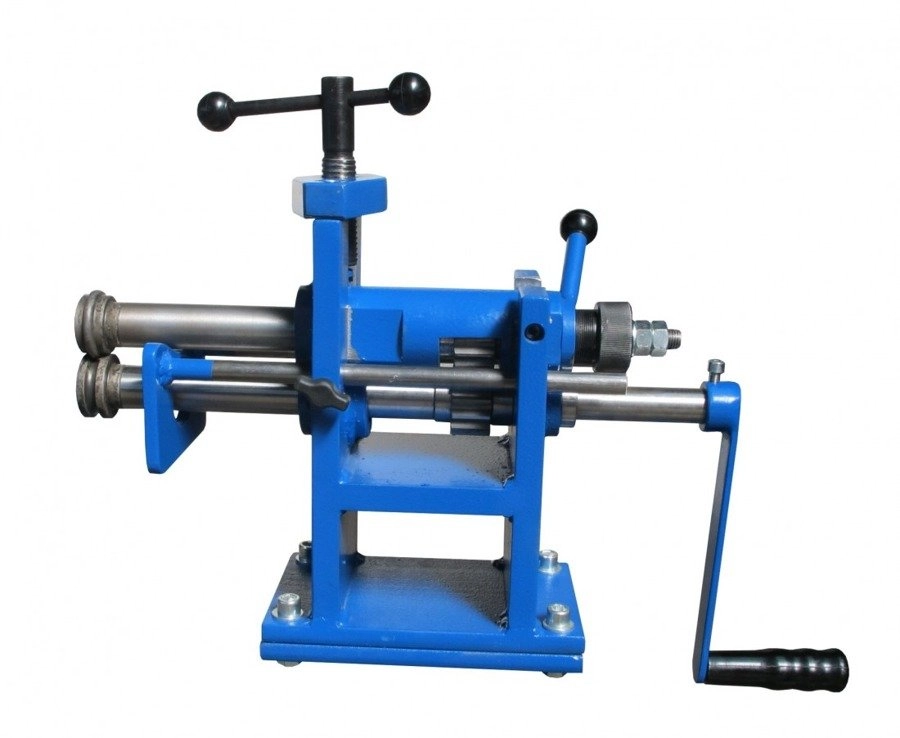

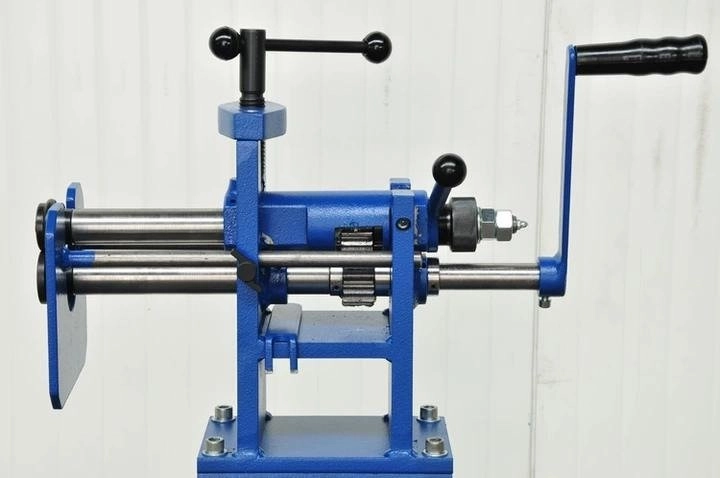

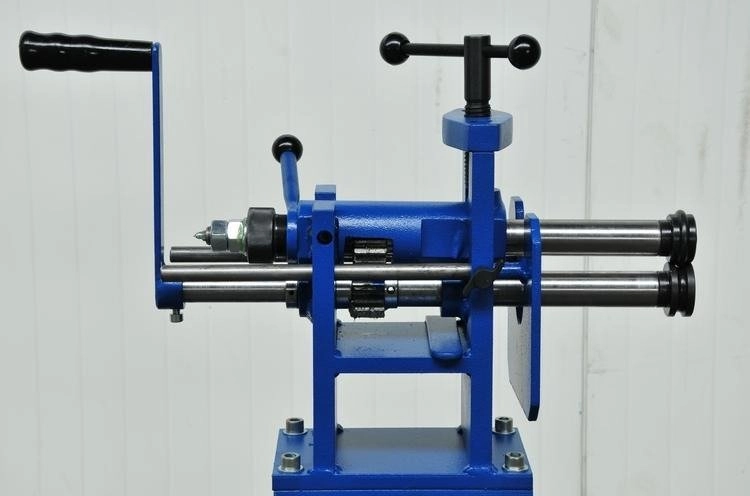

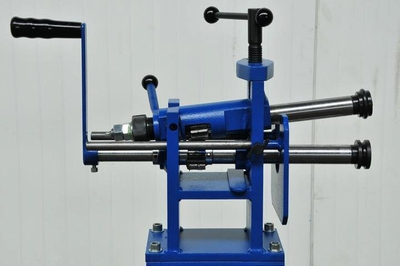

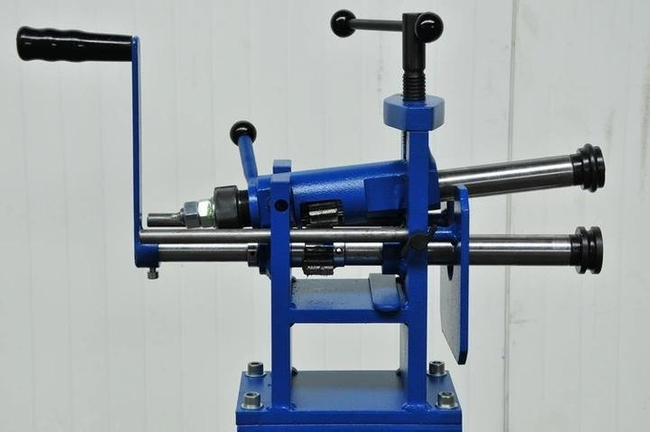

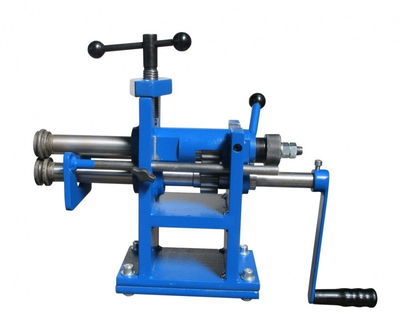

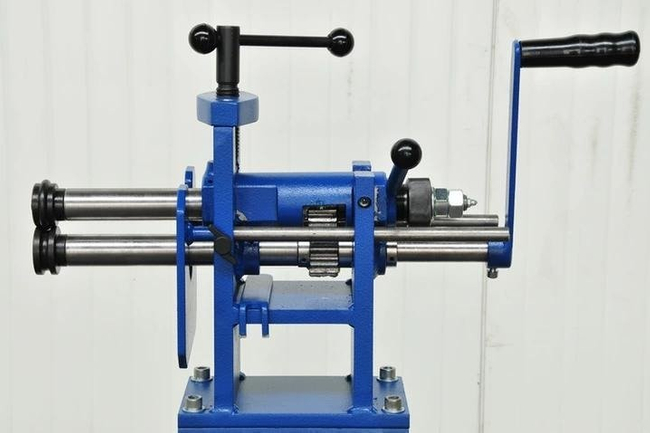

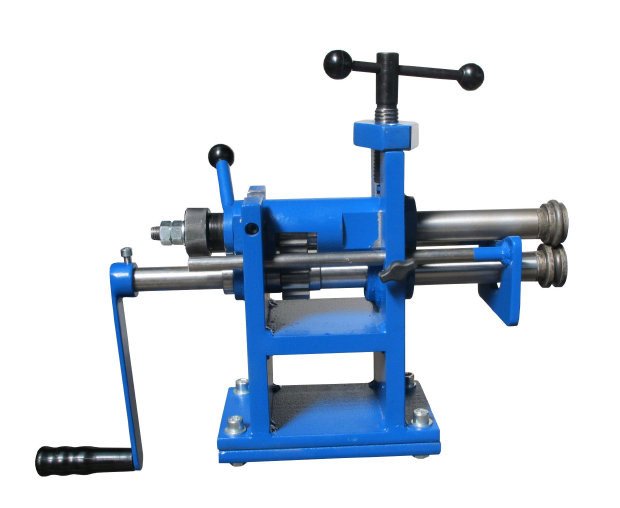

Gouging machine ZB-1.5 is used for gouging, curving, folding and bending of all kinds of metal sheets up to 1.5 mm thick. The working elements of the gouging machine are sets of rollers mounted on rollers. Each set of rollers makes a different profile out of sheet metal. Rollers are mounted on two rollers. Adjusting the distance between the two rollers and the longitudinal displacement of the top roller relative to the bottom roller affects the shape of the profile of the gouged plate. Gouging machine ZB-1.5 is a device used for processing steel sheets up to 1.5 mm thick, copper, aluminum, etc. Ideal for bending the edges of sheet metal, crimping them or spinning them out. The broad spectrum of performance ensures application in a wide range of industries from sheet metal work for renovation, to finishing gutter system components, and all kinds of ventilation fittings.

Technical parameters/equipment:

• working depth - 150 mm
• max. thickness of processed sheet - 1.5 mm ( for Rm<400MPa )

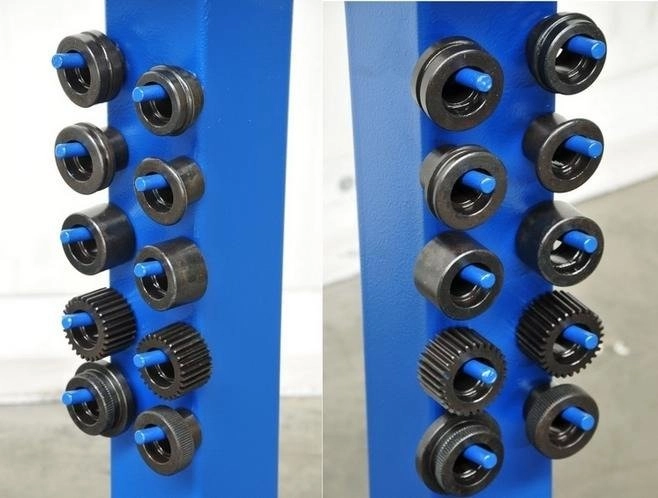

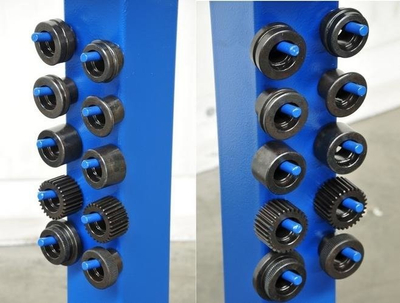

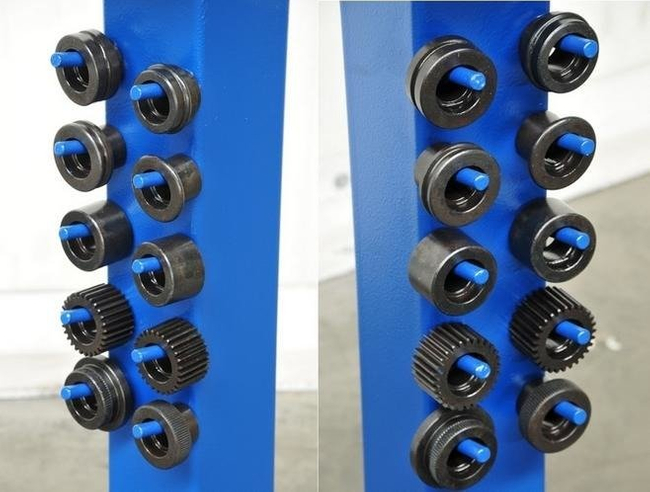

• 6 sets of work rollers included
• sheet guide included
• Stand in additional Option

Gabarities:

• height - 380 mm
• width - 220 mm
• length - 560 mm
• weight - 35 kg

The work rollers are made on a CNC lathe which ensures high dimensional accuracy.

Gouging machines of our production have been successfully used for many years both in small sheet metal workshops and in serial production, for example, in companies in the ventilation industry.

The grooving machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.

The price quoted is the GROSS price of the crimper without the stand.

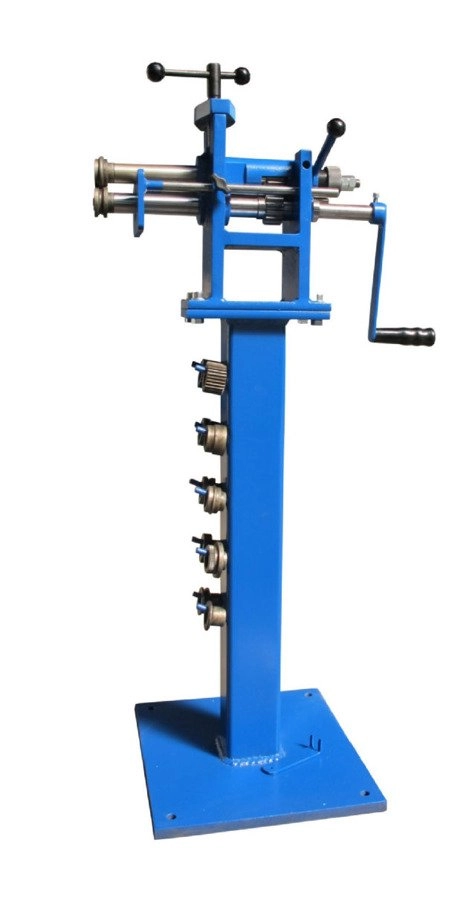

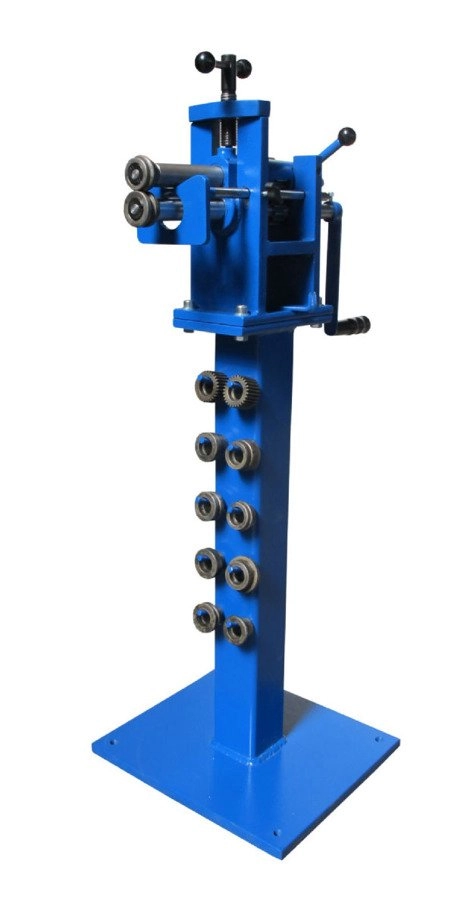

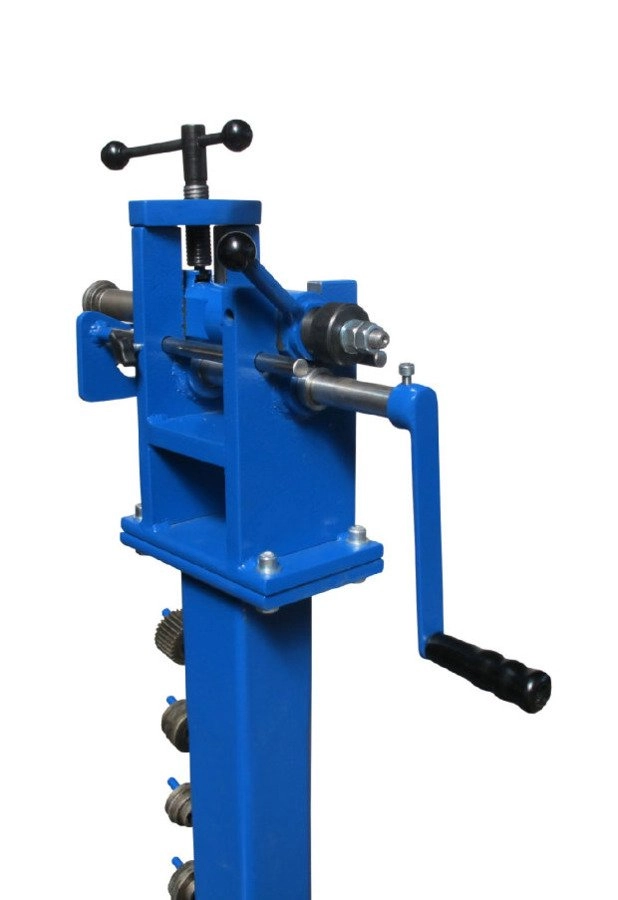

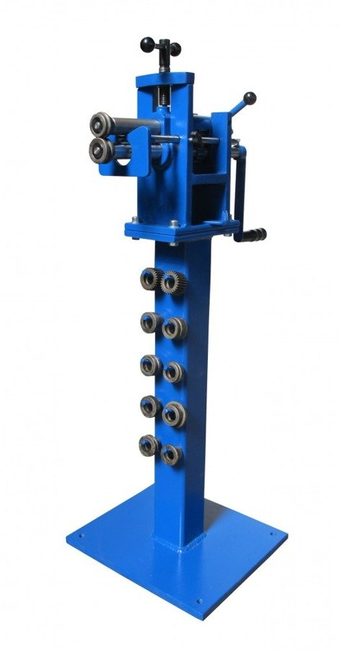

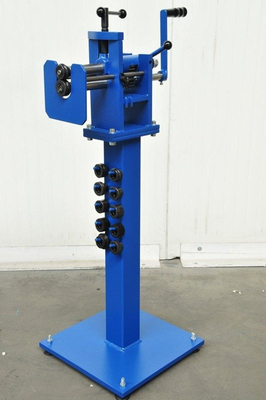

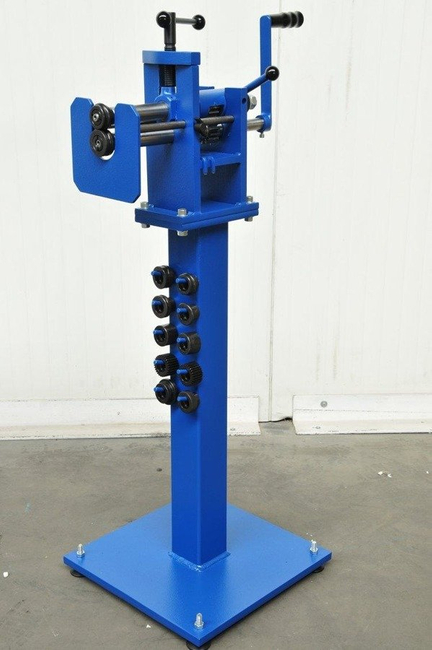

We also make gouging machines with a stand. The cost of the stand is an additional £498 Gross .
