MAAD ZW-1300/1.5 SHEET METAL ROLLING MACHINE MAAD ZW-1300 /1.5mm

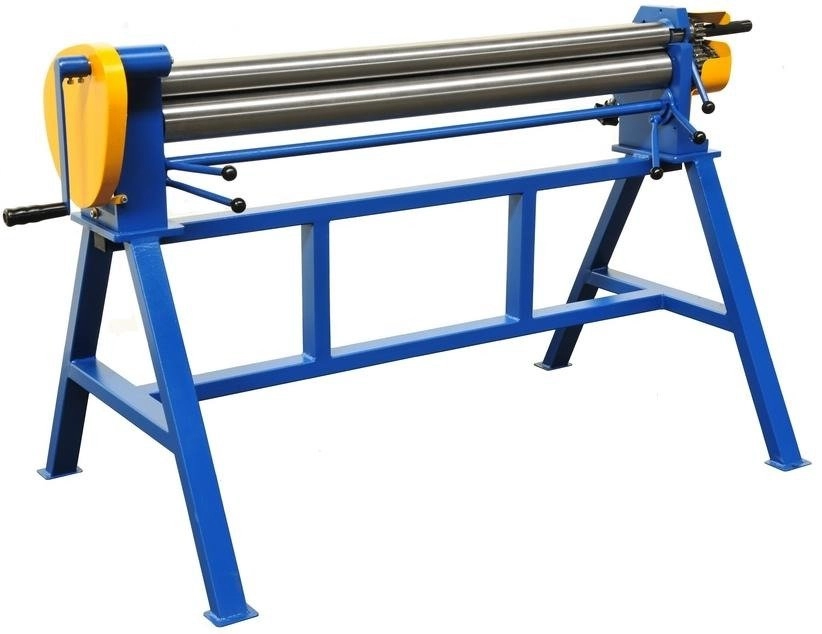

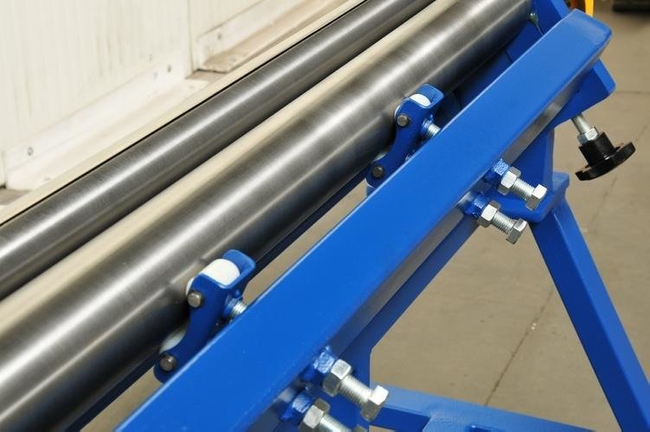

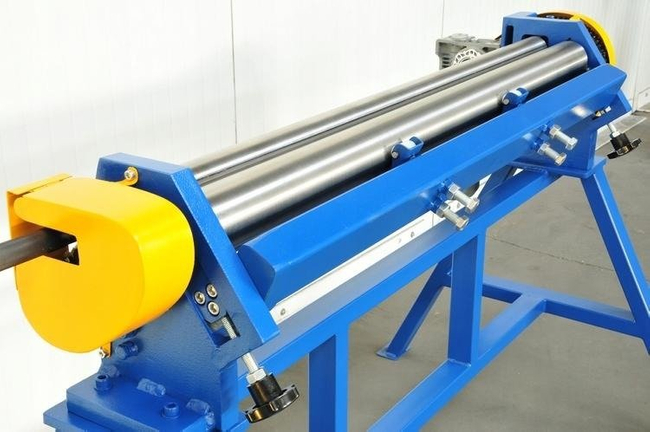

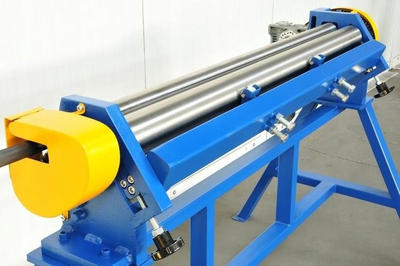

The main working elements of the coiler are 3 shafts. Two of them located in the front part of the machine (upper and lower) perform the function of pulling in the rolled sheet metal. The third, at the back of the device, the so-called loose thanks to the adjustable position gives the right diameter of the sheet to be processed. The loose shaft is supported by two roller carriages mounted on a carriage frame that moves with the shaft during its adjustment. Such a design solution prevents the shaft from deforming during sheet rolling.

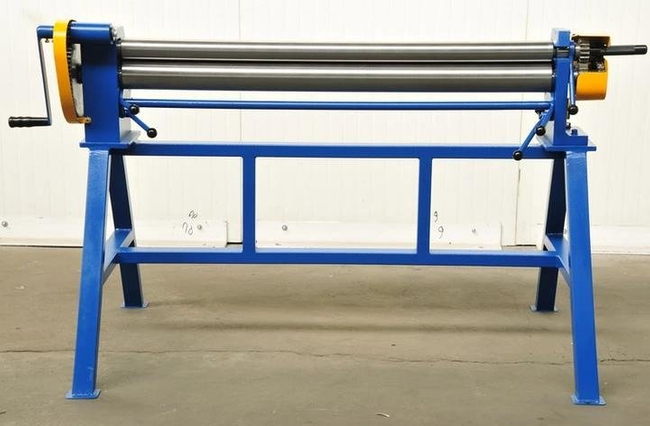

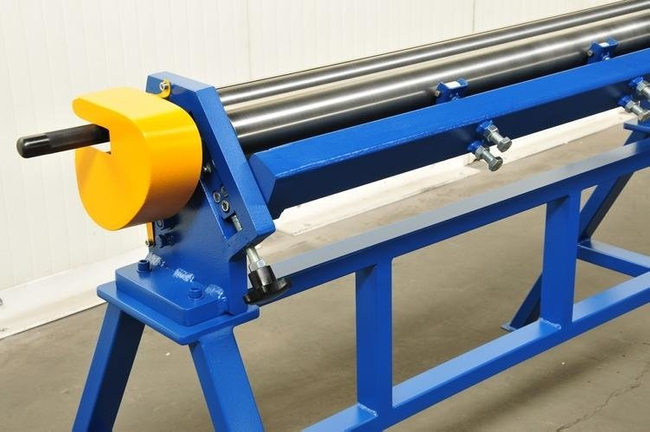

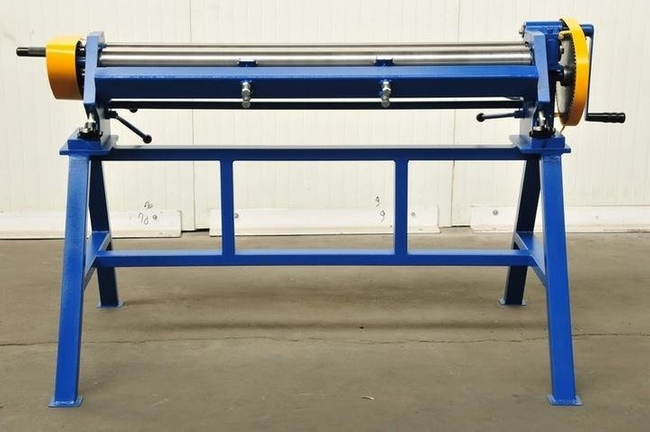

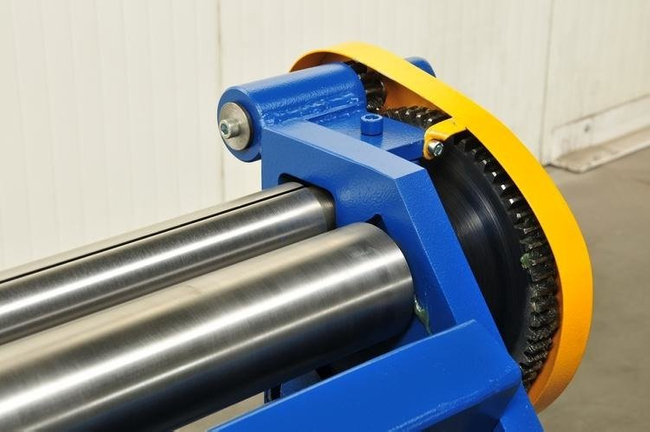

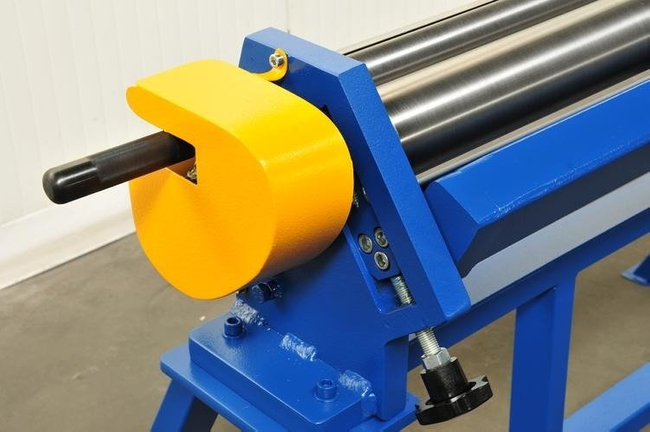

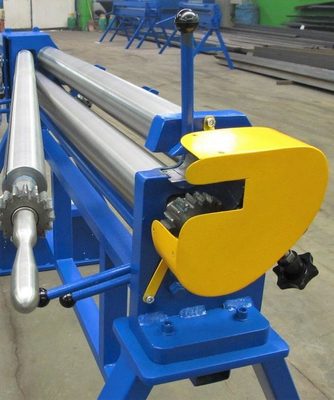

Thanks to the additional milling in the upper shaft, it is possible to make drain pipe locks on the coiler. Detachable top shaft on one side for quick removal of the workpiece. The use of an additional chain transmission in the reel that drives the slack shaft improves the performance during reeling.

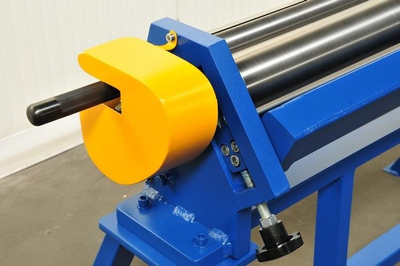

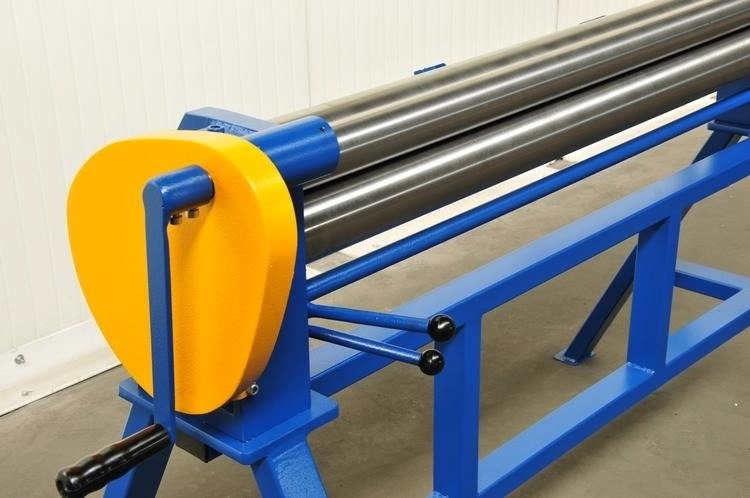

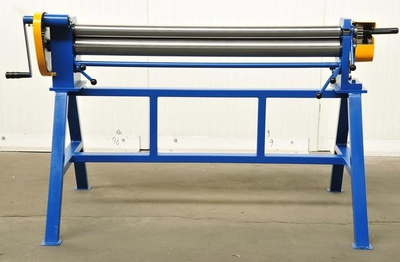

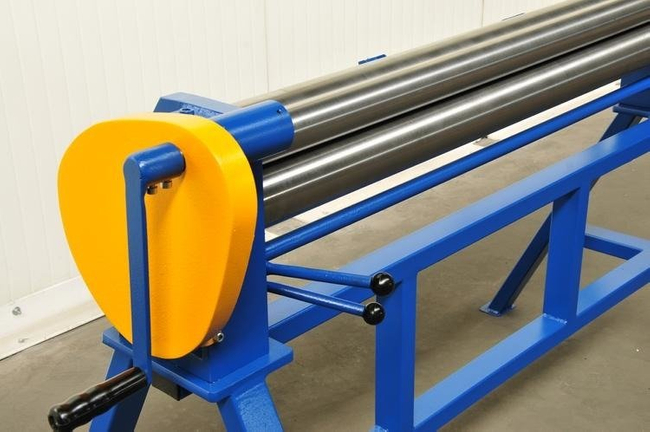

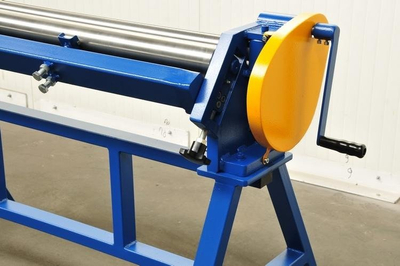

The reel shafts are driven by a helical gearbox manually using a crank handle.

Technical parameters:

• Max. sheet thickness: 1.5 mm for Rm < 400 MPa
• Maximum sheet width: 1,300 mm
• Diameter of working shafts: 1 x 65 mm, 2 x 90 mm
• Minimum diameter of rolled sheet: 100 mm
• Maximum diameter of rolled sheet: 1000 mm
• Weight: 260 kg
• Upper removable shaft with milled groove.

Machine dimensions:

• height - 1,100 mm
• width - 1,800 mm
• depth - 700 mm

Components of the coiler are made on precision CNC machine tools.

The machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.
