MAAD ZW-1300/0.8 SHEET METAL ROLLING MACHINE MAAD ZW-1300 /0.8mm

ROLLING MILL SHEET METAL ROLLERS

MAAD ZW-1300/0.8

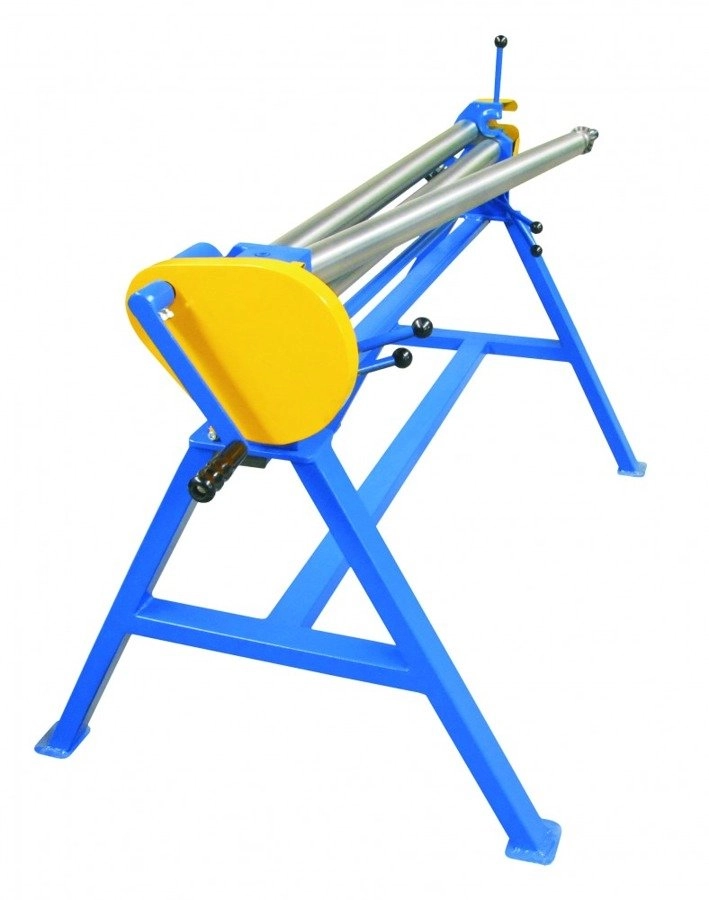

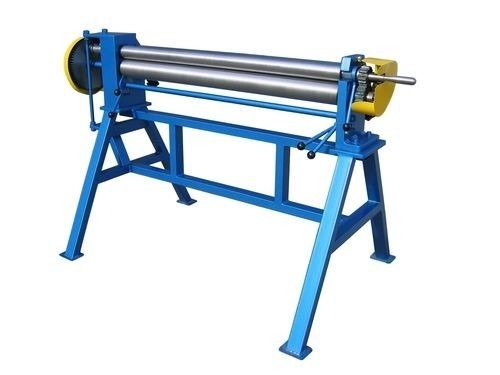

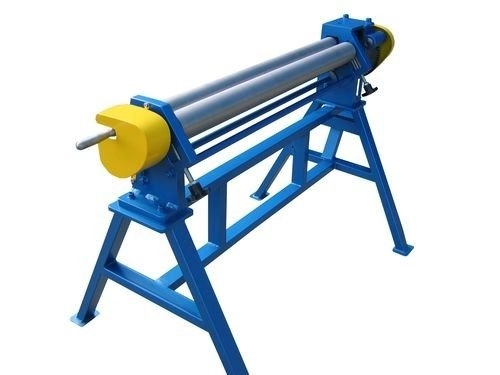

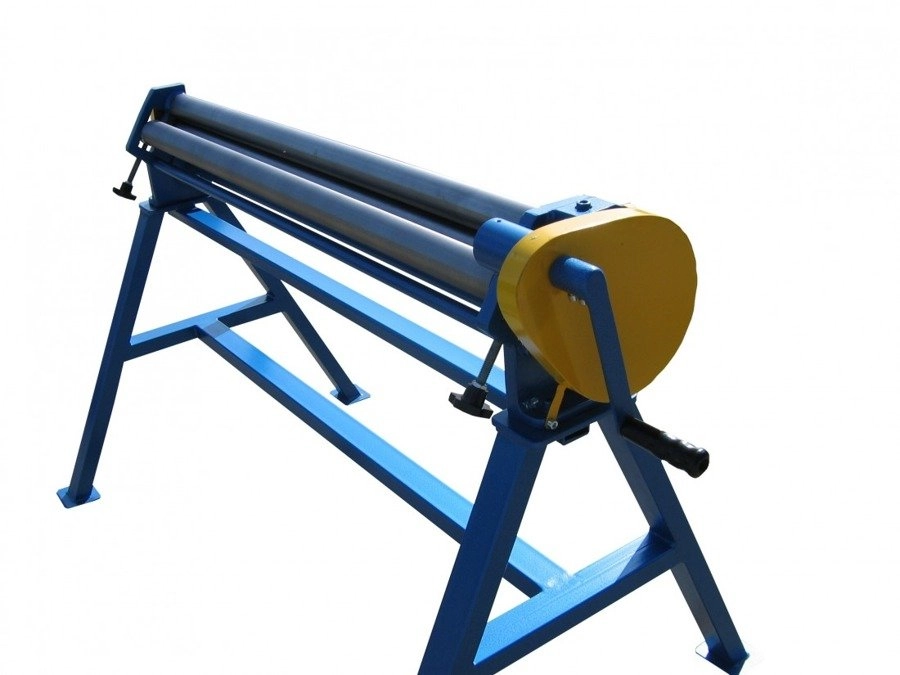

MAAD ZW-1300/0.8 machine ideally suited for roofing flashings such as roof gutters and downpipes. Thanks to the use of proven and durable technical solutions, the machine can be used for many years without breakdowns.

Coiling machine ZW-1300/0.8 is a machine used for coiling, winding cylindrical tubes, low convergence conical tubes, gutters and all kinds of metal sheets up to 0.80 mm thickness and tensile strength Rm to 400 MPa.

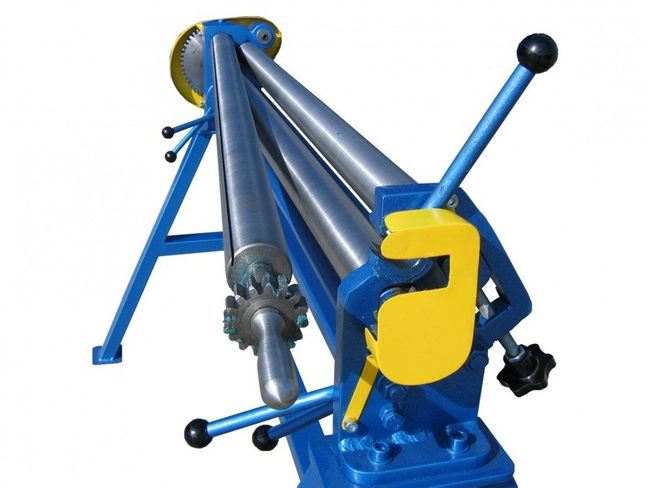

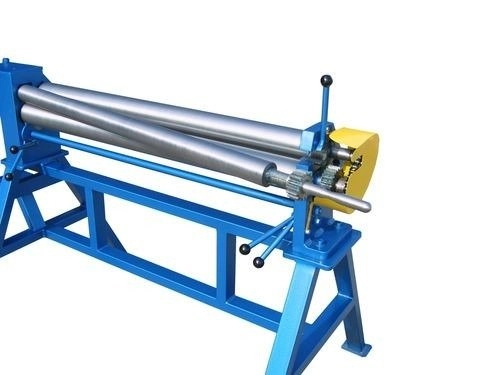

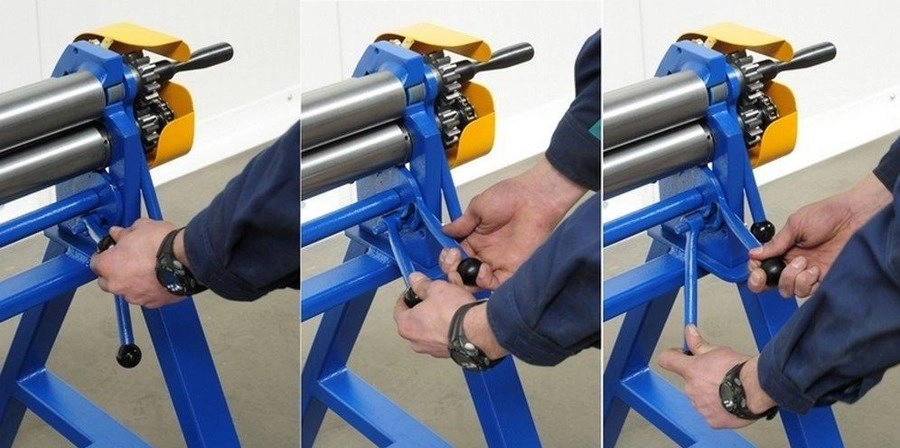

The main working elements of the coiler are 3 shafts. Two of them located in the front part of the machine (upper and lower) perform the function of pulling in the rolled sheet metal. The third, at the back of the device, the so-called loose thanks to the adjustment of the position gives the appropriate diameter of the sheet to be processed.

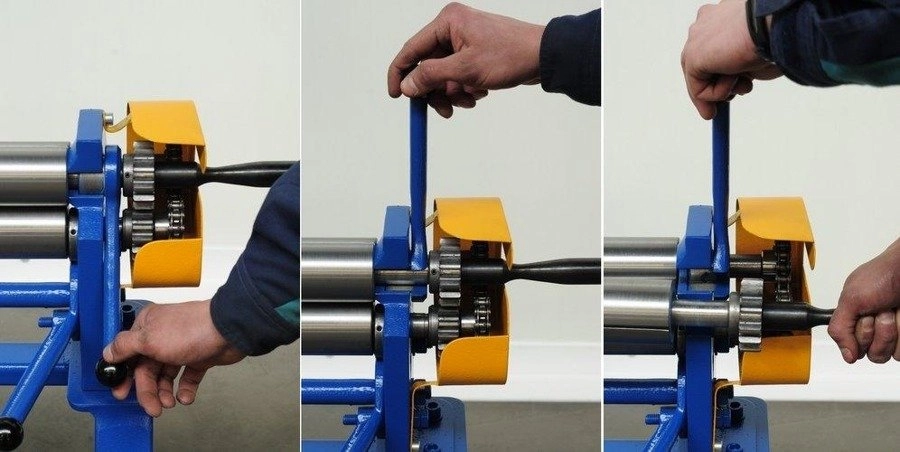

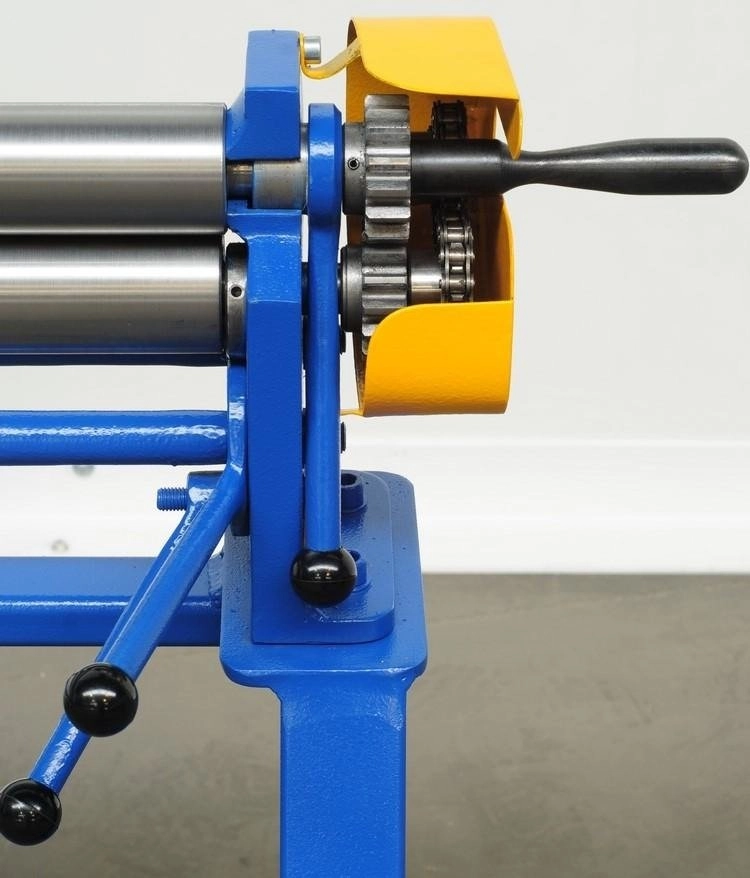

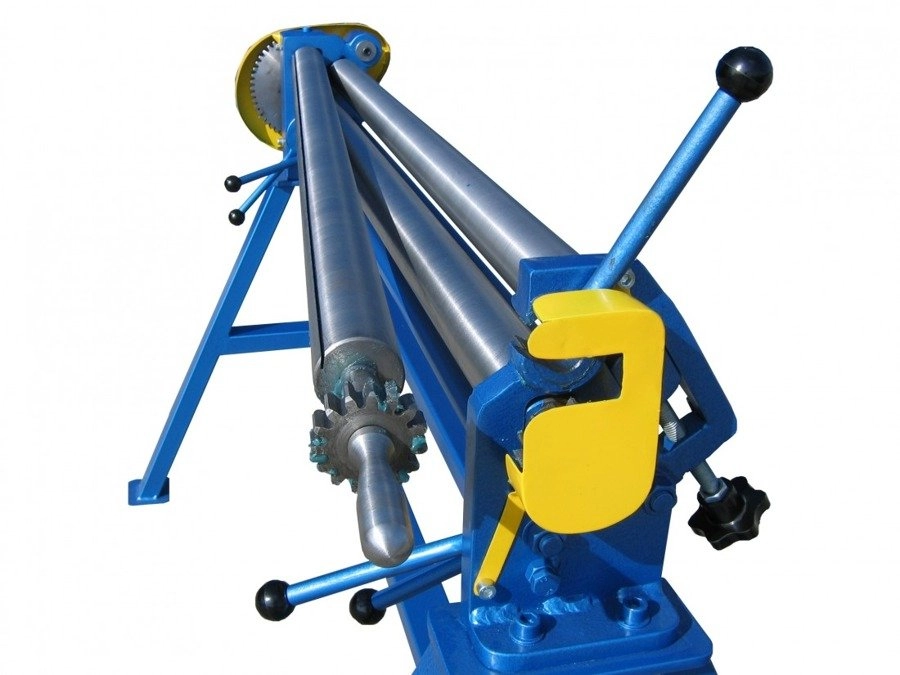

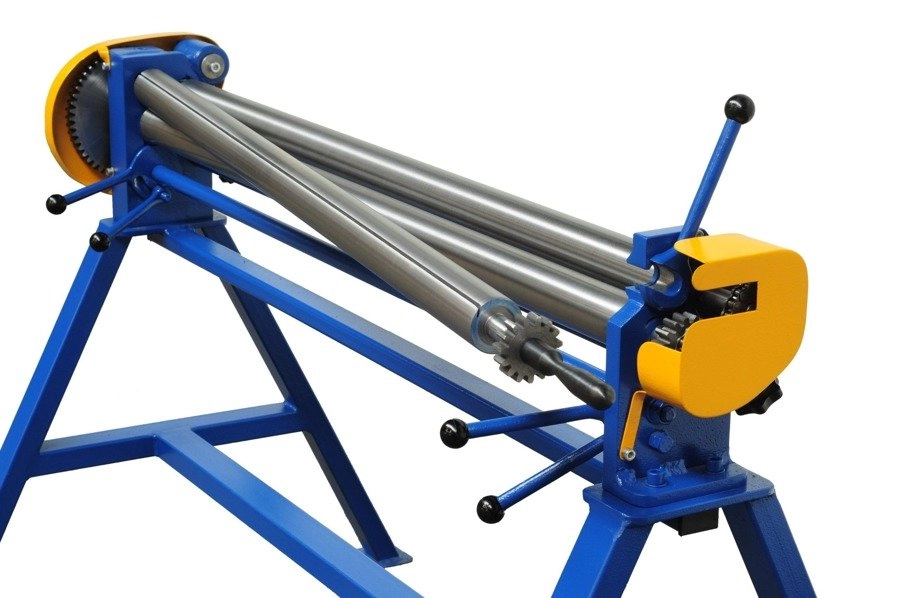

Thanks to the additional milling in the upper shaft, it is possible to make drain pipe locks on the coiler. Detachable top shaft on one side for quick removal of the workpiece. The use of an additional chain transmission in the reel that drives the slack shaft improves the performance during reeling.

Technical parameters:

• Max. sheet thickness: 0.8 mm for Rm < 400 MPa
• Maximum sheet width: 1,250 mm
• Diameter of working shafts: 3 x 60 mm
• Minimum diameter of the rolled sheet: 80 mm
• Maximum diameter of rolled sheet: 750 mm
• Weight: 130 kg
• Upper removable shaft with milled groove.

Machine dimensions:

• height - 1,100 mm
• width - 1,800 mm
• depth - 700 mm

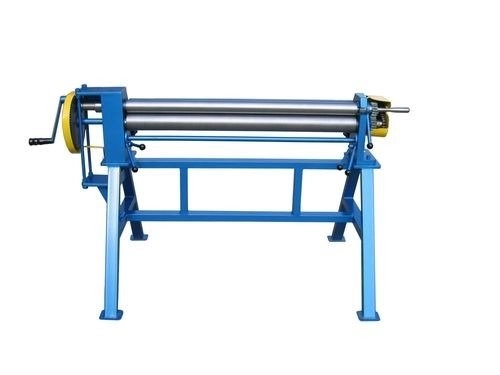

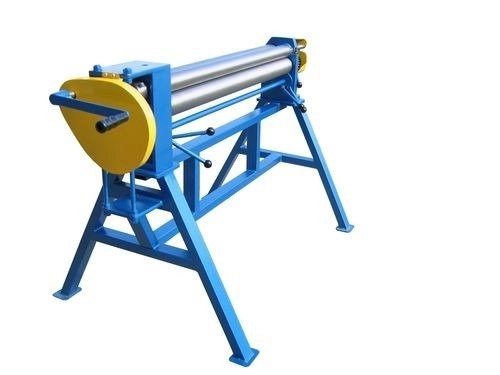

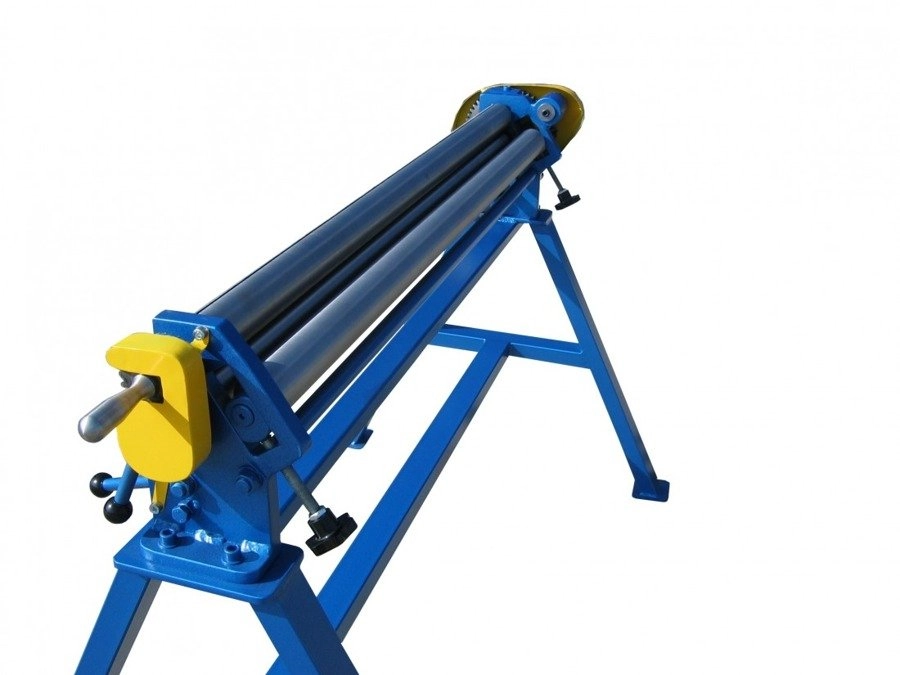

The reel shafts are driven by a helical gearbox manually using a crank handle.

Components of the coiler are made on precision CNC machine tools.

The coiler is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.
