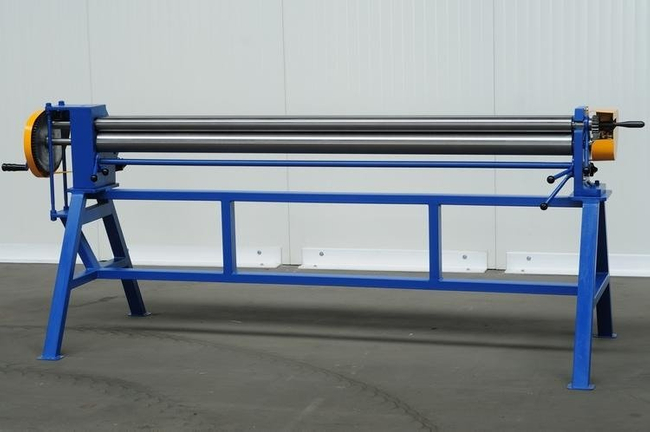

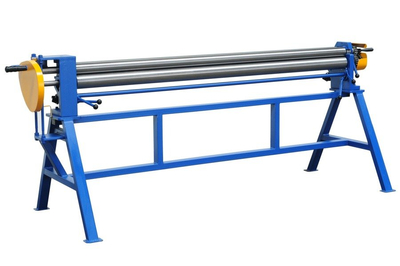

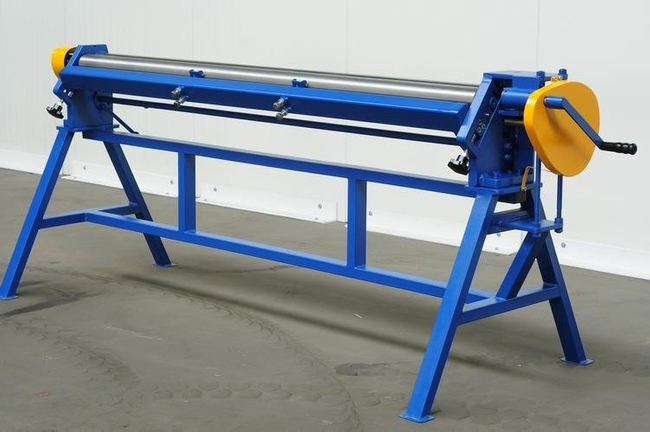

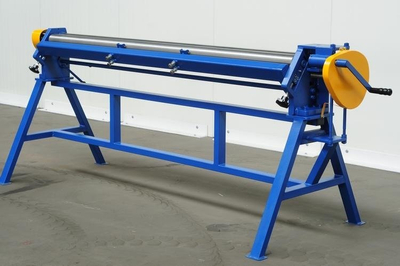

MAAD ZW-2000/0.6 ROLLING MACHINE SHEET METAL ROLLING MACHINE MAAD ZW-2000/0.6mm
- MAAD ZW-2000/0.6 WINNER ideally suited for roofing flashings such as roof gutters and downpipes. Thanks to the use of proven and durable technical solutions, the machine can be used for many years without breakdowns.
ROLLING MILL SHEET METAL ROLLERS
MAAD ZW-2000/0.6mm
Coiling machine ZW-2000/0.6 is a machine used for coiling, winding cylindrical tubes, low convergence conical tubes, gutters and all kinds of metal sheets up to 0.60 mm thickness and tensile strength Rm to 400 MPa.
The main working elements of the coiler are 3 shafts. Two of them located in the front part of the machine (upper and lower) perform the function of pulling in the rolled sheet metal. The third, at the back of the device, the so-called loose thanks to the adjustment of the position gives the appropriate diameter of the sheet to be processed. The loose shaft is supported by two roller carriages mounted on a carriage frame that moves with the shaft during its adjustment. Such a design solution prevents the shaft from deforming during sheet rolling.

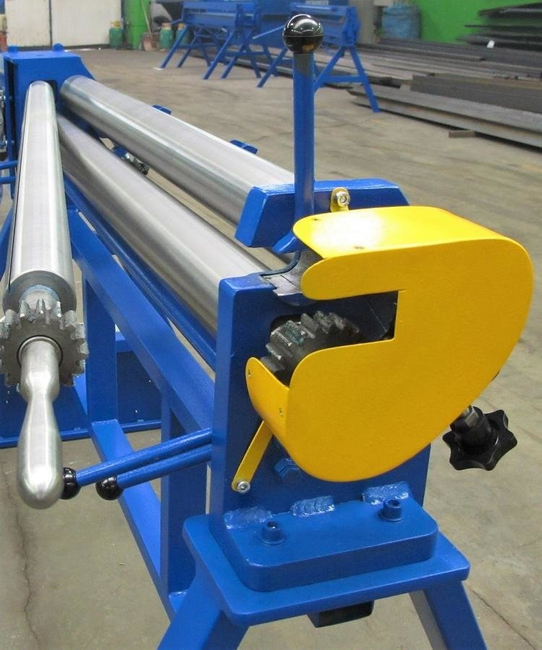

Thanks to the additional milling in the upper shaft, it is possible to make drain pipe locks on the coiler. Detachable top shaft on one side for quick removal of the workpiece. The use of an additional chain transmission in the reel that drives the slack shaft improves the performance during reeling.

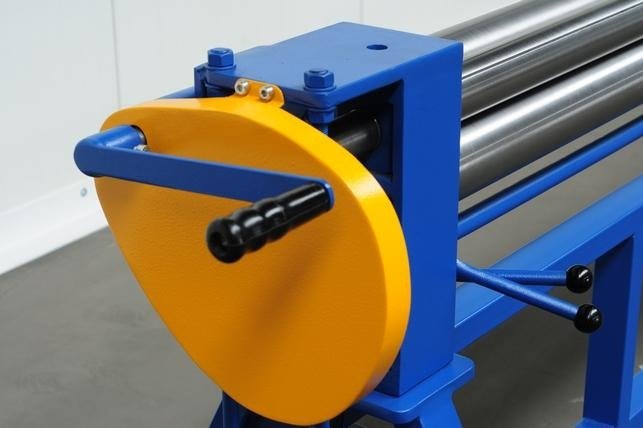

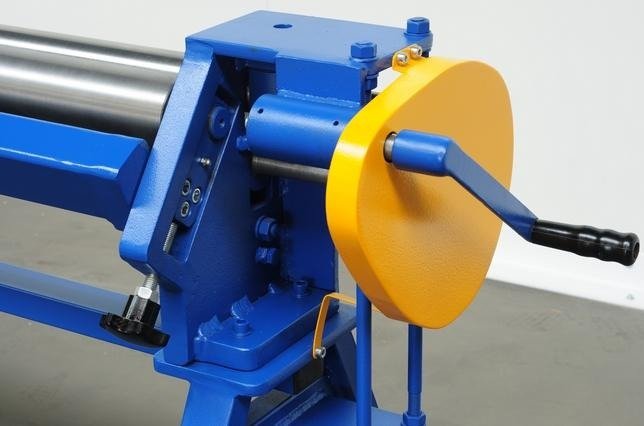

The reel shafts are driven by a helical gearbox manually using a crank handle.
Technical parameters:
- Max. sheet thickness: 0.6 mm for Rm < 400 MPa
- Maximum sheet width: 2,050 mm
- Diameter of working shafts: 1 x 65 mm, 2 x 90 mm
- Minimum diameter of rolled sheet: 100 mm
- Maximum diameter of rolled sheet: 1000 mm
- Weight: 440 kg
Machine dimensions:
- height - 1,100 mm
- width - 2,550 mm
- depth - 700 mm
Upper removable shaft with milled groove.

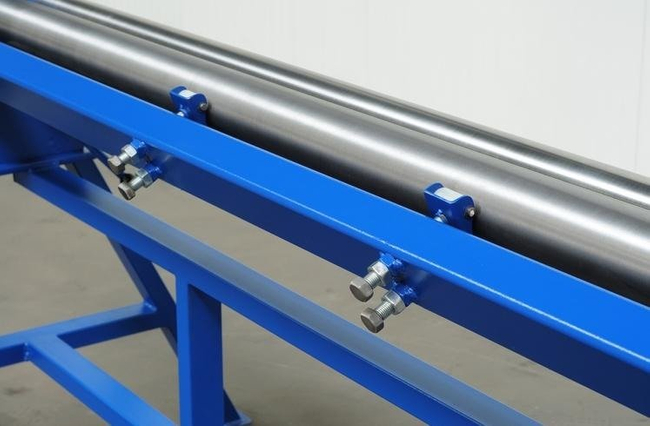

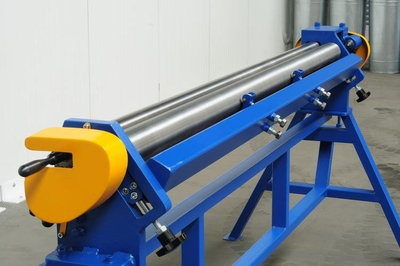

Additional support for the rear shaft - gutters and pipes perfectly straight!
Components of the coiler are made on precision CNC machine tools.
The machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.
