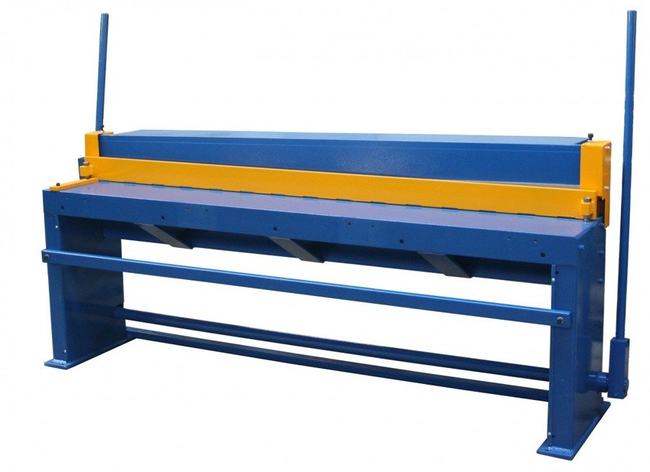

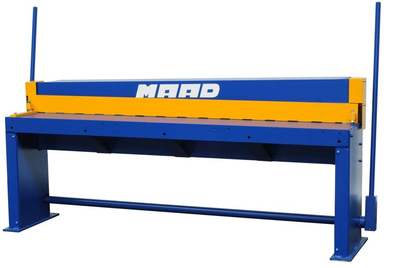

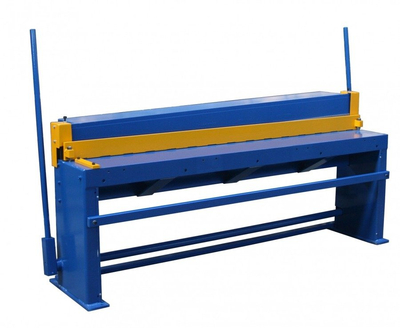

MAAD NGR-2000/1.25 sheet metal guillotine cutter MAAD NGR-2000/1.25 mm

GUILLOTINE SHEARS SHEET METAL GUILLOTINE

MAAD NGR-2000/1.25 mm

MAAD NGR-2000/1.25 manual guillotine shears are designed mainly for workshop work. Massive design of the guillotine ensures long and trouble-free operation.
The machine is equipped with a rear cutting length stop, right angle gauge and sheet metal supports which are mounted on the front of the guillotine. Operation of the machine is two-person.

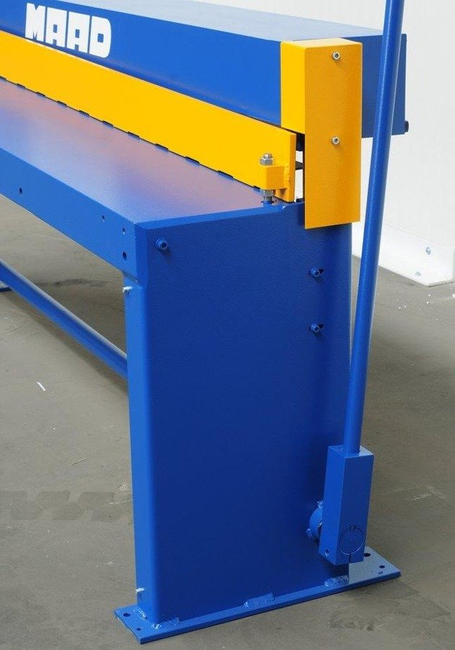

Guillotine shears NGR-2000/1.25 are designed mainly for workshop work. They are used for cutting thin metal sheets up to 1.25 mm thickness and tensile strength Rm up to 400 MPa. Massive machine design ensures long and trouble-free operation. The machine is equipped with two operating handles.

Technical parameters:

• max thickness of cut sheet metal
• steel: 1.25 mm
• aluminum: 1.50 mm
• copper: 1.40 mm
• titanium-zinc: 1.40 mm
• working width: 2080 mm
• type of blades: segmented double-sided
• height - 1250 mm
• width - 2440 mm
• depth - 990 mm
• weight - 480 kg

CE declaration of conformity

Technical and Operating Documentation

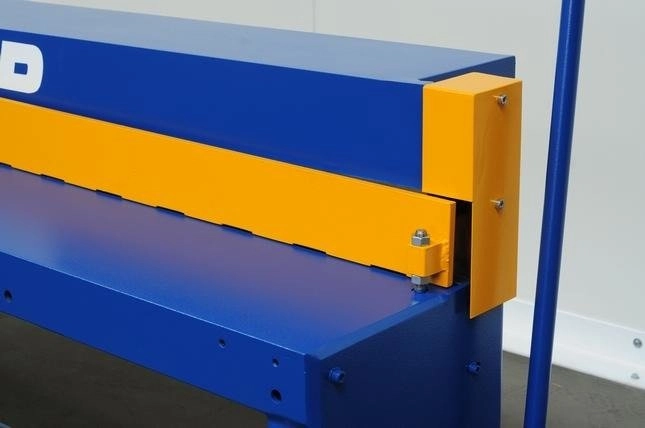

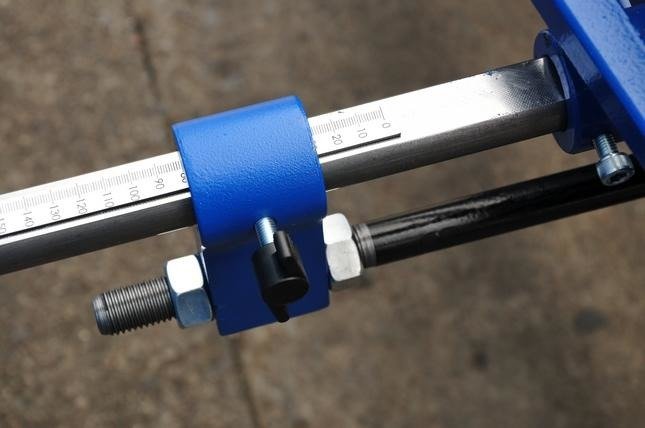

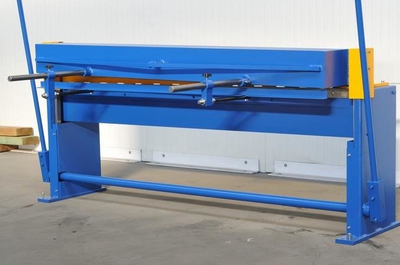

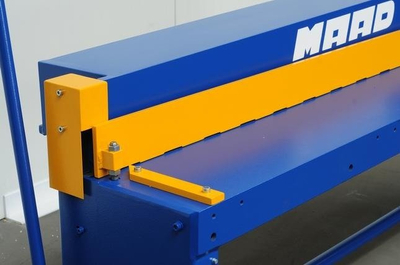

Guillotine shears are equipped with rear cutting length stops with an overhang of 500 mm with a scale. Covering the working space at the front of the shear is a pressure bar.

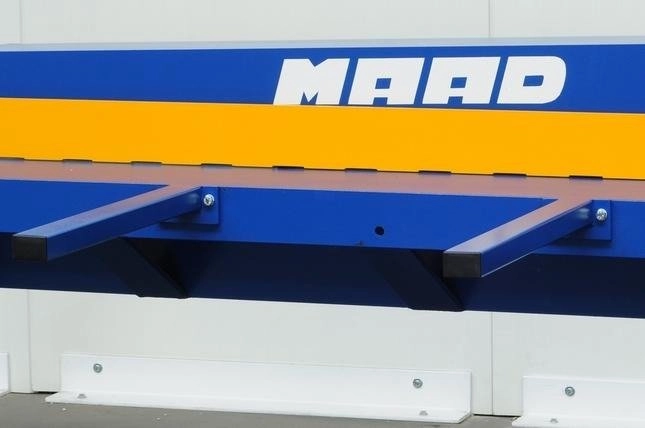

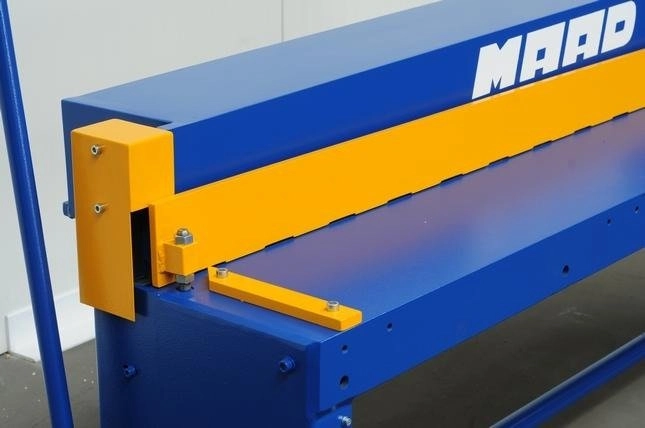

It also comes with a right angle gauge and profiles on the front of the shears to support the sheet metal and extend the machine's work table.

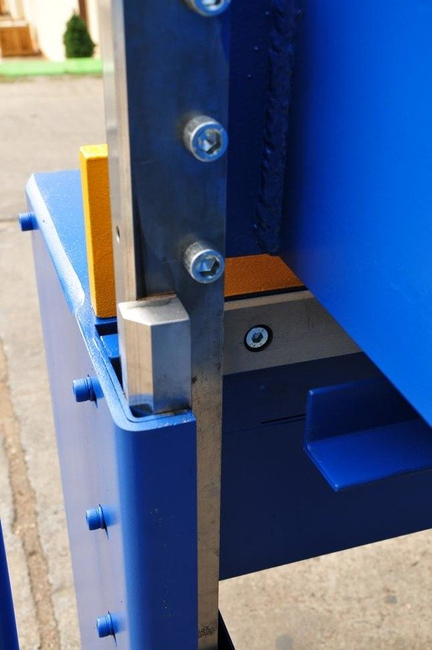

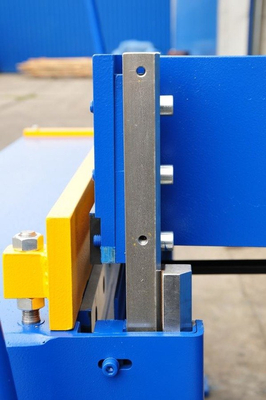

The shears have a functional and reliable drive mechanism for the upper cutting bar and a simple adjustment of the positioning of the upper and lower knife segments in relation to each other.

Guillotine components are made on precision CNC machine tools.

The machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.
