MAAD ZG-3000 /0.7mm sheet metal bending and cutting machine

  • Bending machine with a working width of 3150 mm for steel sheets up to 0.7 mm thick.

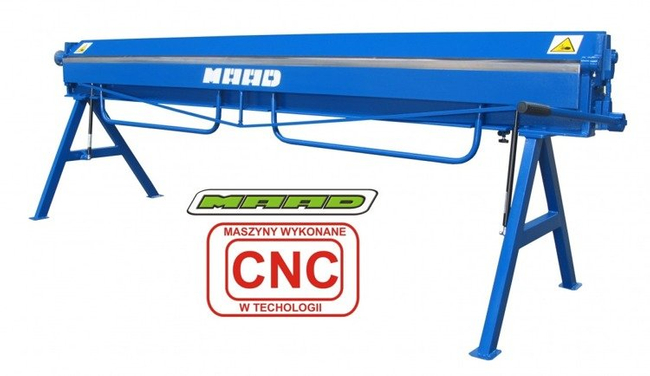

  • Machine made with CNC technology
List price2 343,79 €
2 343,79 €(Discount 10%)
2 108,94 €
incl. VAT / pcs.
Lowest price in 30 days before discount:
Express checkout 1-Click(without registration)
Product Available
Product Available
14 days to return
Find out in which store you can check the product and buy it right away
MAAD ZG-3000 /0.7mm sheet metal bending and cutting machine
MAAD ZG-3000 /0.7mm sheet metal bending and cutting machine
Safe shopping
Average 4.7 on Opineo see
Free returns
Authorized distributor internet, see
Guarantee of reliability and timeliness
BENDING MACHINE ROOFING SHEET METAL BENDING MACHINE WITH CUTTING MAAD ZG-3000 /0.7mm
ZG-3000/0.7 bending machine is a machine with a compact design, easy to operate. Suitable cross-sections of working beams and massive bodies of the machine sides allow bending of steel sheets up to 0.7 mm thick at the length of 3 meters without deformation of working elements. ZG-3000/0.7 was recognized as the best 3-meter bending machine on the Polish market.

Technical parameters/equipment:

  • - working width - 3140 mm
  • - max. thickness of the bent sheet - 0.7 mm ( for Rm<400MPa )
  • - width of the bending beam - 25 mm
  • - maximum bending angle - 135 degrees
  • - weight of the machine - 470 kg

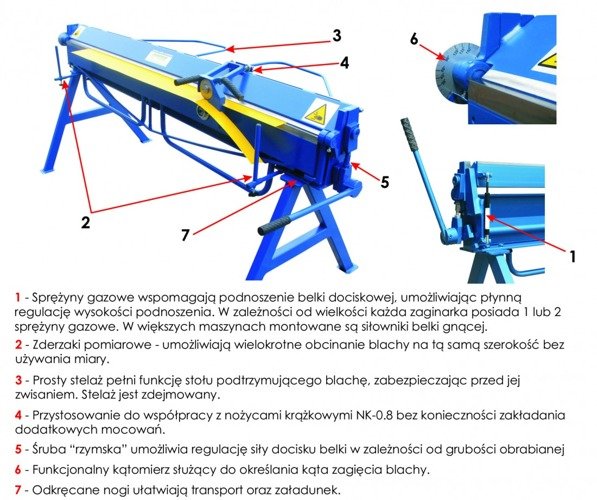

  • - detachable legs - makes transportation and loading much easier

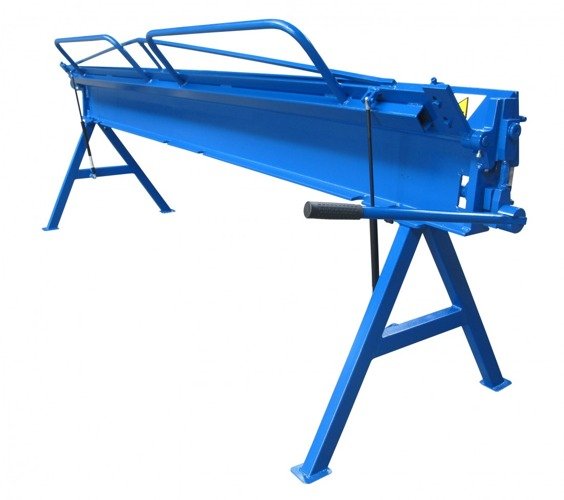

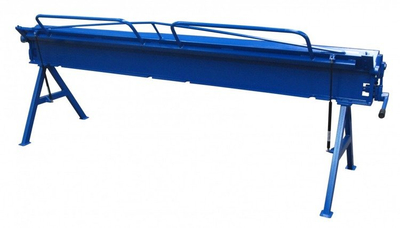

  • - rack worn on the back of the machine to support sheet metal
  • - gauges for cutting sheet metal
  • - protractor as standard equipment
  • - two gas cylinders to assist in lifting the pressure beam
  • - two gas cylinders to assist in lifting the bending beam

Machine dimensions:

  • height - 1,065 mm
  • width - 3,410 mm
  • depth - 930 mm

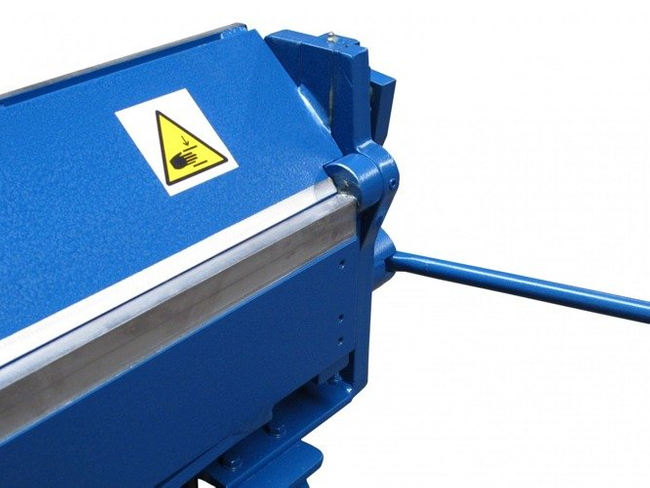

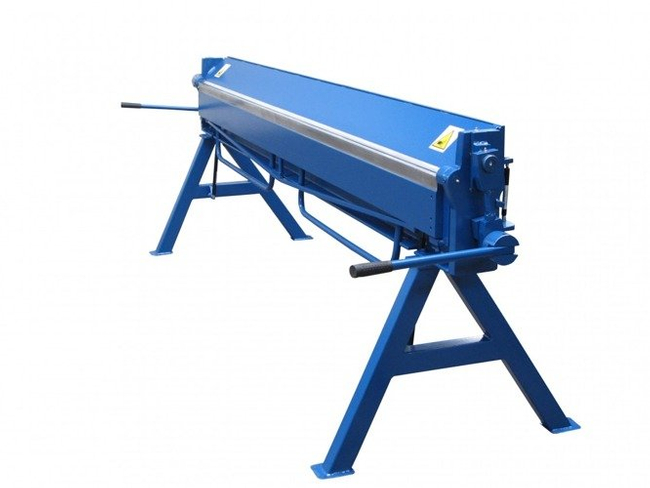

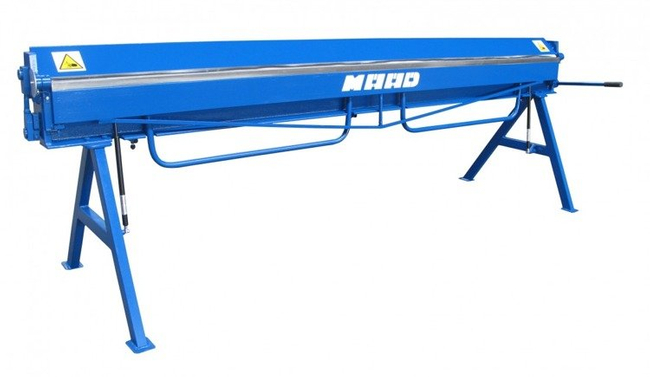

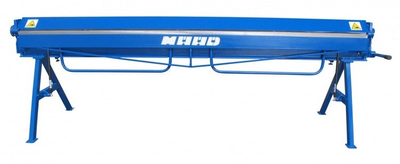

The main working elements of the bending machine are the beams: fixed, clamping and bending beams.

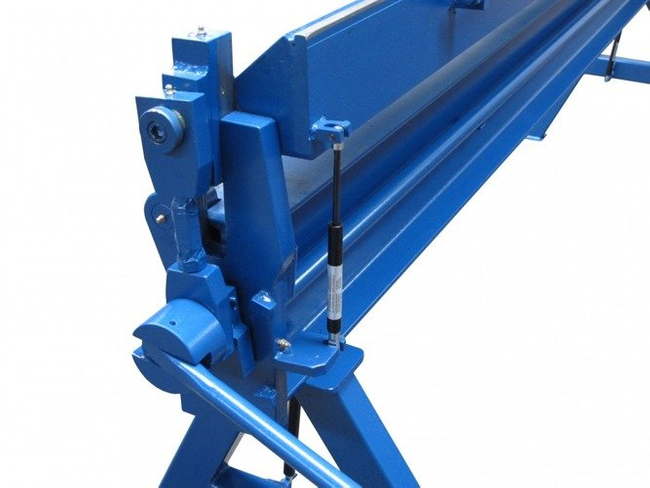

The pressure beam is a movable beam used to fix the sheet in the desired position. It is raised and lowered by a lever. Two gas cylinders assist in lifting the pressure bar. The pressure beam is designed so that its upper part is a guide for the roller shears.

The bending operation is carried out by rotating the bending beam by a certain angular value using a handle. Two gas cylinders assist in lifting the bending bar. Angle gauge mounted on the left side of the bending machine when viewed from the front indicates the current angle of the sheet metal bend.

The bending beam has an adjustable position in relation to the fixed beam. This parameter affects the bending radius of the sheet and its size also depends on the thickness of the sheet to be bent.

Working beams are equipped with turnbuckles for setting the straightness of the working edges.

Bending machine components are made on precision CNC machine tools.

The bending machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.

Brand:
Symbol:
ZAGINARKA GIĘTARKA KRAWĘDZIARKA DEKARSKA DO B
Producer code:
ZG-3000/0.7
WARRANTY 12/24 Months

WARUNKI GWARANCJI I SERWISU

  • Towary zakupione w naszym sklepie są nowe i oryginalne oraz objęte są pełną gwarancją producenta lub importera.

  • W przypadku reklamacji, należy zgłosić usterkę do Sprzedawcy lub Autoryzowanego Punktu Serwisowego producenta danego urządzenia. Jeśli uszkodzony produkt objęty jest gwarancją typu „door to door” należy postępować zgodnie z procedurą podaną w karcie gwarancyjnej.
  • Okres gwarancji wynosi 12 miesięcy dla firm lub 24 miesiące dla osób prywatnych.
